product image
GIGABYTE

GIGABYTE - Radeon RX 9060 XT GAMING 8G GDDR6 PCI Express 5.0 Graphics Card - Black

Model: GV-R9060XTGAMING-8GD
SKU: 6634945
This item is no longer available in new condition. See similar items below
  • Key Specs
    • GPU Base Clock Frequency: 3.13 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
    • GPU Boost Clock Frequency: 3.13 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
    • DisplayPort Ports: 2 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
    • HDMI Ports: 2 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
    • Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
    • Maximum Number of Displays Supported: 4
    • Advanced Graphics Rendering Technique(s): Ray tracing (Imaging technology designed to improve graphics rendering.)
    • GPU Video Memory (RAM): 8 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
    • GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
    • Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
    • PCI Express Version: PCI Express 5.0
    • Product Height: 40 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 118 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Length: 281 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
    • Graphics Processing Unit (GPU): AMD Radeon RX 9060 XT (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
  • General
    • Brand: GIGABYTE
    • Model Number: GV-R9060XTGAMING-8GD
    • Product Name: GIGABYTE - Radeon RX 9060 XT GAMING 8G GDDR6 PCI Express 5.0 Graphics Card
    • Color: Black
    • GPU Chipset Manufacturer: AMD
    • Graphics Processing Unit (GPU): AMD Radeon RX 9060 XT (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
    • Year of Release: 2025
  • Performance
    • GPU Base Clock Frequency: 3.13 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
    • GPU Boost Clock Frequency: 3.13 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
    • Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
  • Connectivity
    • DisplayPort Ports: 2 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
    • HDMI Ports: 2 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
  • Display
    • Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
    • Maximum Number of Displays Supported: 4
    • Advanced Graphics Rendering Technique(s): Ray tracing (Imaging technology designed to improve graphics rendering.)
  • Memory
    • GPU Video Memory (RAM): 8 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
    • GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
    • GPU Video Memory Base Clock Frequency (RAM): 2 gigahertz
  • Compatibility
    • Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
    • PCI Express Version: PCI Express 5.0
    • Operating System Compatibility: Windows
  • Power
    • Total Graphics Power: 217 watts
    • Recommended Power Supply: 450 watts
  • Dimensions
    • Product Height: 40 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 118 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Length: 281 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
    • Product Weight: 1.85 pounds (The out of box weight of the item.)
  • Warranty
    • Warranty - Parts: 3 years
    • Warranty - Labor: 3 years
  • Other
    • UPC: 889523050163

The most advanced GPU for gamers is here - the GIGABYTE Radeon RX 9060 XT GAMING 8G Graphics Cards. Experience unprecedented performance, visuals, and power efficiency at 4K and beyond with AMD Radeon RX 9060 XT Series graphics cards, the world's first gaming GPUs powered by AMD RDNA 4 technology.

  • Graphics Processing Unit (GPU)/Clock Speed: Powered by Radeon RX 9060 XT.
  • Video Memory: 8GB GDDR6.
  • Interface Compatibility: PCI Express 5.0.
  • AMD Radeon Technology: RDNA 4 architecture.
  • HDMI And Display Port Outputs: HDMI x 2, DP x 2.
  • Series: AMD RDNA 4 architecture RX 90-Series.

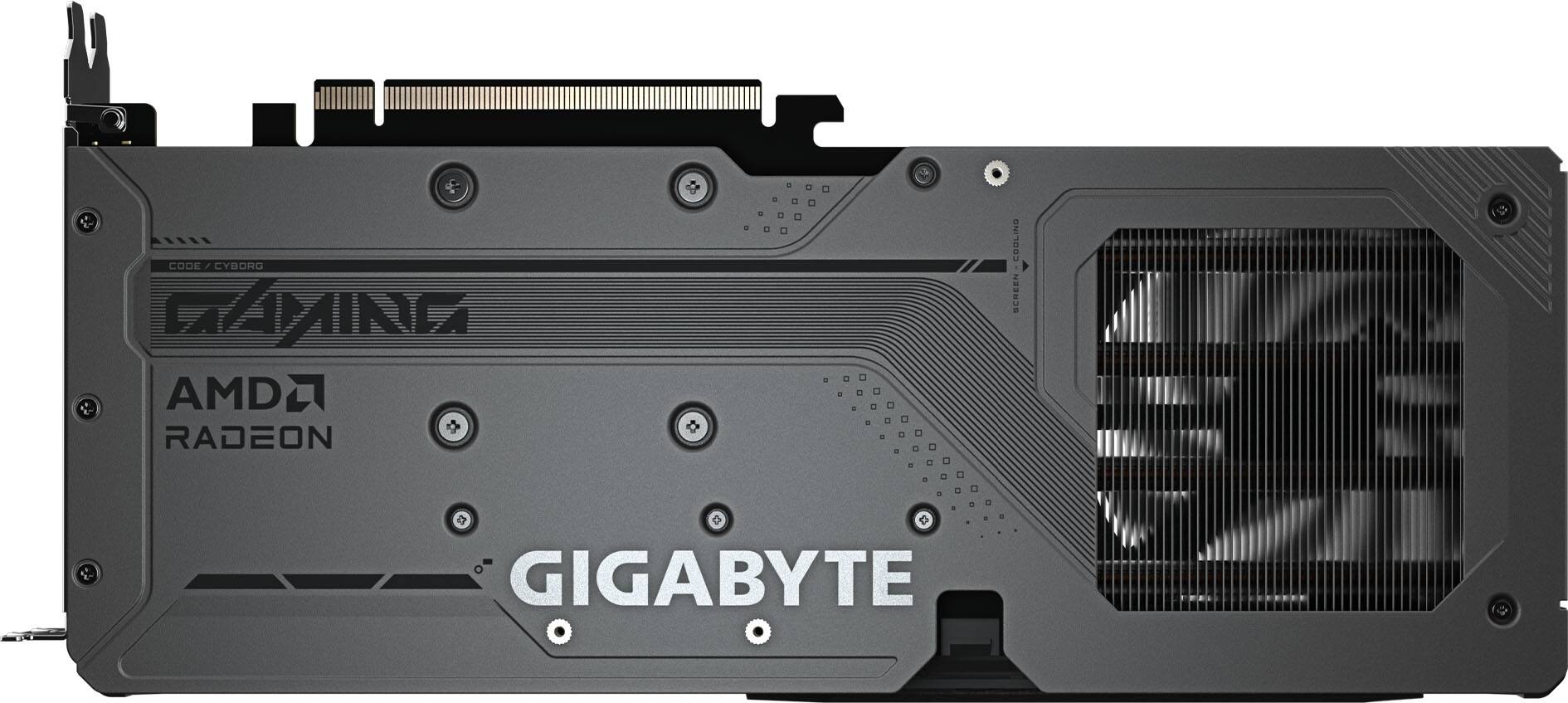

  • 2-Slot Design: Protective metal back plate.
  • Thermal Solution: Features server-grade thermal conductive gel, innovative Hawk fans with alternative spinning 3D active fans.
  • Power Indicator: When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
  • RGB Lighting: With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE Control Center.
  • Dual BIOS: The factory default setting is Performance mode, which provides users with the best performance. Switching to Silent mode allows a more quieter experience.
Whats Included
  • Radeon RX 9060 XT GAMING 8G GDDR6 PCI Express 5.0 Graphics Card
  • User Manual Quick Guide

Q: Does this graphics card have RGB lighting?

A: Yes, this graphics card has customizable RGB lighting.

Q: What is the boost clock frequency of the GPU?

A: The GPU boost clock frequency is 3.13 gigahertz.

Q: How many displays can this graphics card support?

A: This graphics card can support a maximum of four displays.

Q: How many HDMI ports does this graphics card have?

A: This graphics card has two HDMI ports.

Q: What kind of memory does this graphics card have?

A: This graphics card has 8GB of GDDR6 video memory.

Q: Does this graphics card have dual BIOS?

A: Yes, this graphics card has dual BIOS.

Q: What is the recommended power supply for this graphics card?

A: The recommended power supply for this graphics card is 450 watts.
