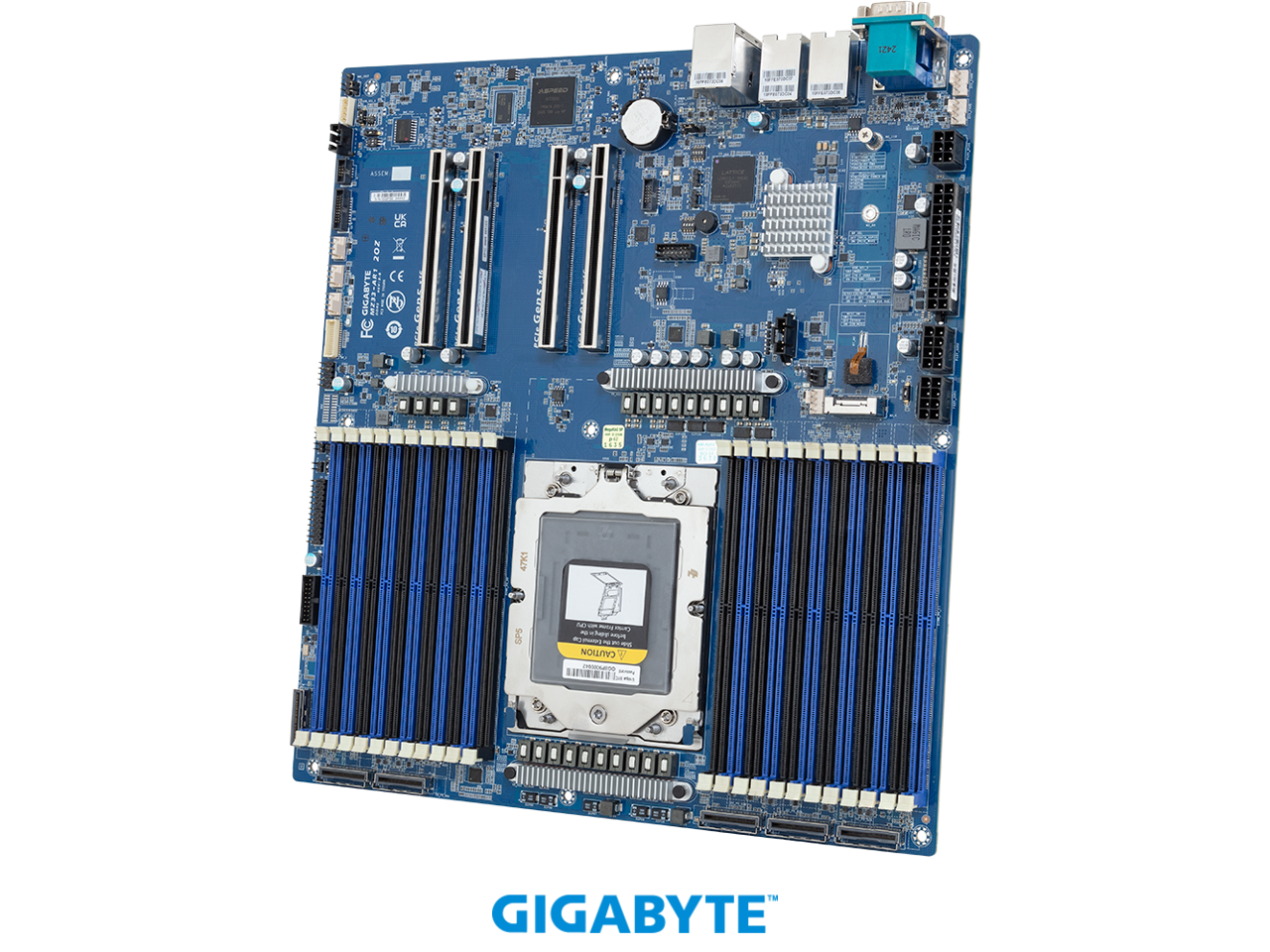

GIGABYTE - Technology MZ33AR1 E-ATX Server Motherboard for AMD EPYC 9005/9004
Related Item
Specifications
- ChipsetAMD X570Form FactorEATXProcessor SocketSocket SP5 (LGA 6096)Wireless Networking StandardNo Wi-Fi standardNumber Of Memory Slots24Maximum Memory Supported1024 gigabytes
- Key Specs
- Chipset: AMD X570
- Form Factor: EATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket SP5 (LGA 6096) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: No Wi-Fi standard (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 24
- Maximum Memory Supported: 1024 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: GIGABYTE
- Product Name: Gigabyte Technology MZ33AR1 E-ATX Server Motherboard for AMD EPYC 9005/9004
- Compatibility
- Chipset: AMD X570
- Chipset Compatibility: AMD
- Form Factor: EATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket SP5 (LGA 6096) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD EPYC 9004 Series, AMD EPYC 9005 Series
- Slot
- Number of M.2 Slots: 1 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 4
- Number Of Memory Slots: 24
- Connectivity
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: No Wi-Fi standard (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 2 x USB-A 3.2 (The number and type of USB ports the product has.)
- Number of Audio Channels: 1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 15 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 13 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 6 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 1024 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: RDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 5200 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: None (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Other
- UPC: 889523050668
The Gigabyte Technology MZ33AR1 is an E-ATX server motherboard designed for AMD EPYC 9005/9004 Series processors, offering robust performance and extensive connectivity options. It supports up to 24 DDR5 RDIMM memory modules, providing a 12-channel memory configuration per processor. The motherboard includes 4 PCIe Gen5 x16 expansion slots, multiple MCIO 8i connectors for NVMe and SATA storage, and an M.2 slot with PCIe Gen4 x4 interface. Networking is facilitated by 2 x 10Gb/s LAN ports via Broadcom BCM57416 and 1 x 10/100/1000 Mbps Management LAN. Additional features include a VGA port, COM port, and various internal I/O connectors. The motherboard operates within a temperature range of 10°C to 40°C and a humidity range of 8% to 80% (non-condensing).
- Processor Support: Supports single AMD EPYC 9005/9004 Series processors with a cTDP up to 500W.
- Memory Configuration: Equipped with 24 DIMM slots supporting DDR5 RDIMM memory, offering 12-channel memory per processor.
- Expansion Slots: Features 4 PCIe Gen5 x16 expansion slots for high-speed connectivity.
- Storage Interfaces: Provides multiple MCIO 8i connectors for NVMe and SATA drives, and an M.2 slot with PCIe Gen4 x4 interface.
- Networking Capabilities: Includes 2 x 10Gb/s LAN ports via Broadcom BCM57416 and 1 x 10/100/1000 Mbps Management LAN.
