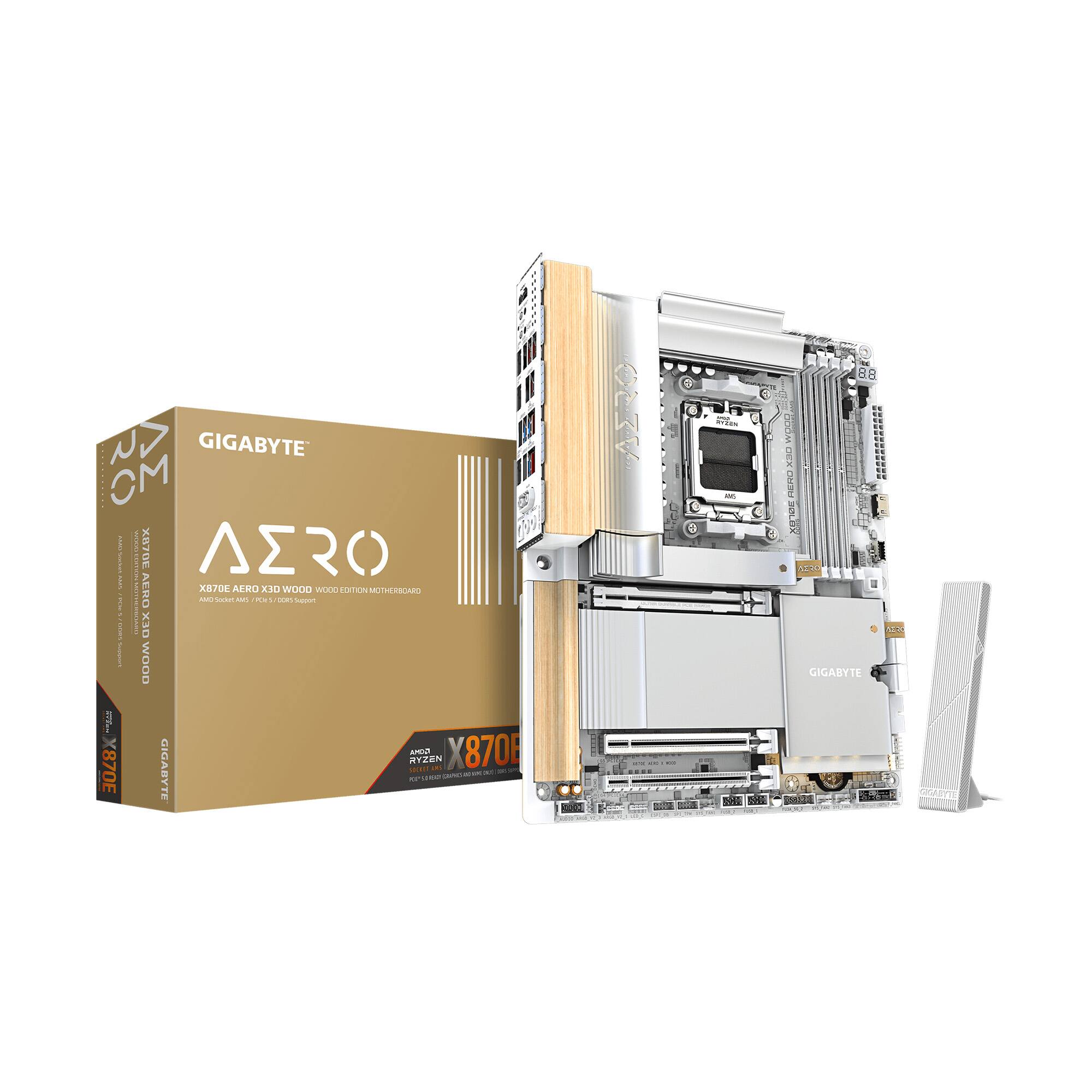

GIGABYTE - X870E AERO X3D WOOD - White
Model: GIGABYTE X870E AERO X3D WOOD
SKU: 12660055
Reviews coming soon
Sold & shipped by
$529.99
or
$44.92/mo.
suggested payments with 12-Month Financing
Show me how
Availability
FREE shipping to
Sold & shipped by
4.19(171)
More Buying Options from Marketplace sellers
New
$539.01 - $594.63
Specifications
- ChipsetAMD X870Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Wireless Networking StandardWi-Fi 7Number Of Memory Slots4Maximum Memory Supported256 gigabytes
- Key Specs
- Chipset: AMD X870
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: GIGABYTE
- Model Number: GIGABYTE X870E AERO X3D WOOD
- Product Name: X870E AERO X3D WOOD
- Color: White
- Year of Release: 2025
- Compatibility
- Chipset: AMD X870
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 9000 Series, AMD Ryzen 9 8000 Series, AMD Ryzen 9 7000 Series
- Operating System Compatibility: Windows 11 Home
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 3
- Number Of Memory Slots: 4
- Connectivity
- Power Connector: 1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors (The configuration of the connector as it connects the motherboard to a power supply unit.)
- SATA Connector: 4 x SATA 6Gb/s connectors (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Fan/Cooling System Connector: 1 x CPU fan header, 1 x CPU fan header, 4 x system fan headers (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports

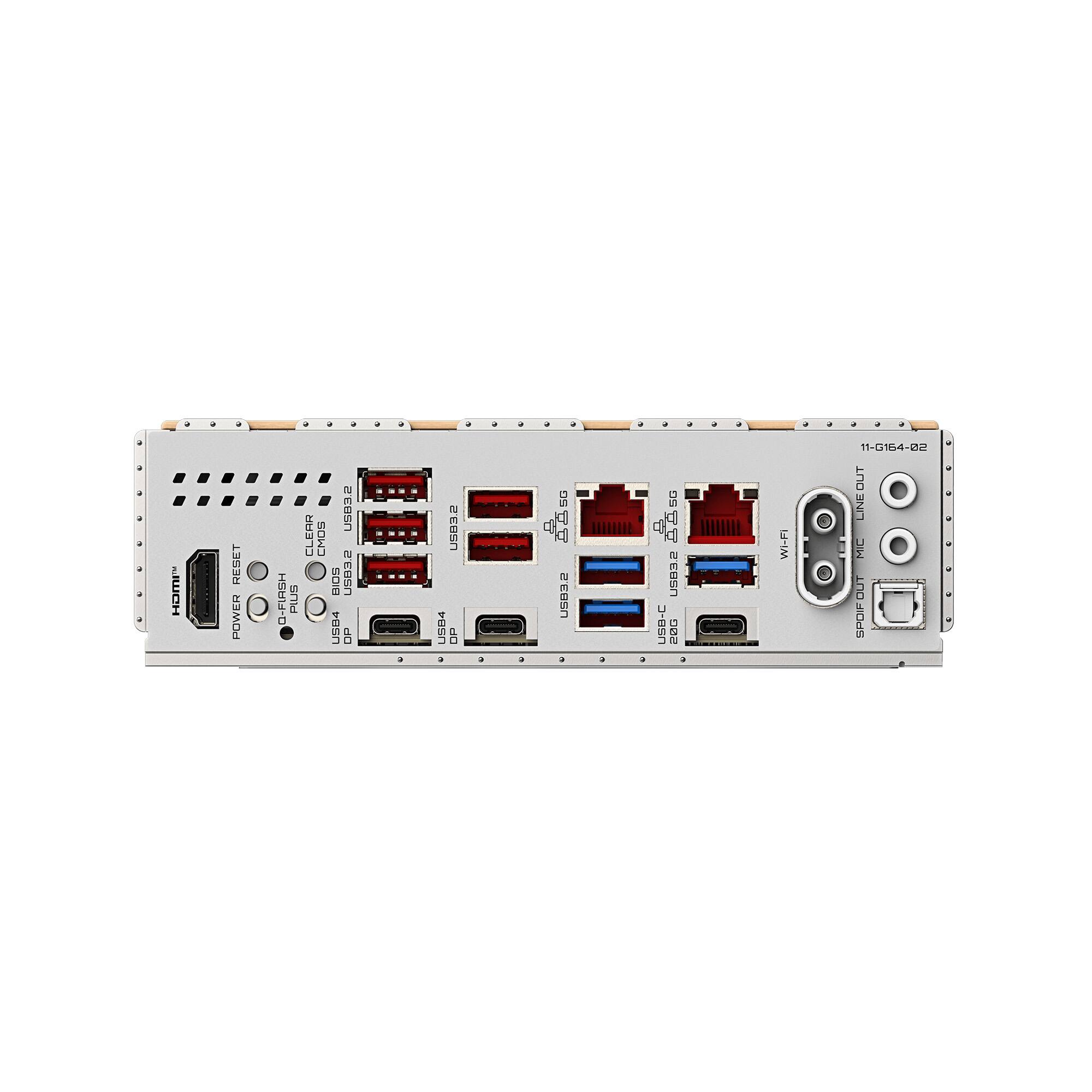

- USB Ports: 2 x USB-C 4, 5 x USB-A 3.2 (The number and type of USB ports the product has.)
- Audio Ports: 2 x audio jacks
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 9.6 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 12 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 2 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 10 (RAID 1+0), RAID 01 (RAID 0+1), RAID 5 (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
- Other
- UPC: 889523056059

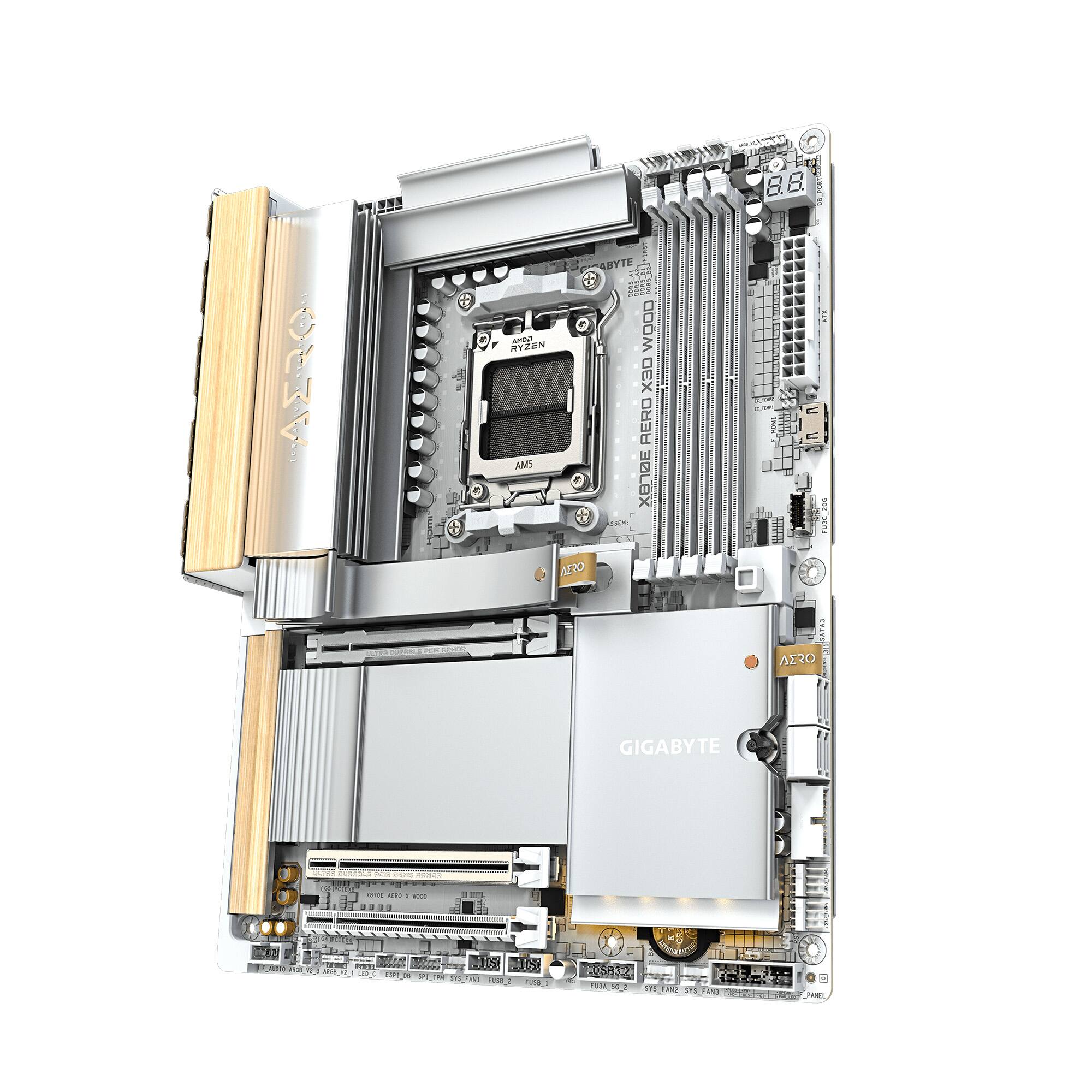

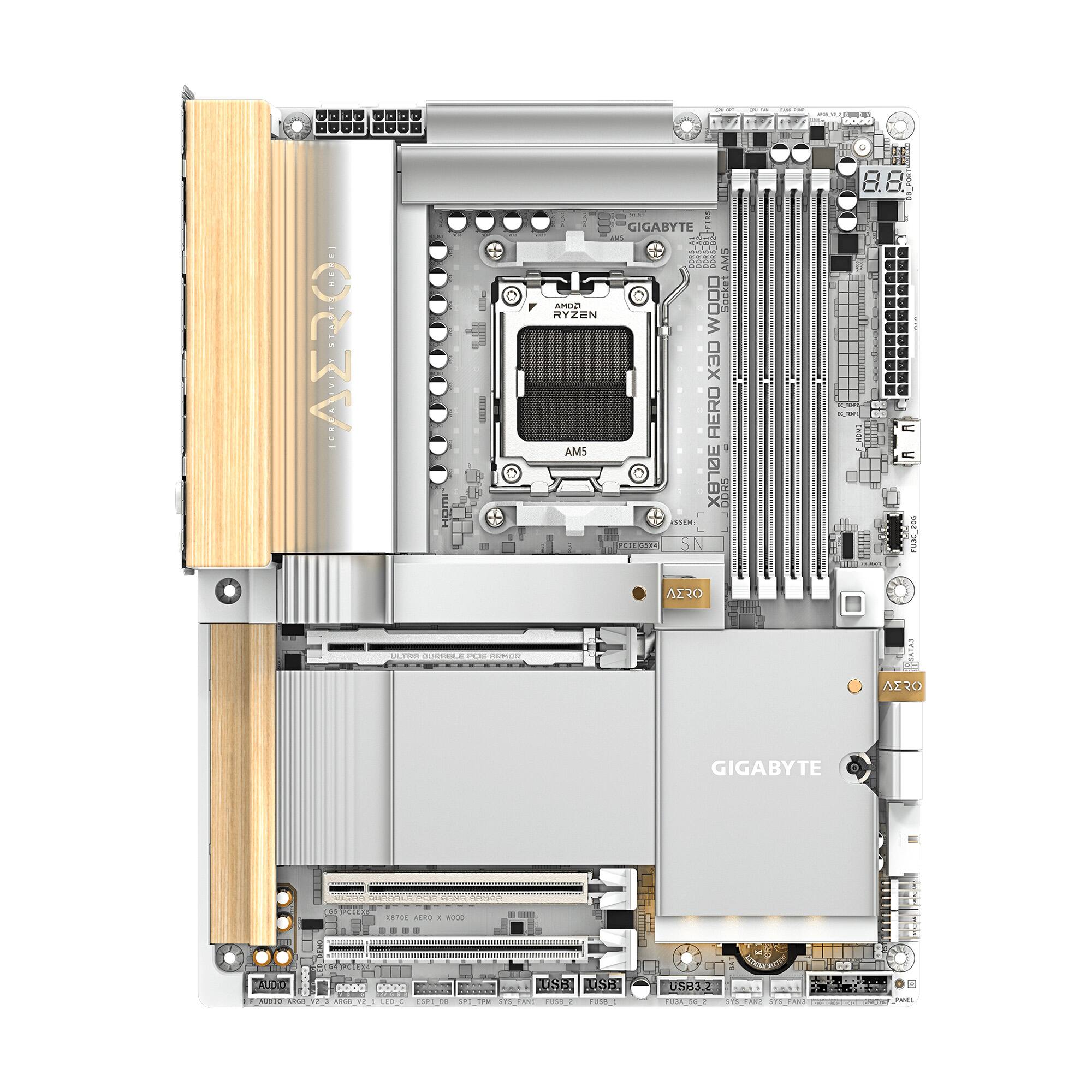

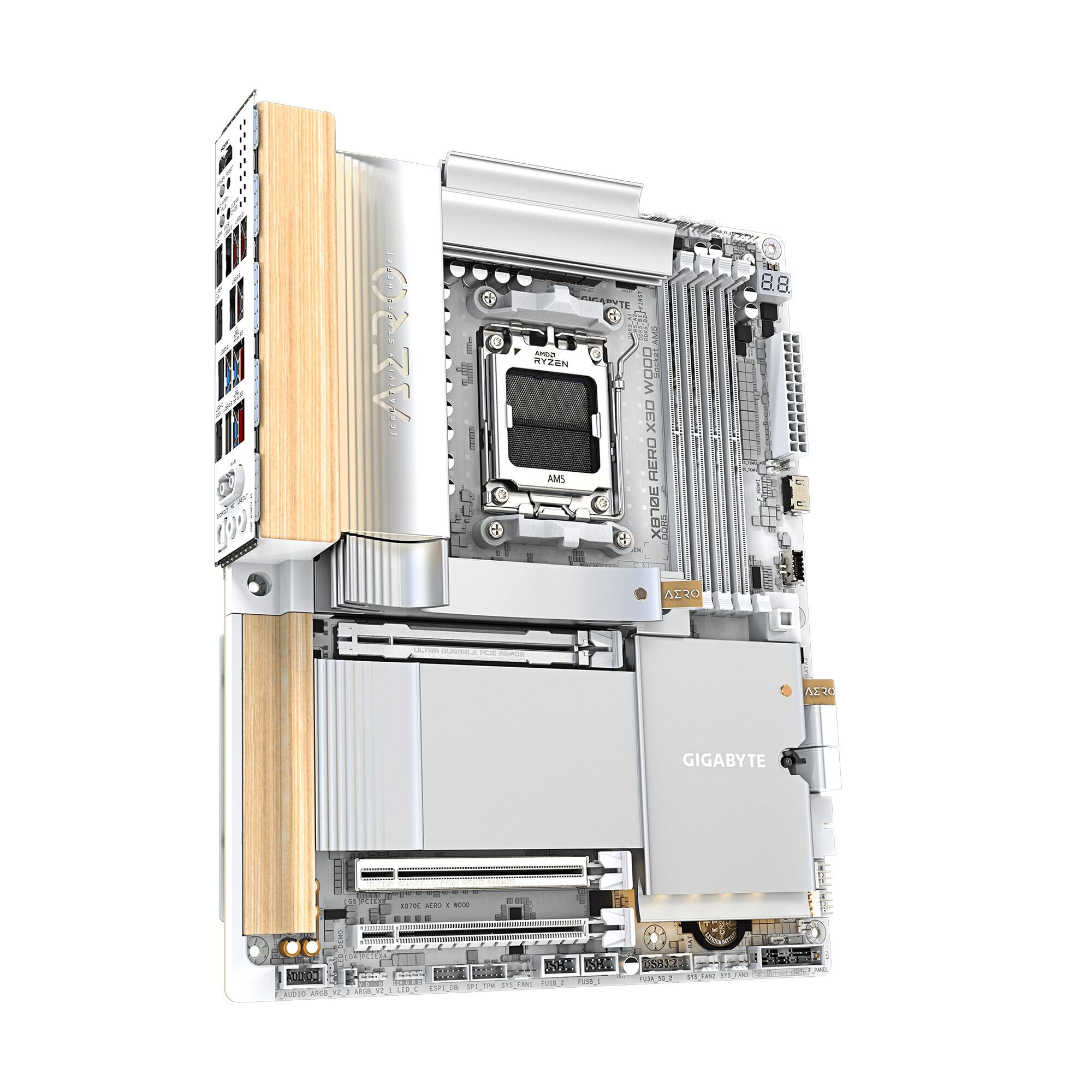

The X870E AERO X3D WOOD supports AM5 Processors and features unparalleled performance. GIGABYTE X870 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
- AMD Socket AM5: Ready to support Ryzen 9000/8000/7000 Series Processors.
- Enhanced Power Solution: Digital Twin 16+2+2 Power Phase with 8-layer PCB and premium chokes and capacitors for steady power delivery.

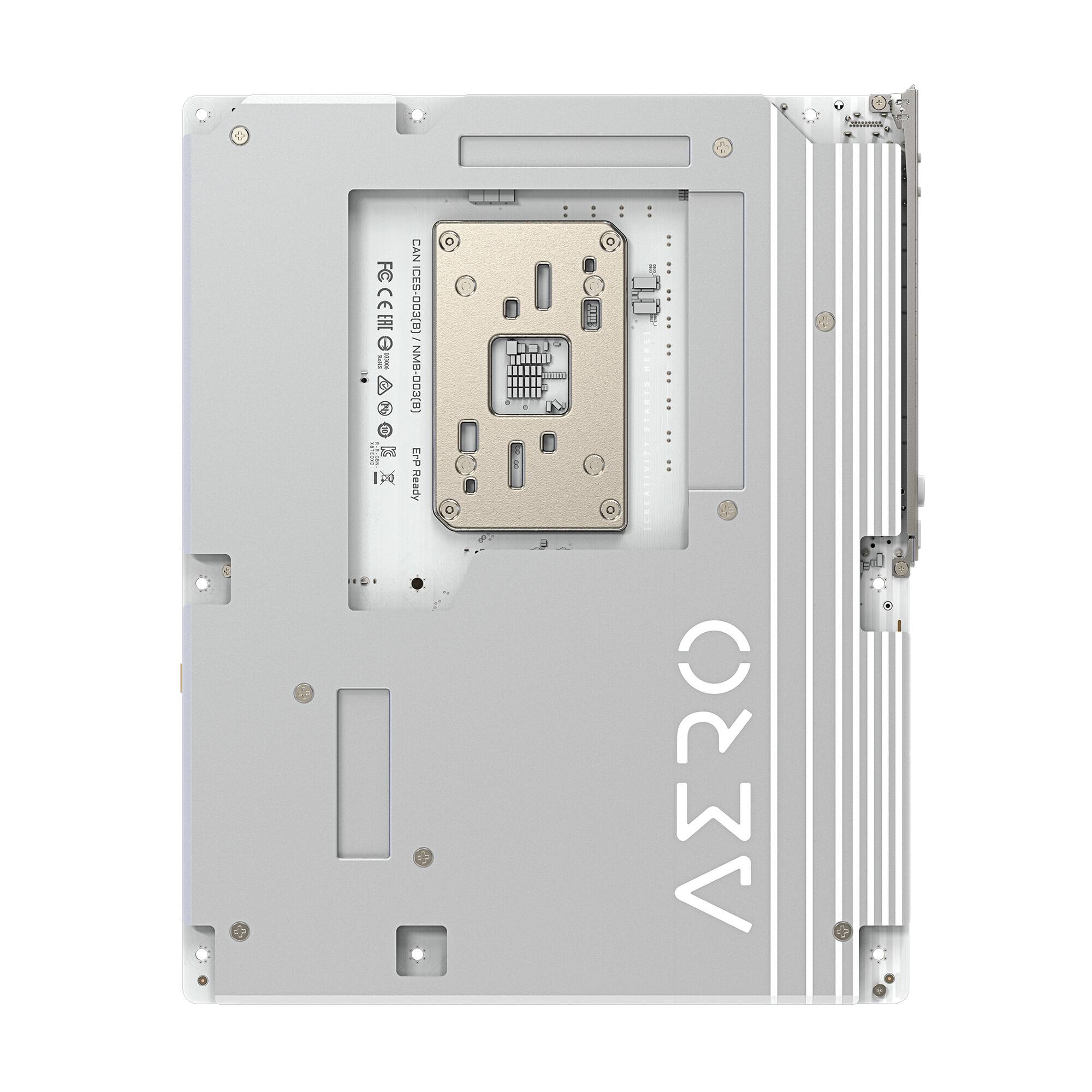

- Advanced Thermal Armor: Advanced VRM heatsinks for better heat dissipation. Integrated I/O Shield for quicker PC DIY assembly.
- Boost Your Memory: Compatible with DDR5 Memory and supports 4 DIMMs with AMD EXPO Memory Module Support.

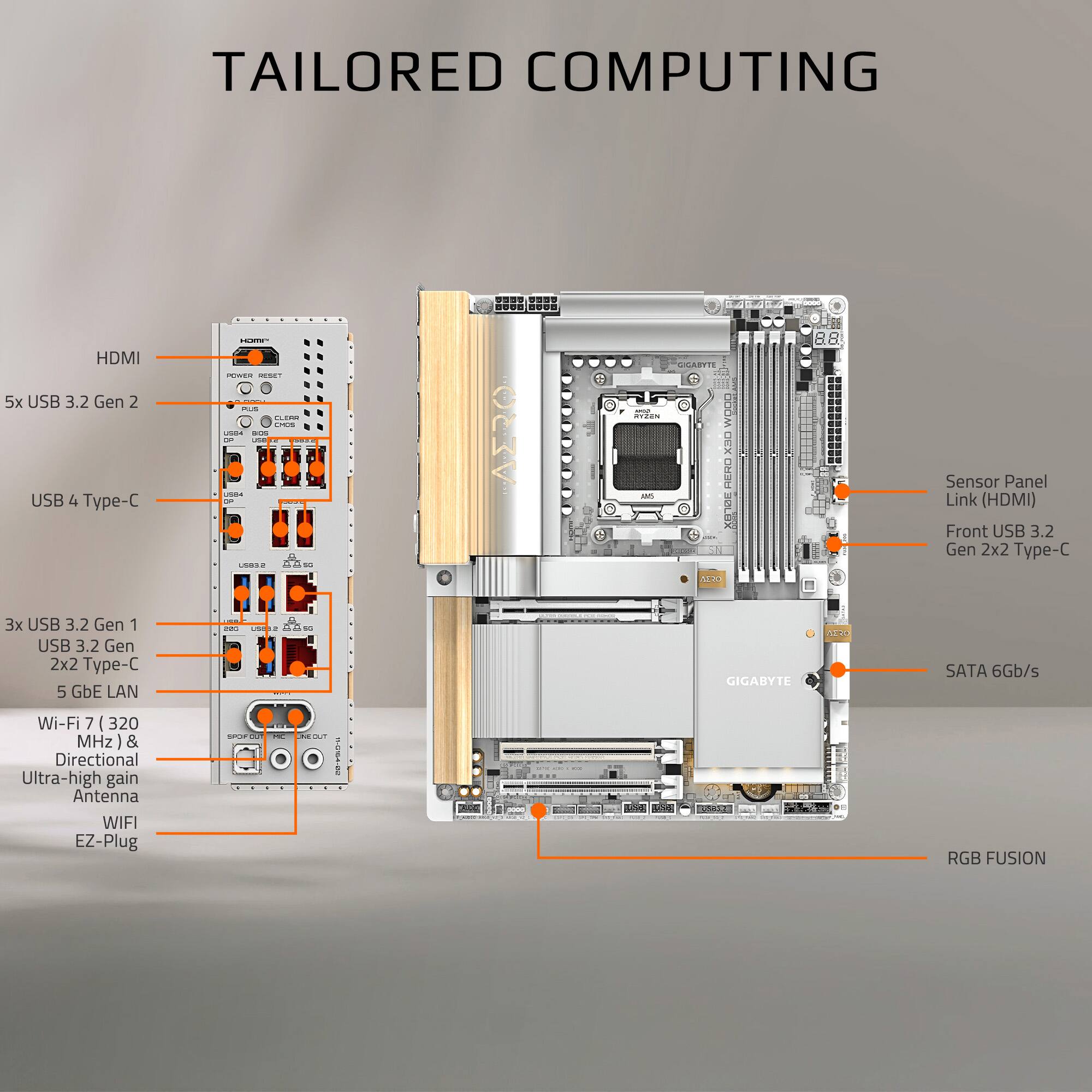

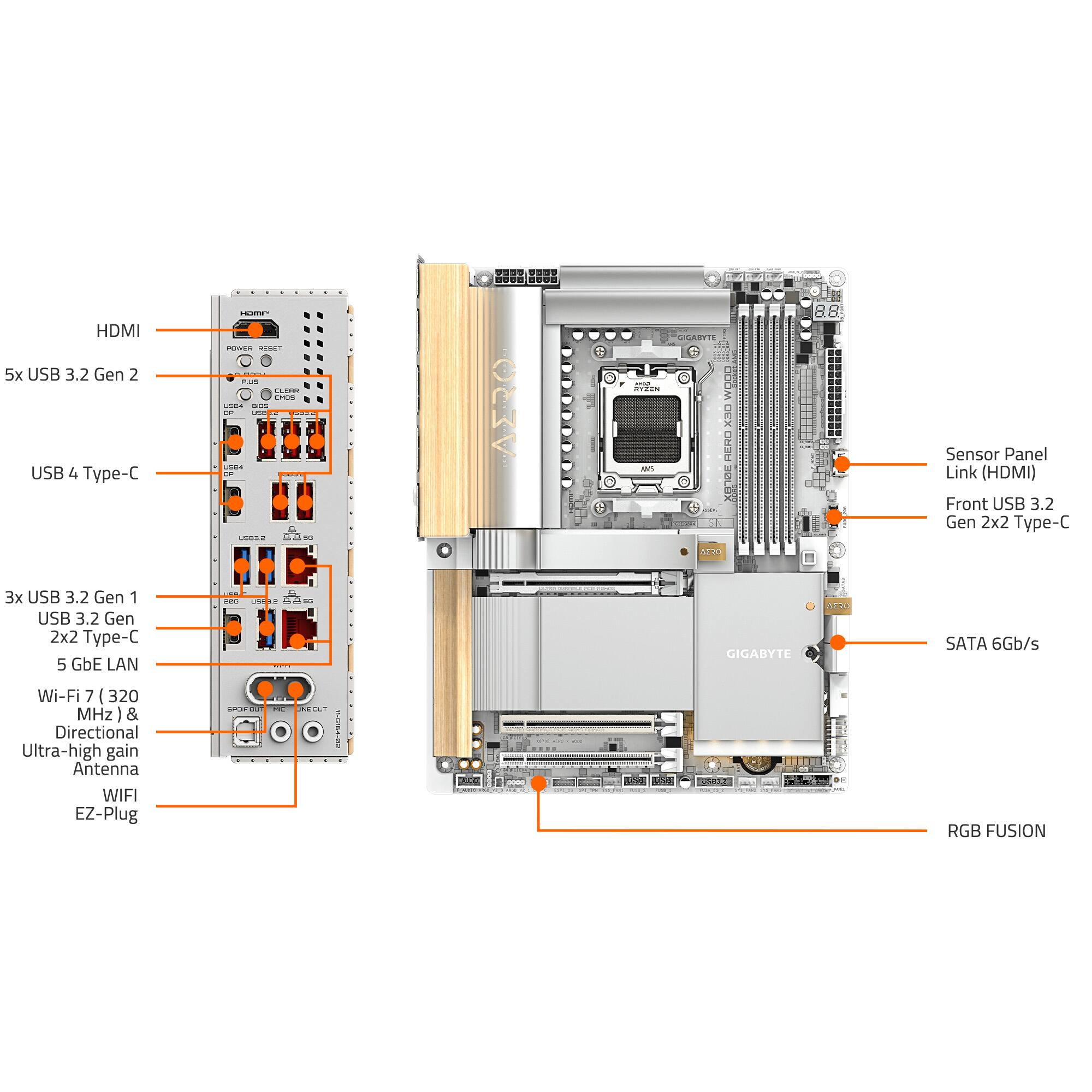

- Comprehensive Connectivity: 1x PCIe 5.0 x16 with reinforced PCIe UD armor, 2x PCIe 5.0 M.2 slots, 2x PCIe 4.0 M.2 slots, 5x USB 3.2 Gen 2 Type-A, 2x USB4 Type-C, 1x USB 3.2 Gen 2x2 Type-C, 3x USB 3.2 Gen 1 Type-A, Front USB 3.2 Gen 2x2 Type-C, Sensor Panel Link (HDMI) for onboard video port for hassle-free in-chassis panel setup.
- Smooth Online Experience: WIFI7 for for dramatically increased bandwidth for unprecedented data transfer speeds, Directional Ultra-high gain antenna for optimized signal transmission, Dual 5 GbE LAN, and Bluetooth 5.4.

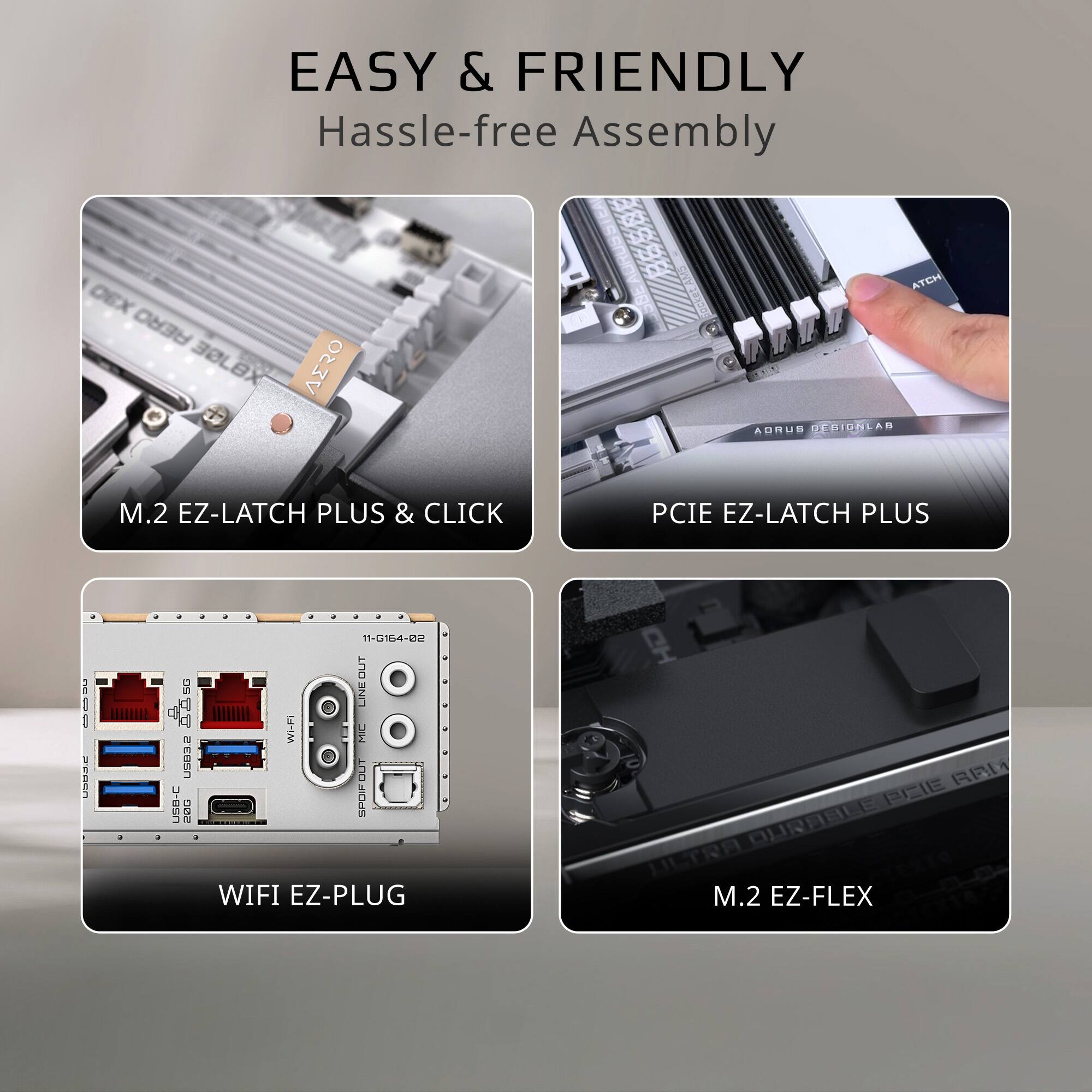

- DIY Friendly Design: Smooth building experience with suite of easy building features, such as PCIe EZ-Latch Plus for single-click release design for GPU, M.2 EZ-Latch Click & Plus for screwless installation for M.2 heatsink and SSD, WIFI EZ-Plug for quick installation for the WIFI antenna, DriverBIOS for pre-installed W-Fi drivers, and Rear EZ-button for organized troubleshooting.
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Q-Flash Plus: Effortlessly upgrade your BIOS without installing CPU, RAM, or GPU.
