GIGABYTE - Z890 AORUS ELITE X ICE, LGA 1851, DDR5, 5x M.2, PCIe 5.0, Thunderbolt 4, WIFI7, 2.5GbE, ATX
FREE shipping to
NZXT - F360 RGB Core - 360mm Single-Frame Case Fan Unit with 3 x 120mm RGB Fans and Fluid Dynamic Bearings - Black$79.99
More Buying Options
Related Item
Specifications
- ChipsetIntel Z890Form FactorATXProcessor SocketSocket LGA 1851Wireless Networking StandardWi-Fi 7Number Of Memory Slots4Maximum Memory Supported256.0 gigabytes
- Key Specs
- Chipset: Intel Z890
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256.0 gigabytes
- Memory Type Supported: DDR5 SDRAM
- General
- Brand: GIGABYTE
- Product Name: GIGABYTE Z890 AORUS ELITE X ICE, LGA 1851, DDR5, 5x M.2, PCIe 5.0, Thunderbolt 4, WIFI7, 2.5GbE, ATX
- Compatibility
- Chipset: Intel Z890
- Chipset Compatibility: Intel
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel 13th Generation Core i3
- Slot
- Number of M.2 Slots: 5 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)

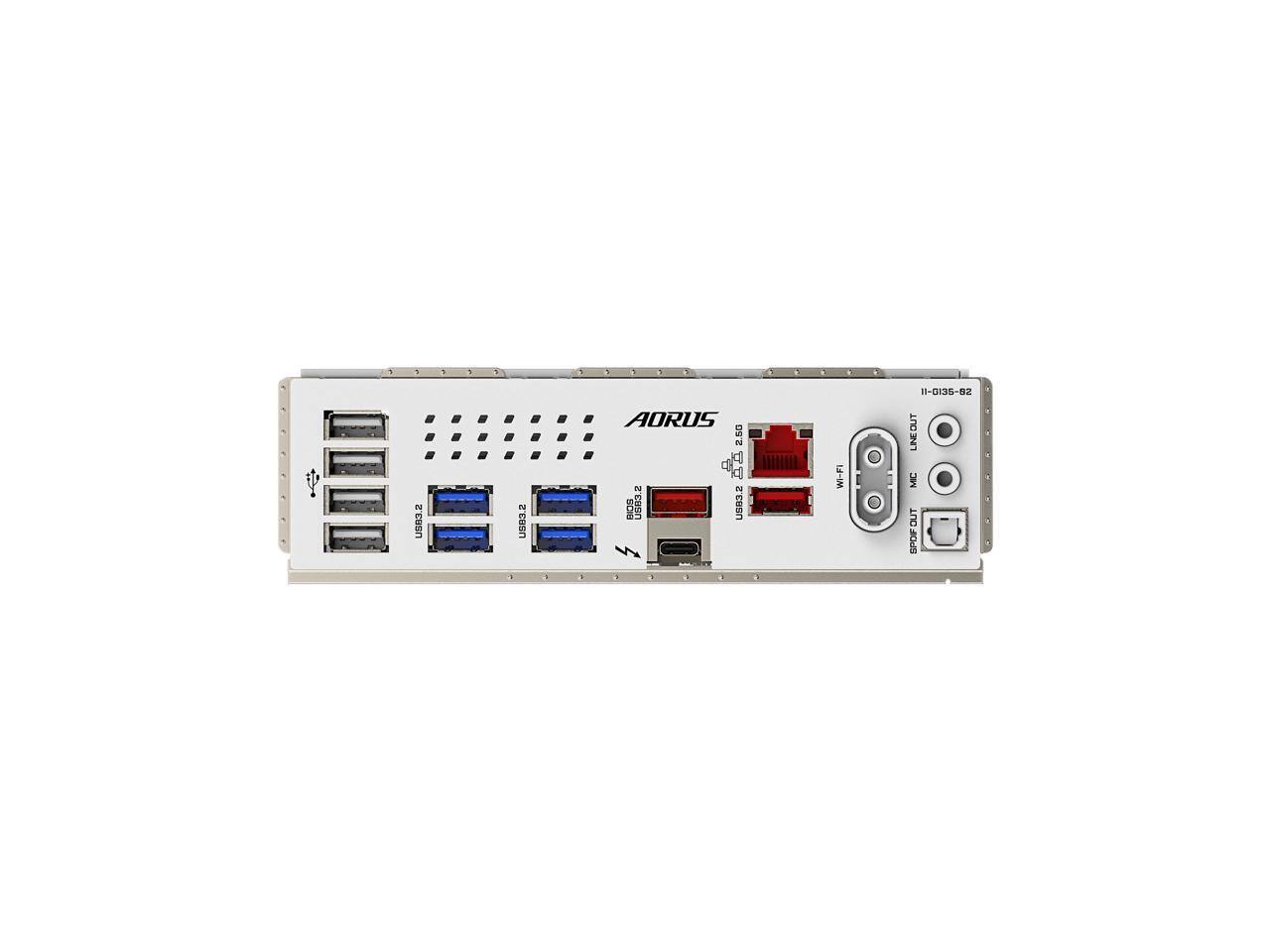

- Ports
- USB Ports: 2 x USB-C 2.0 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 330.20 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 279.40 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 80.0 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256.0 gigabytes
- Memory Type Supported: DDR5 SDRAM
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: DDR5-6000 (OC) (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0 (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: Limited Warranty period (parts): 1095 days
- Warranty - Labor: Limited Warranty period (labor): 1095 days
- Other
- UPC: 889523045060
GIGABYTE Z890 AORUS ELITE X ICE Ultra Core (Series 2) LGA 1851, ATX, DDR5, 5x M.2, PCIe 5.0, Thunderbolt 4, WIFI7, 2.5GbE LAN, EZ-Latch
- Intel Core Ultra Series 2 Support: Supports Intel Core Ultra Processors (Series 2)
- DDR5 Ready with XMP Support: DDR5 Compatible: 4*DIMMs with XMP Memory Module Support
- 16+1+2 80A Smart Power Design: Power Design: 16+1+2, 80A Smart Power Stage
- VRM & M.2 Thermal Protection: Thermals: VRM Thermal Armor and M.2 Thermal Guard
- Advanced PCIe 5.0 & Thunderbolt 4 Connectivity: Connectivity: PCIe 5.0, 5x M.2 Slots, Thunderbolt 4, Front USB-C, Sensor Panel Link
- Intel Core Ultra Series 2 Support: Supports Intel Core Ultra Processors (Series 2)
- DDR5 Ready with XMP Support: DDR5 Compatible: 4*DIMMs with XMP Memory Module Support
- 16+1+2 80A Smart Power Design: Power Design: 16+1+2, 80A Smart Power Stage
- VRM & M.2 Thermal Protection: Thermals: VRM Thermal Armor and M.2 Thermal Guard
- Advanced PCIe 5.0 & Thunderbolt 4 Connectivity: Connectivity: PCIe 5.0, 5x M.2 Slots, Thunderbolt 4, Front USB-C, Sensor Panel Link
Compare similar products
GIGABYTE Z890 AORUS ELITE X ICE Ultra Core (Series 2) LGA 1851, ATX, DDR5, 5x M.2, PCIe 5.0, Thunderbolt 4, WIFI7, 2.5GbE LAN, EZ-Latch
Ascend the Throne of Gaming with the Z890 AORUS ELITE WIFI7 ICE. The Z890 AORUS ELITE WIFI7 ICE supports Intel Ultra Core Processors (Series 2) and features unmatched performance. Unlock your gaming potential with GIGABYTE Z890 Motherboards. GIGABYTE Z890 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance. Claim what is yours.
ROG STRIX Z890-F GAMING WIFI, Intel Z890 LGA 1851 ATX motherboard, Advanced AI PC-ready, 16+2+1+2 power stages, DDR5 slots , DIMM Flex, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, five M.2 slots, one PCIe 5.0 NVMe SSD slot with M.2 Q-release, PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim, and full support for next-gen graphics card, two Thunderbolt 4 ports, USB 10Gbps Type-C rear I/O port with up to 30-watt Power Delivery fast charging, NPU Boost, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and Polymo Lighting
ASUS ROG STRIX X870E-E GAMING WIFI AMD AM5 X870 ATX motherboard 18+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 AEMP, WiFi 7, 5x M.2, PCIe 5.0, Q-Release Slim, USB4, AI OCing & Networking
