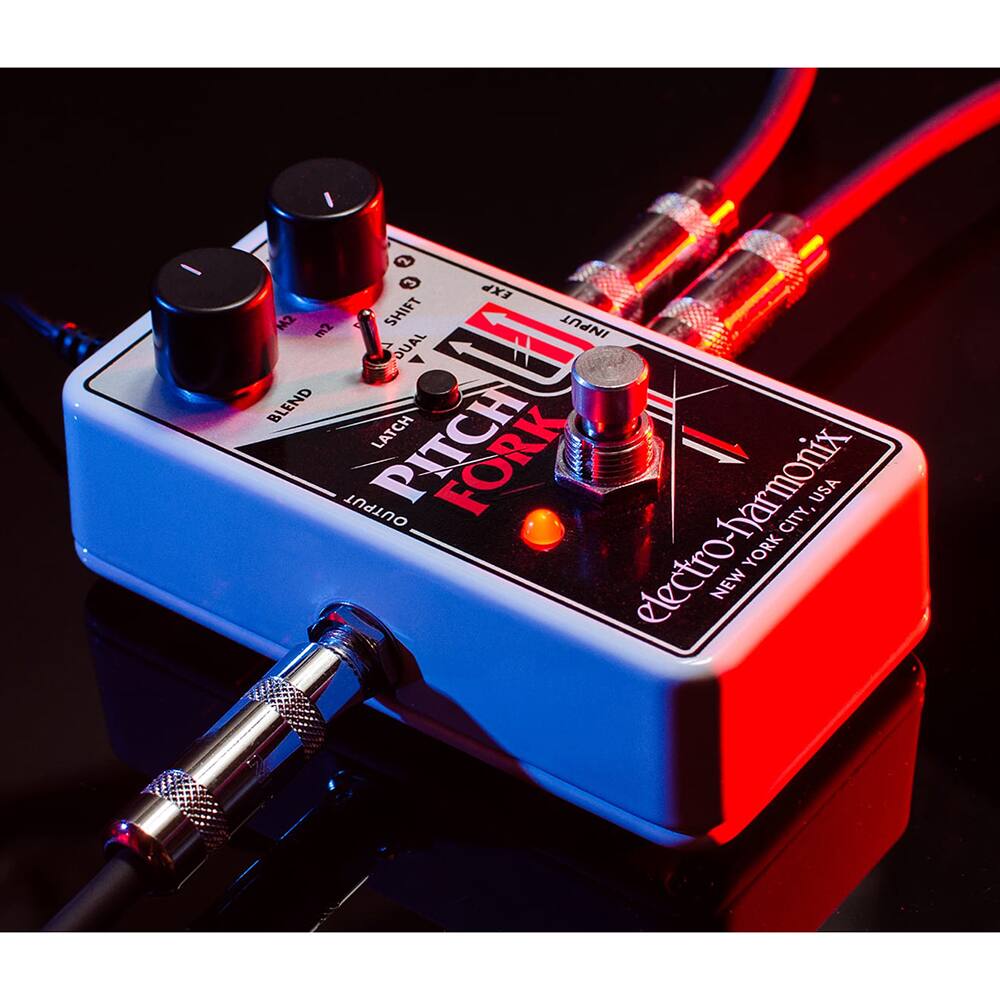

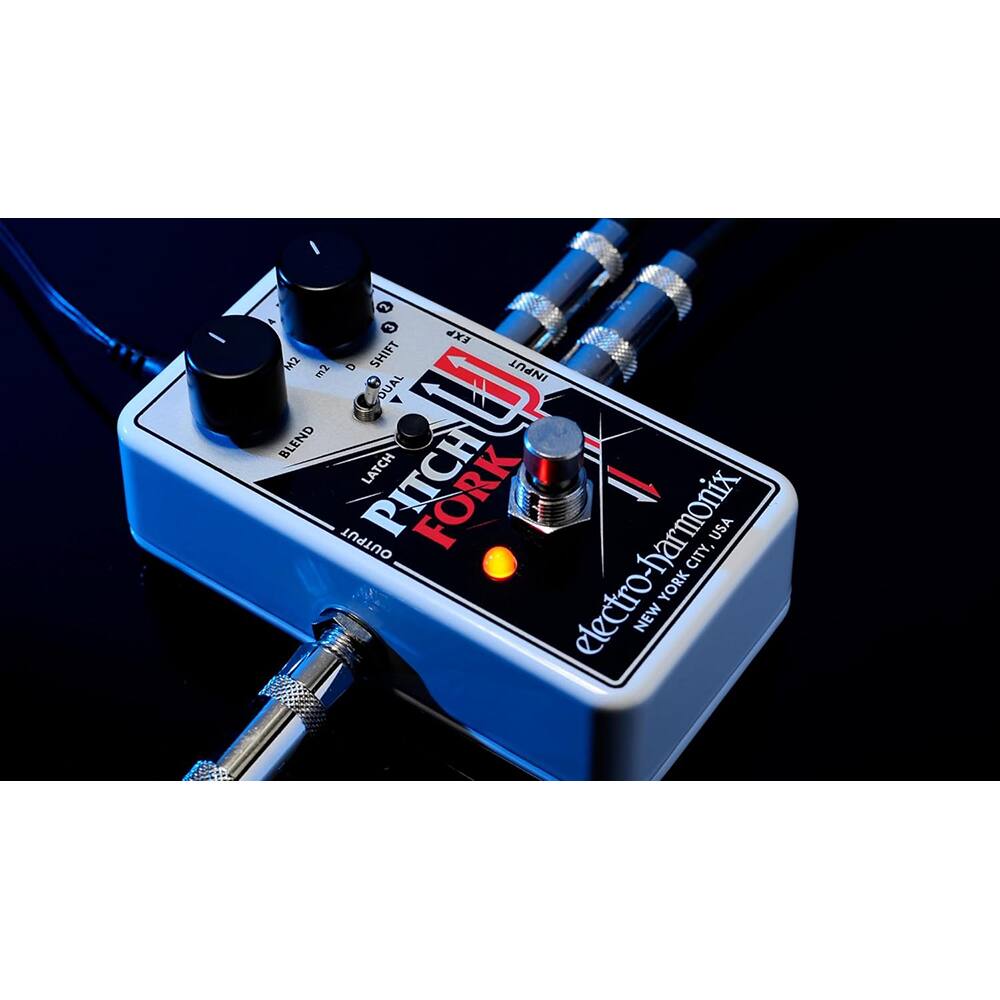

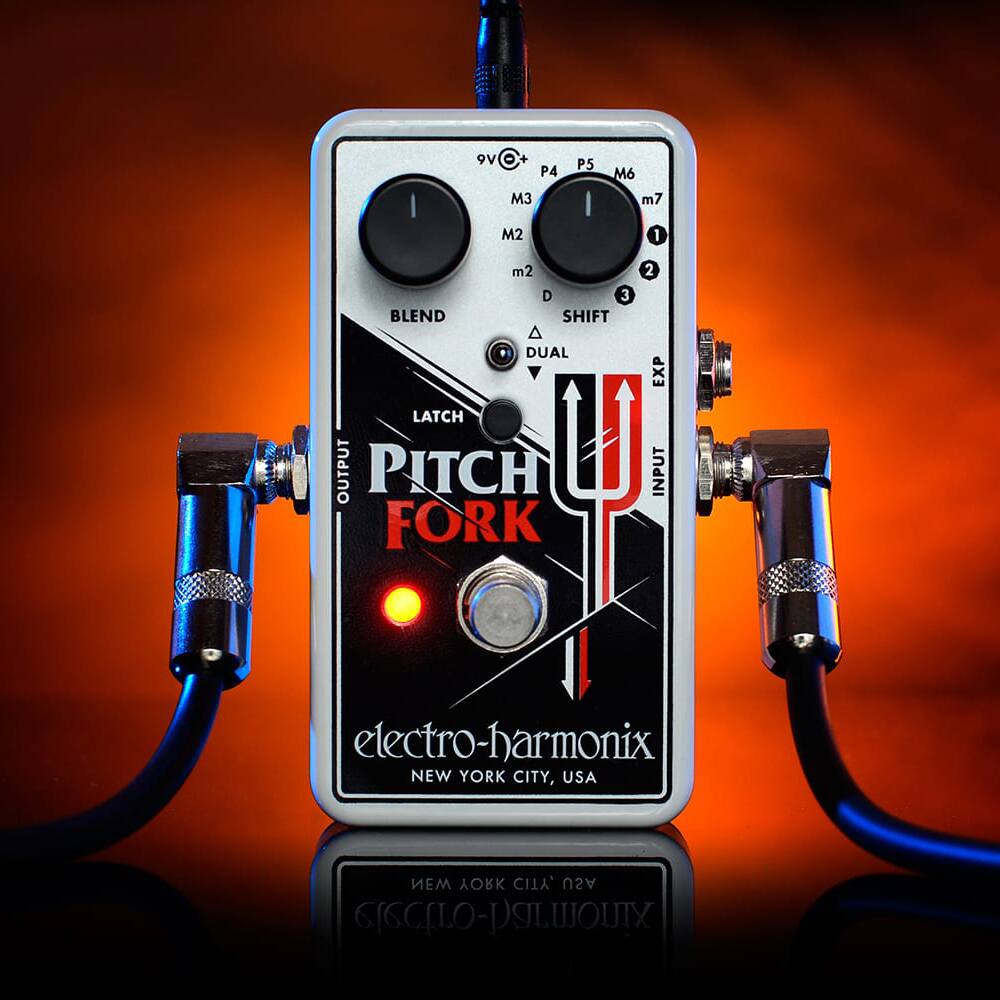

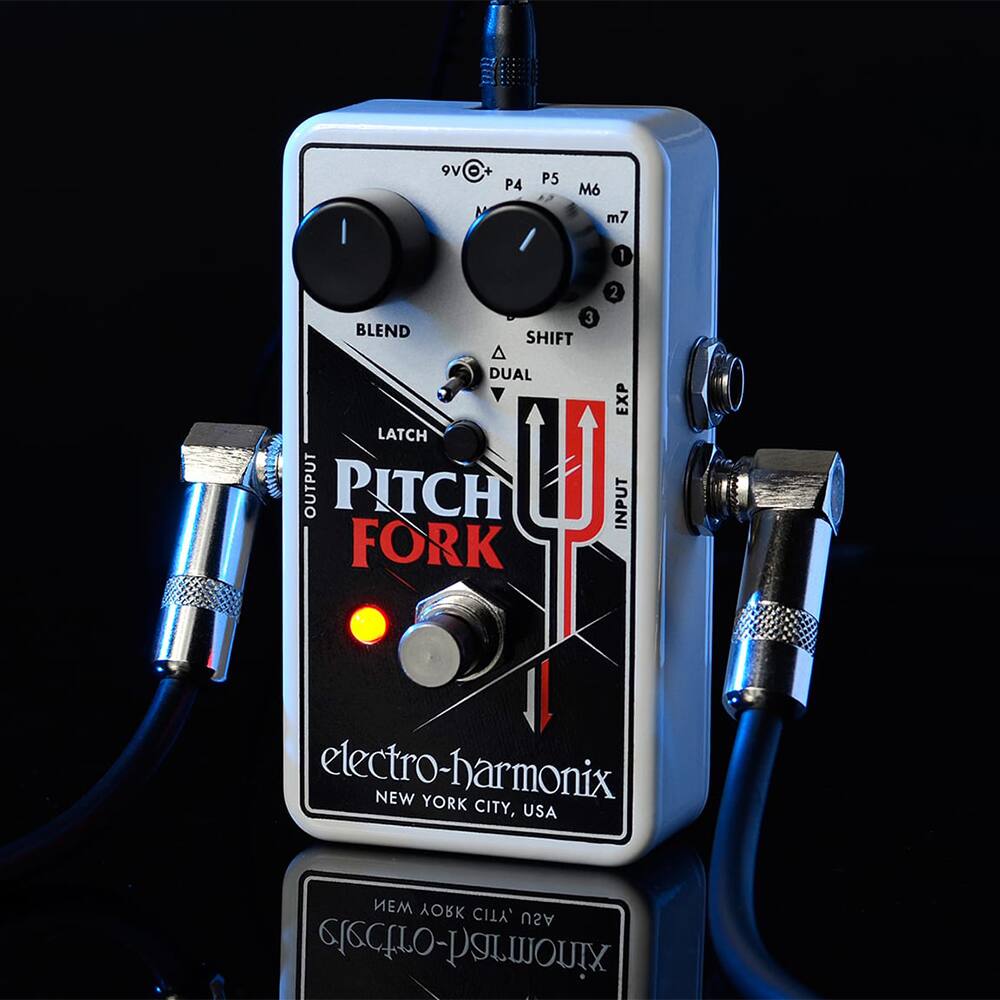

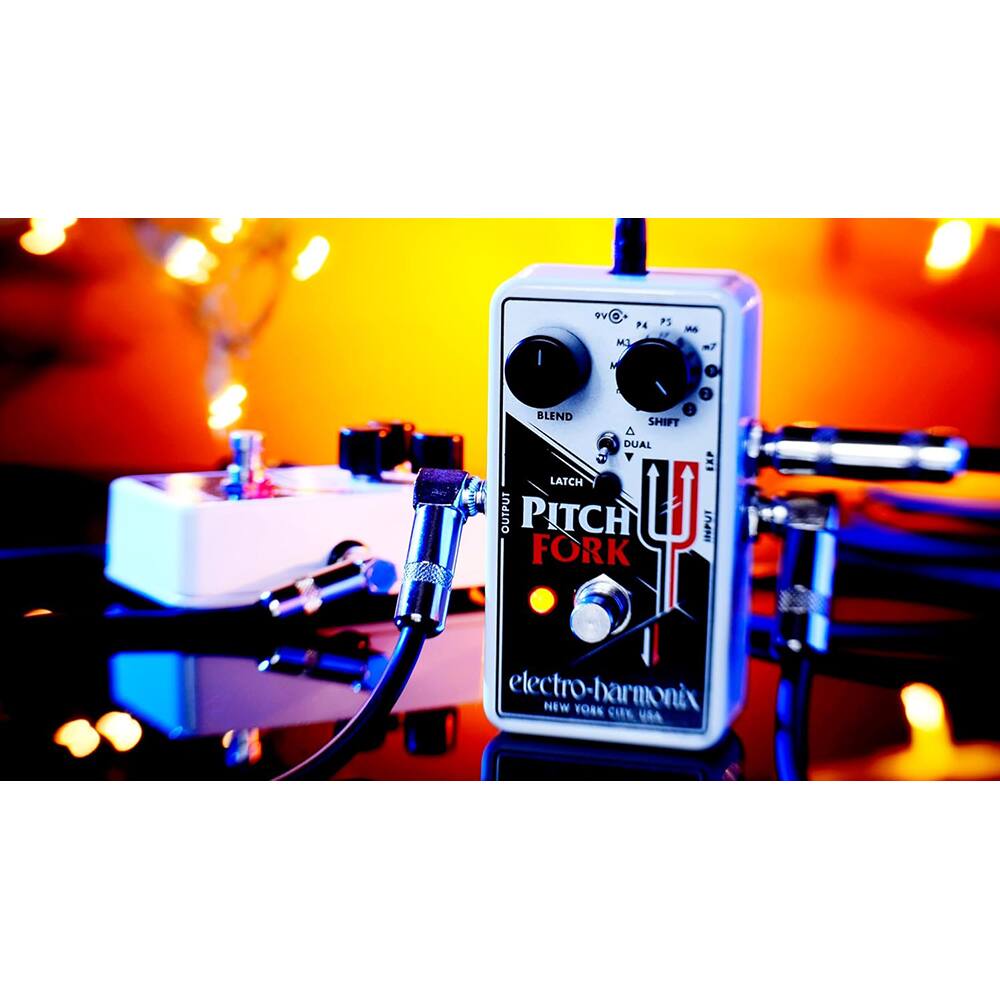

Electro-Harmonix Pitch Fork Polyphonic Pitch Shifter Pedal. Powerful pitch shifting over a ±3 octave range with three modes: up, down, or dual. Dual mode outputs two pitch-shifted signals to create harmonies. The 11-position Shift knob selects intervals from Detune (17 cents) through m2, M2, M3, P4, P5, M6, m7, 1 Oct, 2 Oct, and 3 Oct. Blend knob mixes dry and effected signals, while an EXP jack allows pitch shift or glissando control via expression pedal or control voltage. Latch and Momentary modes change how the footswitch and EXP input behave: in Latch mode, the footswitch toggles on/off and EXP controls pitch shift amount; in Momentary mode, the effect is active only while held, with EXP controlling glissando rate (4ms–2s). Comes with 9.6VDC-200mA adapter, also runs on 9V battery. Product Highlights: ±3 octave transpose, up/down/dual shift, EXP input for pitch/glissando, latch/momentary operation, power adapter included. Product Features: Blend knob for wet/dry mix, Shift knob for transposition interval, Mode switch for shift direction, Latch button for mode select, EXP jack for TRS or CV input, output jack for mix, input jack for audio in, bypass footswitch with LED status. Specifications: Circuit Digital, Bypass Buffered, Audio Mono, Power 9.6VDC-200mA (or 9V battery optional), Dimensions (in) 4.5 x 2.75 x 2.1, Current Draw 30mA, Year 2014, UPC 683274011578.

• Blend Knob: Mixes between the untreated, analog dry signal and the effected signal.
