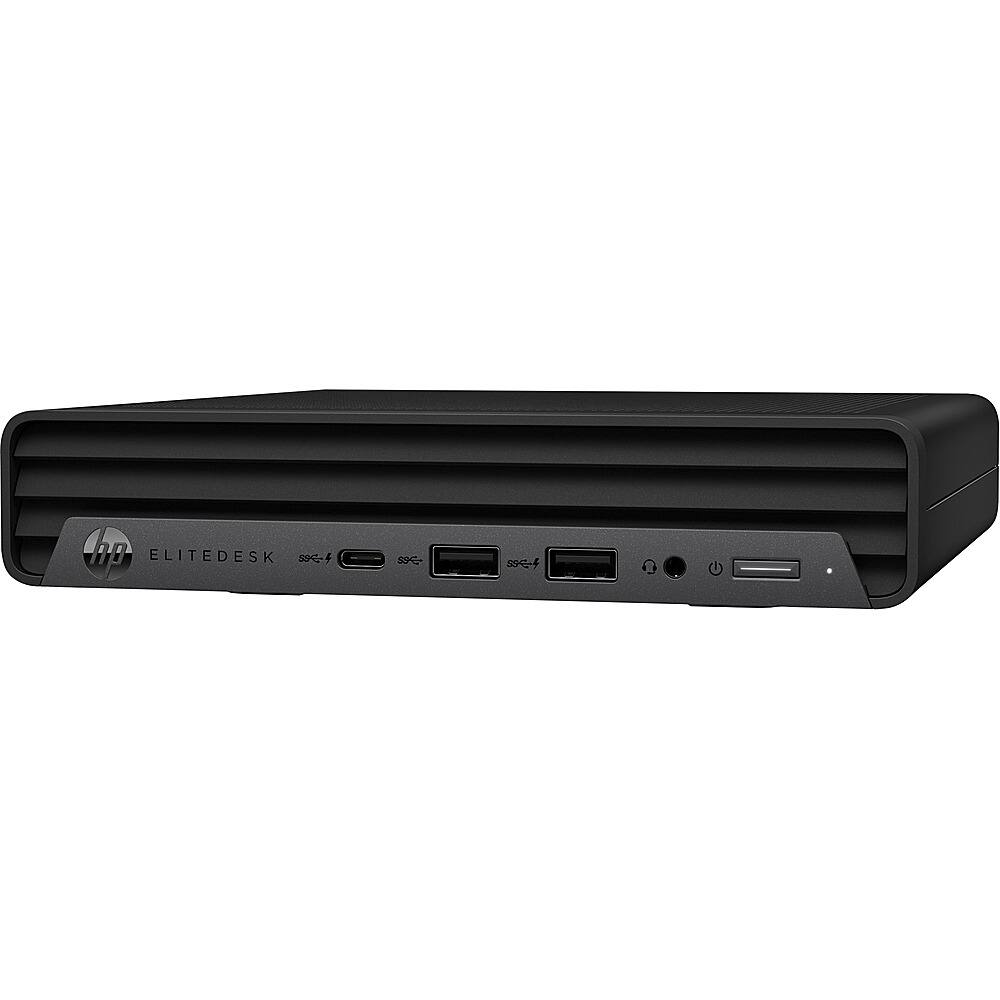

HP - EliteDesk 800 G6 Desktop - Intel i7-10700 - 16 GB Memory - 512 GB SSD - Black
Model: 683J5UT#ABA
SKU: 6507648
This item is no longer available in new condition. See similar items below
- Key Specs
- Processor Model: Intel 10th Generation Core i7 (Your computer's processor is like its brain. Working in combination with system memory, the power of the processor determines the complexity of software you can run, how many programs you can have open at the same time, and how fast those programs will run. Most computers feature an AMD, Intel or Snapdragon processor.)
- Storage Type: SSD
- Total Storage Capacity: 512 gigabytes
- System Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a computing device's short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the device can handle large amounts of information at one time. For example, gaming or video editing requires more RAM for optimal performance.)
- Graphics Type: Integrated (Dedicated graphics uses a separate graphics card for processing video images. Because it does not use memory from the system's RAM, there is no extra burden on the CPU and graphics are processed more efficiently. Integrated graphics shares system RAM to process video images.)
- Graphics: Intel UHD Graphics 630 (Often referred to as a "graphics processing unit" (GPU), this device is responsible for displaying image content and decoding/encoding video content in programs and games.)
- General
- Brand: HP
- Model Number: 683J5UT#ABA
- Product Name: EliteDesk 800 G6 Desktop - Intel i7-10700 - 16 GB Memory - 512 GB SSD
- Color: Black
- Year of Release: 2022
- Processor
- Processor Brand: Intel
- Processor Model: Intel 10th Generation Core i7 (Your computer's processor is like its brain. Working in combination with system memory, the power of the processor determines the complexity of software you can run, how many programs you can have open at the same time, and how fast those programs will run. Most computers feature an AMD, Intel or Snapdragon processor.)
- Processor Model Number: i7-10700
- CPU Base Clock Frequency: 2.9 gigahertz (Actual central processing unit (CPU) speed may vary by device configuration and design. The average rate at which the processor is able to execute tasks under normal operating conditions as asserted by the manufacturer.)
- Number of CPU Cores: 8-core (A core, or "brain" of a CPU, allows it to receive and execute instructions. Each core can work independently or together to perform parallel operations.)
- Storage
- Storage Type: SSD
- Total Storage Capacity: 512 gigabytes
- Solid State Drive Capacity: 512 gigabytes (The amount of data that can be stored on the device's solid state drive (SSD). SSD is a flash-based storage with faster speeds than a hard disk drive (HDD).)
- Memory
- System Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a computing device's short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the device can handle large amounts of information at one time. For example, gaming or video editing requires more RAM for optimal performance.)
- Type of Memory (RAM): DDR4 SDRAM (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Number Of Memory Slots: 2
- Graphics
- Graphics Type: Integrated (Dedicated graphics uses a separate graphics card for processing video images. Because it does not use memory from the system's RAM, there is no extra burden on the CPU and graphics are processed more efficiently. Integrated graphics shares system RAM to process video images.)
- GPU Brand: Intel
- Graphics: Intel UHD Graphics 630 (Often referred to as a "graphics processing unit" (GPU), this device is responsible for displaying image content and decoding/encoding video content in programs and games.)
- Compatibility
- Operating System: Windows 11 Pro (The operating system manages all software and hardware, including files, memory and connected devices. Most importantly, it lets you interact with your device and your programs in a visual way; otherwise, you'd be typing computer code to get anything done.)
- Connectivity
- Display Connector(s): 1 x DisplayPort 1.2 (The number and type of connectors used to connect to an external display.)
- Number of HDMI Outputs (Total): 0
- Number of DisplayPort Outputs (Total): 1
- Number of USB Ports (Total): 7
- Wireless Connectivity: Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Ethernet Card: 10 (Also known as an Ethernet adapter, this card plugs into a computer's motherboard and enables it to access an Ethernet network. Ethernet data transmission speeds are measured in Mbps (megabits per second) and Gbps (gigabits per second). For example, a 10/100 Ethernet port transmits 10 and 100 Mbps, while a 10/100/1000 Ethernet port transmits 10 and 100 Mbps and has a maximum speed of 1000 Mbps (1 Gbps).)
- Number Of Ethernet Ports: 1
- Cooling
- CPU Cooling System: Air
- Power
- Power Supply Maximum Wattage: 90 watts
- Features
- Size: Mini
- Dimensions
- Product Height: 1 3/10 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 6 9/10 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 3.13 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- EPEAT Qualified: false (The Electronic Product Environmental Assessment Tool (EPEAT) was designed to provide an environmental assessment tool for purchasers. In order to qualify for EPEAT, a product must meet all 23 required criteria.)
- Included
- Optical Drive Type: None (An optical disk drive (ODD) uses a laser light to read data from or write data to an optical disc. These discs include CDs, DVDs, and Blu-ray Discs. This allows you to play music or watch movies using prerecorded discs.)
- Keyboard Included: true
- Mouse Included: true
- Wireless Keyboard: false
- Wireless Mouse: false
- Warranty
- Warranty - Parts: 3 year limited
- Warranty - Labor: 3 Year Limited
- Other
- UPC: 196548417841
HP EliteDesk 800. Designed for performance and multi-tasking required by today's increasing workload in open workspaces. Reclaim your desk with a PC you can install behind your monitor or inside the HP Mini-in-One 24" monitor for a single-footprint solution.
- Windows 11 Pro operating system: It's Windows 11 Pro operating system offers powerful platform to efficiently run routine applications
- 10th Gen Intel® Core™ i7-10700 processor: Powerful Octa-core (8 Core) , Octa-core (8 Core)-way processing performance. Intel Turbo Boost Technology delivers dynamic extra power when you need it, while increasing energy efficiency when you don't.
- 16 GB system memory for intense multitasking and gaming: Reams of high-bandwidth RAM to smoothly run your graphics-heavy PC games and video-editing applications, as well as numerous programs and browser tabs all at once.
- 512 GB solid state drive (SSD): While offering less storage space than a hard drive, a flash-based SSD has no moving parts, resulting in faster start-up times and data access, no noise, and reduced heat production and power draw on the battery.
- Wireless and wired network connectivity: Built-in high-speed wireless LAN connects to your network on the most common Wi-Fi standards. Ethernet LAN port plugs into wired networks.
- Bluetooth interface syncs with compatible devices: Wirelessly transfer photos, music and other media between the desktop and your Bluetooth-enabled cell phone or MP3 player, or connect Bluetooth wireless accessories.
Whats Included
- HP EliteDesk 800 G6 Desktop Mini PC
- Keyboard
- Mouse
- External Power Adapter
Product Manuals
A: Thank you for the question. The EliteDesk 800 G6 (683J5UT) has Wi-Fi 6 AX201. The RJ45 port is Intel I219-LM Gigabit Network Connection LOM. Expansion Slots:1 M.2 2230; 2 M.2 2242/2280 (Note - 1 M.2 slot for WLAN and 2 M.2 2242/2280 slot for storage). You can position it vertically provided it's slightly raised to avoid blocking the vents. Scroll through the images to see vertical mounting ideas.
A: It looks like Best Buy doesn't carry the drive bay kit, but it should be available directly from HP or other places that sell computer parts. It's HP part number 13L70AA.
A: Thank you for asking. Yes, the user guide is here: http://h10032.www1.hp.com/ctg/Manual/c06713182.pdf and the maintenance and service manual is here: http://h10032.www1.hp.com/ctg/Manual/c06713660.pdf.
A: Thank you for the question. The EliteDesk 683J5UT has one vacant M.2 2242/280 slot (the other slots are occupied by the WLAN and the 512GB SSD). There is also a bay for a 2.5" HDD should you want to add one.
A: replying to the hp reply - no problem, i will be filing a better business bureau complaint, as no one seems ablt to provide this missing part, as it is included in the spec's
