HQRP - 15 A 250 V RK5 Dual-Element Time-Delay Fuse - Replacement for Bussmann BP/FRN-R-15, Edison ECNR15
About This Item
- General
- Brand: HQRP
- Model Number: 887774004102601
- Product Name: 15 A 250 V RK5 Dual-Element Time-Delay Fuse - Replacement for Bussmann BP/FRN-R-15, Edison ECNR15
- Power
- Amperage: 15 amperes (Strength of electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): None (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Dimensions
- Product Weight: 0.05 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 200 Days Warranty
- Other
- UPC: 887774704354

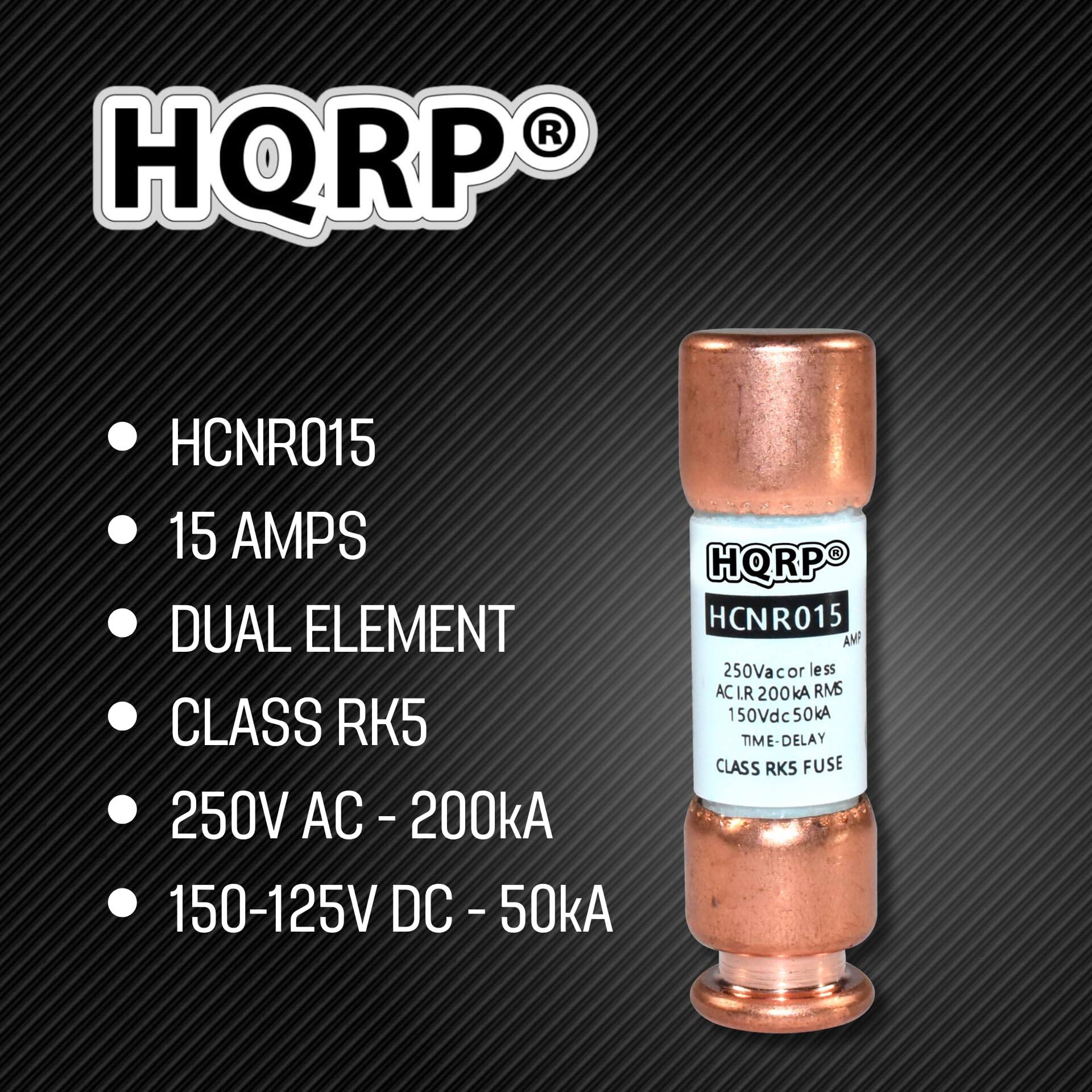

The HCNR015 is a 15 A dual-element time-delay fuse designed to protect electrical systems from overloads and short circuits while reducing nuisance openings caused by temporary motor startup surges. Built in a Class RK5 9/16 in x 2 in (14.3 mm x 50.8 mm) size, it is designed to deliver both reliable overload protection and strong short-circuit protection, including high interrupting capacity ratings of 250 V AC 200 kA and 125-150 V DC 50 kA. It complies with UL248-12 specifications and is well suited for service entrance switches, switchboard mains and feeders, motor control centers, and motor branch circuits where time-delay performance is needed. Compatible with Bussmann BP/FRN-R-15 / Edison ECNR15 / Littelfuse FLNR015.T / FLN-R-15 / FLNR-15. Disclaimer: This is not an Original Equipment Manufacturer (OEM) product, HQRP branded product is a replacement. All brand names and logos are registered trademarks of their respective owners. Any use of the brand names or model designations for this product are made solely for purposes of demonstrating compatibility.
- 15 A 250 V circuit protection: Power specs: 15 A 250 V time-delay fuse helps protect circuits from overloads and short circuits; supports common protection points in service entrance switches, switchboard mains and feeders
- Dual-element time-delay design: Overload handling: Dual element construction helps tolerate temporary motor overloads and surge current; holds an overload 5 times the amp rating for at least 8 s to reduce nuisance openings
- High interrupting capacity ratings: Fault current safety: Rated 250 V AC 200 kA interrupting capacity and 125-150 V DC 50 kA; helps maintain reliable protection in demanding electrical applications

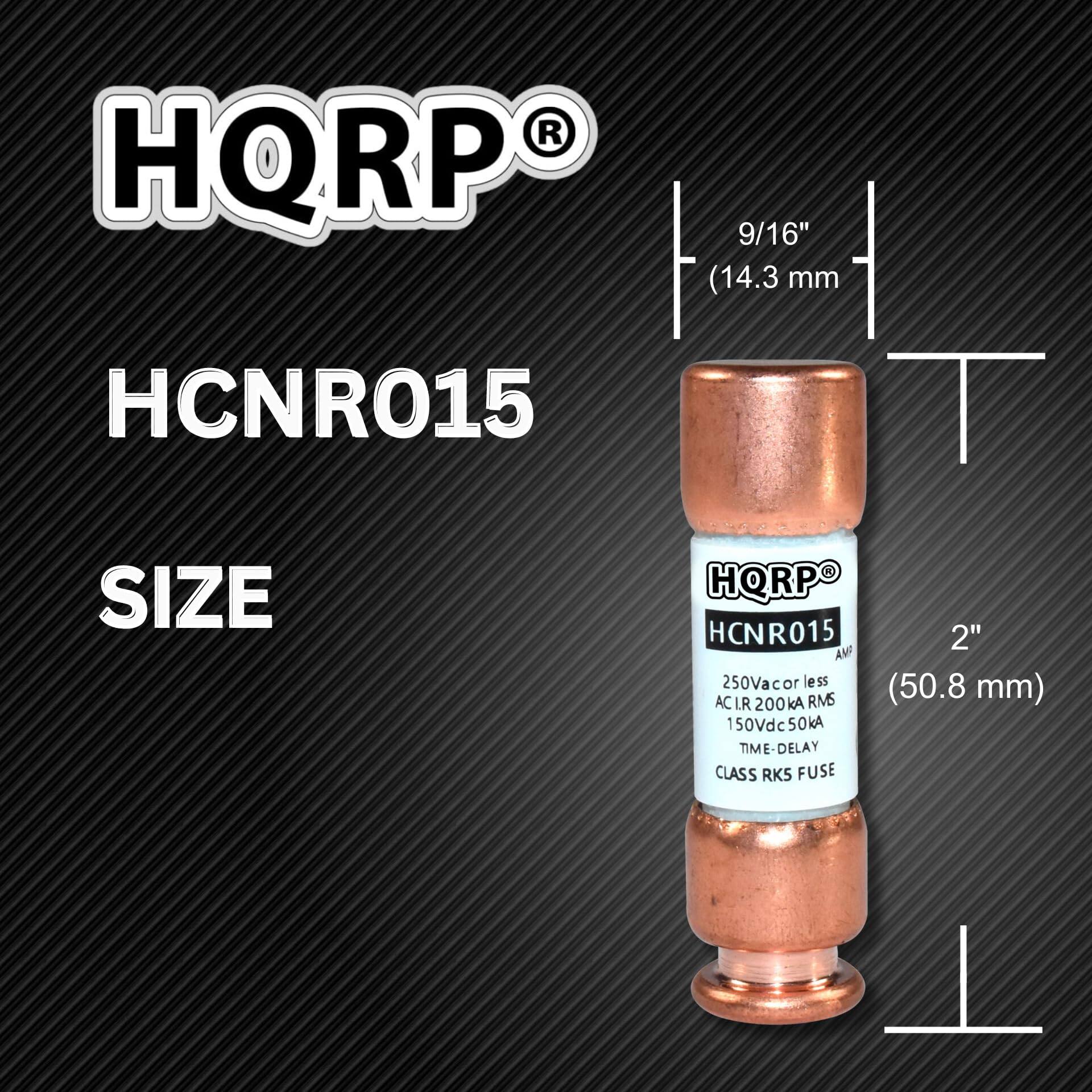

- Class RK5 size and UL standard: Fit and compliance: 9/16 in x 2 in (14.3 mm x 50.8 mm) Class RK5 form factor; designed to comply with UL248-12 specifications for consistent replacement sizing

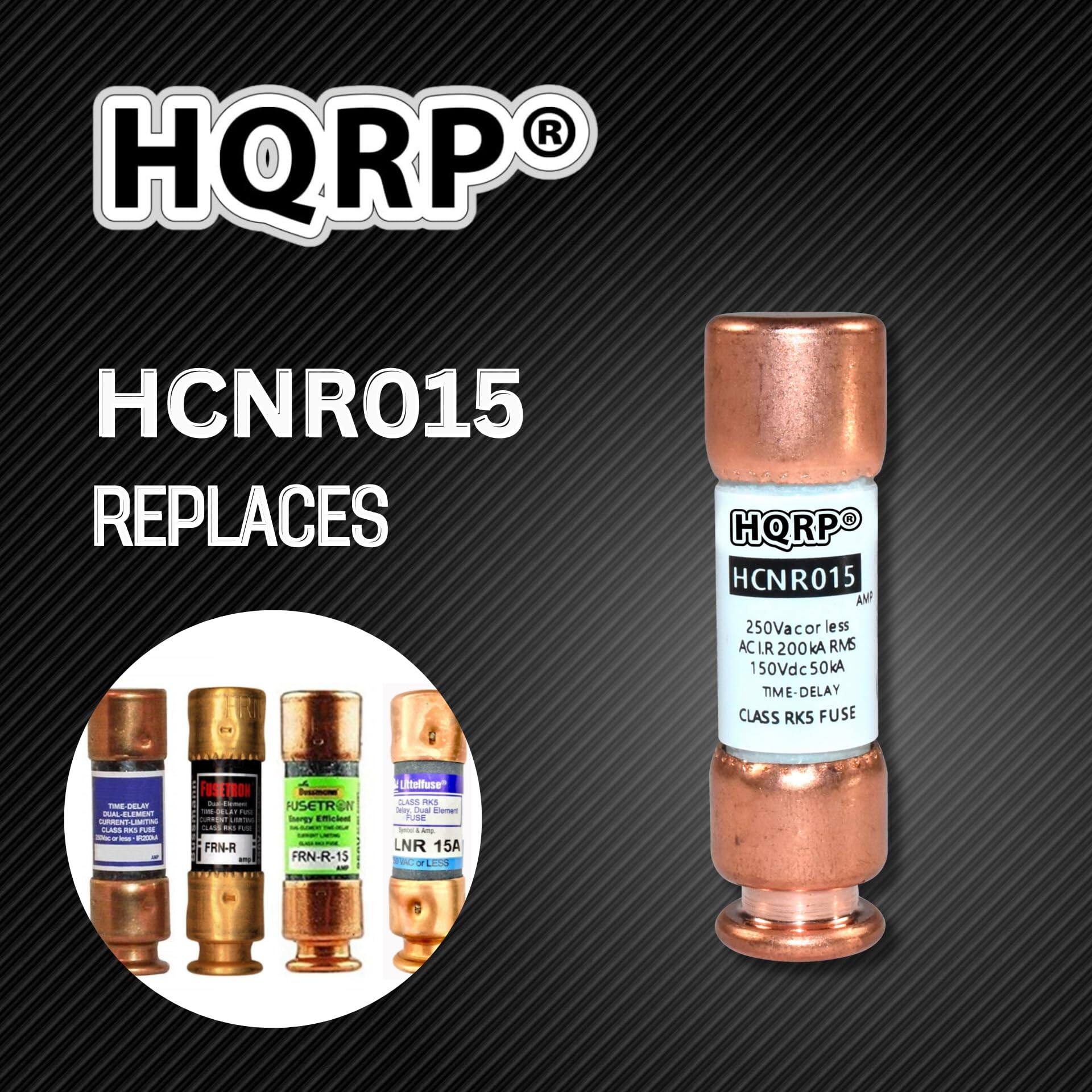

- Compatible replacement part numbers: Compatibility: Compatible with Bussmann BP/FRN-R-15, Edison ECNR15, Littelfuse FLNR015.T / FLN-R-15 / FLNR-15; model HCNR015 replacement helps restore correct amperage and time-delay behavior
- 15 A 250 V circuit protection: Power specs: 15 A 250 V time-delay fuse helps protect circuits from overloads and short circuits; supports common protection points in service entrance switches, switchboard mains and feeders
- Dual-element time-delay design: Overload handling: Dual element construction helps tolerate temporary motor overloads and surge current; holds an overload 5 times the amp rating for at least 8 s to reduce nuisance openings
- High interrupting capacity ratings: Fault current safety: Rated 250 V AC 200 kA interrupting capacity and 125-150 V DC 50 kA; helps maintain reliable protection in demanding electrical applications
- Class RK5 size and UL standard: Fit and compliance: 9/16 in x 2 in (14.3 mm x 50.8 mm) Class RK5 form factor; designed to comply with UL248-12 specifications for consistent replacement sizing
- Compatible replacement part numbers: Compatibility: Compatible with Bussmann BP/FRN-R-15, Edison ECNR15, Littelfuse FLNR015.T / FLN-R-15 / FLNR-15; model HCNR015 replacement helps restore correct amperage and time-delay behavior
- 15 A 250 V circuit protection: Power specs: 15 A 250 V time-delay fuse helps protect circuits from overloads and short circuits; supports common protection points in service entrance switches, switchboard mains and feeders
- Dual-element time-delay design: Overload handling: Dual element construction helps tolerate temporary motor overloads and surge current; holds an overload 5 times the amp rating for at least 8 s to reduce nuisance openings
- High interrupting capacity ratings: Fault current safety: Rated 250 V AC 200 kA interrupting capacity and 125-150 V DC 50 kA; helps maintain reliable protection in demanding electrical applications
- Class RK5 size and UL standard: Fit and compliance: 9/16 in x 2 in (14.3 mm x 50.8 mm) Class RK5 form factor; designed to comply with UL248-12 specifications for consistent replacement sizing
- Compatible replacement part numbers: Compatibility: Compatible with Bussmann BP/FRN-R-15, Edison ECNR15, Littelfuse FLNR015.T / FLN-R-15 / FLNR-15; model HCNR015 replacement helps restore correct amperage and time-delay behavior
Reviews
This product doesn't have any reviews yet.
Compare similar products
The HCNR015 is a 15 A dual-element time-delay fuse designed to protect electrical systems from overloads and short circuits while reducing nuisance openings caused by temporary motor startup surges. Built in a Class RK5 9/16 in x 2 in (14.3 mm x 50.8 mm) size, it is designed to deliver both reliable overload protection and strong short-circuit protection, including high interrupting capacity ratings of 250 V AC 200 kA and 125-150 V DC 50 kA. It complies with UL248-12 specifications and is well suited for service entrance switches, switchboard mains and feeders, motor control centers, and motor branch circuits where time-delay performance is needed. Compatible with Bussmann BP/FRN-R-15 / Edison ECNR15 / Littelfuse FLNR015.T / FLN-R-15 / FLNR-15. Disclaimer: This is not an Original Equipment Manufacturer (OEM) product, HQRP branded product is a replacement. All brand names and logos are registered trademarks of their respective owners. Any use of the brand names or model designations for this product are made solely for purposes of demonstrating compatibility.
