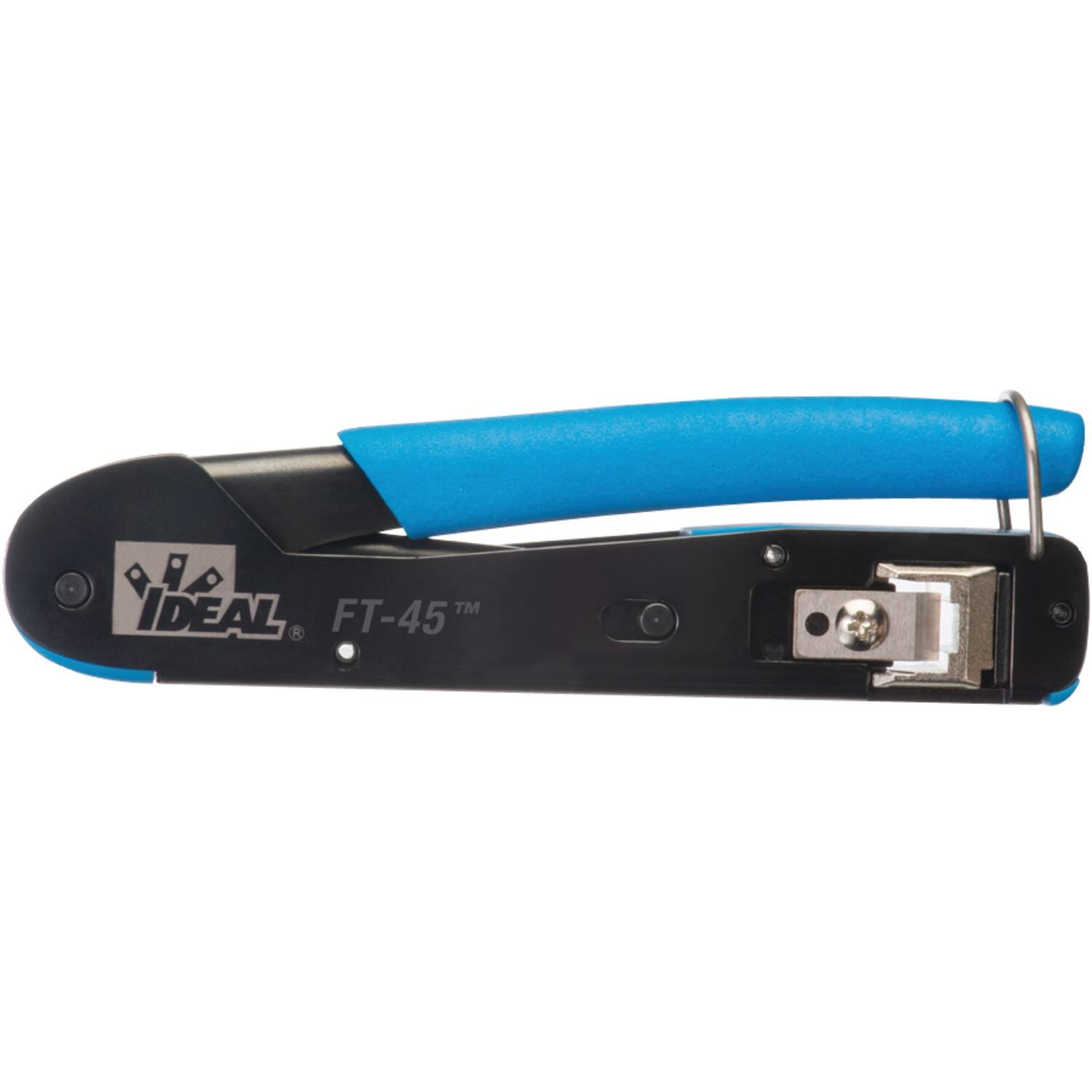

IDEAL - FT-45 Feed-Thru Mod Plug Crimp Tool - Black
Reviews coming soon
More Buying Options from Marketplace sellers
Related Item
Reviews coming soon
About This Item
- General
- Brand: IDEAL
- Model Number: 30-495
- Product Name: FT-45 Feed-Thru Mod Plug Crimp Tool
- Color: Black
- Dimensions
- Product Height: 1.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 11 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Warranty
- Warranty - Parts: 1 year
- Other
- Compatible Pipe Or Tube Material: N/A
- Hydraulic Operation: false
- UPC: 783250787494
The IDEAL FT-45 Feed-Thru Mod Plug Crimp Tool is a simple, compact and highly effective crimp tool for installers and techs that terminates RJ45 connectors regularly. It has a single crimp cavity for RJ-45/8-position connectors that can be used with Feed-Thru, standard or shielded connectors for CAT-5E or CAT-6, a custom, replaceable, and heavy-duty cutting blade that will last for over 2,000 cuts and a mechanical design that requires only 1/3 to 1/2 the hand force of traditional tools to crimp the connector. No ratchet mechanism is needed and 1-handed crimping is possible. The tool is compact, 5 1/2 in. in length and weighs just over 1/2 lb. It has a textured grip, spring-loaded handle, locking hasp and has the 568A and 568B wiring scheme marked on it. A larger opening allows conductors to pass-thru without obstruction. The metal crimp cavity improves crimping consistency. The FT-45 cleanly shears the excess conductors and leaves a smooth flat finish to the end face of the connector. No protrusions or small lengths of conductor remain beyond the plastic face or the connector. This minimizes accidental shorting of conductors or inadvertent contact in plug jacks.
- Versatile Crimping: Crimps feed-thru, standard, and shielded RJ-45 connectors for CAT-5E and CAT-6 cables in one tool
- Compact Size: Measures 5 1/2 in. long and weighs just over 1/2 lb, making it easy to handle and store
- One-Step Crimping: Crimps and trims flush in a single step for fast, clean terminations without extra tools
- Long-Lasting Blade: Features a replaceable heavy-duty blade that lasts for over 2,000 cuts, reducing downtime

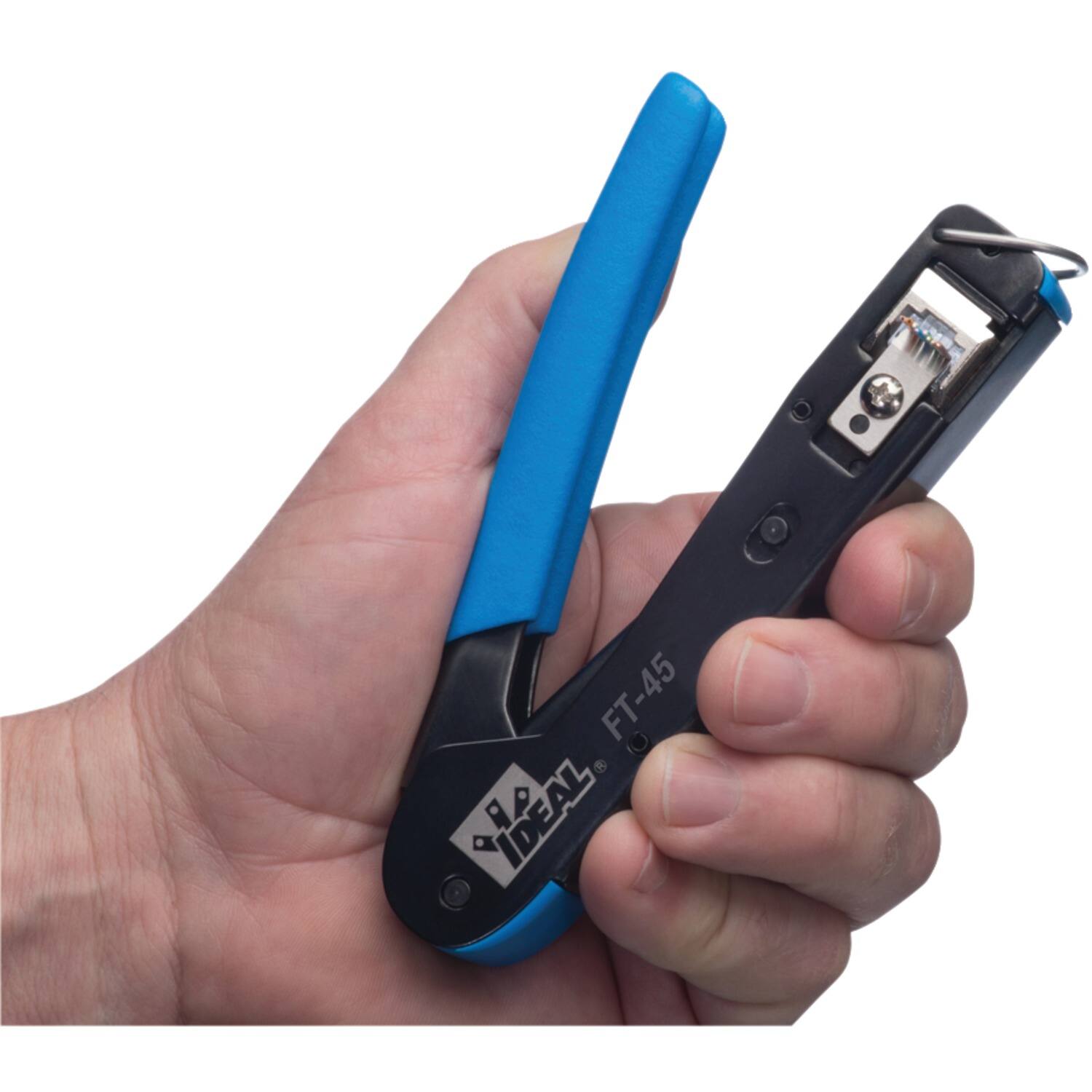

- Low Hand Force: Requires only 1/3 to 1/2 the hand force of traditional crimpers, enabling comfortable one-handed use
Whats Included
- CRIMP TOOL
Product Manuals
Reviews
This product doesn't have any reviews yet.
Compare similar products
The IDEAL FT-45 Feed-Thru Mod Plug Crimp Tool is a simple, compact and highly effective crimp tool for installers and techs that terminates RJ45 connectors regularly. It has a single crimp cavity for RJ-45/8-position connectors that can be used with Feed-Thru, standard or shielded connectors for CAT-5E or CAT-6, a custom, replaceable, and heavy-duty cutting blade that will last for over 2,000 cuts and a mechanical design that requires only 1/3 to 1/2 the hand force of traditional tools to crimp the connector. No ratchet mechanism is needed and 1-handed crimping is possible. The tool is compact, 5 1/2 in. in length and weighs just over 1/2 lb. It has a textured grip, spring-loaded handle, locking hasp and has the 568A and 568B wiring scheme marked on it. A larger opening allows conductors to pass-thru without obstruction. The metal crimp cavity improves crimping consistency. The FT-45 cleanly shears the excess conductors and leaves a smooth flat finish to the end face of the connector. No protrusions or small lengths of conductor remain beyond the plastic face or the connector. This minimizes accidental shorting of conductors or inadvertent contact in plug jacks.
