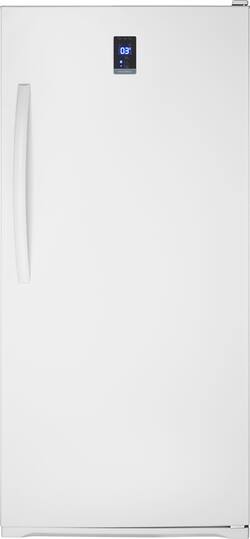

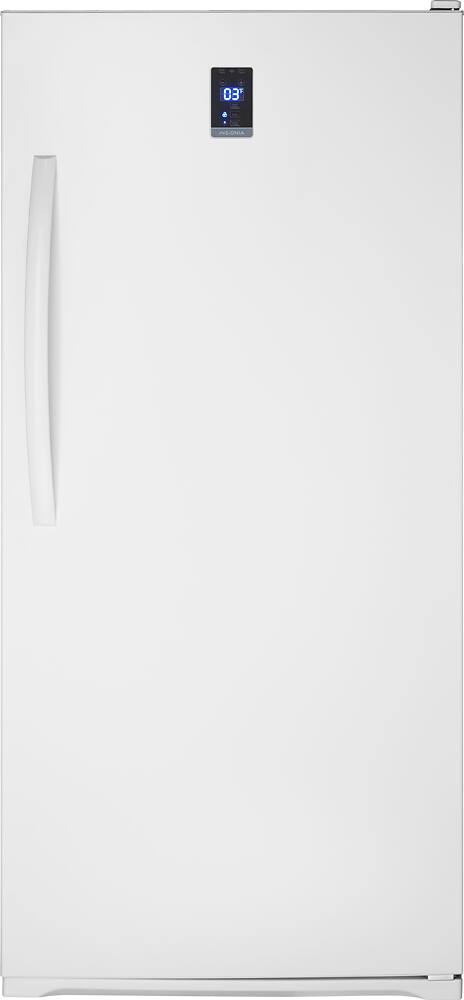

Insignia™ - 13.8 Cu. Ft. Frost-Free Upright Convertible Freezer/Refrigerator - White
- Key Specs
- Color Finish: White
- Product Height: 61 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 28 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 29 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Capacity: 13.8 cubic feet
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Insignia™
- Model Number: NS-UZ14XWH7
- Product Name: 13.8 Cu. Ft. Frost-Free Upright Convertible Freezer/Refrigerator
- Color: White
- Color Finish: White
- Dimensions
- Product Height: 61 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 28 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 29 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 152.1 pounds (The out of box weight of the item.)
- Capacity
- Capacity: 13.8 cubic feet
- Features
- Form Factor: Freestanding (The size, arrangement, and physical configuration of the product.)
- Freezer Type: Upright (Chest freezers have a lid that lifts from above and open storage space within, helpful for storing bulk items. Upright freezers open from the front and provide vertical storage, which helps keep items accessible. Column freezers are similar to upright but are typically built-in to complement existing spaces.)
- Convertible To Refrigerator: true
- Ice Maker: No
- Defrost Type: Frost free (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Defrost Indicator: true (Signal that alerts you when it is time to defrost the freezer.)
- Temperature Control Type: Electronic
- Control Location: Exterior
- Quick Freeze: true (Feature that allows you to quickly reduce the temperature when needed, perfect for chilling drinks or freezing large quantities of fresh food. Fast freezing may help maintain food quality.)
- Soft Freeze Zone: false (Designated compartment kept at a temperature colder than the refrigerator but slightly warmer than the freezer. Keep ice cream frozen but ready and easy to serve in this storage zone.)
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Power-On Indicator Light(s): true
- Interior Light(s): true
- Adjustable Leveling Legs: true (Legs can be adjusted accordingly to ensure that your appliance sits level, even on uneven ground.)
- Reversible Door Hinge: false
- Storage
- In-Door Storage: true
- Adjustable Shelving: false
- Number of Cabinet Shelves: 4
- Cabinet Shelf Type: Slide-out (Slide-out shelves may offer versatile placement and be easier to clean, while built-in shelves provide fixed storage.)
- Performance
- Temperature Alarm: true (Alarm that signals when the internal temperature rises or falls out of the set ideal range.)
- Temperature Range (Freezer): -11F to 10F (Indicates the possible range of the freezer’s internal temperature, from lowest to highest.)
- Temperature Range (Refrigerator): 35F to 46F
- Included
- Drain Included: false
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Electrical Specification
- Estimated Annual Electricity Use: 391 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 47 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Not Qualified
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 600603204425
Only at Best Buy Freeze or refrigerate your food in this Insignia upright freezer simply by changing the temperature settings on the clear and convenient LCD display. This appliance features an alarm that alerts you when the door is left ajar. Wire shelving on this Insignia upright freezer let you organize your frozen foods and keep track of them with a glance.
- Door Alarm: Alerts you when the refrigerator door is accidentally left open to save energy
- Frost Free: Offers exceptional frost maintenance with no need for manual defrosting
- Quick Freeze: Rapidly freeze products for quick preservation
Whats Included
- Insignia™ 13.8 Cu. Ft. Frost-Free Upright Convertible Freezer/Refrigerator
Product Manuals
Documents
- Energy_Guide_PDF
A: Had this freezer for about a month, and keep it in the basement. Noise level is quiet like a low hum when it comes on.
A: Why won't Best Buy simply post the directions for shutting off this completely unnecessary (and unprotected) wifi? I have called their customer support, and I have downloaded the app with no luck on either count. POST THE DIRECTIONS BEST BUY. Wifi on a freezer is the stupidest thing I have ever heard of. "your privacy is important to us" says Best Buy, except when it comes to secure Wifi.
Q: Does this need to be connected to a water line for ice if I'm only using it as a secondary freezer?
A: Ours is just plugged into electric there are no hoses.
Q: What is the temp range of this model?
A: Per the manual, the default temperature for freezer mode is 0° F (-18° C) and swings +/- 10° F (+/- 6° C) and for refrigerator mode is 35° F to 46° F (2° C to 8° C). I've only had this for 2 weeks, but when I spot check the freezer it's between -7° F and 9° F. I guess the swing means it does not have to start and stop as often. For comparison it only runs about 25% of the time that my old unit ran, so I expect quite an energy savings (on top of the recent sale price, my utility Energy Star rebate, and selling my old unit to my utility). If you want to see the manual, go to www.insigniaproducts.com and search "NS-UZ14XWH7" under Support/Service.
Q: Does the lock button on the front of the screen mean lock the door or temperature?
A: It locks the temperature setting.
Q: Where can I buy an extra shelf for this unit?
A: Hi, I have NOT bought a shelf for this freezer, but our Grandkids broke a glass shelf in our Samsung refrigerator, and I searched all over. I found it at www.appliancepartspros.com They carry almost every part for appliances. The price was fair and we got the exact shelf that looked and fit like original equipment. The price wasn't dirt cheap but I paid a lot less than I thought I might have to pay for the perfect part and many times cheaper than having a repairman come out. They ship the part to you. If the part is in stock, you get it in days. The part I ordered was out of stock, but I still got it in a few weeks. All you need is the brand name and model number of your appliance. They have on-line part diagrams that you can use to find the part. You can check it out on line with no commitment. It is worth a try. I hope this helps. Frank
A: I just went to the basement and measured. With the tape measure on the floor to the top of the unit it measures 61" exactly.
Q: What are the outside dimensions of the Insignia 13.8 cf convertible refrigerator/freezer?
A: The dimensions of this product are as follows: Height 61 inches Width 28 inches Depth 29.5 inches
