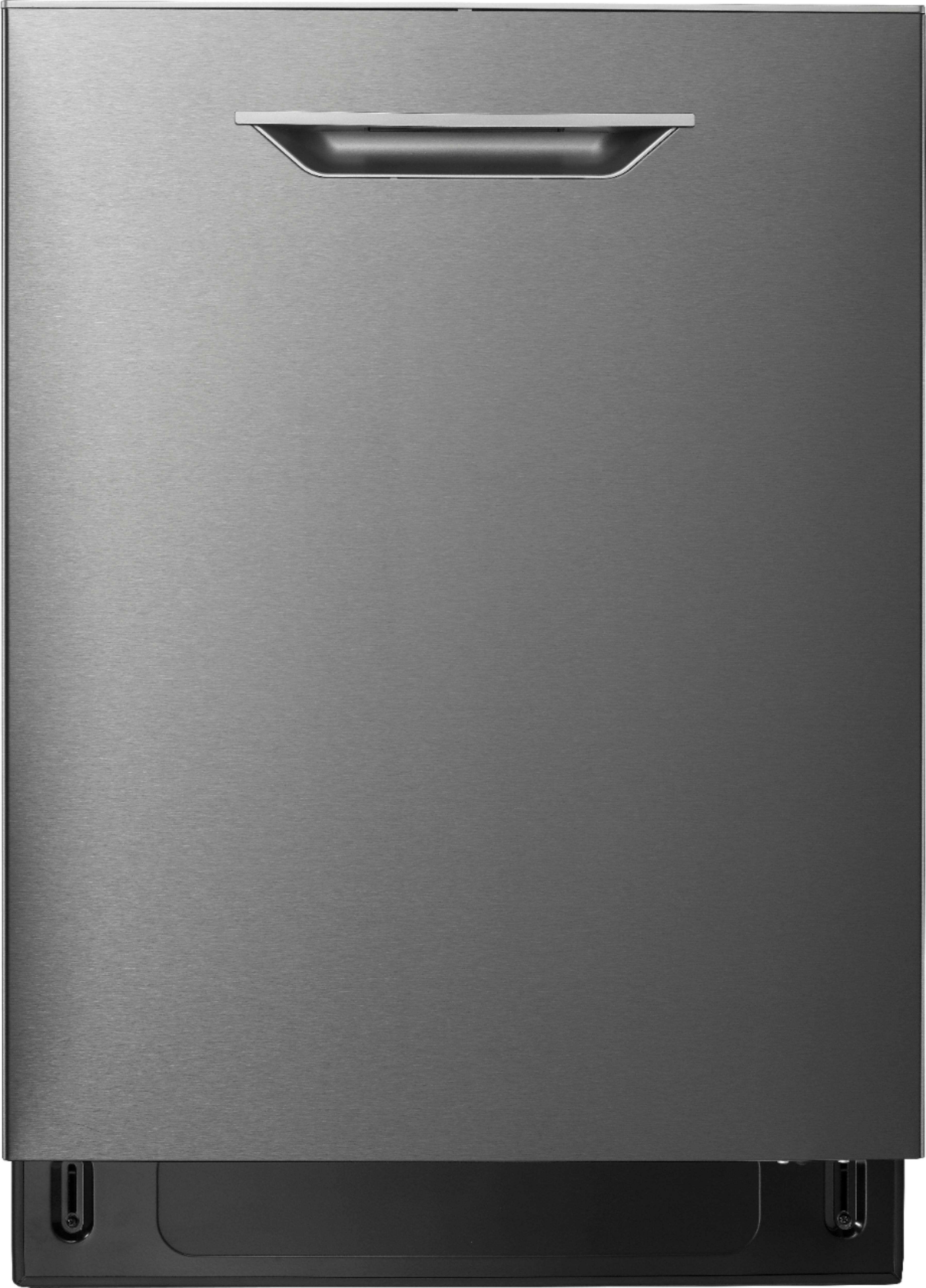

Insignia™ - 24" Top Control Built-In Dishwasher - Stainless steel
- Key Specs
- Color Finish: Stainless steel
- Product Height: 33 5/7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 8/9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 46 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 3
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- General
- Brand: Insignia™
- Model Number: NS-DWR2SS8
- Product Name: 24" Top Control Built-In Dishwasher
- Color: Stainless steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 33 5/7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 8/9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 50 1/8 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 89.5 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 34 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: true (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Drying Method: Heated drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 46 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Cycle Specifications
- Number of Cycles: 6 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Dishwasher Cycles: Normal Wash, Pots & Pans, China, Energy Saver, Rinse Only, Quick Wash
- Options and Programs: Energy save, quick wash, normal, rinse, sanitary, pots and pans, high temperature wash, steam, clean cycle, heat dry option, china
- Steam Cleaning: true (Wash cycle that primarily uses steam to loosen food debris and clean fragile dishware without force.)
- NSF-Certified Sanitization Cycle: true (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Rack Features
- Number Of Racks: 3
- Third Rack Features: Adjustable height, Utensil separator (Aspects of third rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Upper Rack Features: Adjustable height, Removable (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Rack handle, Removable, Removable silverware basket, Utensil separator (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Rack Material: Other
- Design
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Button
- Control Location: Top control
- Handle Type: Towel bar handle
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Electrical Specification
- Estimated Annual Electricity Use: 249 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 30 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 8.4 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Other
- UPC: 600603214165
Only at Best Buy
Keep pots and pans clean and sanitary with this Insignia dishwasher. Its steam wash function provides heavy cleaning to remove baked-on foods, and its smart wash system automatically adjusts the cycle to accommodate the load's size and level of soil. This Insignia dishwasher has an upper rack that's adjustable to accommodate tall or larger items.
- 3rd Rack: Create more space. The dedicated top pull-out rack for utensils and cutlery gives you room to fit larger dishware below.
- Bottom Indicator Light: Let's you know when the dishwasher is running.
- Quietest operation: A 46-dBA rating means a quiet performance every time, so you won't interrupt your household while running loads.
- Flexible racking system: The flexible racking system helps you accommodate large loads of dishware in all shapes and sizes.
- Lighted Interior: White LEDs Illuminate the interior space.
- Accommodates up to 16 place settings: Generous interior space means more clean dishes, fewer loads.
- High temperature wash for better, safer clean: Operates at a higher temperature to help reduce bacteria and enhance drying results.
- Heated dry option: Choose between heated dry or energy saver (no heat) dry option.
- 3rd Rack: Create more space. The dedicated top pull-out rack for utensils and cutlery gives you room to fit larger dishware below.
- Bottom Indicator Light: Let's you know when the dishwasher is running.
- Quietest operation: A 46-dBA rating means a quiet performance every time, so you won't interrupt your household while running loads.
- Flexible racking system: The flexible racking system helps you accommodate large loads of dishware in all shapes and sizes.
- Lighted Interior: White LEDs Illuminate the interior space.
- Accommodates up to 16 place settings: Generous interior space means more clean dishes, fewer loads.
- High temperature wash for better, safer clean: Operates at a higher temperature to help reduce bacteria and enhance drying results.
- Heated dry option: Choose between heated dry or energy saver (no heat) dry option.
Whats Included
- Hose
- Insignia 24" Top Control Built-In Dishwasher
- Installation kits
- Owner's manual
- Hose
- Insignia 24" Top Control Built-In Dishwasher
- Installation kits
- Owner's manual
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
A: The E9 code typically develops due to water coming in contact with the top control panel. This happened less when I started using the liquid jet dry to aid in dish drying. If the code comes on it will sometimes correct on it's own as you keep the door closed. If that does not correct it then the sure fire way to reset it is to turn the dishwasher circuit breaker off and back on. Now if you are pluged in instead of hard wired you might just be able to unplug the dishwasher and plug it back in. Hope that helps.
A: Not sure what caused it but mine just did the same. I reset power to it and it cleared and is running. I had to reset power at the breaker.
Q: Thinking of buying this one. How is the sound and any serious issues with it?
A: Do not buy this dishwasher! It is a new product that, judging by the unit we have, is of poor quality. Our unit is 2 months old and does not drain. However, because it's so new the repair parts are not available until September. Best Buy has done nothing to correct this to-date (have yet to receive a return call from a manager, supervisor, or hear from anyone in "customer service") and we have been without a working dishwasher for almost a month. I will never buy an appliance from Best Buy again.
A: It’s always on. We close the door and the control panel is under the counter and you don’t see the light. It’s ready for another load. Just load it, press start and close.
Q: I would like to turn off the LED screen. I have 2 straight lines on the screen that are always on.
A: The good news... You have 2 straight lines on the screen. The bad news... You can't turn them off. 2 lines means that the system is "off". However, the Touch Pad on the top strip of the door is very sensitive and you'll find that you'll have other codes flashing all the time, if you accidentally touch the strip while opening/closing the door. It's very annoying, to say the least!
A: I had the same problem. I added Jet dry and now my dishes, glasses and silverware are dry and extremely clean with every wash. The Jet Dry made all the difference.
A: Yes,the front of the dishwasher is finished. As for the led lights -there is an issue with the E9 warning light that comes on intermittently at random. The E9 light is malfunctioning and will not go off and the only way I can get the dishwasher to start when this happens is to throw the breaker switch. The Geek Tech has been diligently working to fix this, but the problem is in trying to get a replacement part from INSIGNIA. Apparently the part has been on back order for quite some time. Again, the replacement part was supposed to arrive this week and has not. Seems like INSIGNIA could do better. To answer your question about drying - it dries fine except for plastic. But the problem with the led is a major pain!!!!!
A: It does not. Additional comments - washer cleans great and runs quiet, but the controls are unnecessarily cumbersome, to the point of me considering returning it, but the 2 week window has already expired. I leaned my leg against the buttons (on top of door, so sticking into room when open) and froze the dishwasher because buttons had been pushed for too long. I have to reset the circuit breaker because my leg was against the door. It is also confusing to determine when it is running or not if you open it mid cycle. Good dishwasher, just would suggest Insignia do better on the controls.
