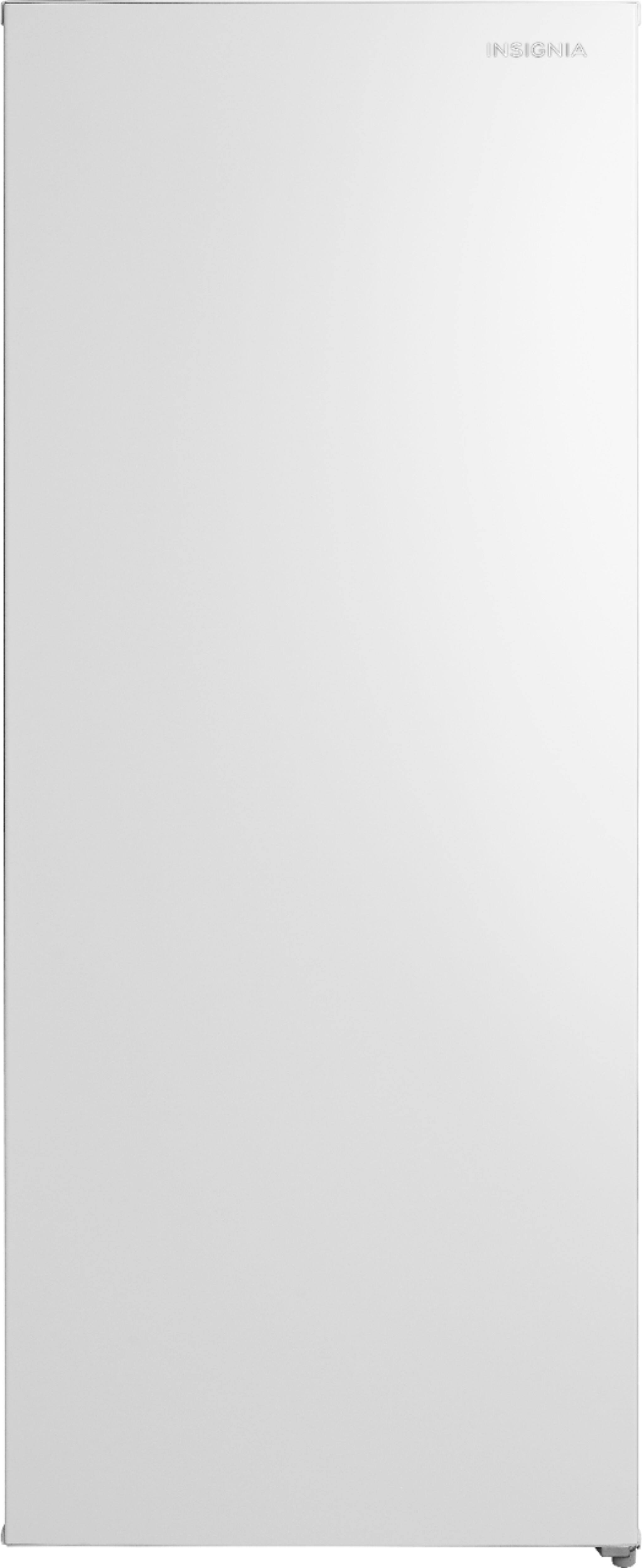

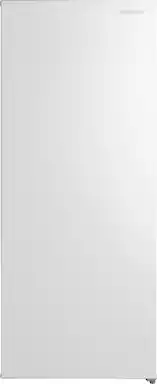

Insignia™ - 7 Cu. Ft. Garage Ready Upright Freezer - White
- Key Specs
- Color Finish: White
- Product Height: 56 5/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 21 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 7/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Capacity: 7 cubic feet
- General
- Brand: Insignia™
- Model Number: NS-UZ7WH0
- Product Name: 7 Cu. Ft. Garage Ready Upright Freezer
- Color: White
- Color Finish: White
- Dimensions
- Product Height: 56 5/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 21 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 7/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 99.2 pounds (The out of box weight of the item.)
- Capacity
- Capacity: 7 cubic feet
- Features
- Form Factor: Freestanding (The size, arrangement, and physical configuration of the product.)
- Freezer Type: Upright (Chest freezers have a lid that lifts from above and open storage space within, helpful for storing bulk items. Upright freezers open from the front and provide vertical storage, which helps keep items accessible. Column freezers are similar to upright but are typically built-in to complement existing spaces.)
- Convertible To Refrigerator: false
- Ice Maker: No
- Garage Ready: true (Garage Ready appliances have been tested by the manufacturer to operate within a wider range of external temperatures than the average home environment, such as a garage which can fall below freezing or heat above 100 degrees Fahrenheit. Please refer to the manufacturer's documentation for detailed external operating temperature requirements.)
- Defrost Type: Manual (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Defrost Indicator: false (Signal that alerts you when it is time to defrost the freezer.)
- Temperature Control Type: Adjustable, Mechanical Dial
- Control Location: Interior
- Power-On Indicator Light(s): false
- Interior Light(s): false
- Adjustable Leveling Legs: true (Legs can be adjusted accordingly to ensure that your appliance sits level, even on uneven ground.)
- Reversible Door Hinge: true
- Storage
- In-Door Storage: false
- Adjustable Shelving: true
- Number Of Adjustable Shelves: 1
- Shelf Material: Glass
- Number of Cabinet Shelves: 5
- Performance
- Temperature Range (Freezer): -11.2°F to 10.4°F (Indicates the possible range of the freezer’s internal temperature, from lowest to highest.)
- Minimum Operating Temperature: 0 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 110 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Electrical Specification
- Estimated Annual Electricity Use: 331 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 46 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: CEE Not Qualified
- Warranty
- Warranty - Parts: 1 Year
- Warranty - Labor: 1 Year
- Other
- UPC: 600603250835
Keep your food frozen with this Insignia 7 cu. ft. garage ready upright freezer. The classic design and reversible door hinges allow it to easily integrate into any setting, and the generous storage space is ideal for smaller families and couples.
- 7.0 cu. ft. capacity: Offers plenty of storage space for frozen meals.
- Garage ready: Works in temperatures from 0° to 110°F (-17.8° to 43.3°C).
- Upright design: Keeps all your frozen foods within easy reach.
- Four shelves: Organizes your food so it’s easy to find.
- Thermostat knob: Adjusts the temperature from 10.4° to -11.2° F (-12° to -24° C) to keep food fresher longer.
- Reversible door: Reposition the door to open on the left or right side to better fit your space.
- Leveling feet: Keep your freezer straight on uneven surfaces.
- Easy to position: 5.4 ft. (165 cm) power cord gives you enough length to position your freezer where it’s needed.
- Manual defrost: Simply unplug the refrigerator to melt excess frost.
- UL and DOE approved: Meets guidelines for safe and efficient use.
- 7.0 cu. ft. capacity: Offers plenty of storage space for frozen meals.
- Garage ready: Works in temperatures from 0° to 110°F (-17.8° to 43.3°C).
- Upright design: Keeps all your frozen foods within easy reach.
- Four shelves: Organizes your food so it’s easy to find.
- Thermostat knob: Adjusts the temperature from 10.4° to -11.2° F (-12° to -24° C) to keep food fresher longer.
- Reversible door: Reposition the door to open on the left or right side to better fit your space.
- Leveling feet: Keep your freezer straight on uneven surfaces.
- Easy to position: 5.4 ft. (165 cm) power cord gives you enough length to position your freezer where it’s needed.
- Manual defrost: Simply unplug the refrigerator to melt excess frost.
- UL and DOE approved: Meets guidelines for safe and efficient use.
Whats Included
- Insignia 7 Cu. Ft. Upright Freezer
- Accessory bag with hardware for reversing the door
- User Manual
- Insignia 7 Cu. Ft. Upright Freezer
- Accessory bag with hardware for reversing the door
- User Manual
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
A: Hope this answers you questions. Top/small shelf is 3" high 16" wide and 14" deep. Main shelves are 16"wide, 14" deep and with the adjustable shelf in the higher position, separated by, top to bottom, 10", 8", 8", and 10". On the top shelf with 10", behind the thermostat you can get another inch. 2nd from bottom shelf is adjustable by 2.5" Floor shelf is 16" wide, 8" deep and 8" high
Q: What are the recommended temps for the install location? I.e. can I put this in my garage?
A: from +5 deg F up to 109 deg F.
Q: can this be laid down to fit in the back of a small suv?
A: Hi, Jerry. This unit can definitely be laid down, however, it would need to be left top rest for at least 24 hrs prior to plug it to the electricity, once you install it. Alexander G. - Insignia Support
A: Maybe twice a year, take out the food and put it into a cooler. Unplug the freezer. Put a pan of boiling water on the bottom, close the door for around 30 minutes to loosen the ice, then open the freezer and most of the ice should be loose enough to wipe it out. Put some old towels on the floor around the front of the freezer to soak up the melted ice DO NOT PICK AT THE ICE WITH ANY SHARP KNIFE OR TOOL TO LOOSEN IT UP. Years ago, I did that once and it punctured the wall of the freezer and it was beyond repair. Just wait for the hot water to melt it.
A: I thought the same thing, but it's just to show size and clearance of different items inside the freezer. More for a visual representation than anything else
A: No, this is not frost-free.
Q: Can this fit a large turkey on the shelf?
A: Yes, I put a 24 pound turkey in the freezer last weekend without having to move any shelves. I have owned the freezer since September and it’s smaller, upright size holds everything that I want it to. We are a family of two.
A: Our freezer is VERY quiet, something must be wrong with your freezer. I just love the amount of space I have.
