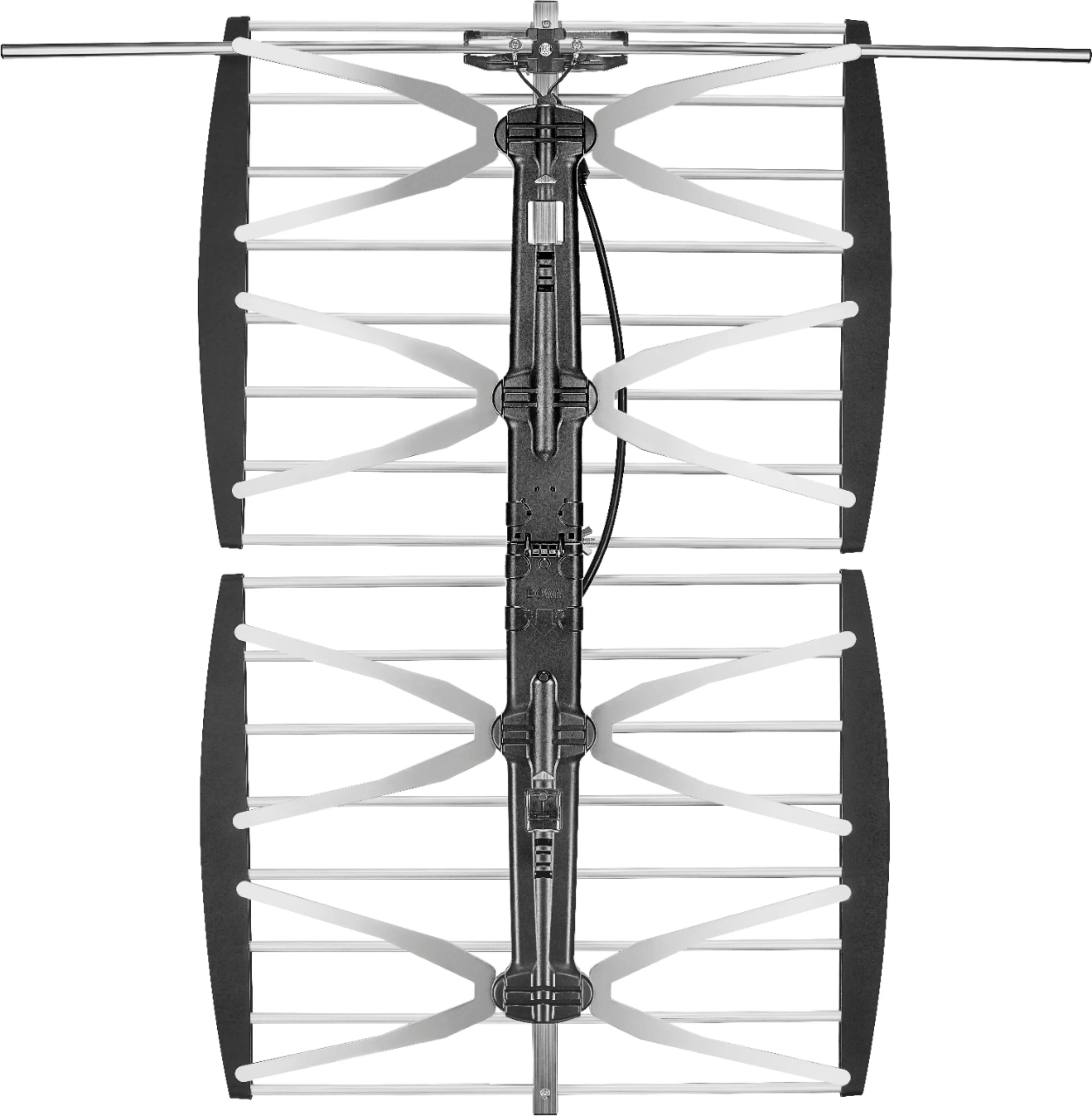

Insignia™ - Outdoor Antenna - Silver/Black
- Key Specs
- Indoor or Outdoor Use: Outdoor Antenna (Indicates the appropriate environment product was designed to be used in.)
- Maximum Operating Range: 75.2 miles
- Amplified Reception: true (A powered antenna is able to pull signals from a greater distance, enabling better reception.)
- General
- Brand: Insignia™
- Model Number: NS-ANT60DA
- Product Name: Outdoor Antenna
- Color: Silver/Black
- Design
- Indoor or Outdoor Use: Outdoor Antenna (Indicates the appropriate environment product was designed to be used in.)
- Performance
- Maximum Operating Range: 75.2 miles
- Channel Reception: Other
- Frequency: N/A (A measurement of the electromagnetic radio waves a device emits.)
- Impedance: 75 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Features
- Amplified Reception: true (A powered antenna is able to pull signals from a greater distance, enabling better reception.)
- Removable Amplifier: false
- Parental Controls: false (Allows user to block unwanted content, signals, channels, networks, etc. from being received or accessed.)
- Product Type: TV antenna
- Dimensions
- Product Height: 8.2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30.43 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 31.65 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 4.81 pounds (The out of box weight of the item.)
- Included
- Coaxial Cable Included: true
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 600603233623
Capture over-the-air channels with this Insignia long-range outdoor antenna. Its 75-mile range is ideal for rural locations, and its low profile structure makes for easy mounting on a roof with its included J-pole bracket. This Insignia long-range outdoor antenna pulls in weak signals and strengthens them for a clear display while enjoying your favorite TV channels.
- Antenna: Intended for outdoor usage.
- 75 ohms impedance: Helps ensure efficient performance.
- Up to 75.2-mile reception range: Ensures a clean, clear signal.
- Designed for outdoor use: For optimal placement.
- Antenna: Intended for outdoor usage.
- 75 ohms impedance: Helps ensure efficient performance.
- Up to 75.2-mile reception range: Ensures a clean, clear signal.
- Designed for outdoor use: For optimal placement.
Whats Included
- Insignia Outdoor Antenna
- Insignia Outdoor Antenna
Product Manuals
A: Does not come with cable. You need to buy RG6 coax.
Q: Can you use it inside too so no holes need to be drilled in walls to hook up to TV
A: I used mine indoors but still needed to strategically place it to receive channels i wanted. Its 33inches tall and 16 inches wide of tubes. 6 inches deep. The wall attachment adds a few more inches.
Q: will this antenna receive high vhf? or just uhf?
A: I just installed this antenna and I receive both vhf and uhf.
Q: Is this antenna multi-directional or directional?
A: Yes, this is a directional antenna but not in a left right horizontal plane. It is directuonal in the vertical plane. This means that signals striking the antenna are weaker as the vertical angle above a perfect horizontal increases. There are advantages to this design. The most important one is when HDTV transmitter sites are spread out from your reception location you should not need a rotator. The disadvantage is that TV signals reflected off buildings arriving at the antenna later than the same signal head on may cause loss of reception even if the signal is strong. Moving the antenna a few inches to a few feet can solve the problem.
A: 32" x 32" frame top to bottom and dipole on top. for antenna only
Q: what are the dimensions -----width and height in inches?
A: 33 h. 16 w 6 d. Then add few inches for the wall attachment.
Q: Will the antenna work if it is in the attic?
A: Yes, but just like other antennas for best results, open air mounting still works best.
