J-Tech Digital - 1080P 60Hz HDMI Extender Balun Over Ethernet (200ft.) - Black
J-Tech Digital - 1080P 60Hz HDMI Extender Balun Over Ethernet (200ft.) - Black
Related Item
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTD-HDEX-1
- Product Name: J-Tech Digital 1080P 60Hz HDMI Extender Balun Over Ethernet (200ft.)
- Color: Black
- Features
- Maximum Video Resolution: 1080p (Maximum resolution refers to the highest number of pixels that a screen can process and display. Higher resolution signals produce more detailed video.)
- Maximum Supported Resolution (Video Passthrough): 1080p (Full HD) @ 60 Hz (The highest video resolution supported by the device for passing through video to another device.)
- Powered: true
- Connectivity
- Wireless: false

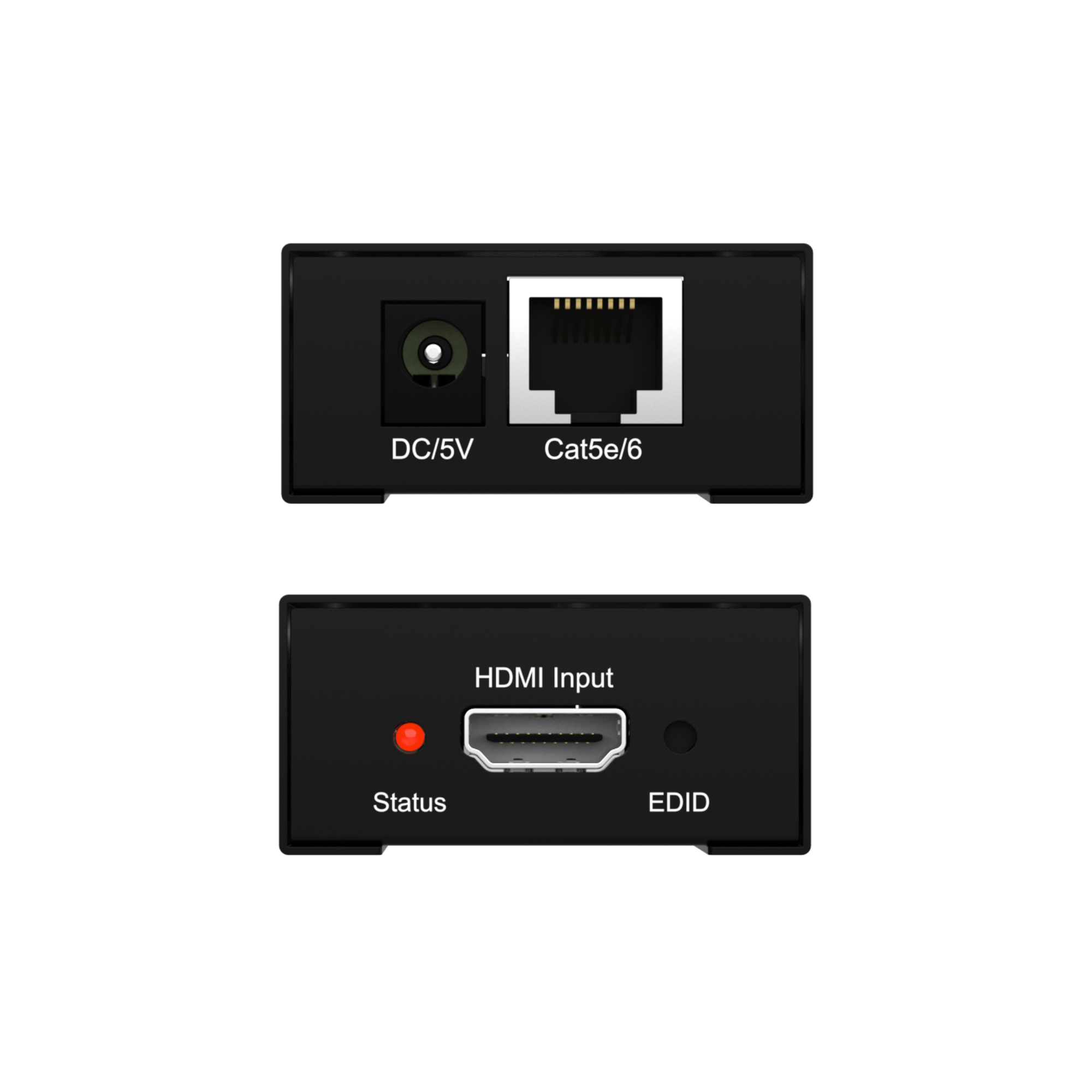

- Input(s): 1 x HDMI

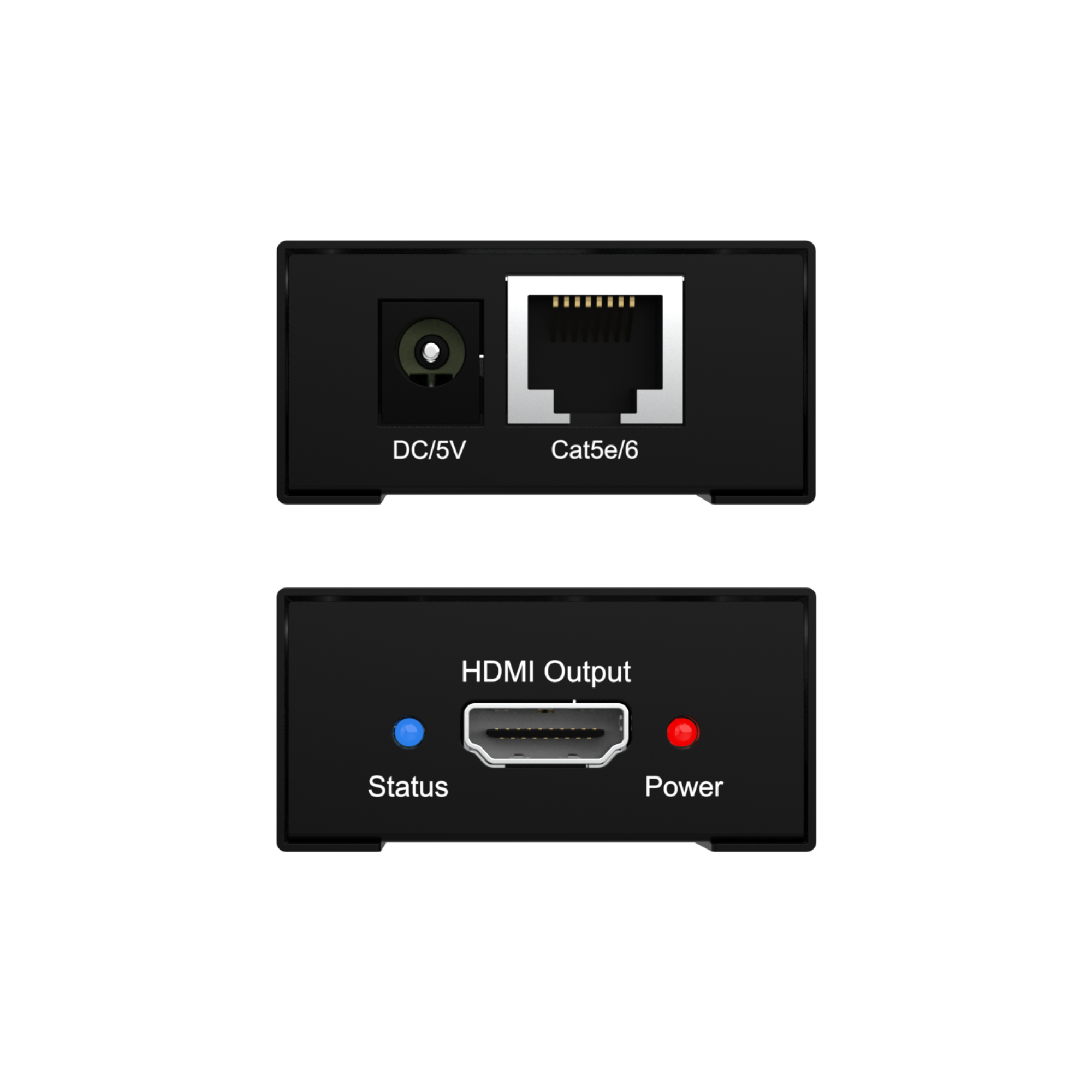

- Output(s): 1 x HDMI
- Maximum Transmission Range: 200 feet
- Dimensions
- Product Height: 0.88 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 3.25 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 1.95 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 654367439098

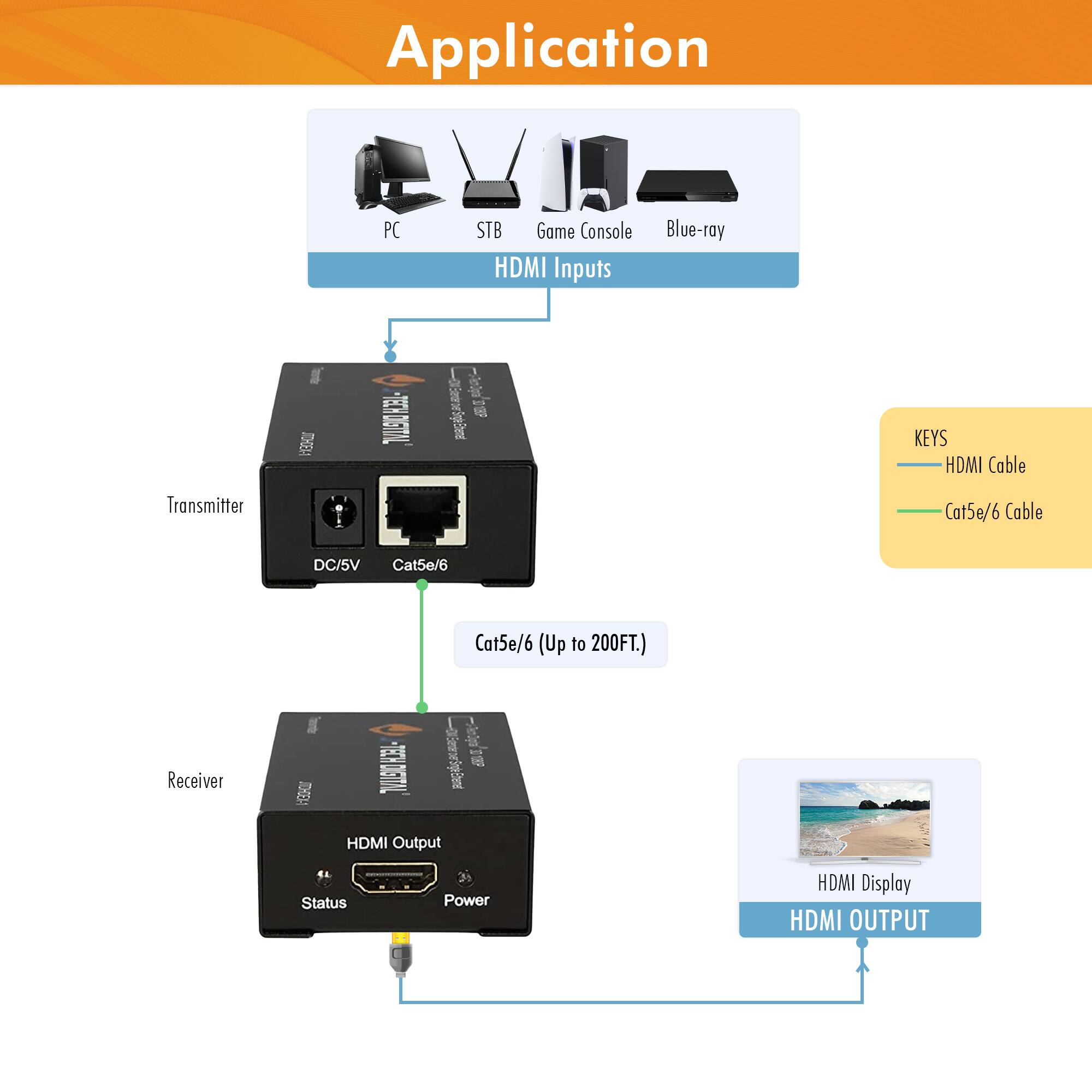

The JTDHDEX-1 HDMI over single ethernet extender is able to extend a 1080P 60Hz audio/video signal up to 150ft., which is four time the transmission distance of a typical HDMI cable. Enjoy deep color video and lossless compressed audio, and utilize the EDID copy function to eliminate any incompatibility issues that may occur within the setup. The JTDHDEX-1 is a great addition to an A/V distribution room, and it's easy installation make it perfect for any residential or commercial installation.
- Up To 1080P@60Hz Resolution Support: HDMI 1.4 and HDCP 1.4 compliant. Supports up to full HD 1080P@60Hz resolution and refresh rate, while also support previous resolutions such as 720P
- Long Distance Signal Transmission: Extend your audio/video HDMI signal up to 200ft. over a single Cat5e/6 ethernet cable without any latency

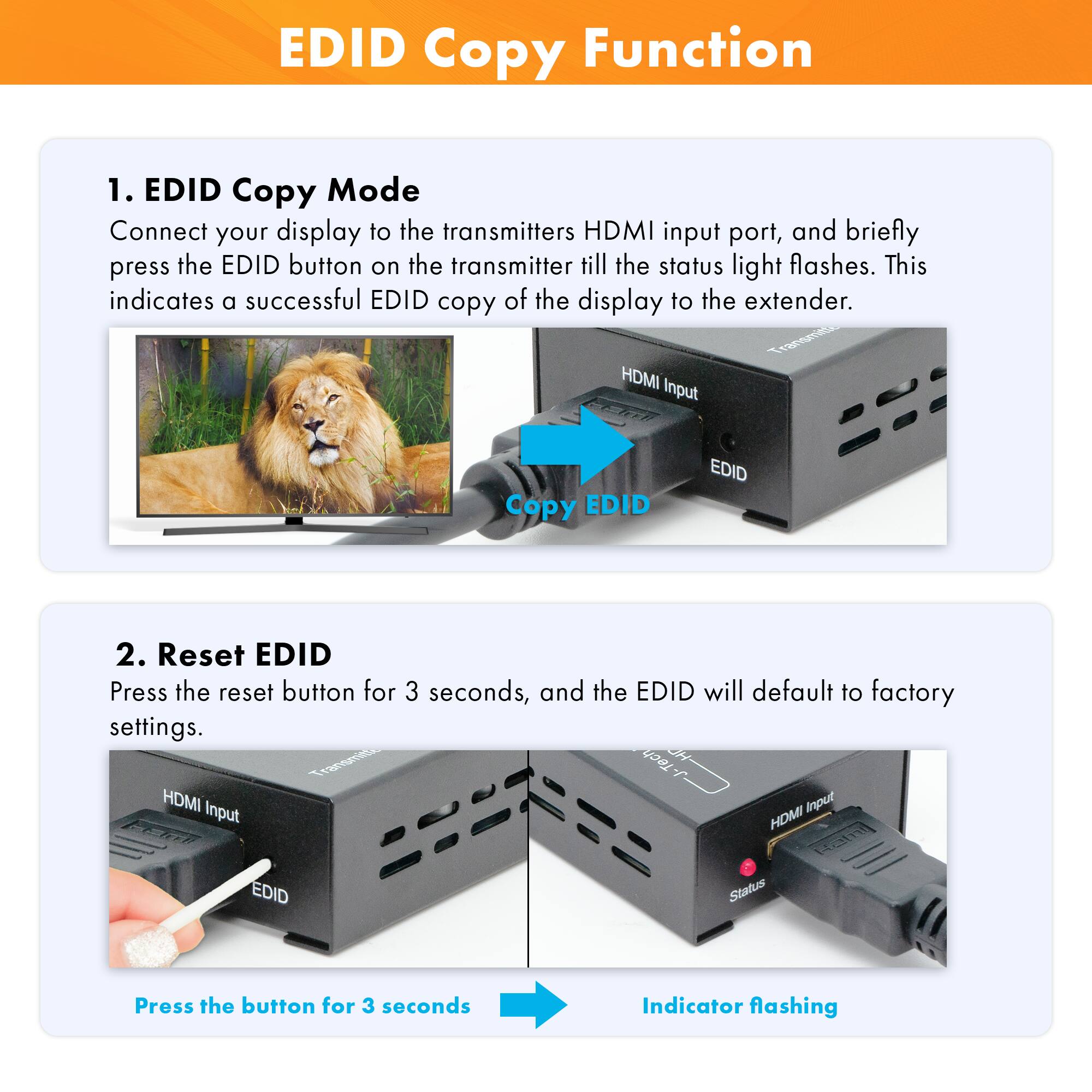

- Supports EDID Copy Function: Use the EDID copy function on the transmitter to help with audio and video signal incompatibility issues between the source and display. Also supports digital audio formats, such as Dolby Digital, if EDID is copied from the right device
- Optimal Performance: For better picture quality and longer distance transfer, we recommend to use Cat 6 or Cat 7 cable. For better performance, we suggest using solid copper ethernet cable with this product
- Up To 1080P@60Hz Resolution Support: HDMI 1.4 and HDCP 1.4 compliant. Supports up to full HD 1080P@60Hz resolution and refresh rate, while also support previous resolutions such as 720P
- Long Distance Signal Transmission: Extend your audio/video HDMI signal up to 200ft. over a single Cat5e/6 ethernet cable without any latency
- Supports EDID Copy Function: Use the EDID copy function on the transmitter to help with audio and video signal incompatibility issues between the source and display. Also supports digital audio formats, such as Dolby Digital, if EDID is copied from the right device
- Optimal Performance: For better picture quality and longer distance transfer, we recommend to use Cat 6 or Cat 7 cable. For better performance, we suggest using solid copper ethernet cable with this product
Whats Included

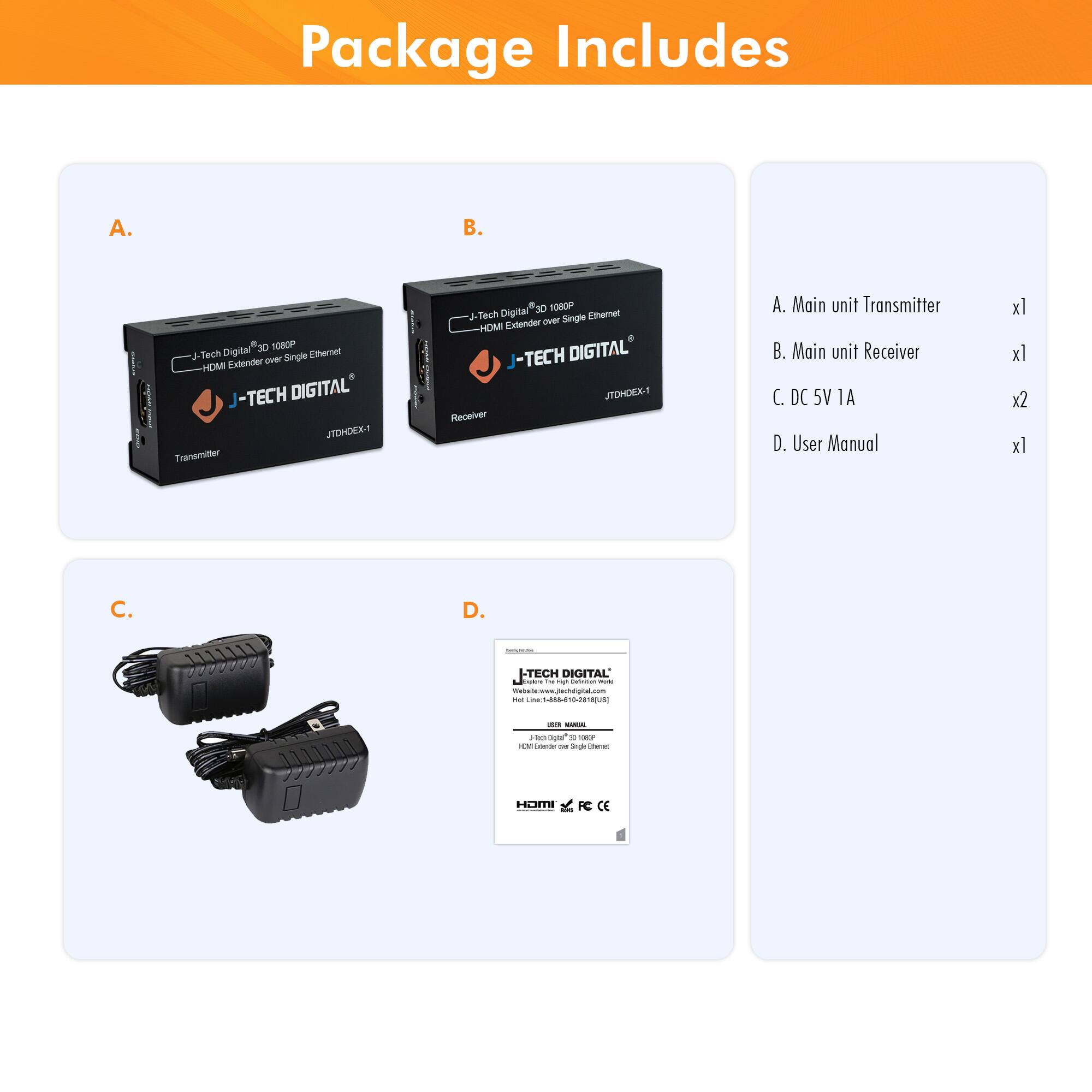

- Transmitter, Receiver, Power Adapters, User Manual
- Transmitter, Receiver, Power Adapters, User Manual
