J-Tech Digital - 2x2 Video Wall Processor (4K30 In 1080P Out) with Audio Extraction - Black
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-VW0104-AE
- Product Name: J-Tech Digital 2x2 Video Wall Processor (4K30 In 1080P Out) with Audio Extraction
- Color: Black
- Features
- Selector Switch Box Type: HDMI Switch

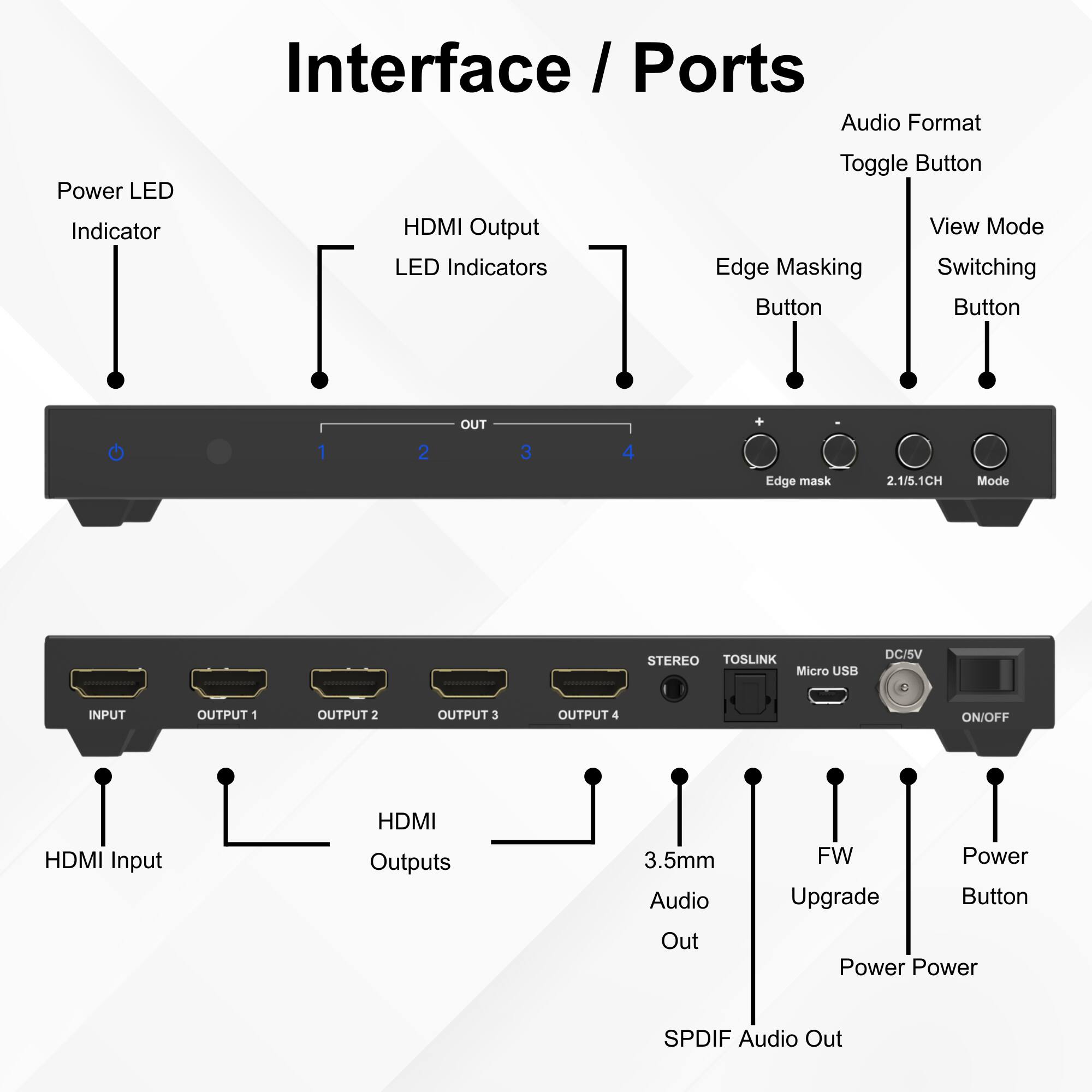

- Connectivity
- Input(s): 1 x HDMI
- Number of Inputs: 1
- Output(s): 4 x HDMI
- Number of Outputs: 4
- Dimensions
- Product Height: 0.73 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7.77 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 3.58 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Other
- UPC: 810058922533

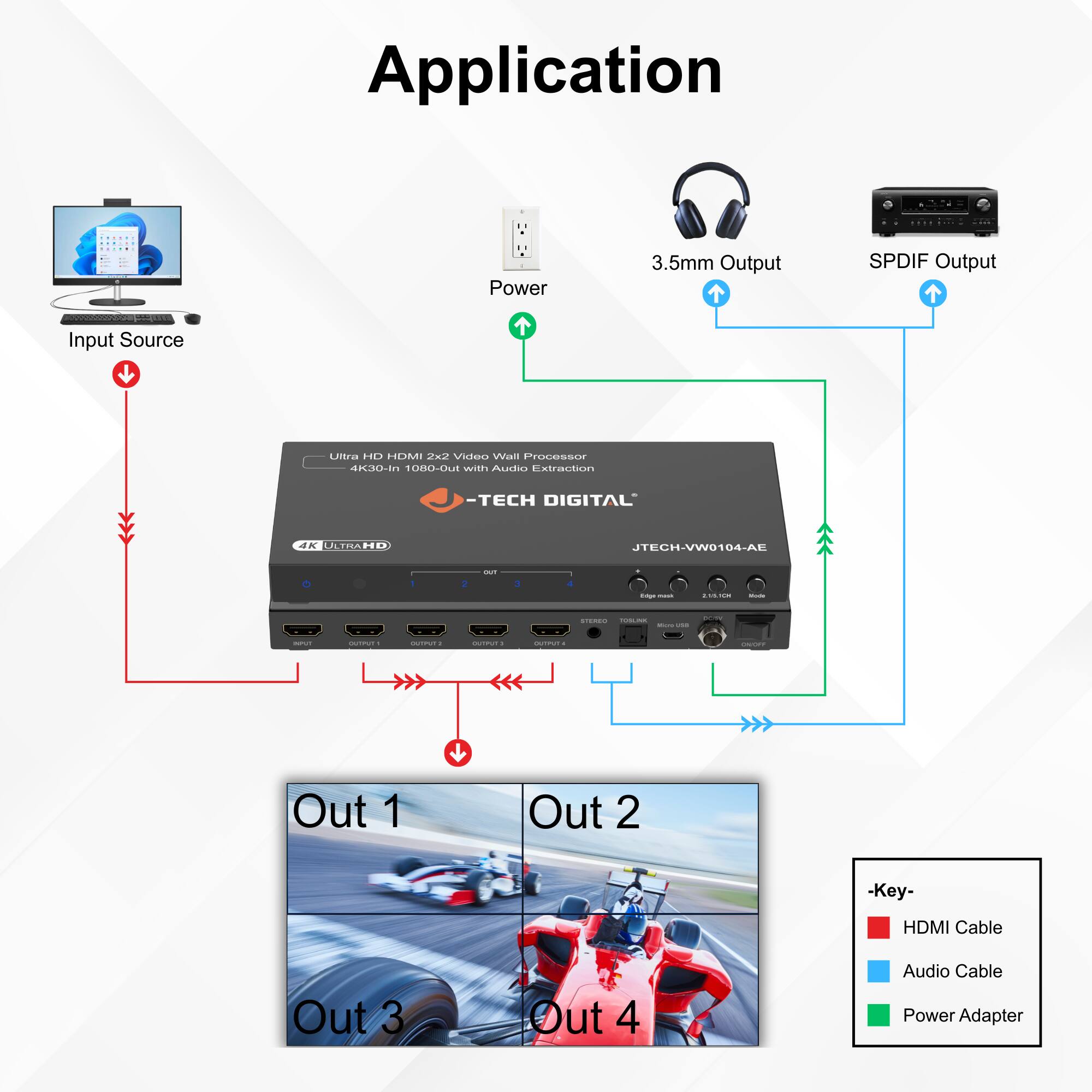

Introducing the JTECH- VW0104-AE; 4K 2x2 Video Wall Processor. This is a powerful HDMI video wall controller that combines up to four displays into one seamless large-format screen. Supporting 4K@30Hz input and Full HD 1080p outputs, this versatile controller offers 8 dynamic display modes including 2x2, 1x2, 2x1, 1x3, 3x1, 1x4, and more — perfect for digital signage, home theaters, control rooms, and commercial displays. Enjoy immersive sound with built-in audio extraction, featuring SPDIF Optical (5ch) and 3.5mm (2ch) outputs for connecting to external speakers or sound systems. Fine-tune your setup with advanced image rotation (up to 180°) and edge masking functions to eliminate bezel gaps and distortion for a flawless, professional display. Whether you’re building a multi-screen video wall or using splitter mode, this HDMI video wall controller delivers crystal-clear visuals, flexible configurations, and premium audio performance for any setup.
- 4K 2x2 Video Wall Processor: Combine up to 4 HDMI displays into one seamless video wall. Supports 4K@30Hz input and 1080P outputs.
- 8 Display Modes Video Wall Controller: Toggle between 8 different display modes based on your setup, including 2x2, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1, 1x4 (Splitter Mode).
- Audio Extraction Function: Route the audio from your source device to an external sound system via SPDIF Optical (5ch) and 3.5mm (2ch) audio output ports.
- Image Rotation and Edge Masking Function: Rotate each screen up to 180° (Modes 1 Only) for perfect alignment and minimal bezel gaps. Fine-tune the display with edge masking, adjusting up to 8 pixels to eliminate distortion and ensure a seamless video wall. Note: 1×1 splitter mode does not support rotation or edge masking.
Whats Included

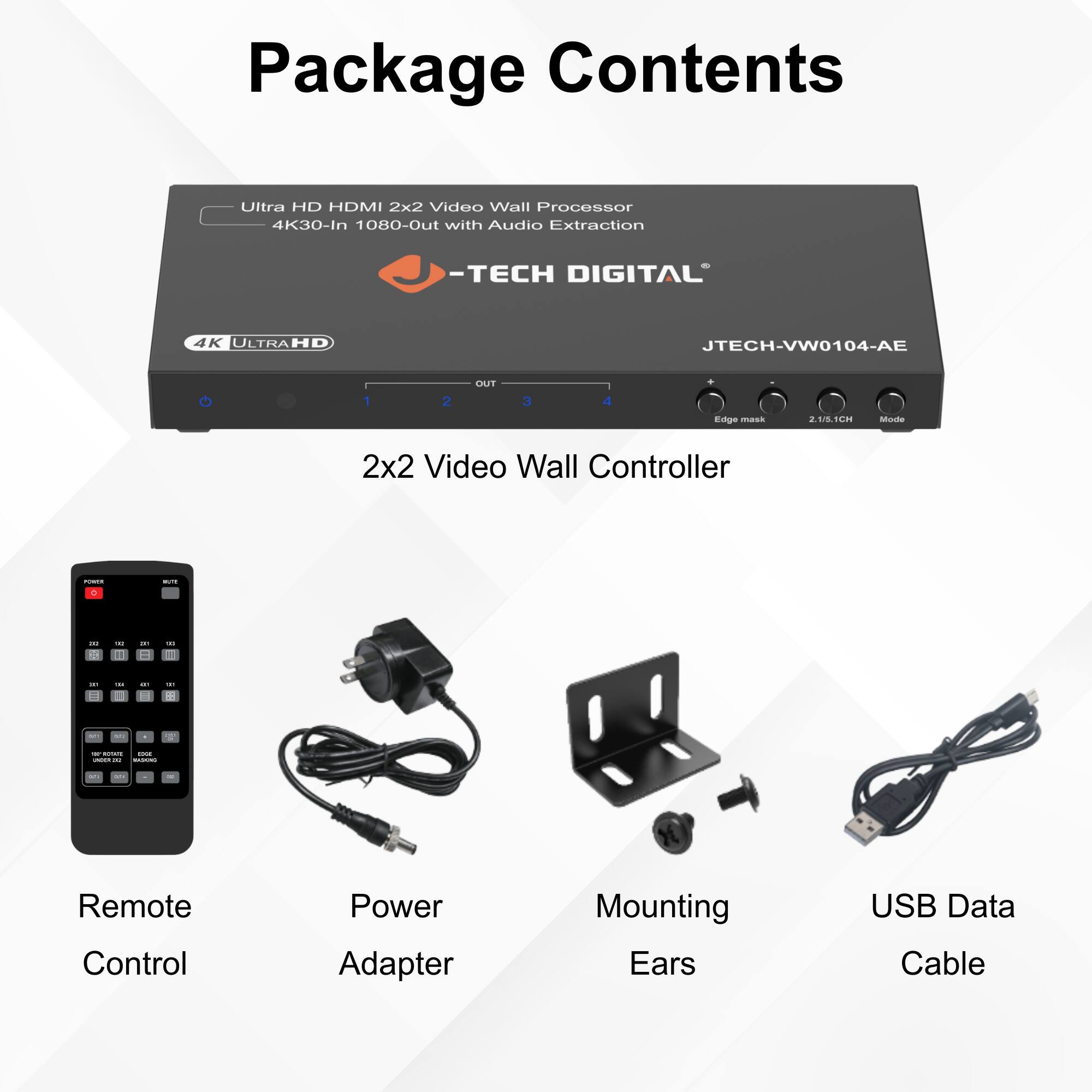

- Main Unit, Power Adapter, USB Data Cable, Remote Control
