J-Tech Digital - 4K 30Hz HDMI and KVM Extender Over Ethernet with Dual HDMI Outputs and Audio Extraction - Black
Related Item
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-KVE2
- Product Name: J-Tech Digital 4K 30Hz HDMI and KVM Extender Over Ethernet with Dual HDMI Outputs and Audio Extraction
- Color: Black
- Features
- Maximum Video Resolution: 2160p (4K) (Maximum resolution refers to the highest number of pixels that a screen can process and display. Higher resolution signals produce more detailed video.)
- Maximum Supported Resolution (Video Passthrough): 2160p (4K) @ 30 Hz (The highest video resolution supported by the device for passing through video to another device.)
- Powered: true
- Connectivity
- Wireless: false
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Maximum Transmission Range: 328 feet
- Dimensions

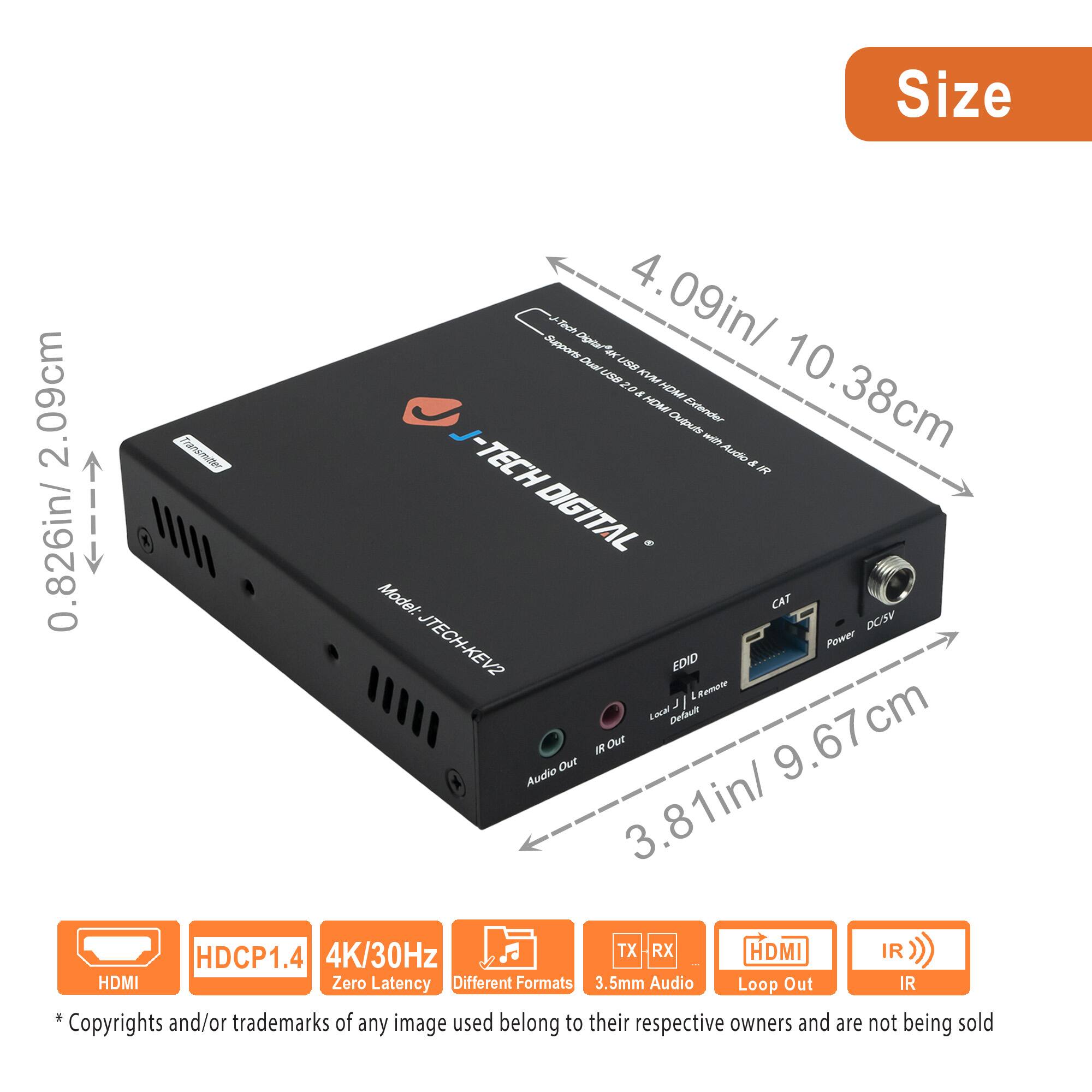

- Product Height: 0.82 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.09 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 3.81 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 810058920317

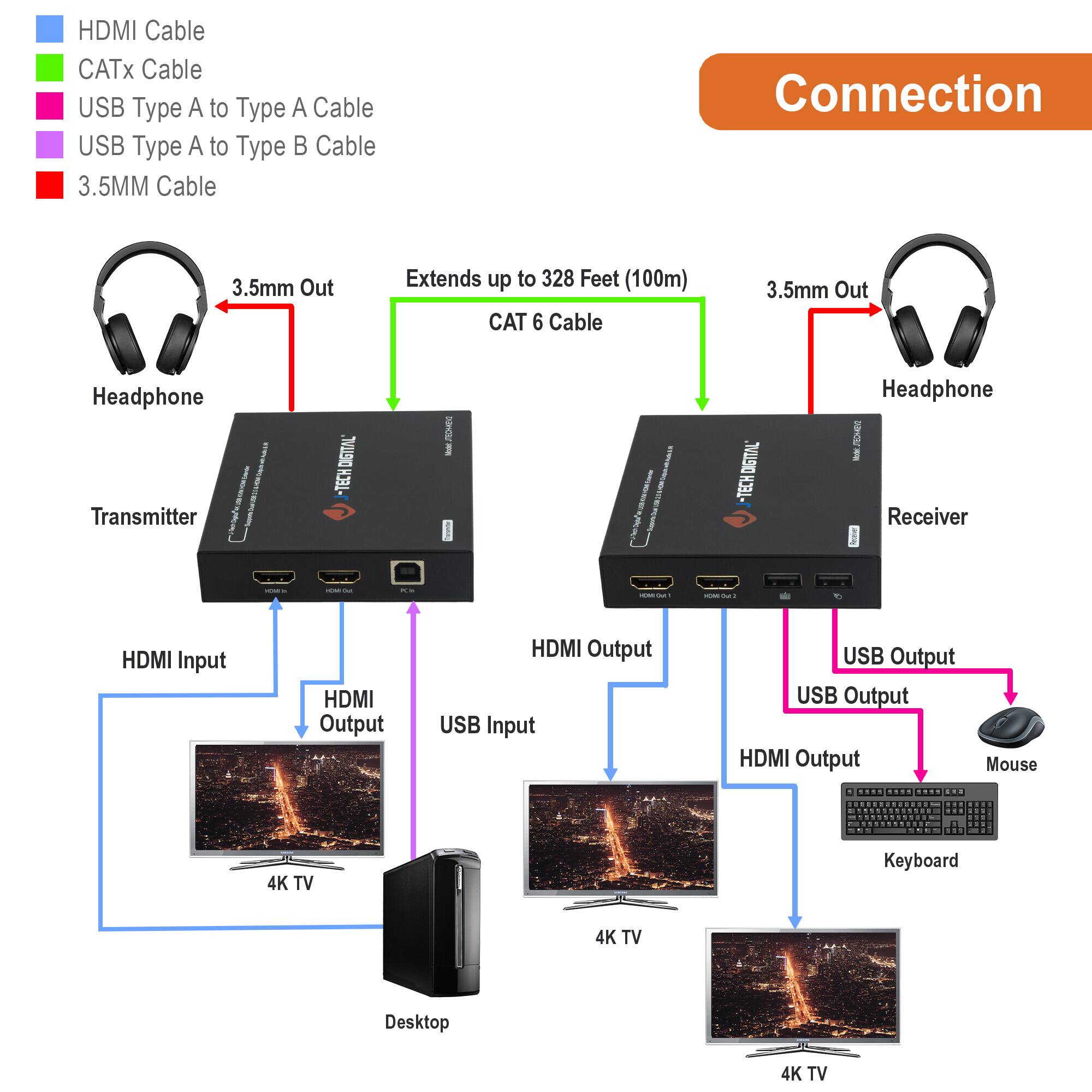

The J-Tech Digital JTECH-KVE2 HDMI & USB 2.0 KVM extender allows users to extend USB keyboard, mouse and HDMI signals up to 328 feet over CAT6 ethernet cable with near zero latency. This allows users to control a computer (or USB device) remotely up to 300+ feet away. Connect two remote HDMI displays to the receiver’s dual HDMI output ports and one local HDMI display to the transmitter’s local loop HDMI output port for flexible monitoring options. Extract source audio via the 3.5mm analog audio output ports found on both the transmitter and receiver so that users can route audio to a 3rd party audio processor/amplifier.

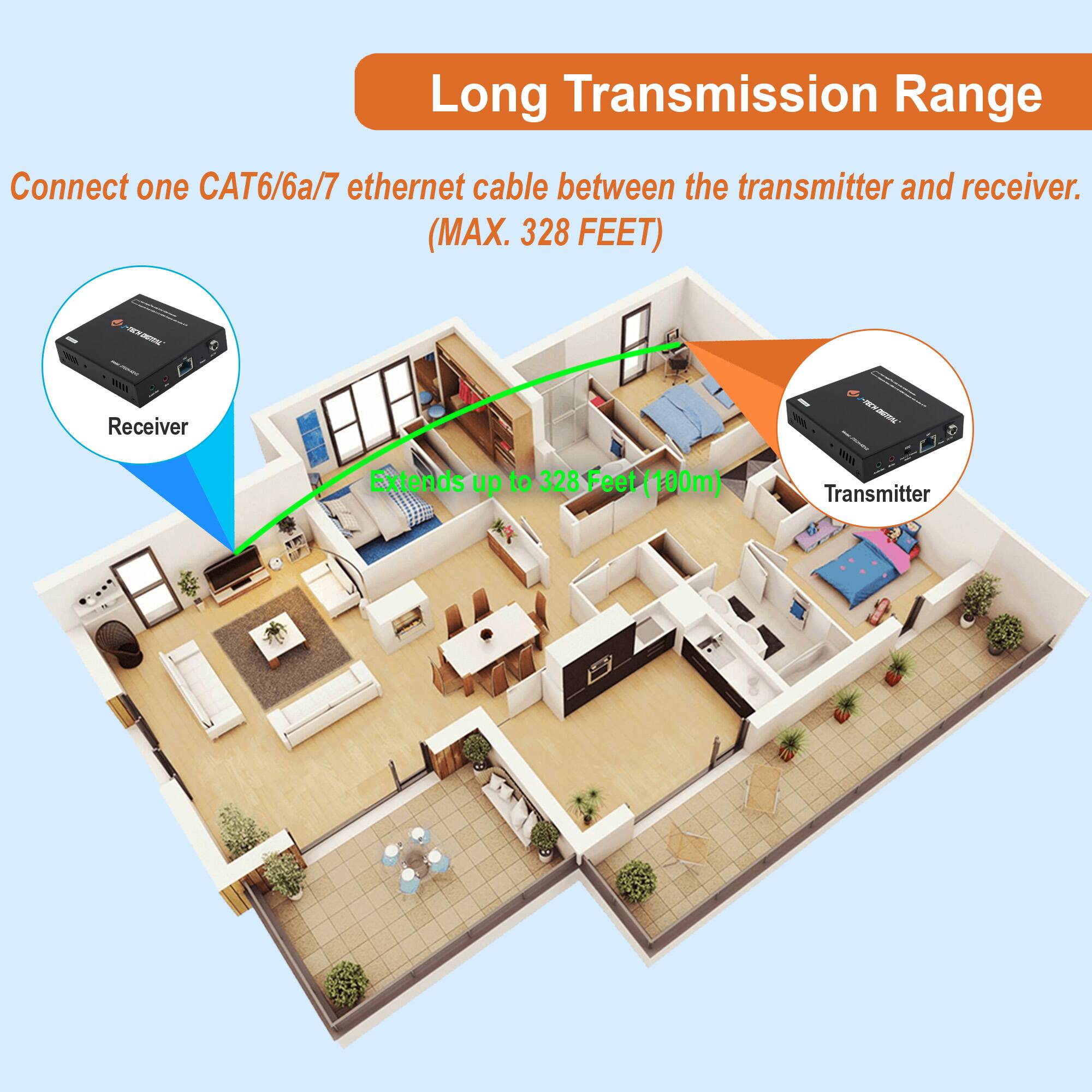

- 4K@30Hz Up To 328Ft: Extend 4K 30Hz HDMI signals up to 328 feet / 100 meters away over CAT6 ethernet cable. High resolution 4K image extension with near zero latency (ideal for PC use)
- Dual USB 1.0 (480Mbps) KVM Extension: 2 x USB ports found on the receiver extend USB 1.0 signals up to 328 feet away over CAT6 ethernet cable. Plug and play installation makes setup a breeze with no need for additional drivers

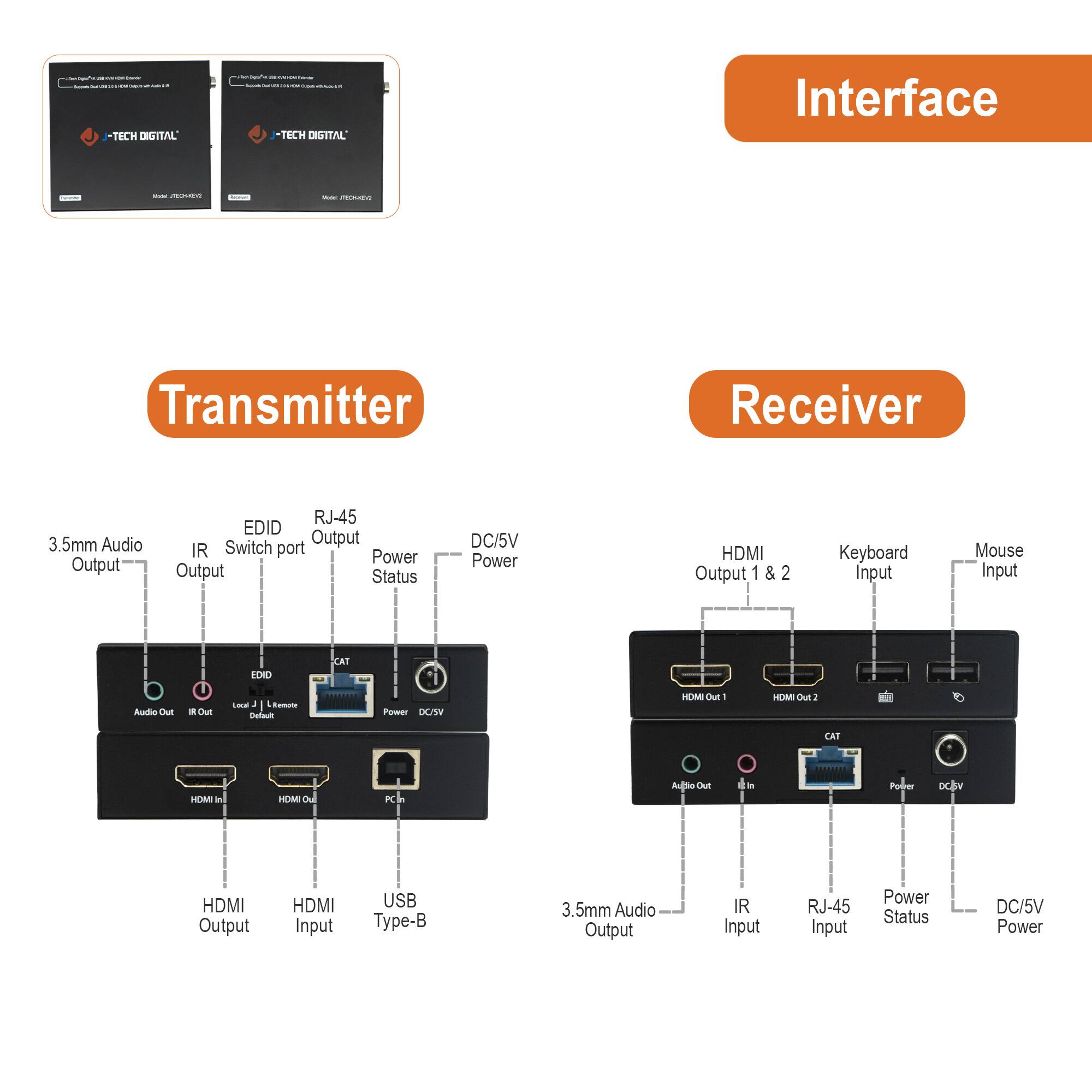

- Dual HDMI Outputs on Receiver: Connect two HDMI displays to the receiver’s dual HDMI output ports and a local HDMI display to the transmitter’s local loop HDMI output port for flexible monitoring options
- 3.5mm Audio Extraction Ports: Extract source device audio via the 3.5mm analog audio output ports found on both the transmitter and receiver. Flexible audio routing options mean that you can incorporate 3rd party audio processors with ease
Whats Included

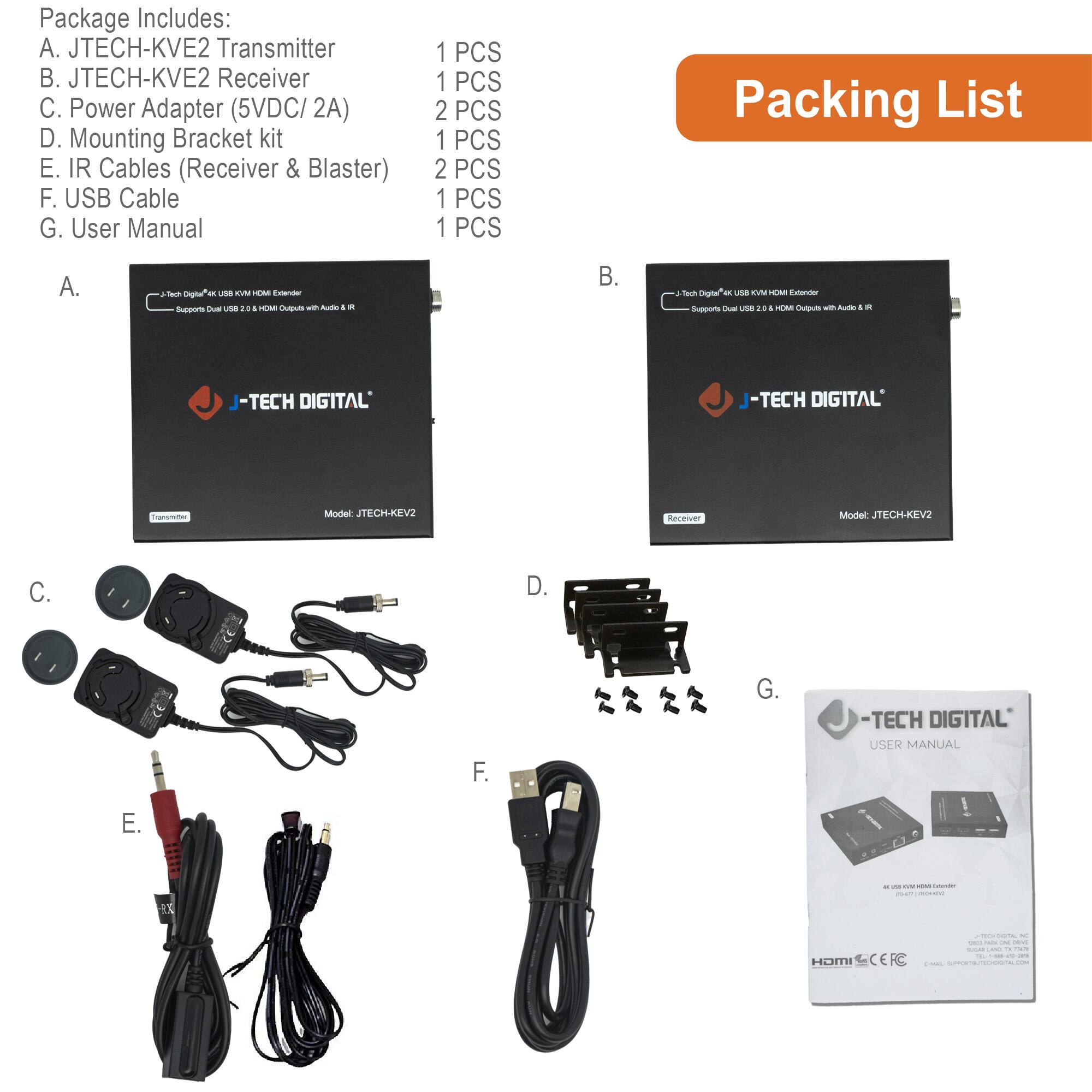

- Transmitter, Receiver, Power Adapters, User Manual, IR Cables, Mounting Kit
Product Manuals
Reviews
This product doesn't have any reviews yet.
