J-Tech Digital - 4K 60Hz 1x8 HDMI Splitter Extender Over Ethernet w/ PoC - Black
$7.99 shipping to
Related Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-18EX50
- Product Name: J-Tech Digital 4K 60Hz 1x8 HDMI Splitter Extender Over Ethernet w/ PoC
- Color: Black
- Distribution Amplifier Type: Component
- Features
- Built-in Scaler: false (Samples an input signal and scales it up or down to an appropriate resolution and timing suitable for the output device. It may also convert an input signal to a different format compatible for the output.)
- Indicator Lights: true
- Number Of Inputs: 1
- Number of Outputs: 8
- Connectivity
- Input(s): HDMI
- Output(s): HDMI, Ethernet
- Compatibility
- Maximum Supported Resolution: 3840 x 2160 (4K)
- Surround Sound Supported: Dolby Audio, Dolby Digital (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Dimensions
- Product Height: 3.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 16.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 12.25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 810058920669

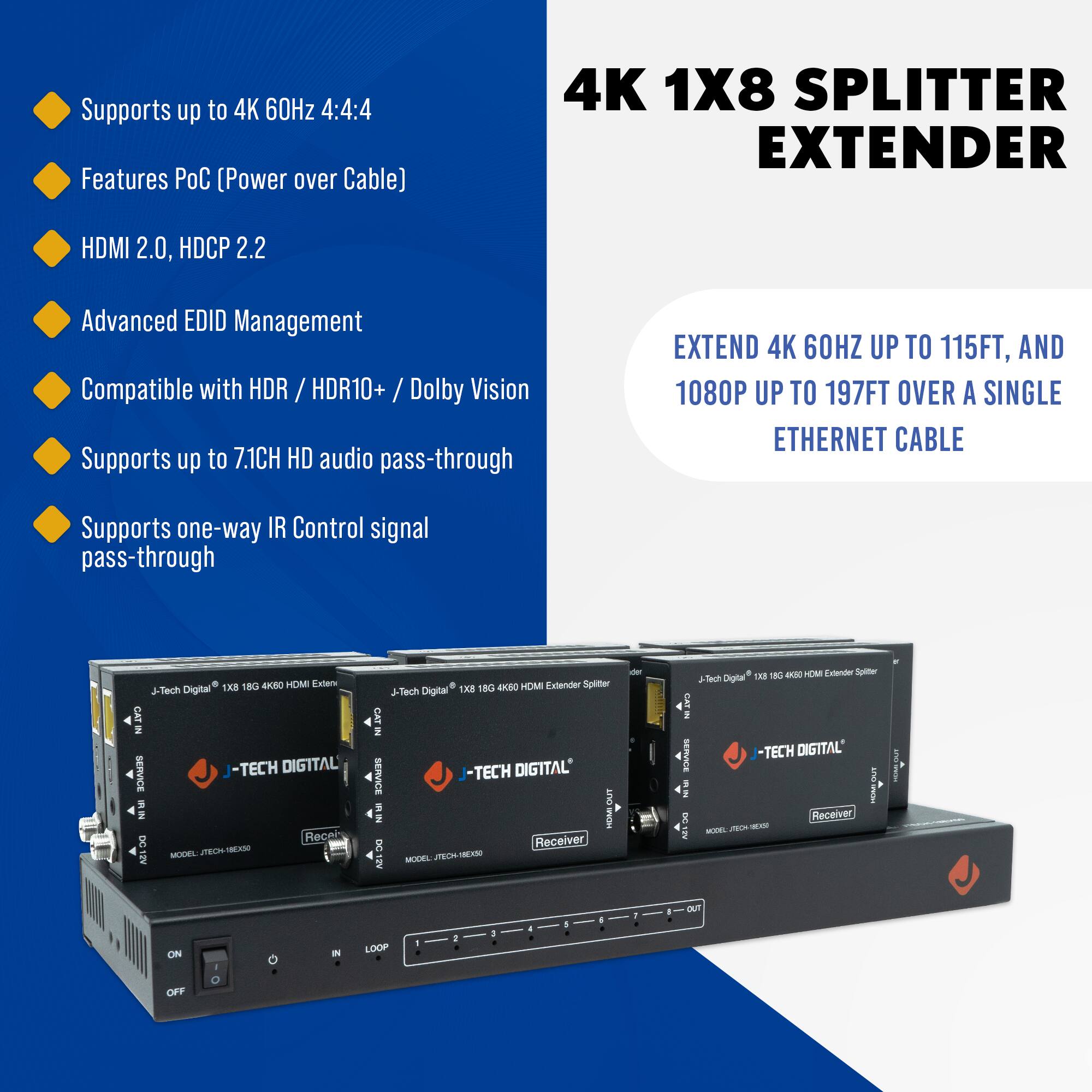

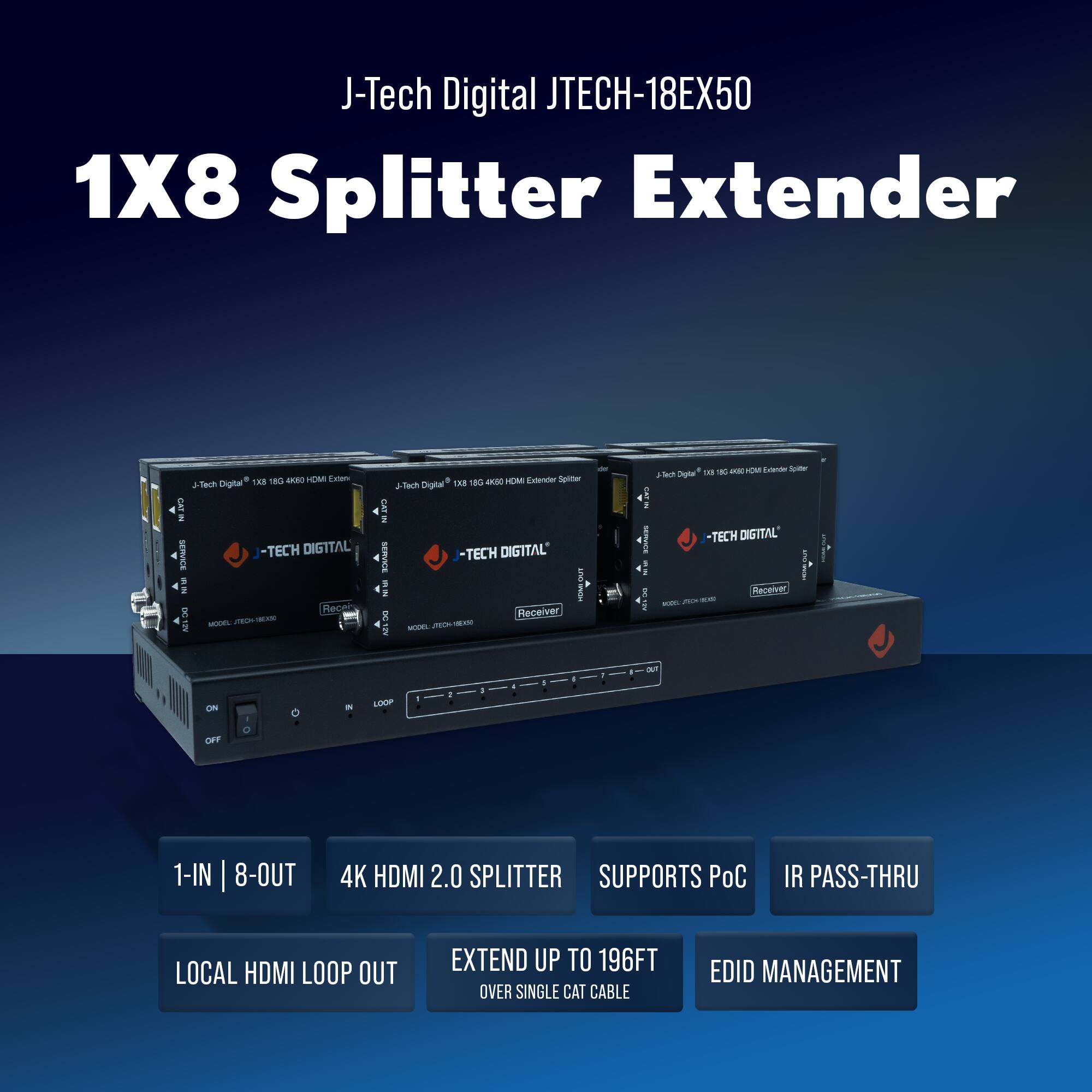

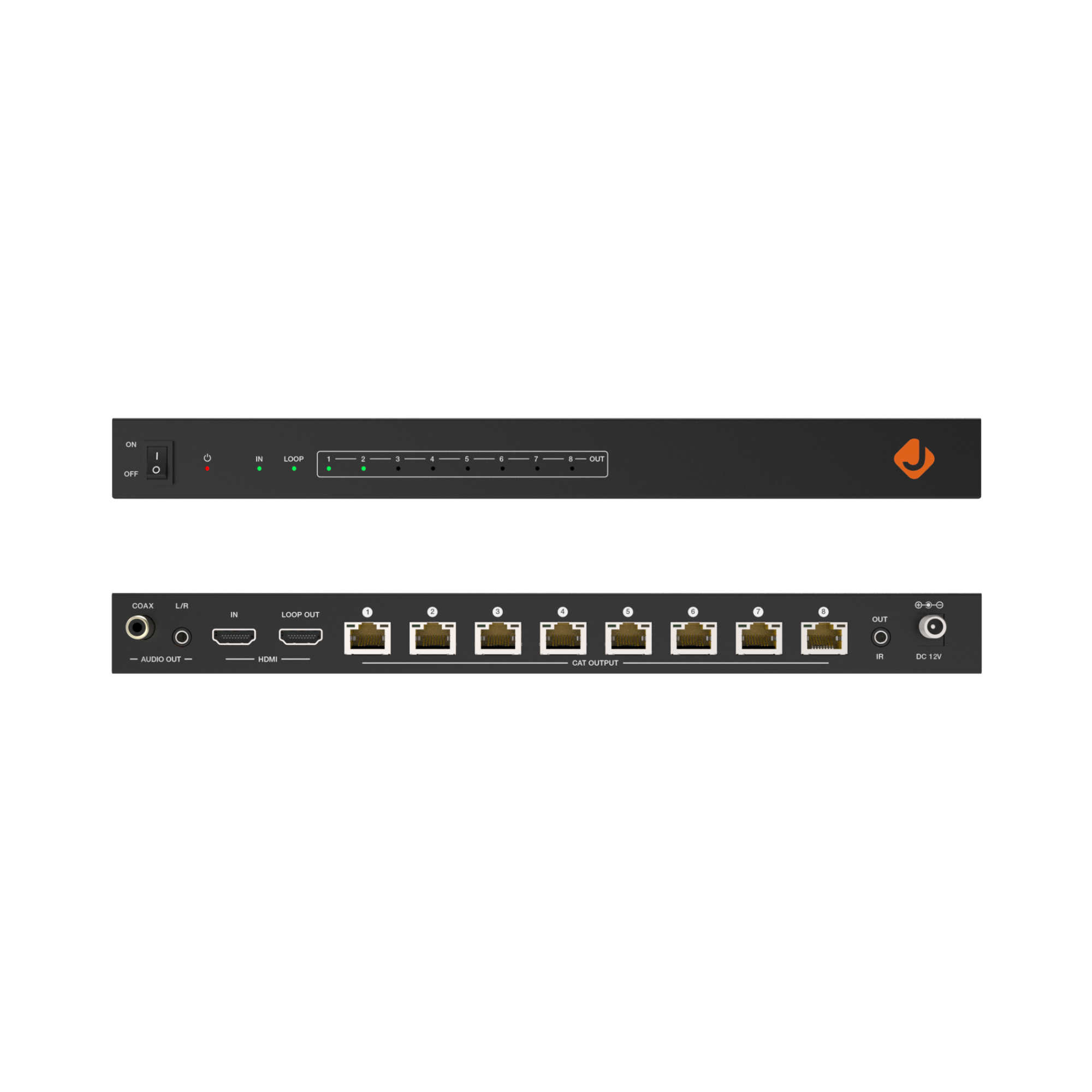

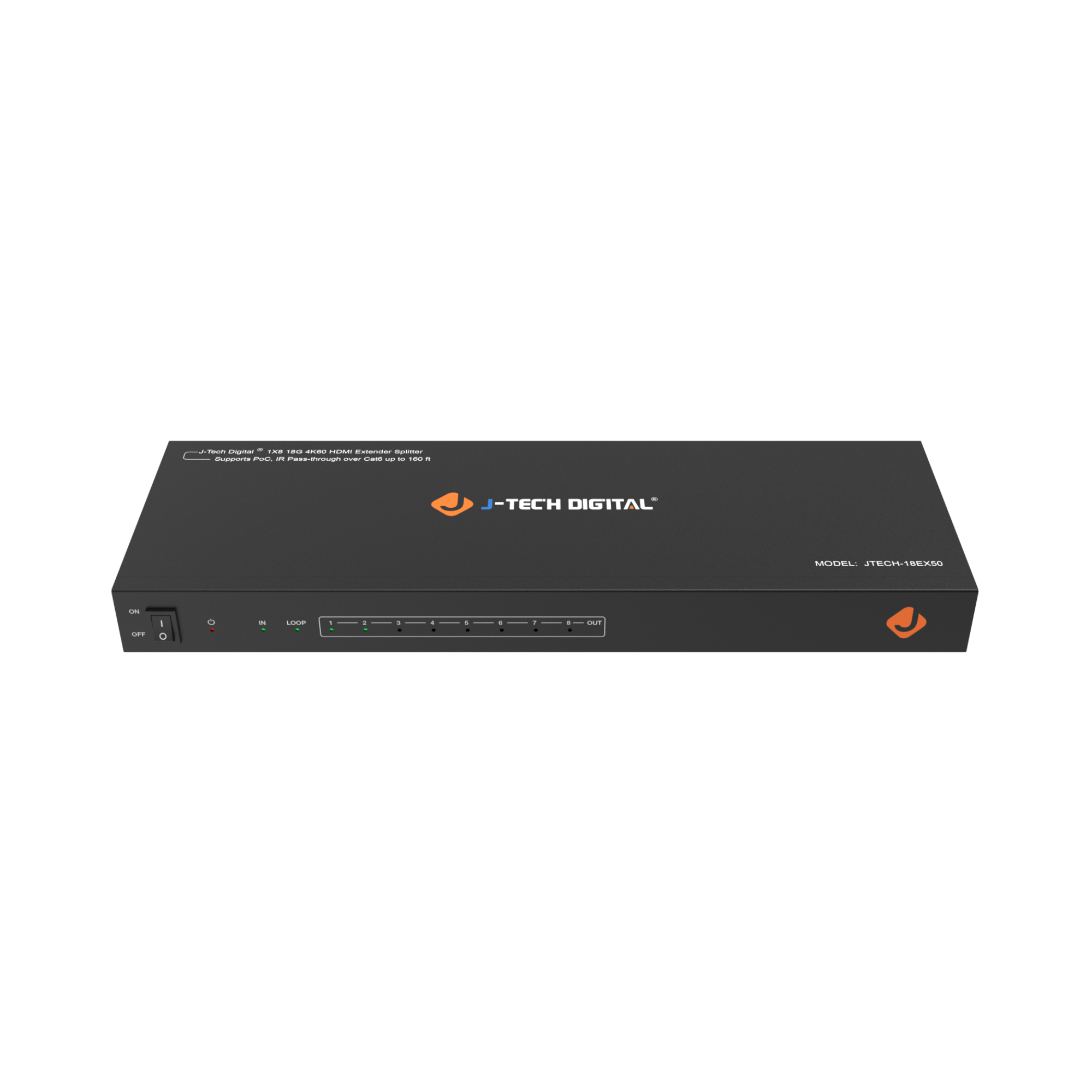

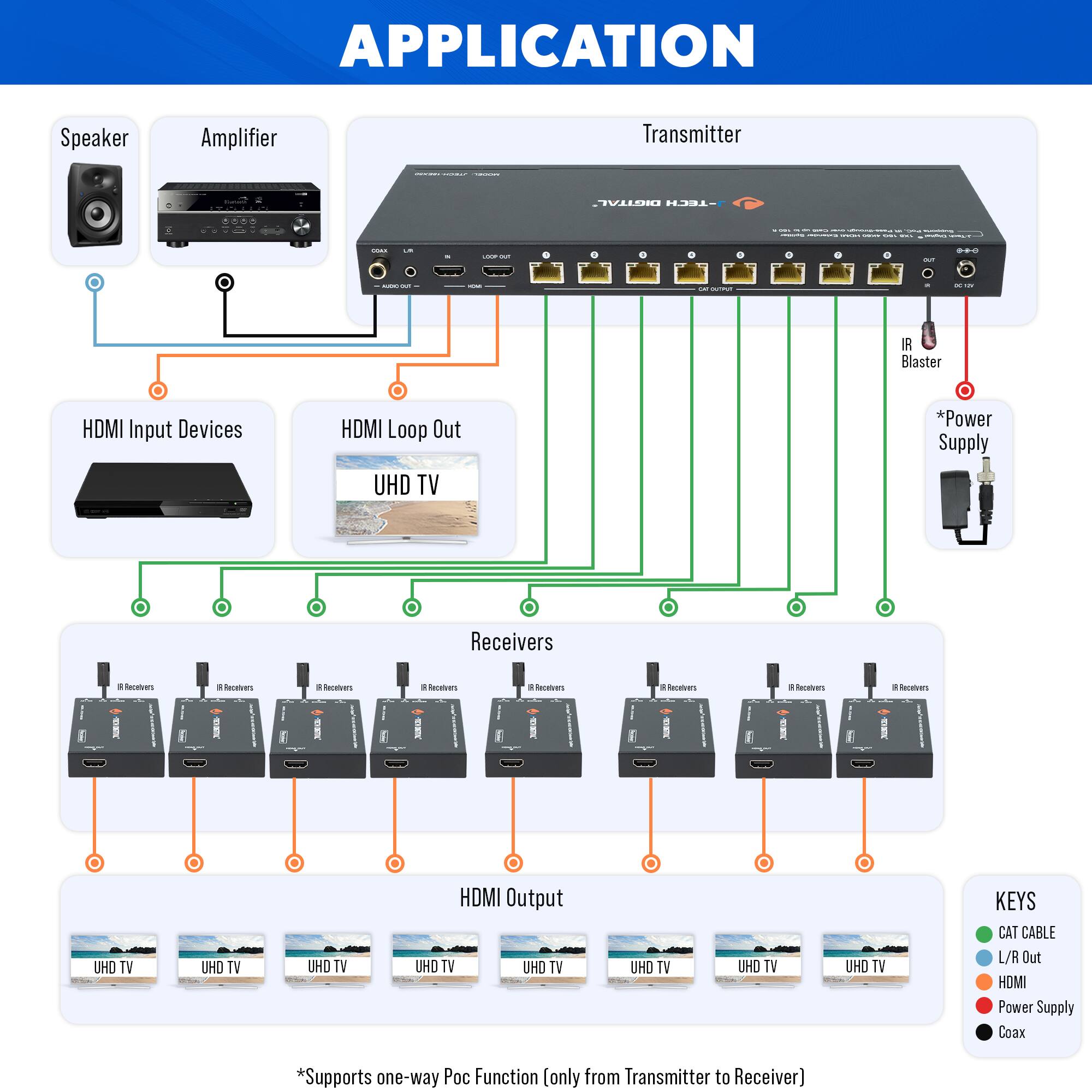

The J-Tech Digital JTECH-18EX50 is an HDMI 2.0 splitter extender over single CAT cable. Designed to distribute your 4K HDMI source signal to multiple displays, the JTECH-18EX50 is fully HDMI 2.0 and HDCP 2.2 compliant. The JTECH-18EX50 features 8 PoC (power over cable) receivers that don’t require additional power adapters that can clutter up your installation. With the JTECH-18EX50, you have the ability of not only splitting your 4K source signal to 8 displays but the capability to extend the distance from your source to your displays as well. Utilizing the JTECH-18EX50 as a splitter/extender allows you to transmit your 4K 60Hz source signal up to 114 feet away over a single CAT6 cable while also connecting a 4K display to the transmitter’s local HDMI loop output.
- 1-In 8-Out HDMI 2.0 Splitter: Distribute your HDMI 2.0 4K source signal to up to 8 different remote displays simultaneously with this 1x8 HDMI splitter extender. Perfect for gaming consoles like Playstation and Xbox, Blu-Ray players, set-top boxes and streaming devices like Apple TV, Roku and Fire TV
- Long Distance Signal Transmission: Transmit your 4K 60Hz signal up to 114 feet away to your display over a single CAT6 cable. Transmit 4K 30Hz 164 feet and 1080p 60Hz 196 feet. Easily distribute your signal throughout residential or commercial properties

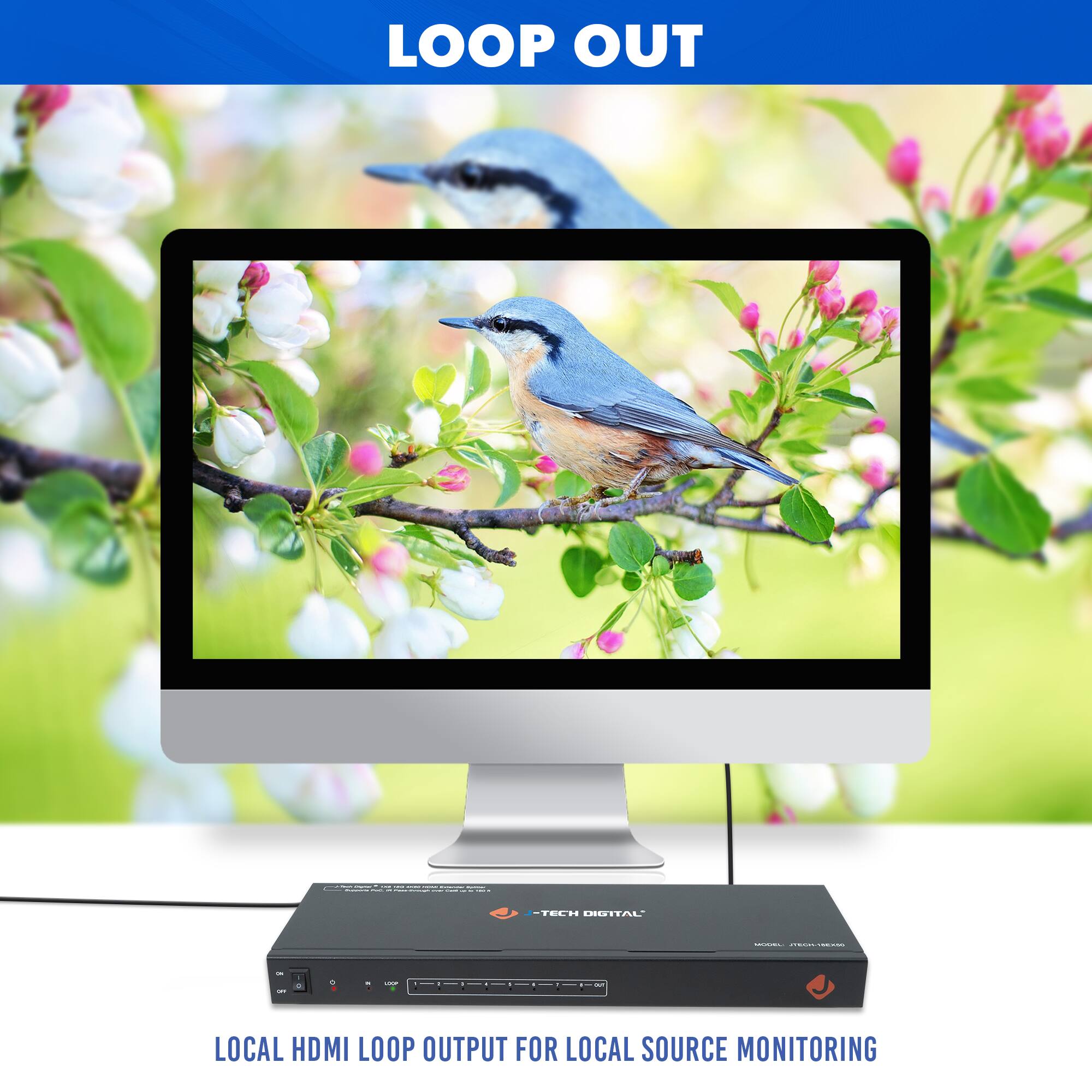

- Local HDMI Loop-Out Port: JTECH-18EX50 transmitter features an HDMI 2.0 local loop output for connecting an HDMI display device near your source device. This makes monitoring your 4K source device quick and easy! Split your signal to 9 displays in total

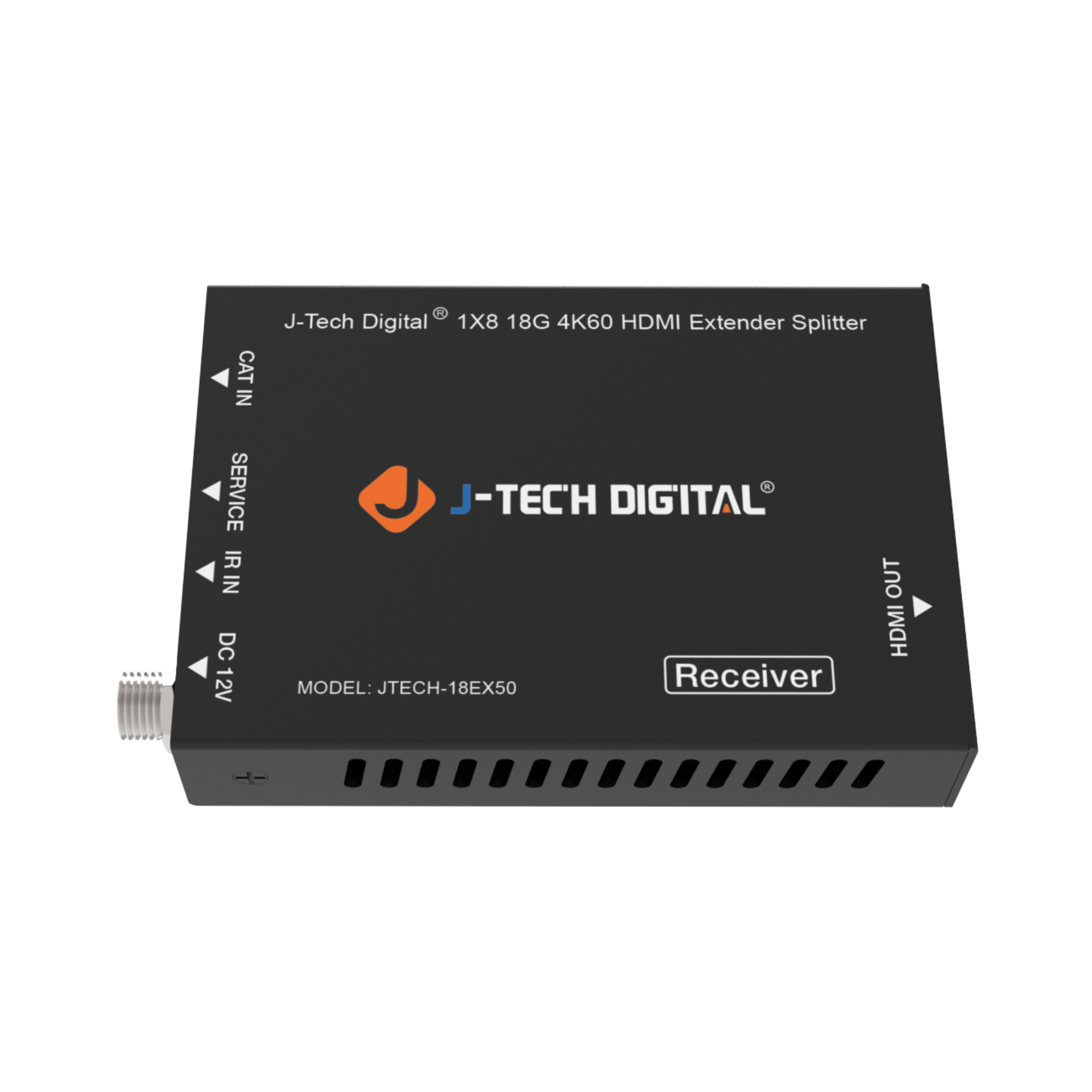

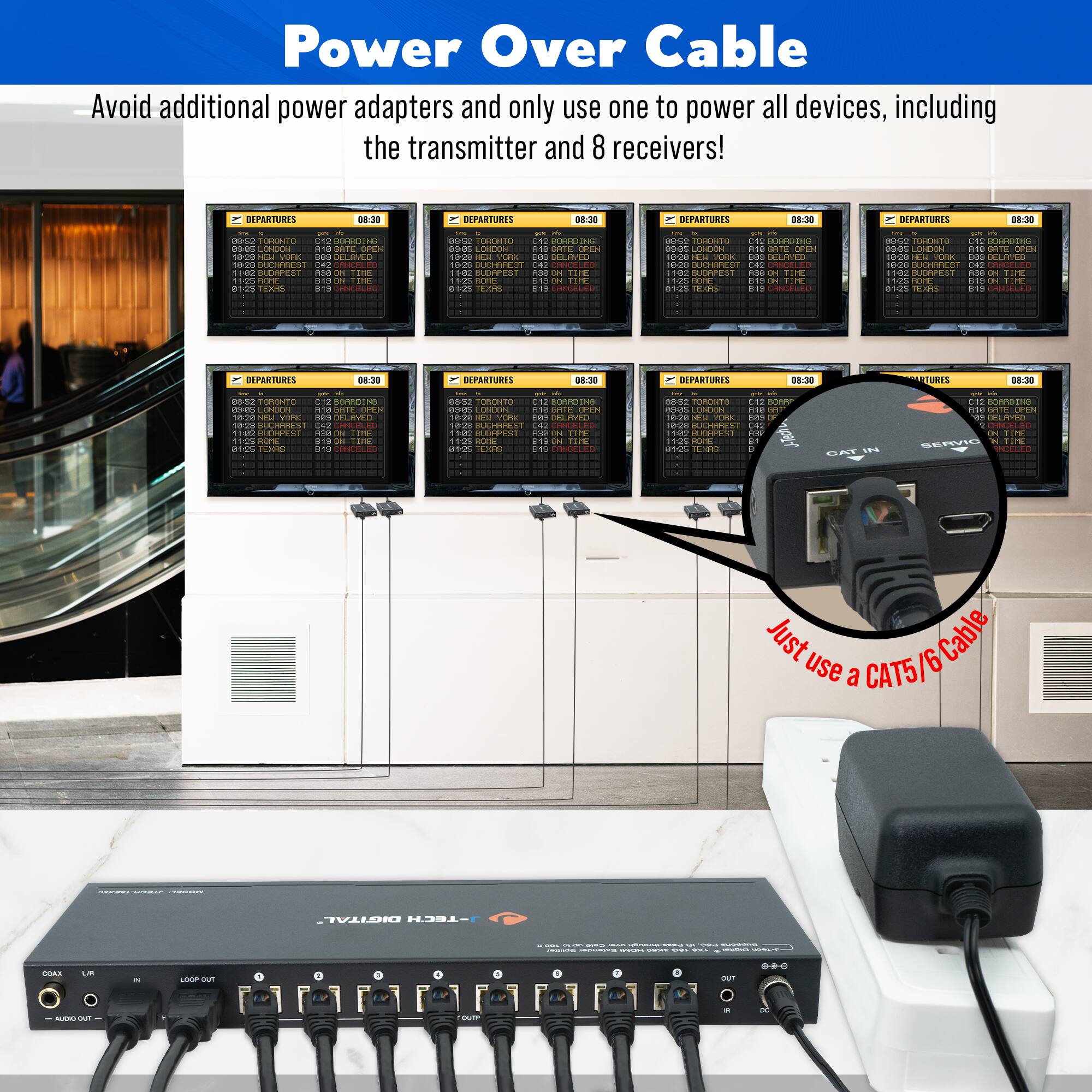

- Supports PoC, IR Pass-Through, EDID Management: Avoid additional power adapters and only use one power adapter to power all devices including transmitter and 8 receivers! JTECH-18EX50 supports IR signal pass-thru and EDID management for flexibility on any installation
- 1-In 8-Out HDMI 2.0 Splitter: Distribute your HDMI 2.0 4K source signal to up to 8 different remote displays simultaneously with this 1x8 HDMI splitter extender. Perfect for gaming consoles like Playstation and Xbox, Blu-Ray players, set-top boxes and streaming devices like Apple TV, Roku and Fire TV
- Long Distance Signal Transmission: Transmit your 4K 60Hz signal up to 114 feet away to your display over a single CAT6 cable. Transmit 4K 30Hz 164 feet and 1080p 60Hz 196 feet. Easily distribute your signal throughout residential or commercial properties
- Local HDMI Loop-Out Port: JTECH-18EX50 transmitter features an HDMI 2.0 local loop output for connecting an HDMI display device near your source device. This makes monitoring your 4K source device quick and easy! Split your signal to 9 displays in total
- Supports PoC, IR Pass-Through, EDID Management: Avoid additional power adapters and only use one power adapter to power all devices including transmitter and 8 receivers! JTECH-18EX50 supports IR signal pass-thru and EDID management for flexibility on any installation
Whats Included
- Transmitter, Receivers, IR Cables, Power Adapter, User Manual
- Transmitter, Receivers, IR Cables, Power Adapter, User Manual
Compare similar products
The J-Tech Digital JTECH-18EX50 is an HDMI 2.0 splitter extender over single CAT cable. Designed to distribute your 4K HDMI source signal to multiple displays, the JTECH-18EX50 is fully HDMI 2.0 and HDCP 2.2 compliant. The JTECH-18EX50 features 8 PoC (power over cable) receivers that don’t require additional power adapters that can clutter up your installation. With the JTECH-18EX50, you have the ability of not only splitting your 4K source signal to 8 displays but the capability to extend the distance from your source to your displays as well. Utilizing the JTECH-18EX50 as a splitter/extender allows you to transmit your 4K 60Hz source signal up to 114 feet away over a single CAT6 cable while also connecting a 4K display to the transmitter’s local HDMI loop output.

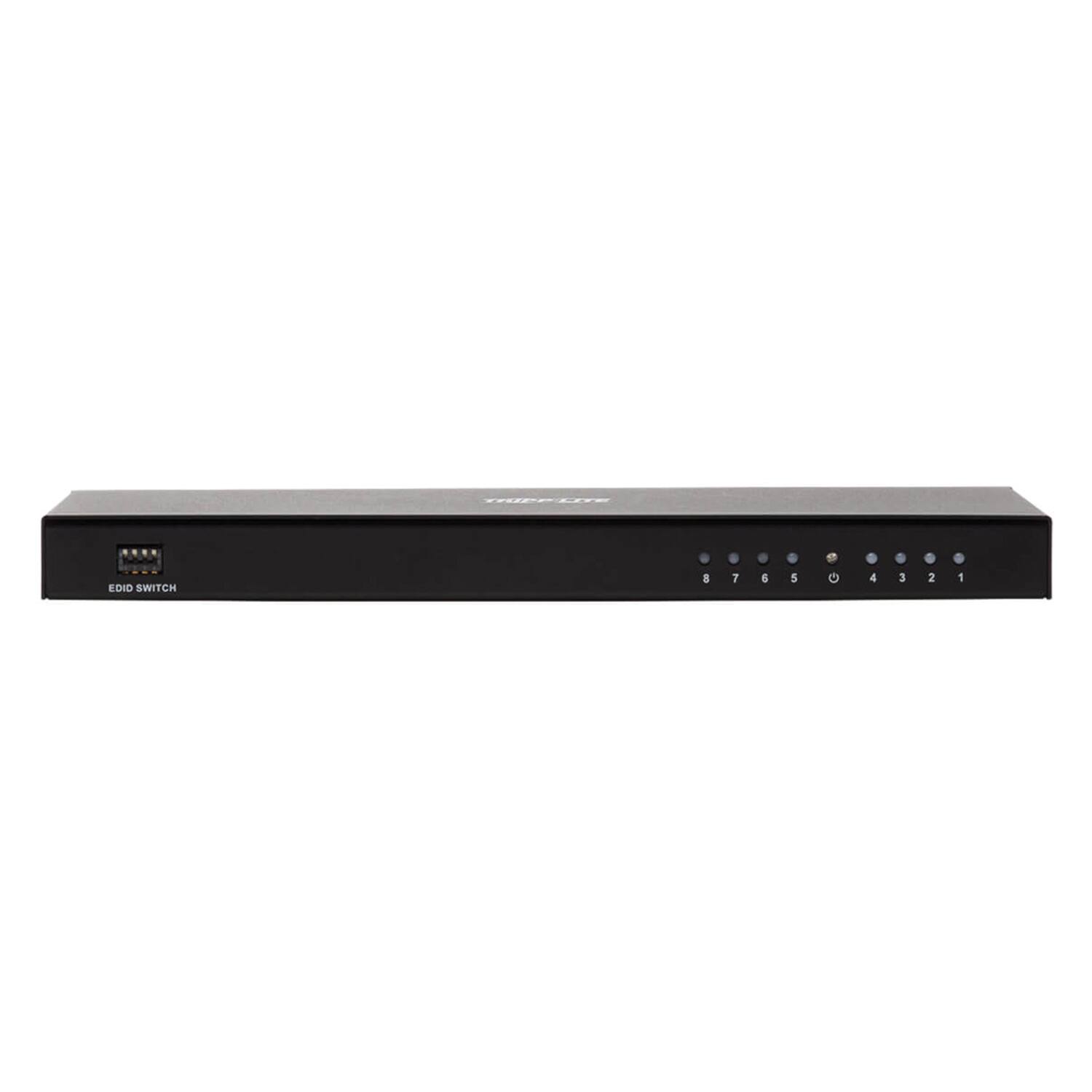

The Tripp Lite(R) by Eaton(R) 8-Port HDMI(R) Splitter transmits true 4K video plus audio up to 8 HDMI(R) displays at the same time. Recommended for home theaters or short-distance digital signage applications in classrooms, showrooms, offices, churches, restaurants, bars, hotels and trade shows, this Ultra High Definition (UHD) HDMI(R) splitter is quick and easy to install. It connects to an HDMI(R) source device, such as a computer or Blu-ray(TM) player, and sends a true 4K audio/video signal to 8 HDMI(R) monitors, projectors, or televisions simultaneously. You can cascade up to 3 levels of splitters, which expands the total number of connected displays to 512!

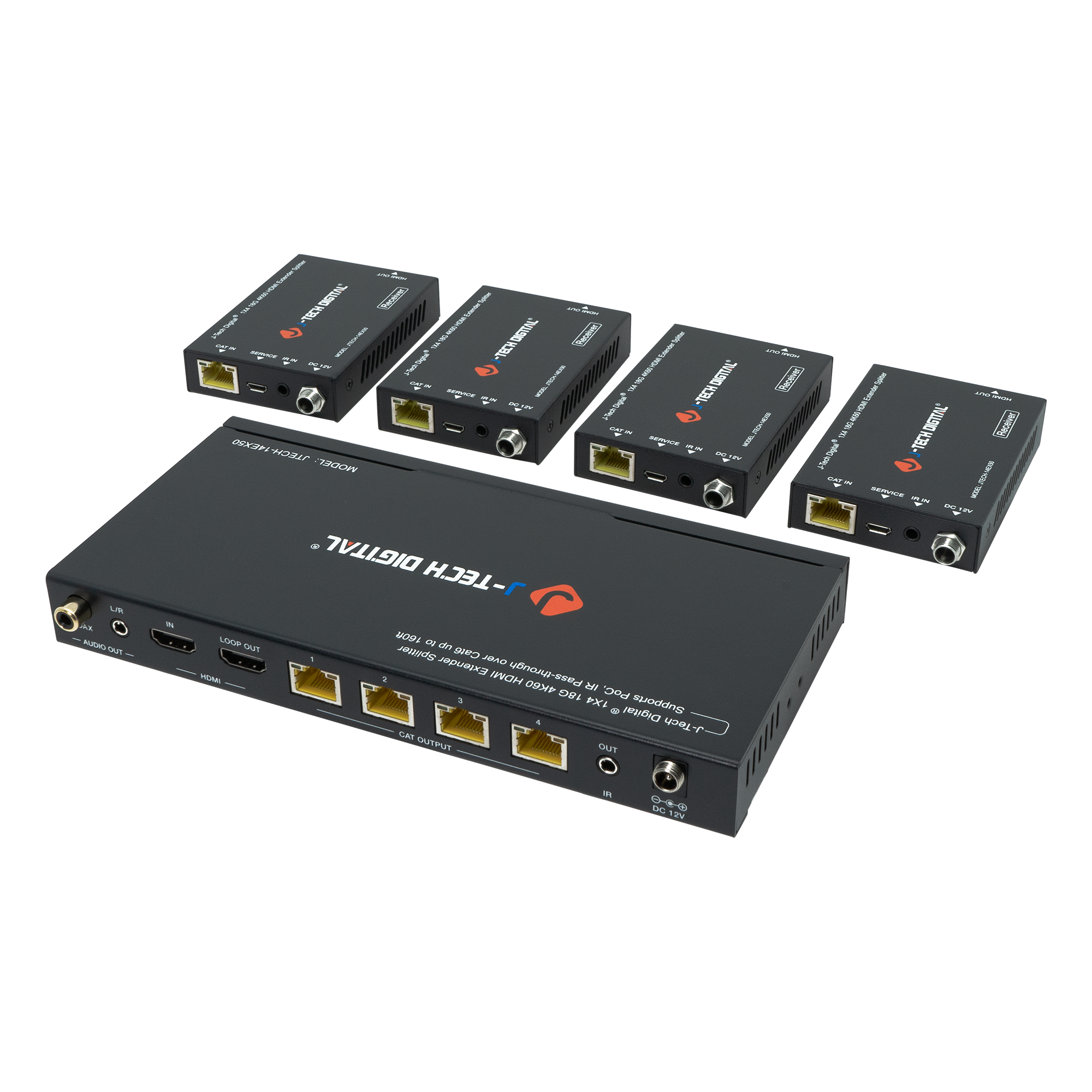

The J-Tech Digital JTECH-14EX50 is an HDMI 2.0 splitter extender over single CAT cable. Designed to distribute your 4K HDMI source signal to multiple displays, the JTECH-14EX50 is fully HDMI 2.0 and HDCP 2.2 compliant. The JTECH-14EX50 features 4 PoC (power over cable) receivers that don’t require additional power adapters that can clutter up your installation. With the JTECH-14EX50, you have the ability of not only splitting your 4K source signal to 4 displays but the capability to extend the distance from your source to your displays as well. Utilizing the JTECH-14EX50 as a splitter/extender allows you to transmit your 4K 60Hz source signal up to 114 feet away over a single CAT6 cable while also connecting a 4K display to the transmitter’s local HDMI loop output.
