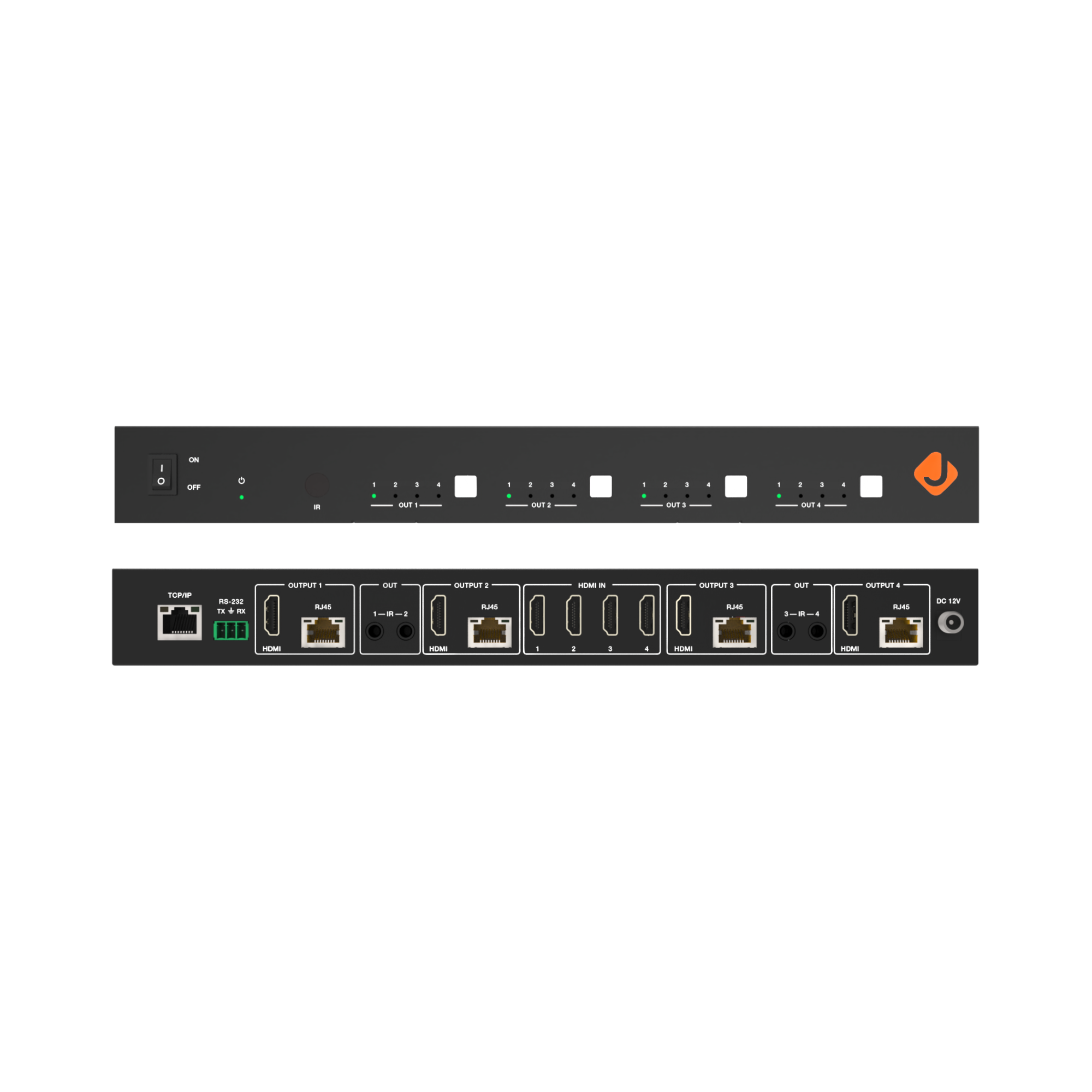

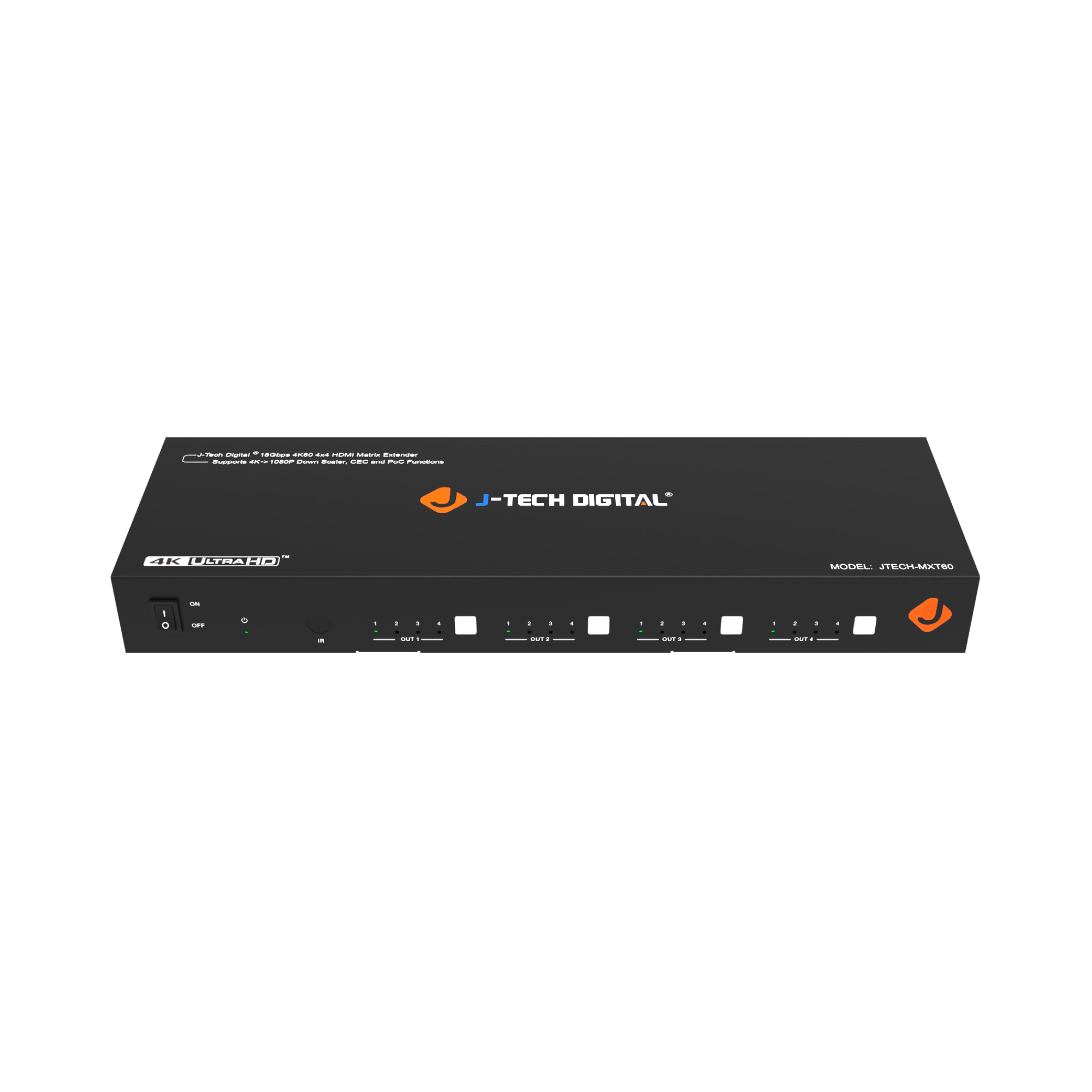

J-Tech Digital - 4K 60Hz 4x4 HDMI Matrix Extender Over Ethernet (130ft) - Black
J-Tech Digital - 4K 60Hz 4x4 HDMI Matrix Extender Over Ethernet (130ft) - Black
$7.99 shipping to
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-MXT60
- Product Name: J-Tech Digital 4K 60Hz 4x4 HDMI Matrix Extender Over Ethernet (130ft)
- Color: Black
- Features
- Selector Switch Box Type: HDMI Switch
- Powered: true
- Indicator Lights: true
- Surround Sound Supported: Dolby Audio, Dolby Digital (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Connectivity
- Input(s): 4 x HDMI
- Number of Inputs: 4
- Output(s): 4 x HDMI
- Number of Outputs: 4
- Network Connector(s): 1 x LAN, 1 x RS-232
- Dimensions
- Product Height: 1.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 12.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 3.93 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 810058920577
The J-Tech Digital JTECH-MXT60 is a professional 4x4 HDMI 2.0 matrix extender solution for many different applications and industries where it is necessary to route multiple UHD source signals to multiple displays in different locations within your environment. Users can transmit a 4K 60Hz HDMI source signal up to 130 FT away via single Cat5e/6 ethernet runs to included MXT60 CAT receivers. Still using a 1080p TV or projector? No problem. The MXT60 HDMI matrix switch allows users to downgrade a 4K 60Hz source signal to 1080p 60Hz at each output, meaning you can still enjoy all of the latest and greatest content on your 1080p display until you’re ready to upgrade!

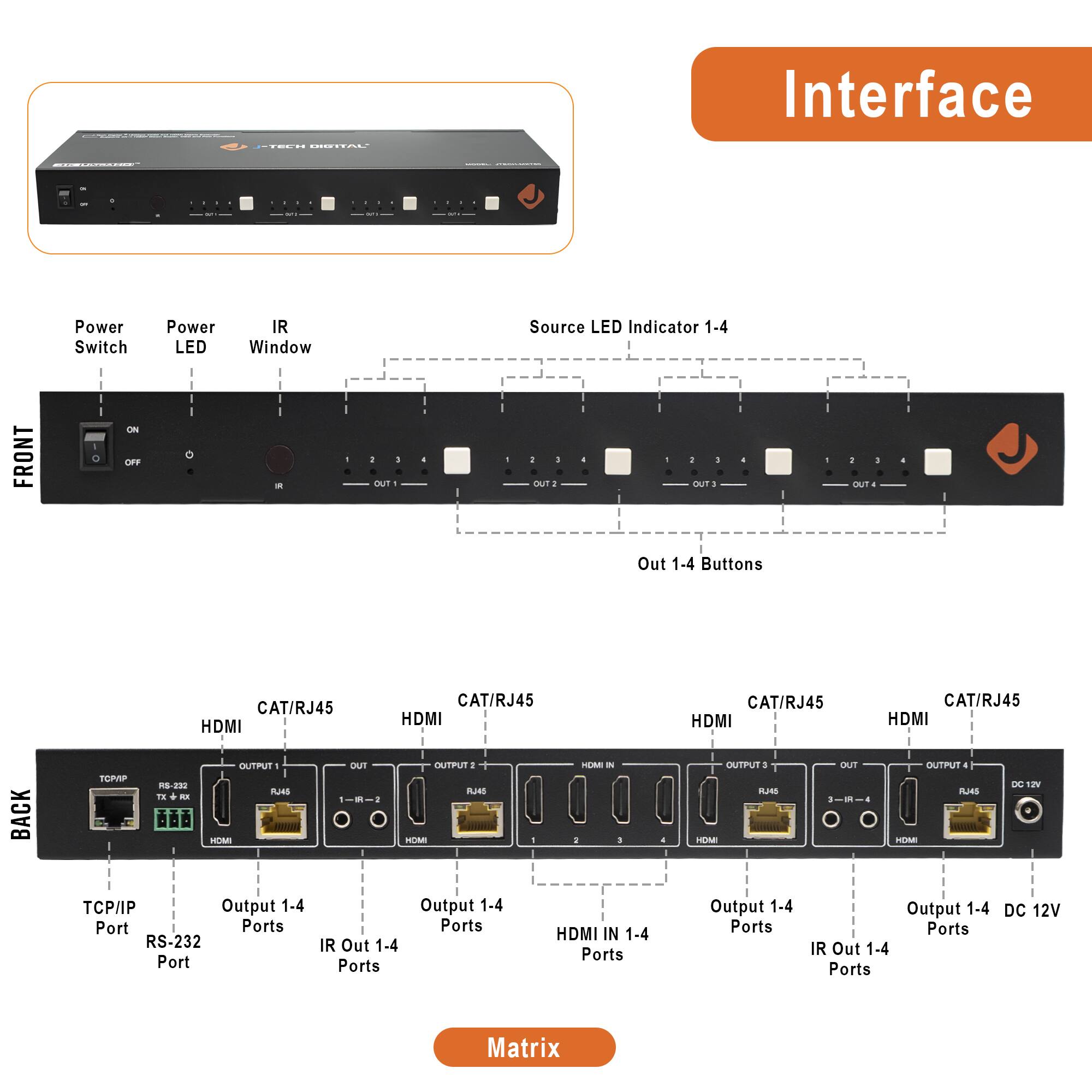

- 4 x HDMI In | 4 x HDMI Out + Extenders: With this 4x4 HDMI matrix extender, distribute any connected HDMI 2.0 source device signal to any display via HDMI and/or single Cat5e/6 ethernet cable. All output displays can share the same source signal, or each output can be treated individually and display its own unique source signal. 4 Local HDMI outputs mirror the 4 CAT outputs for a total of 8 displays

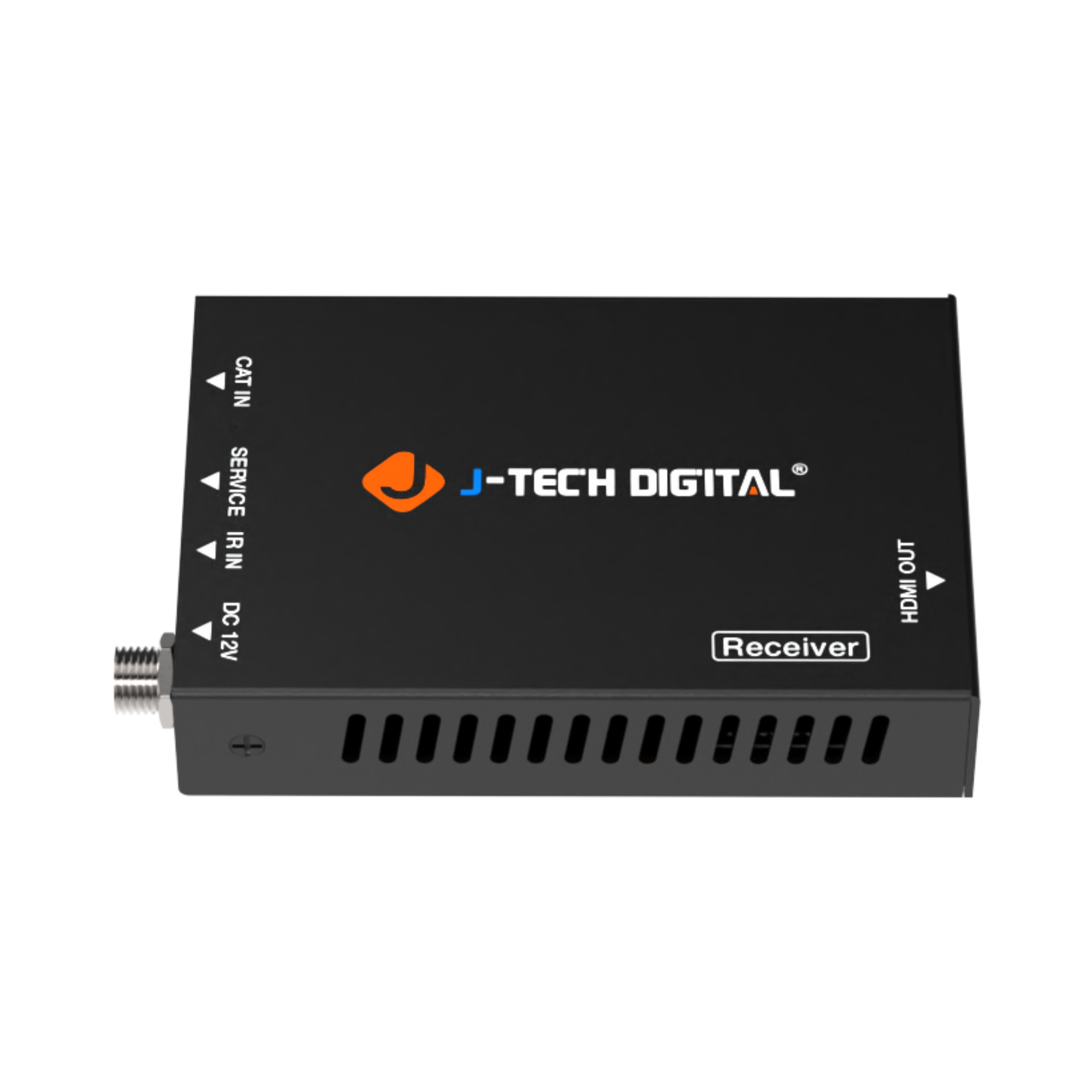

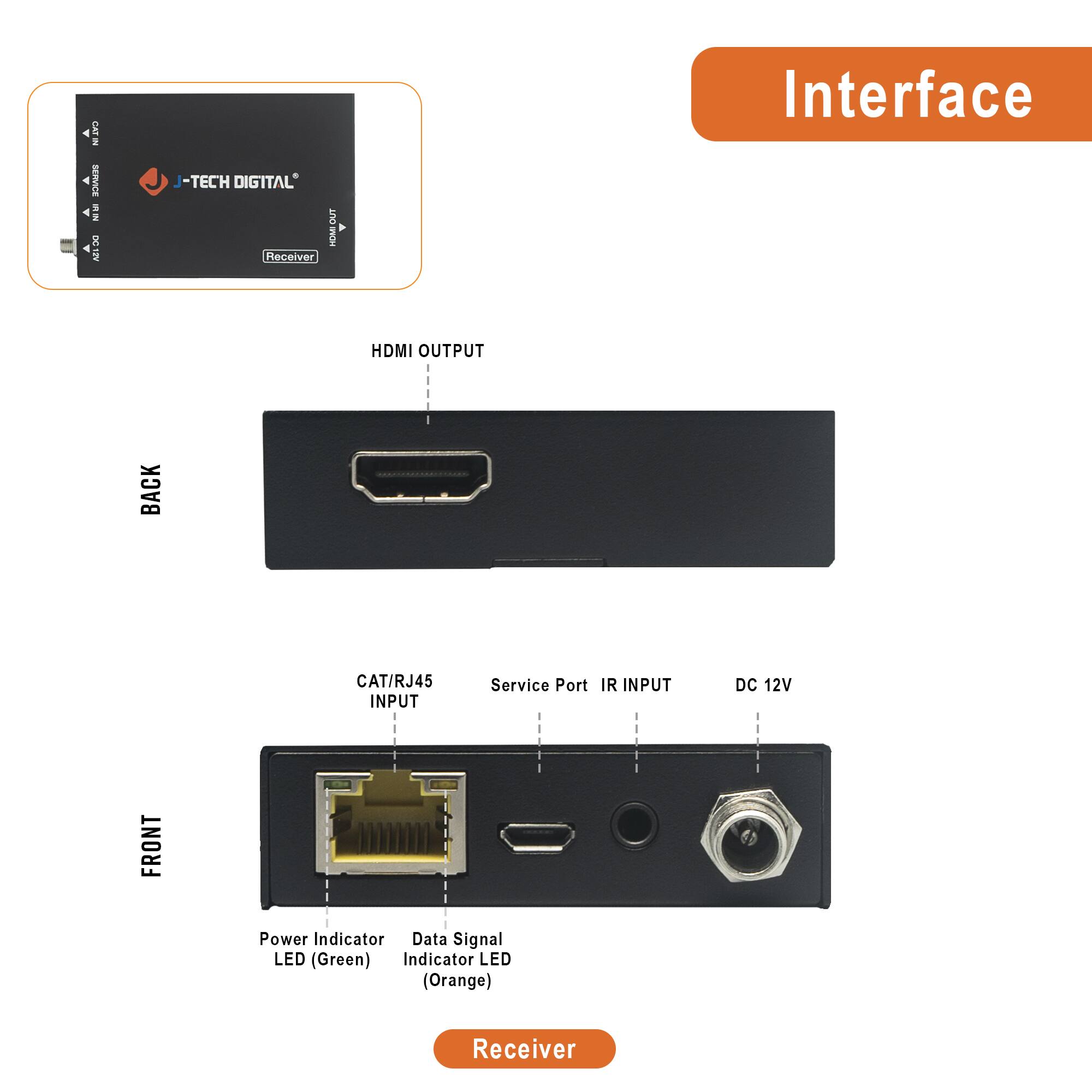

- Long Distance Transmission + PoC: Included CAT receiver units receive power from the main matrix device via PoC (Power Over Cable). There is no need for additional receiver power supplies and keeps installation at your display neat and tidy. Extend 4K signals up to 130ft. and 1080p signals up to 230ft.
- Advanced EDID Management: The JTECH-MXT60 4×4 HDMI 2.0 matrix features 21 built-in EDID modes, 8 “Copy” EDID modes and 2 user-defined EDID modes for ultimate flexibility and compatibility within your AV system
- 4K > 1080P Downscaling: The JTECH-MXT60 4×4 matrix allows users to downgrade a 4K 60Hz source signal to 1080p 60Hz at each output port. This makes the HDMI 2.0 matrix perfect for applications and setups that still utilize legacy 1080p HDMI 1.4 displays and TVs
Whats Included

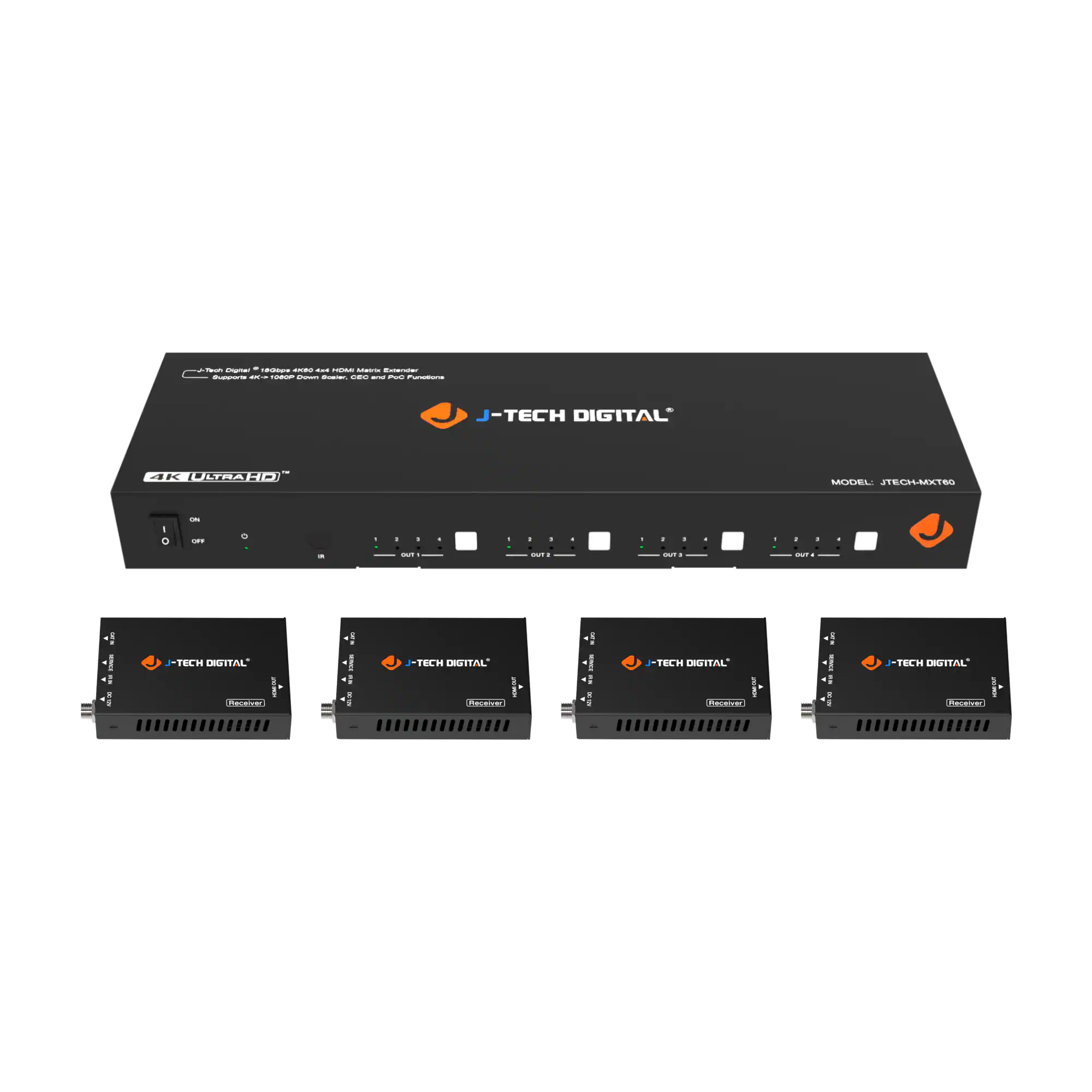

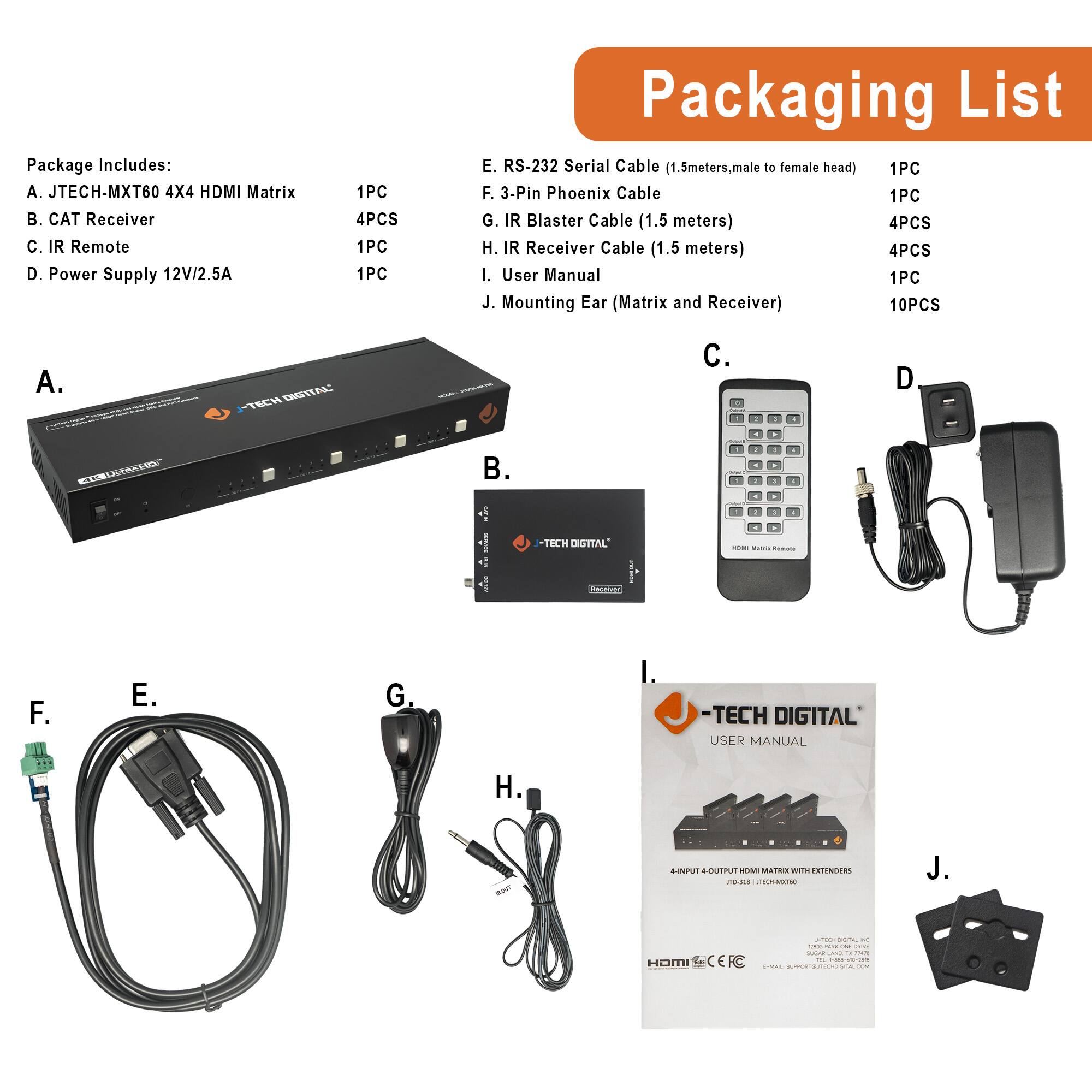

- Matrix Extender, Receivers, Remote Control, Power Adapter, IR Cable, Serial Cable, User Manual, Mounting Kit
