J-Tech Digital - 4K 60Hz 4x4 HDMI Matrix, Video Wall Controller, Multiviewer - Black
J-Tech Digital - 4K 60Hz 4x4 HDMI Matrix, Video Wall Controller, Multiviewer - Black
Reviews coming soon
$7.99 shipping to
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-4KMVM
- Product Name: J-Tech Digital 4K 60Hz 4x4 HDMI Matrix, Video Wall Controller, Multiviewer
- Color: Black
- Features
- Selector Switch Box Type: HDMI Switch
- Powered: true
- Indicator Lights: true
- Maximum Supported Resolution (Video Passthrough): 2160p (4K) @ 60 Hz (The highest video resolution supported by the device for passing through video to another device.)

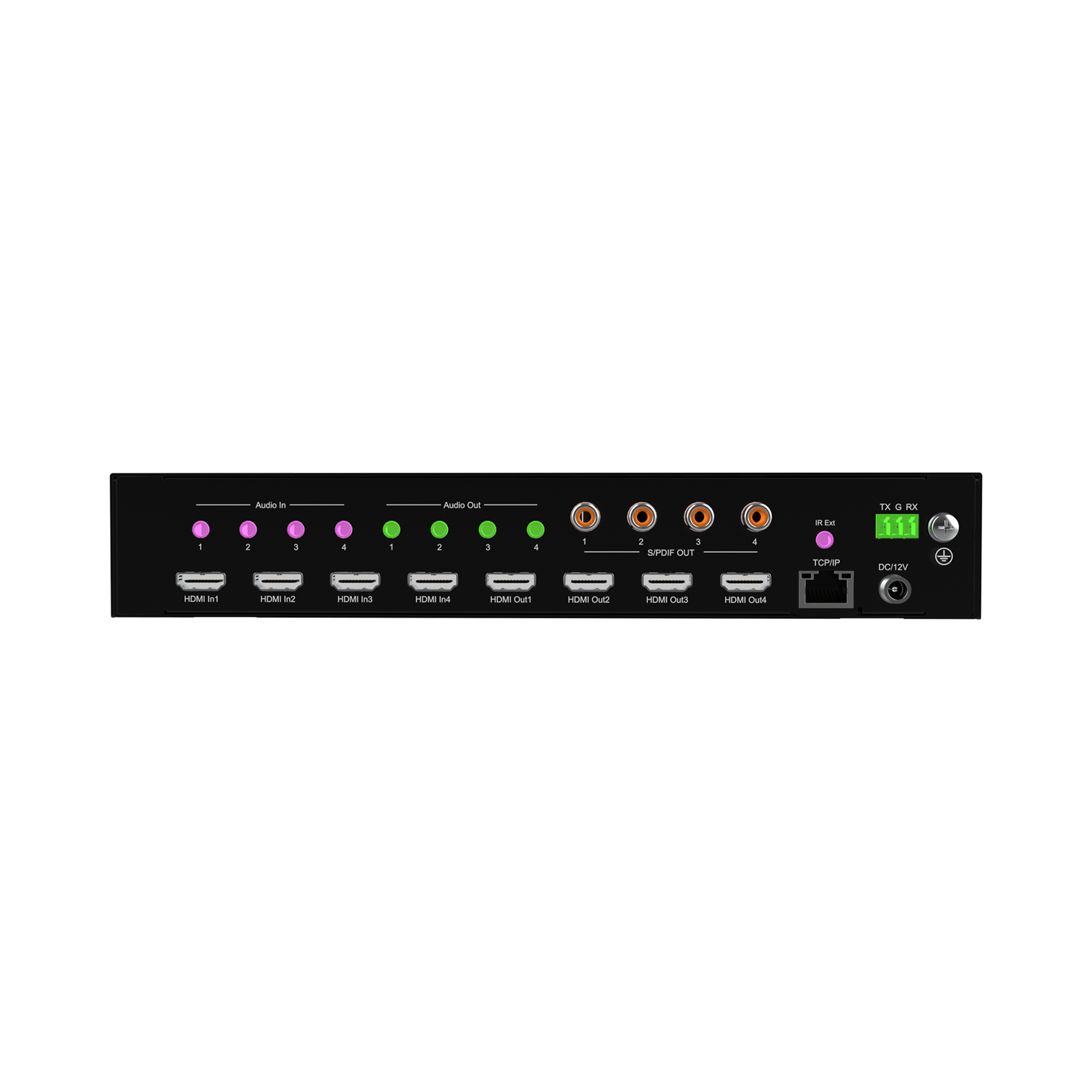

- Connectivity
- Input(s): 4 x HDMI
- Number of Inputs: 4
- Output(s): 4 x HDMI
- Number of Outputs: 4
- Network Connector(s): 1 x LAN

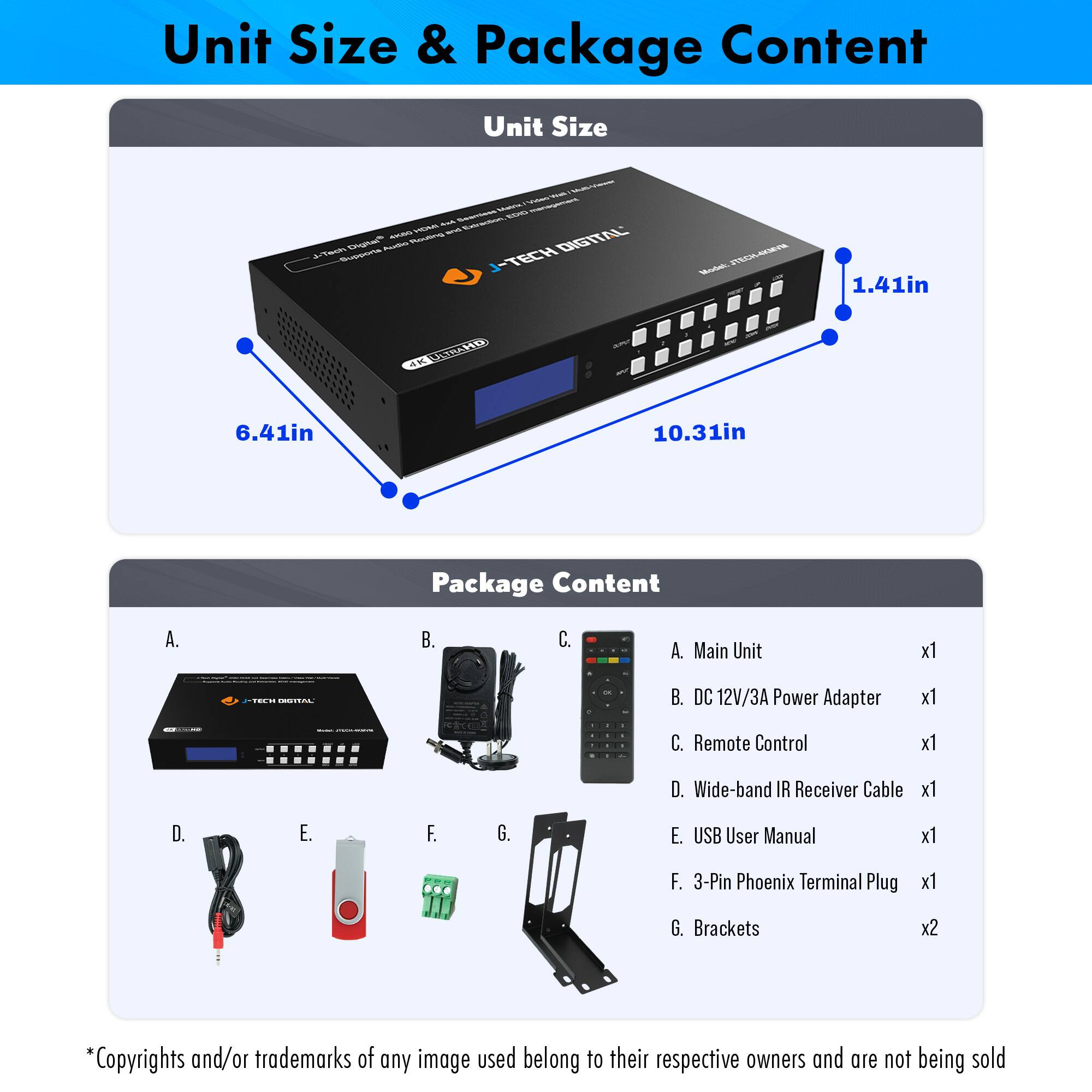

- Dimensions
- Product Height: 1.41 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10.31 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 6.41 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 810058922113
The JTECH-4KMVM combines an HDMI matrix, video wall controller, and multiviewer in one compact device. Supporting up to 4K@60Hz resolution, it allows seamless routing of 4 HDMI inputs to 4 outputs with no delays or picture loss. As a video wall controller, it offers 7 display modes, including 2x2 and 1x4 layouts, with a 180° rotation function per display for 2x2 setups. The multiviewer feature provides 12 viewing modes, including Picture-in-Picture (PIP) and 1 big, 3 small layouts, for displaying up to 4 sources on a single screen. Advanced audio features include sound extraction and routing via 3.5mm or SPDIF outputs for precise mixing. Its sleek, space-saving design ensures easy installation and a clean, professional setup.
- 4K@60Hz 4x4 Seamless HDMI Matrix: Easily manage 4 HDMI inputs and independently route them to 4 different HDMI outputs without any switching delays or picture loss during transitions. Supports up to 4K@60Hz resolution.
- Video Wall Controller with 7 Display Modes: Create dynamic displays with up to 7 video wall modes; 2x2, 1x4, 1x2, 1x3, 1x4, 2x1, 3x1. Features a 180° rotation function per display while using the 2x2 video wall mode to help adjust border orientation.
- Multiviewer with 12 Different Modes: 4x1 multiview function allows you to watch up to 4 different sources on one display. This multiviewer supports 12 different viewing modes, which include 4 equal screens, dual up/down, dual side by side, PIP, 1 big 3 small mode, and more!
- Audio Extraction and Audio Switching: Extract audio from any HDMI input source and send it to an external sound system via 3.5mm and/or SPDIF outputs. Features audio routing allowing you to mix and match audio and video signals from HDMI sources and 3.5mm audio in ports.
Whats Included
- Main Unit, Power Adapter, Remote Control, IR Cable, USB User Manual, Phoenix Plug, Mounting Brackets
