J-Tech Digital - 4K 60Hz HDMI Extender Balun Over Ethernet (230ft.) w/ Audio Extraction, PoC, IR - Black
Related Item
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-EX-4KAEIR
- Product Name: 4K 60Hz HDMI Extender Balun Over Ethernet (230ft.) w/ Audio Extraction, PoC, IR
- Color: Black
- Features
- Maximum Video Resolution: 2160p (4K) (Maximum resolution refers to the highest number of pixels that a screen can process and display. Higher resolution signals produce more detailed video.)
- Maximum Supported Resolution (Video Passthrough): 2160p (4K) @ 60 Hz (The highest video resolution supported by the device for passing through video to another device.)
- Powered: true
- Connectivity
- Wireless: false
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Maximum Transmission Range: 230 feet
- Warranty
- Warranty - Parts: 1 year
- Other
- UPC: 810058922038

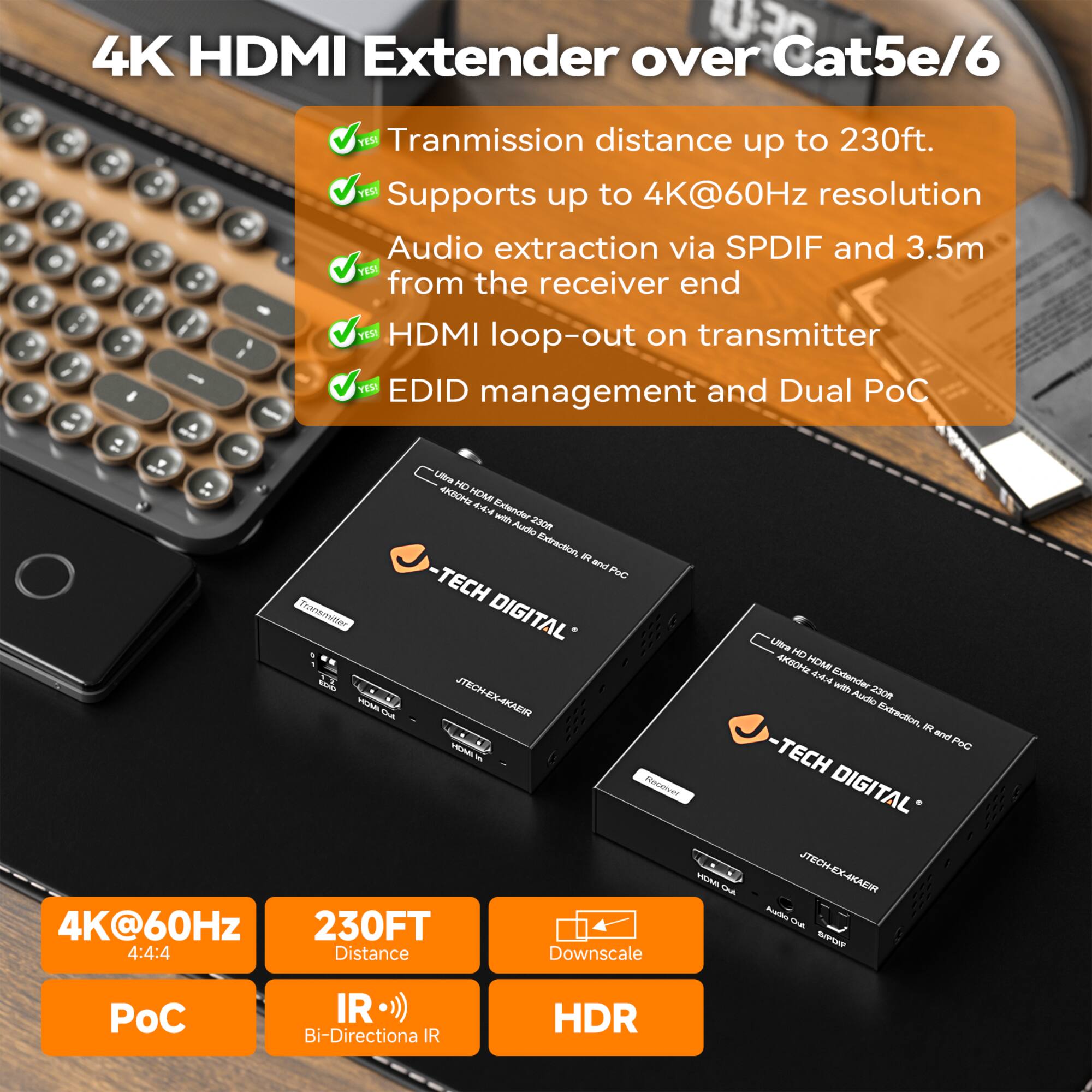

Take your home entertainment or workspace setup to the next level with this powerful and easy-to-use J-Tech Digital 4K@60Hz HDMI extender. Transmit crystal-clear 4K@60Hz 4:4:4 UHD video and high-quality audio up to 230ft or 295ft for 4K@30Hz/1080p, all over a single Cat5e/6 Ethernet cable. This 4K HDMI extender is packed with features like HDR10, HDCP 2.2/1.4 compliance, 18Gbps bandwidth, HDMI loop-out for connecting a local display, and dual POC (Power over Cable) meaning no extra power adapters needed. This 4K HDMI extender also supports audio extraction via SPDIF Optical and 3.5mm analog audio output. Control your devices remotely using the dual wide-band IR pass-through feature. Simple to set up and built for reliable, long-distance connections — perfect for home theaters, gaming, office displays, and more.

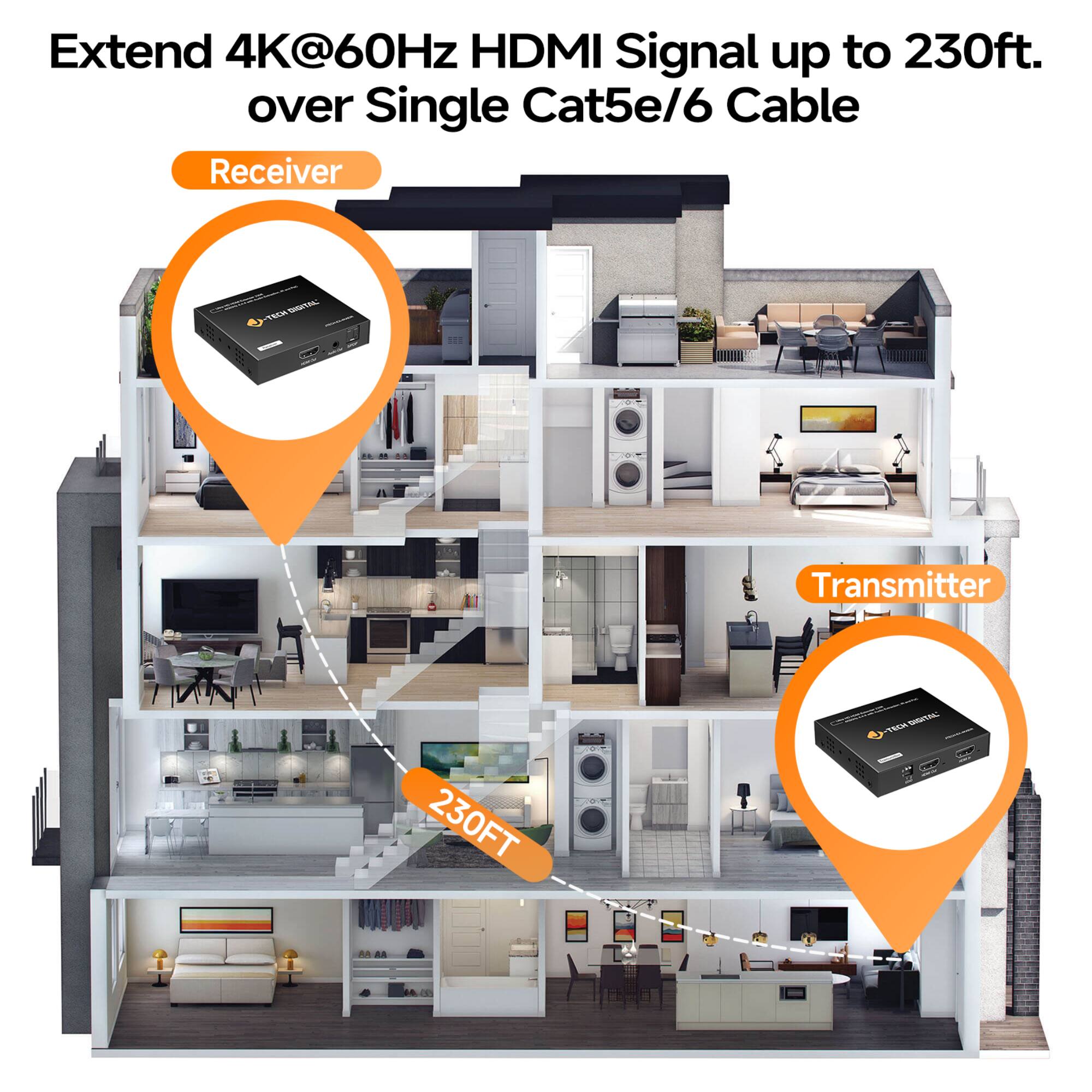

- 4K@60Hz HDMI Extender Balun Up To 230ft: Transmit stunning 4K@60Hz 4:4:4 UHD signals up to 230ft (70m) and 4K@30Hz/1080p up to 295ft (90m) over a single Cat5e/6 Ethernet cable. Supports HDR10, 18Gbps bandwidth, and HDCP 2.2/1.4 for flawless ultra-high-definition video transmission

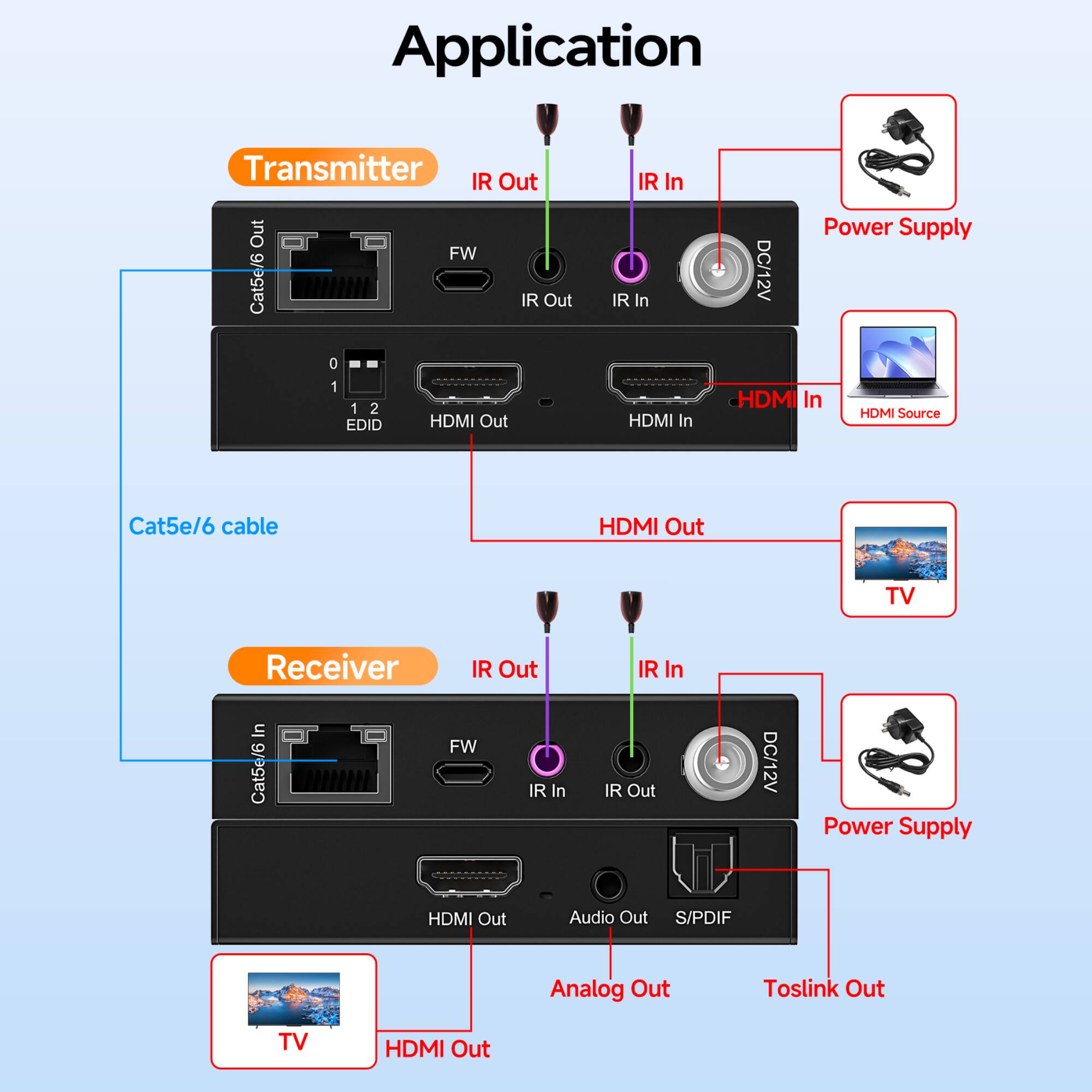

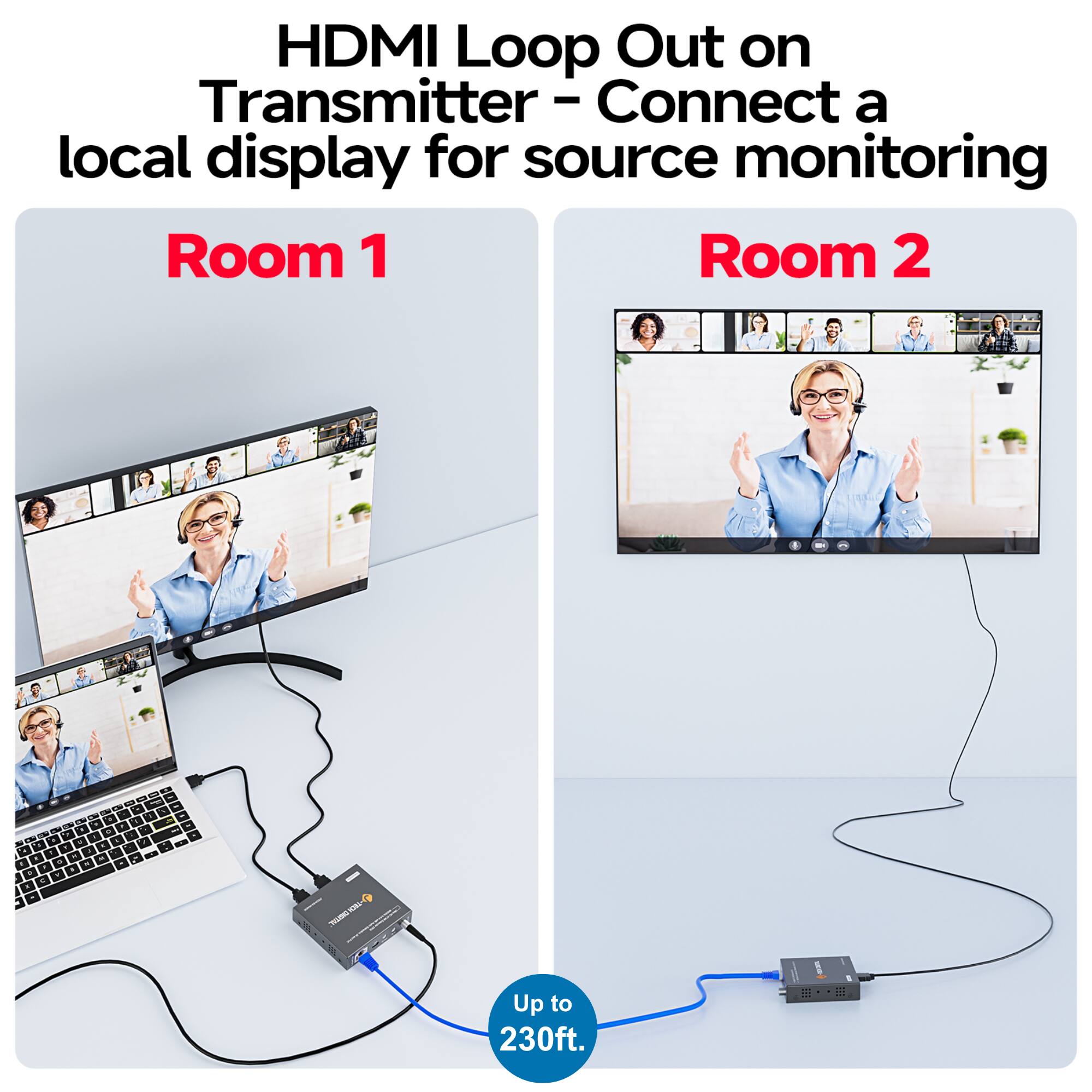

- Local Loop-Out & Dual PoC HDMI Extender: Features an HDMI loop-out port on the transmitter for local display monitoring. Dual POC (Power over Cable) eliminates the need for extra power adapters, reducing clutter and simplifying your HDMI extender setup

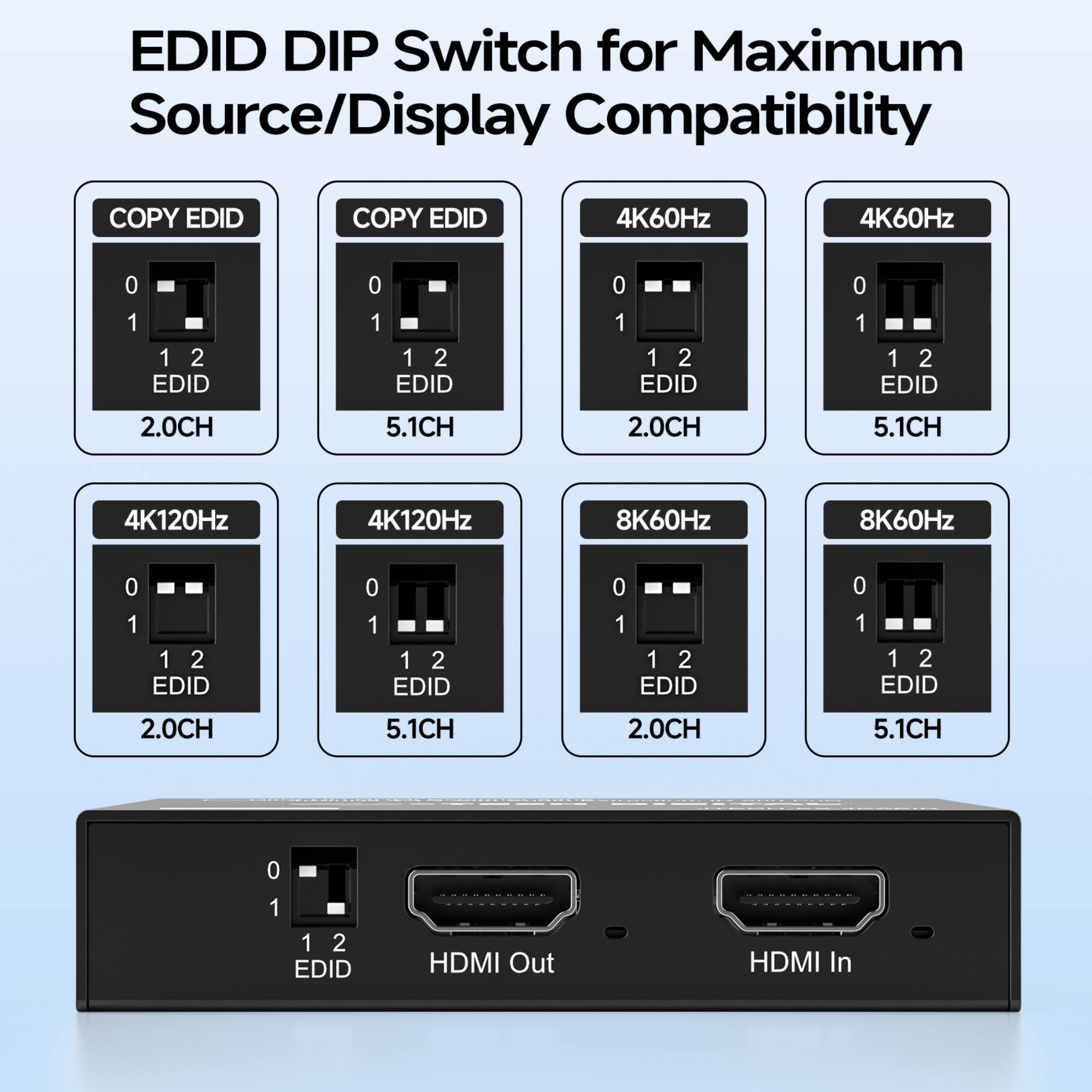

- Audio Extraction Function & EDID Management: Includes audio extraction via SPDIF optical and 3.5mm analog outputs on the receiver balun. Built-in EDID DIP switch ensures seamless compatibility and optimal video output between your source device and display
- Long Range HDMI Extender with Bi-Directional IR Pass-Through: Control your source device from the display’s location or vice versa using the bi-directional wide-band IR pass-through function. Ideal for home theaters, gaming setups, digital signage, conference rooms, and classrooms
- Compatible with Multiple HDMI Devices: Works with Blu-ray players, Gaming Consoles, Media Players, Fire Stick, laptops, projectors, HDTVs, and AV receivers. Perfect for professional AV installations, long-distance HDMI connections, and immersive home entertainment systems
Whats Included

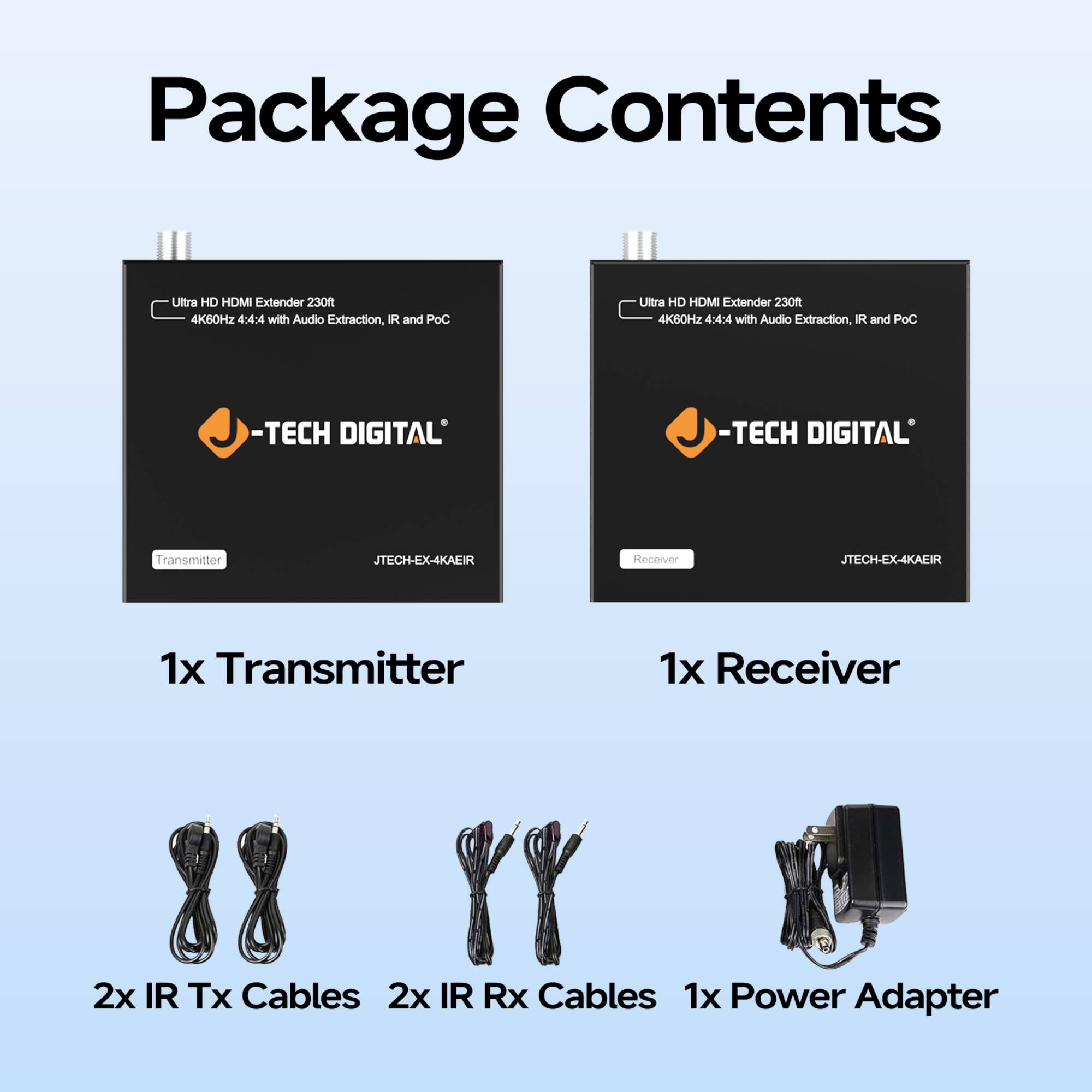

- Transmitter, Receiver, IR Cables, Power Adapter
