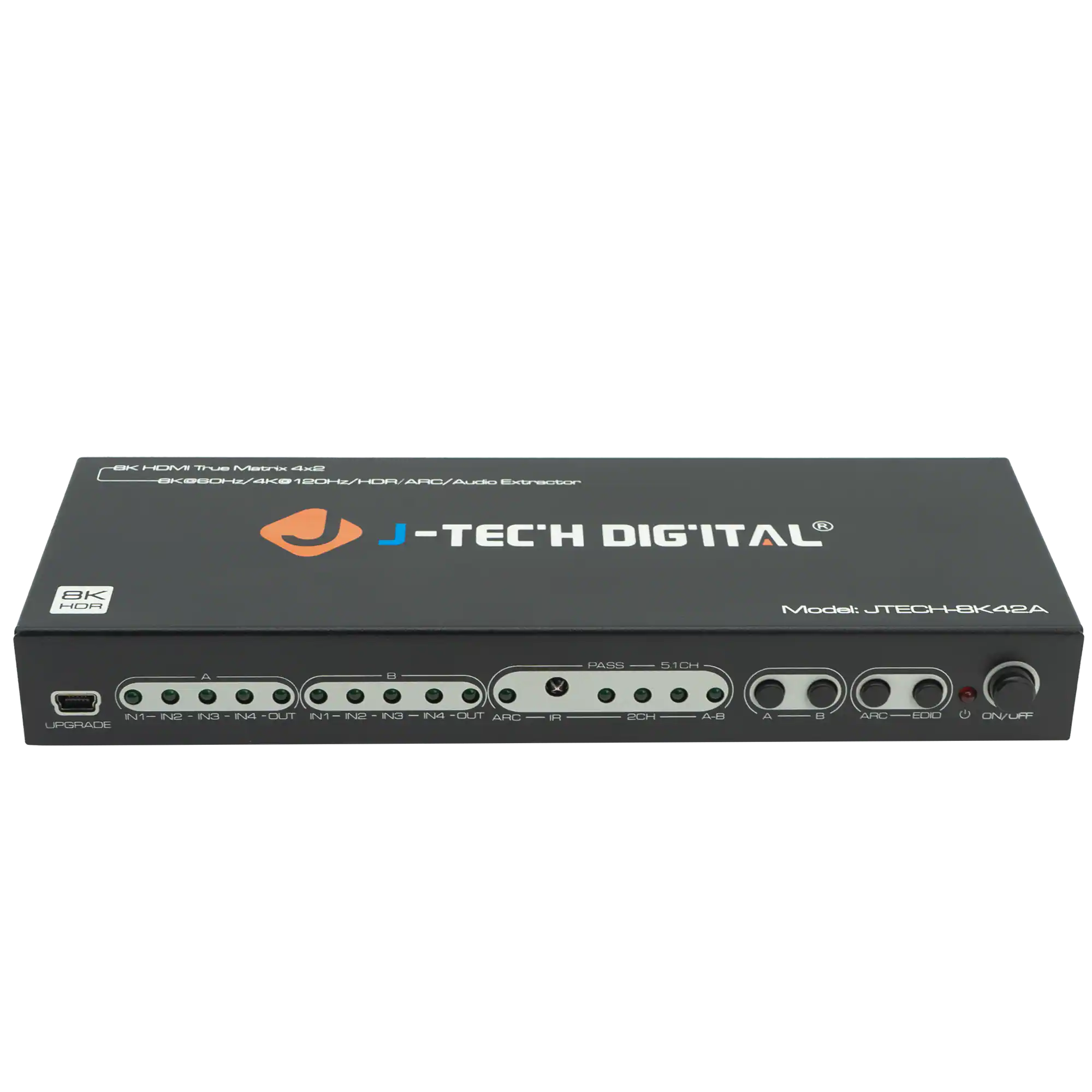

J-Tech Digital - 8K 60Hz 4x2 HDMI Matrix with Audio Extraction and HDMI ARC Function - Black
$7.99 shipping to
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-8K42A
- Product Name: J-Tech Digital 8K 60Hz 4x2 HDMI Matrix with Audio Extraction and HDMI ARC Function
- Color: Black
- Features
- Selector Switch Box Type: HDMI Switch
- Powered: true
- Indicator Lights: true
- Maximum Supported Resolution (Video Passthrough): 4320p (8K) (The highest video resolution supported by the device for passing through video to another device.)
- Surround Sound Supported: Dolby Atmos, Dolby Audio, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Connectivity

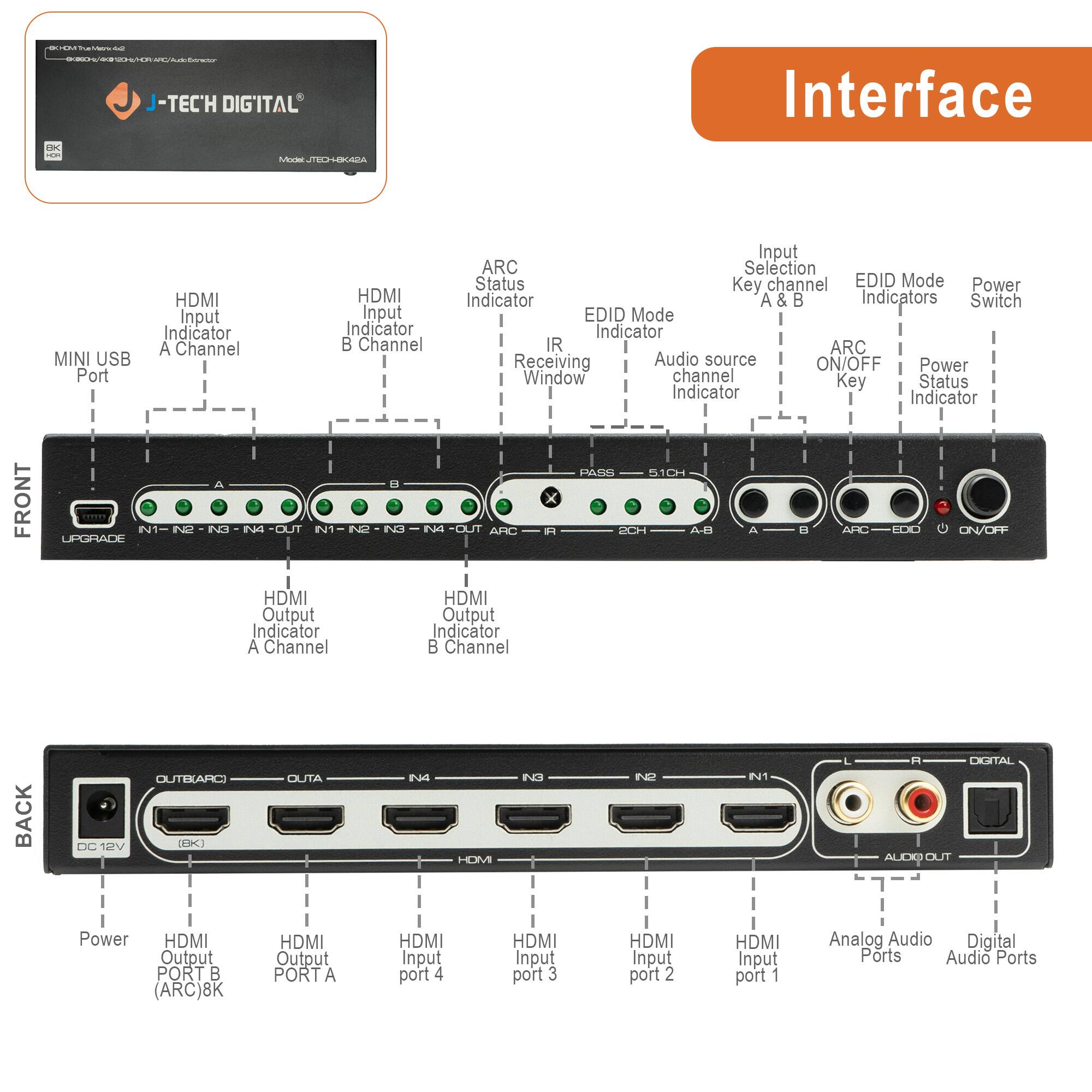

- Input(s): 4 x HDMI
- Number of Inputs: 4

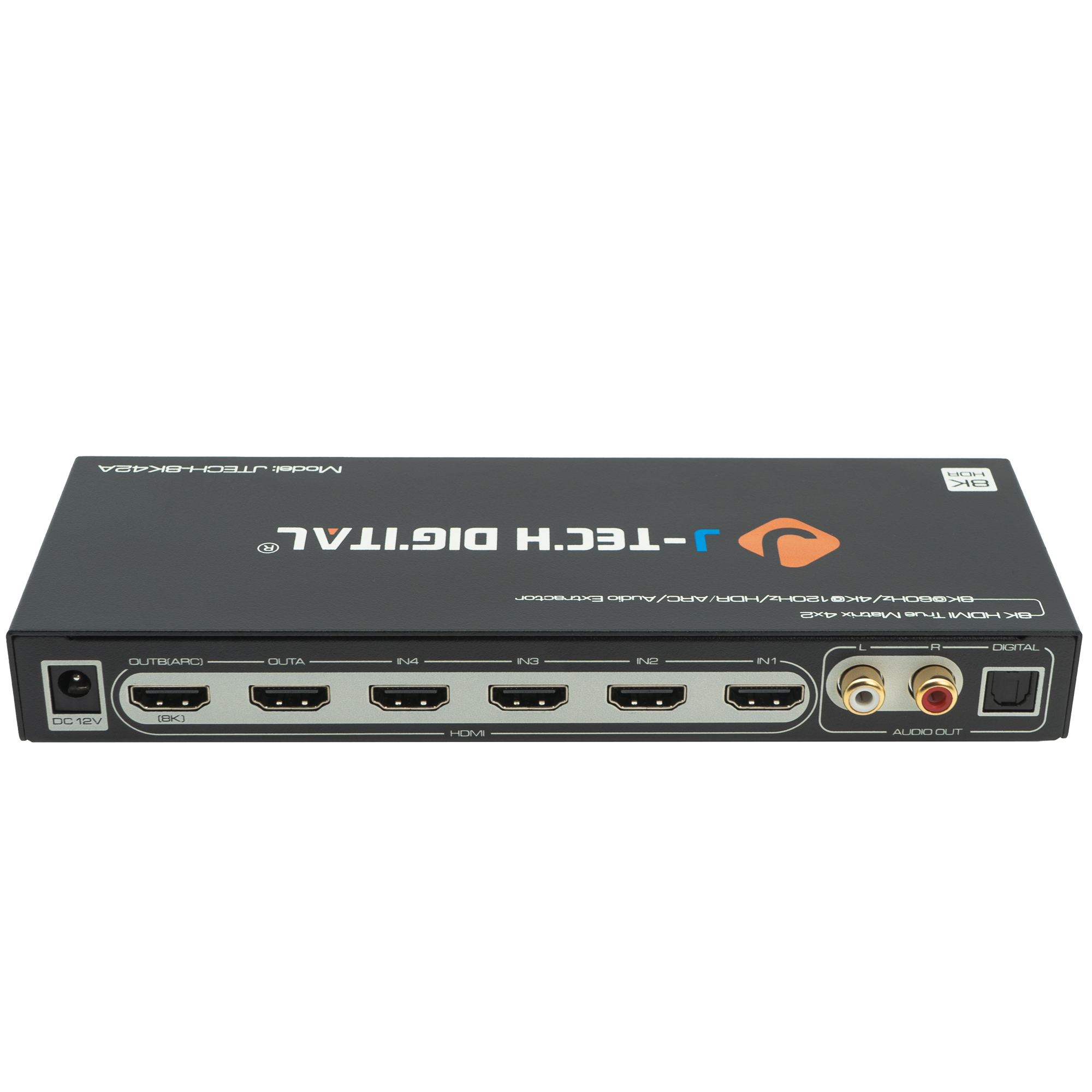

- Output(s): 2 x HDMI
- Number of Outputs: 2
- Dimensions

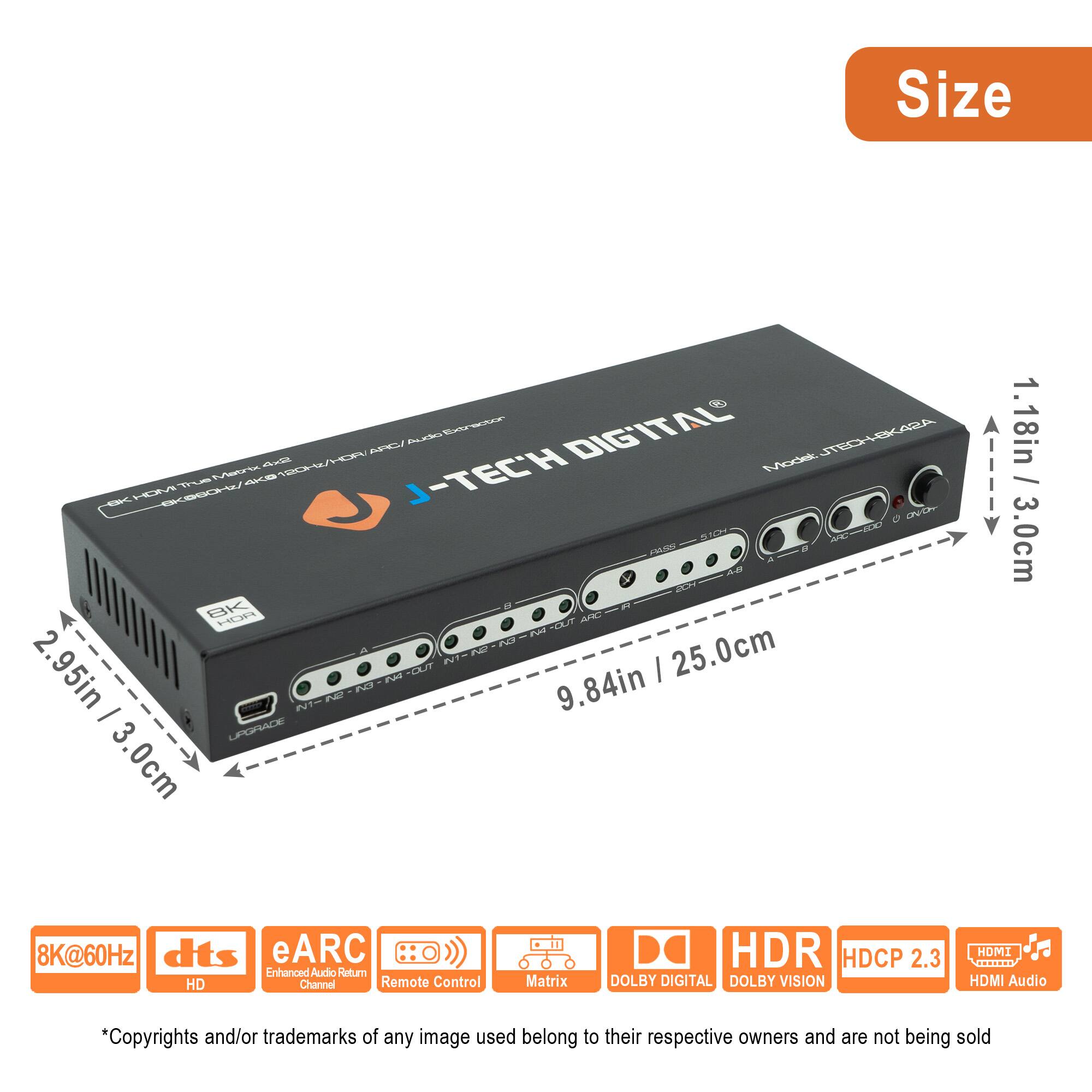

- Product Height: 1.18 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.84 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2.95 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 810058920928

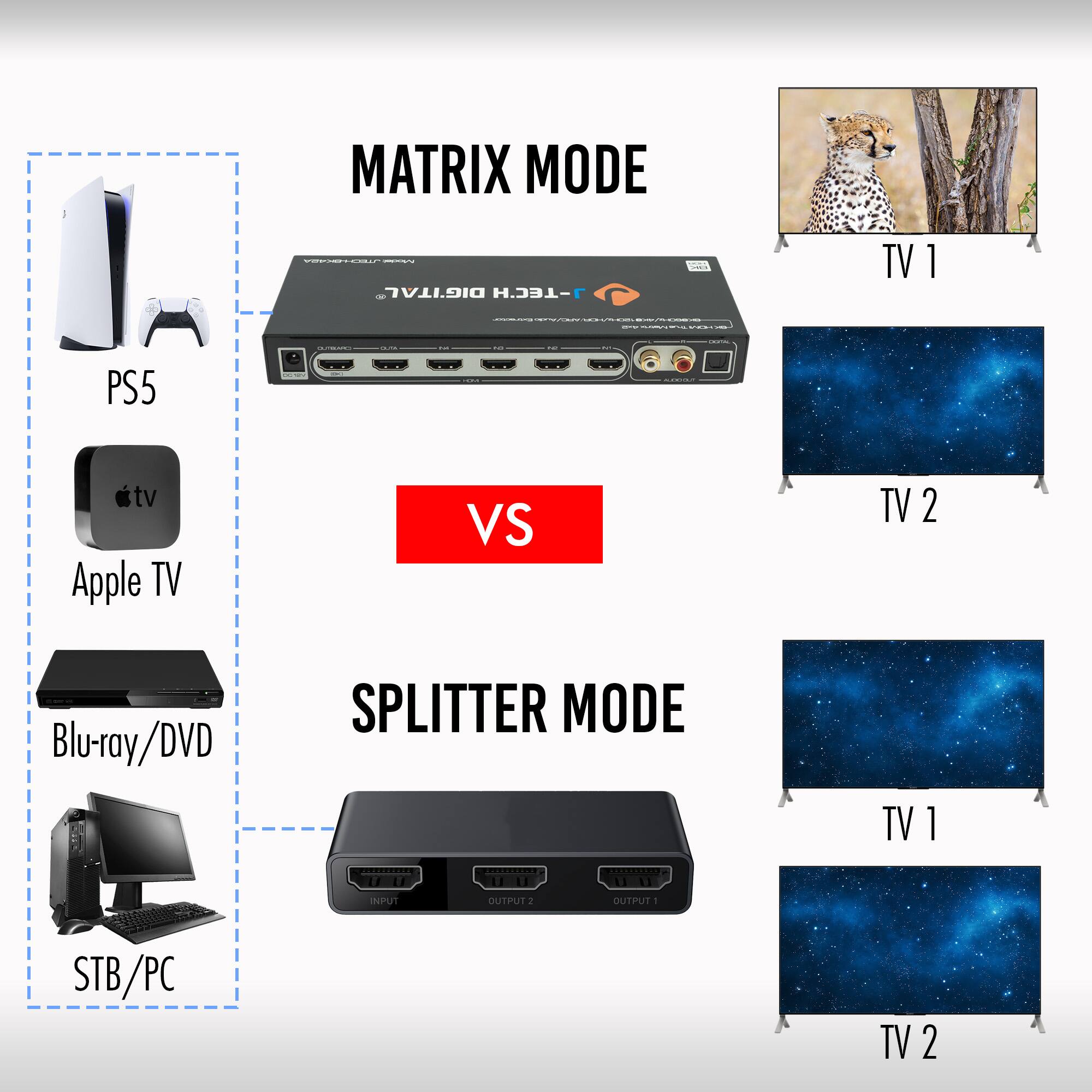

Connect up to 4 HDMI sources with resolutions up to 8K@60Hz or 4K@120Hz to 2 different displays. Supports HDMI 2.1, HDCP 2.3, HDR10/Dolby Vision to give you the best quality experience for your content.
- 4x2 HDMI Matrix | Up to 8K@60Hz/4K@120Hz Resolution: Connect up to 4 HDMI sources with resolutions up to 8K@60Hz or 4K@120Hz to 2 different displays. Supports HDMI 2.1, HDCP 2.3, HDR10/Dolby Vision to give you the best quality experience for your content
- Audio Extraction & ARC Function: Utilize the audio extraction feature to send 2Ch, 5.1Ch, or thru audio to an external audio system via SPDIF Optical or RCA. ARC feature allows you to send audio from an ARC compatible display back to the matrix for extraction via Optical. Note: While using ARC feature, you can only extract audio via Optical and not RCA. Only Output B supports ARC function
- Audio EDID Mode Selector: Switch between three audio EDID modes: Pass/2Ch/5.1Ch. Easily set the EDID mode according to the incoming audio format from the source for compatibility. Supports audio formats such as Dolby HD, DTS-HD, Dolby Atmos, Dolby AC3, DTS, LPCM
- Wide Resolution Compatibility: Supports resolutions such as 480P, 720P, 1080P, 2160P @ 24/25/30/50/60/100/120Hz. Supports 8K resolution @ 50/60Hz. 8/10/12/16Bit Color Depth supported at 2160P & 8/10Bit Color Depth supported at 4320P.
- 4x2 HDMI Matrix | Up to 8K@60Hz/4K@120Hz Resolution: Connect up to 4 HDMI sources with resolutions up to 8K@60Hz or 4K@120Hz to 2 different displays. Supports HDMI 2.1, HDCP 2.3, HDR10/Dolby Vision to give you the best quality experience for your content
- Audio Extraction & ARC Function: Utilize the audio extraction feature to send 2Ch, 5.1Ch, or thru audio to an external audio system via SPDIF Optical or RCA. ARC feature allows you to send audio from an ARC compatible display back to the matrix for extraction via Optical. Note: While using ARC feature, you can only extract audio via Optical and not RCA. Only Output B supports ARC function
- Audio EDID Mode Selector: Switch between three audio EDID modes: Pass/2Ch/5.1Ch. Easily set the EDID mode according to the incoming audio format from the source for compatibility. Supports audio formats such as Dolby HD, DTS-HD, Dolby Atmos, Dolby AC3, DTS, LPCM
- Wide Resolution Compatibility: Supports resolutions such as 480P, 720P, 1080P, 2160P @ 24/25/30/50/60/100/120Hz. Supports 8K resolution @ 50/60Hz. 8/10/12/16Bit Color Depth supported at 2160P & 8/10Bit Color Depth supported at 4320P.

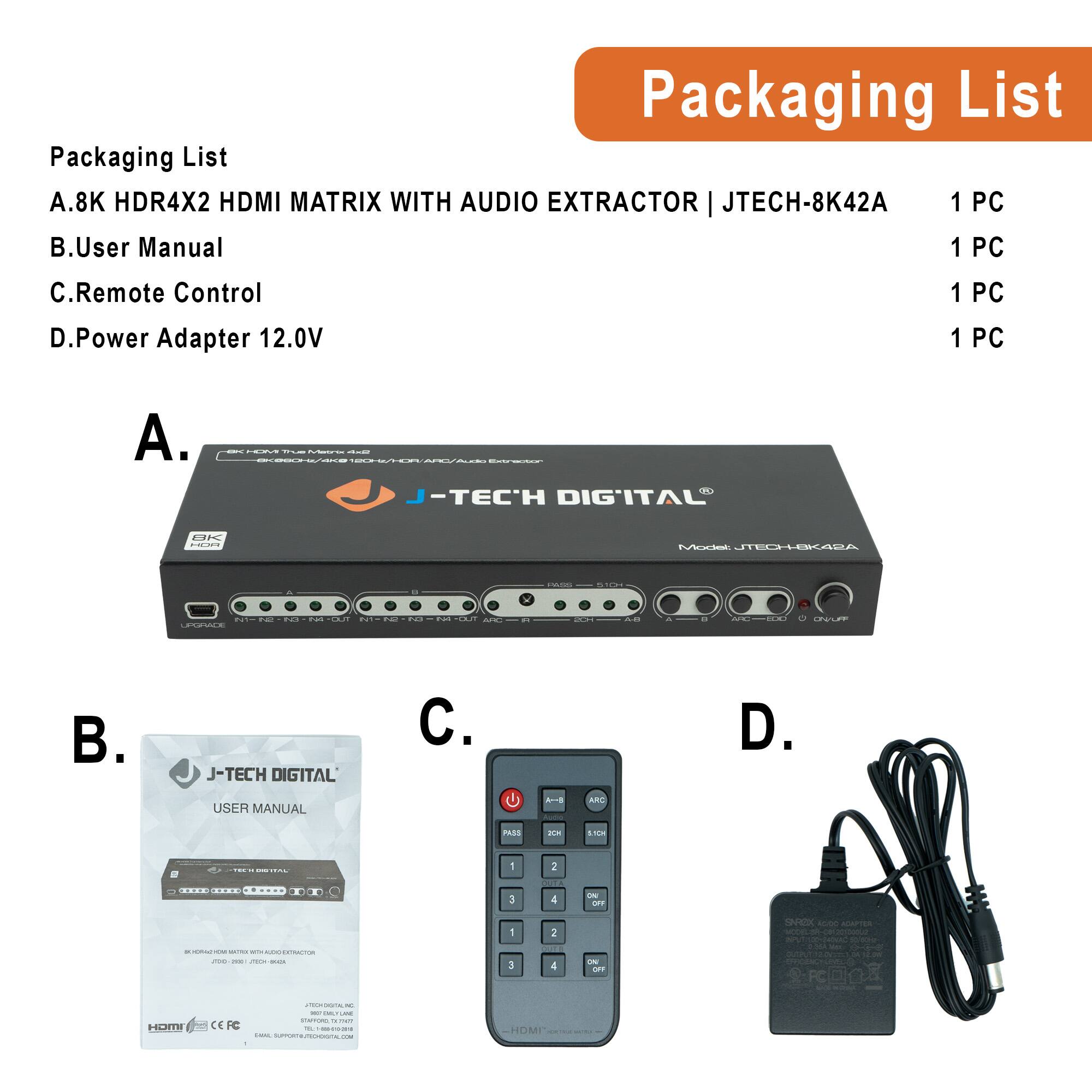

Whats Included
- Matrix Switch, User Manual, Remote Control, Power Adapter
- Matrix Switch, User Manual, Remote Control, Power Adapter
