J-Tech Digital - 8K 60Hz HDMI Signal Generator and Analyzer - Black
J-Tech Digital - 8K 60Hz HDMI Signal Generator and Analyzer - Black
$7.99 shipping to
Related Item
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-40GA
- Product Name: 8K 60Hz HDMI Signal Generator and Analyzer
- Color: Black
- Connectivity
- Input(s): HDMI
- Output(s): HDMI
- Features
- Signal Conversion: Digital-to-Digital
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 810058922175

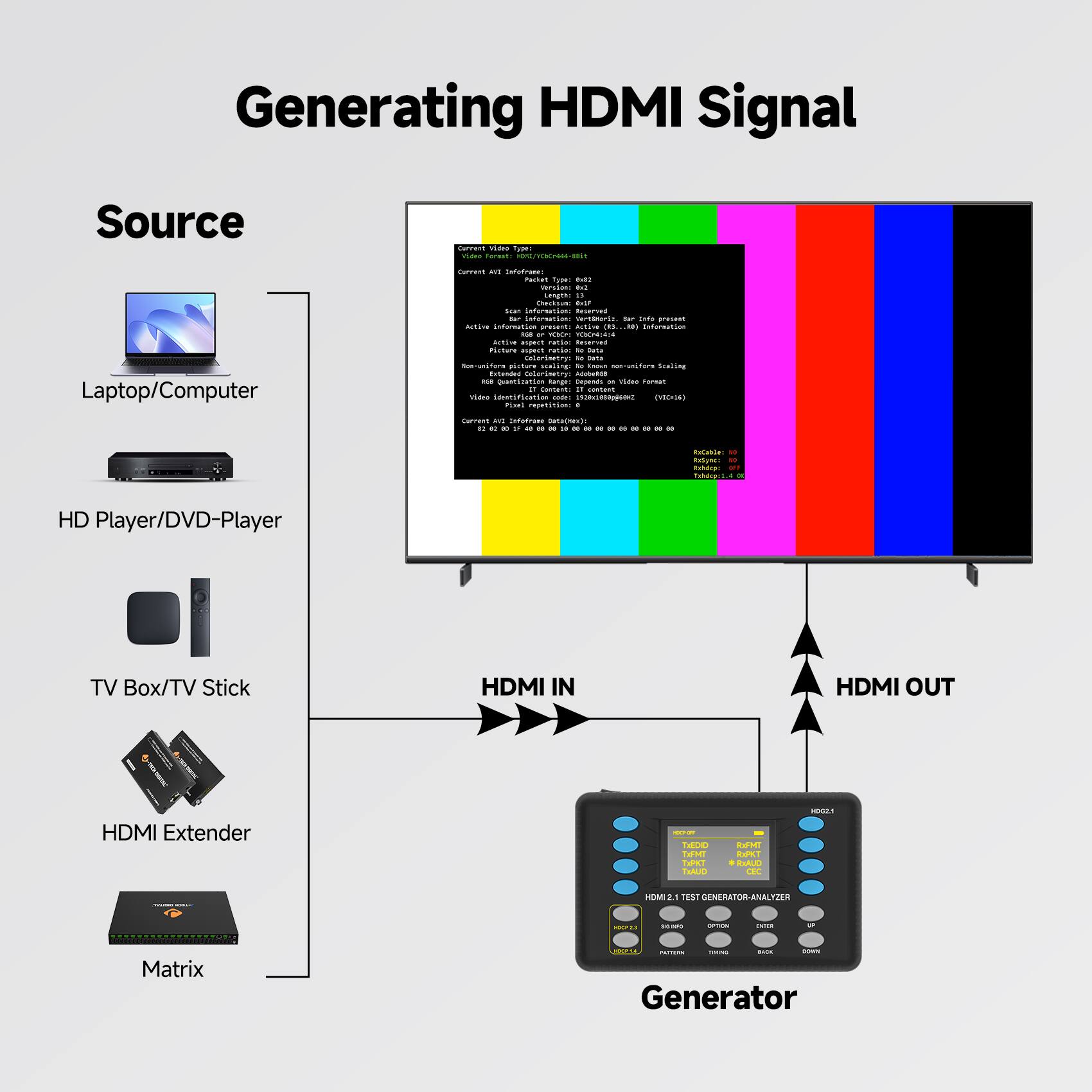

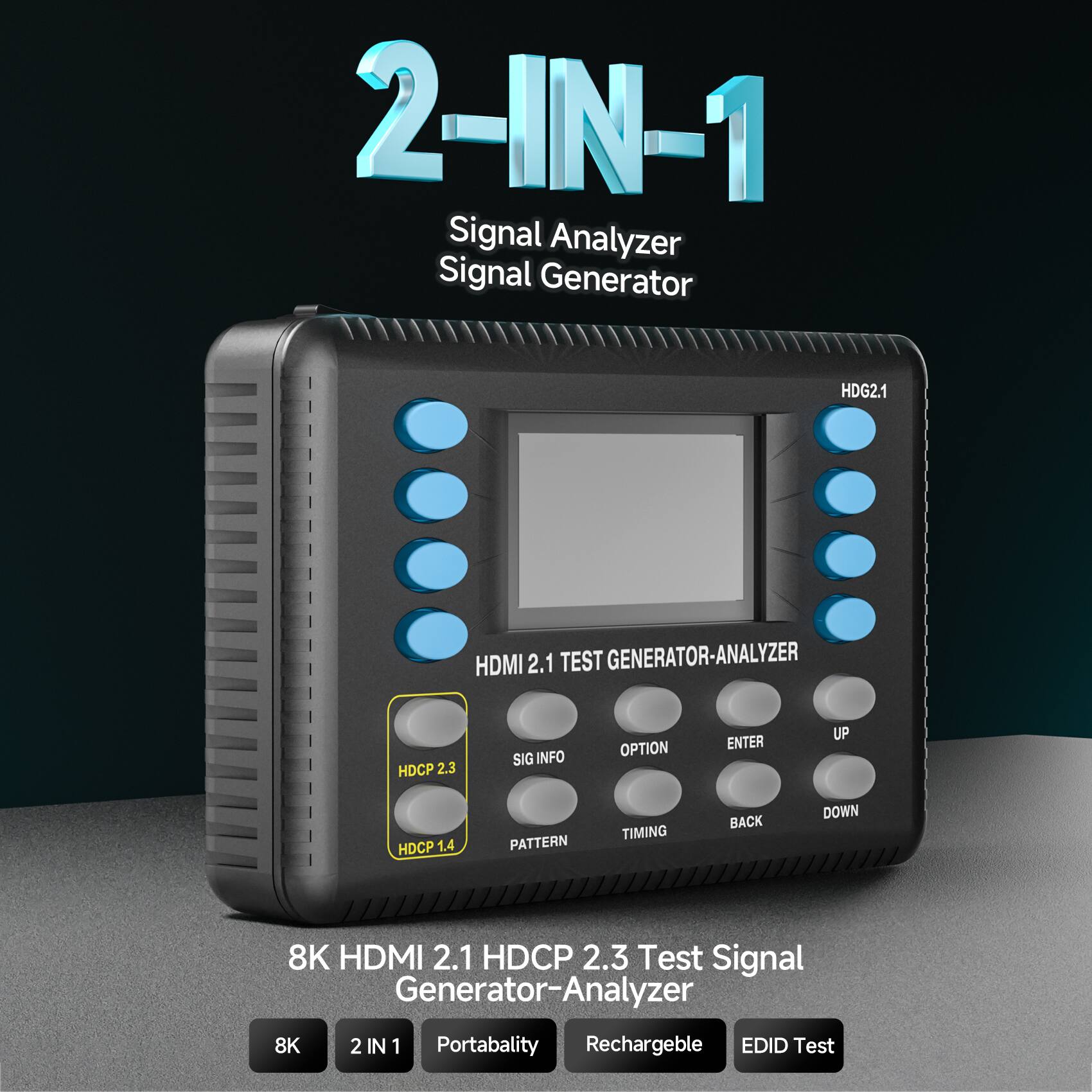

Test, troubleshoot, and verify your HDMI setups with the J-Tech Digital HDMI Test Signal Generator. Engineered for professionals and enthusiasts, it supports up to 8K@60Hz (4:2:0, 10-bit) with 40Gbps bandwidth, full HDR testing, and multiple color formats including RGB, YCbCr444, YCbCr422, and YCbCr420. Equipped with 64 video resolutions and 33 test patterns, this compact device ensures precise video signal verification for TVs, monitors, projectors, and AV receivers. Audio testing is seamless, supporting LPCM 2CH internal audio, external S/PDIF input, and HDCP 2.3/1.4 pass/fail verification. Advanced features include EDID read/write, timing, format, InfoFrame, and HDCP analysis, plus CEC control for end-to-end HDMI testing. Its portable design with a 2910mAh rechargeable battery makes it perfect for field use or lab environments.
- Advanced HDMI 2.1 Compatibility: Supports resolutions up to 8K@60Hz with 10-bit color depth and 40Gbps bandwidth, meeting HDMI 2.1 standards.

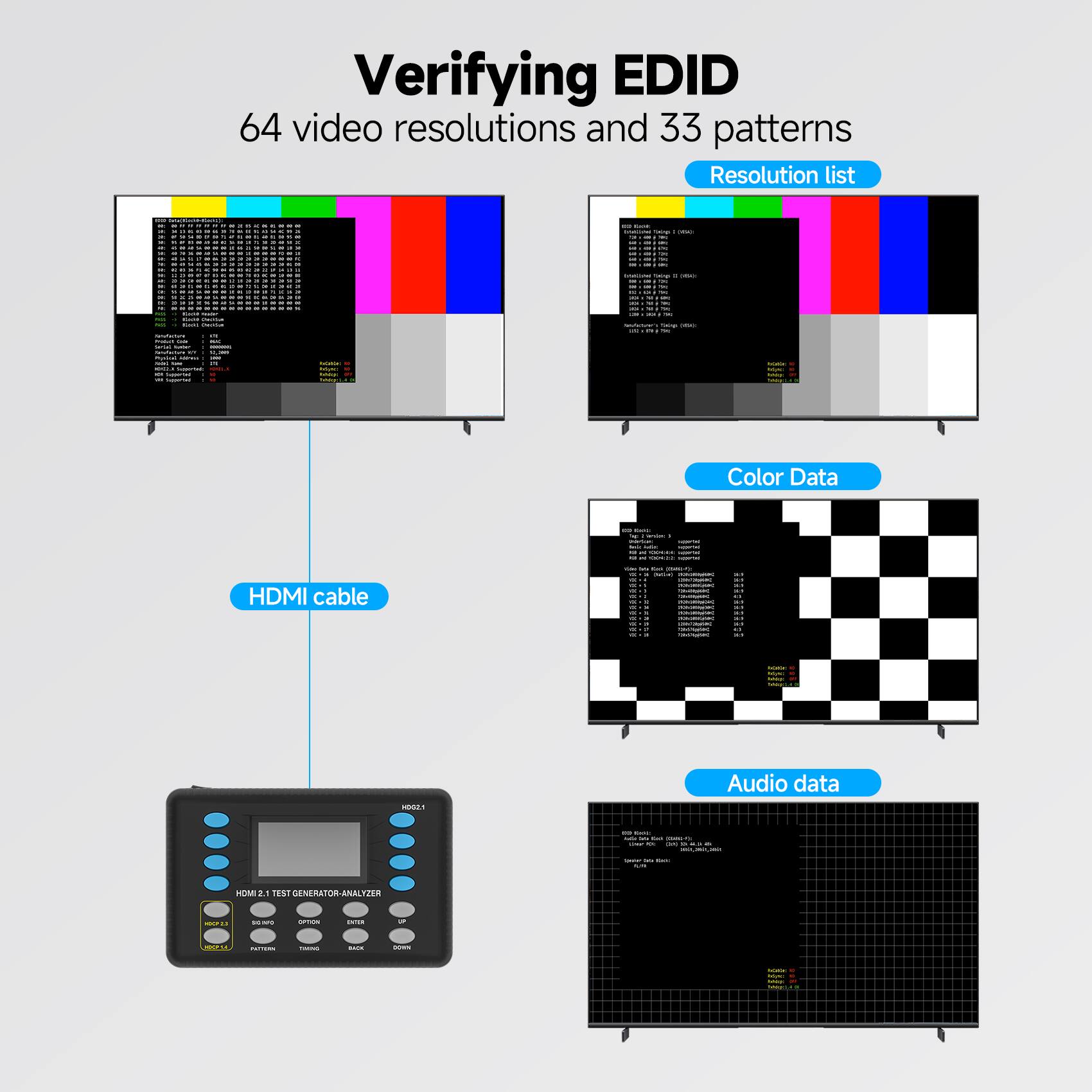

- Comprehensive Video Testing: Offers up to 64 video resolutions and 33 patterns, covering RGB and multiple YCbCr color spaces.
- Enhanced HDR Capabilities: Built-in HDR test function for HDMI 2.1 ensures accurate high dynamic range performance verification.

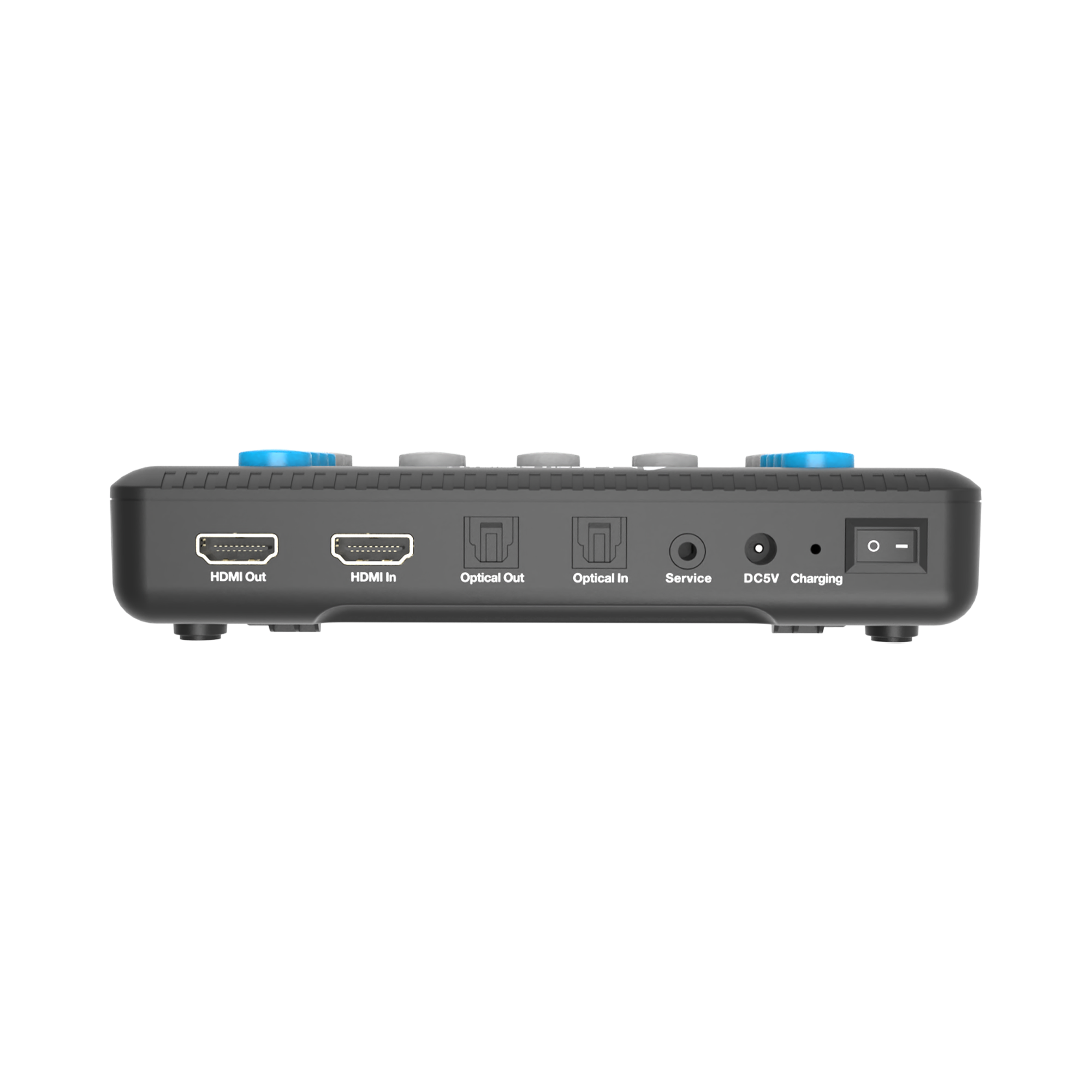

- Versatile Audio Options: Allows HDMI audio from internal sources or external S/PDIF inputs, supporting LPCM 2CH format and HDCP 2.3/1.4 encryption.

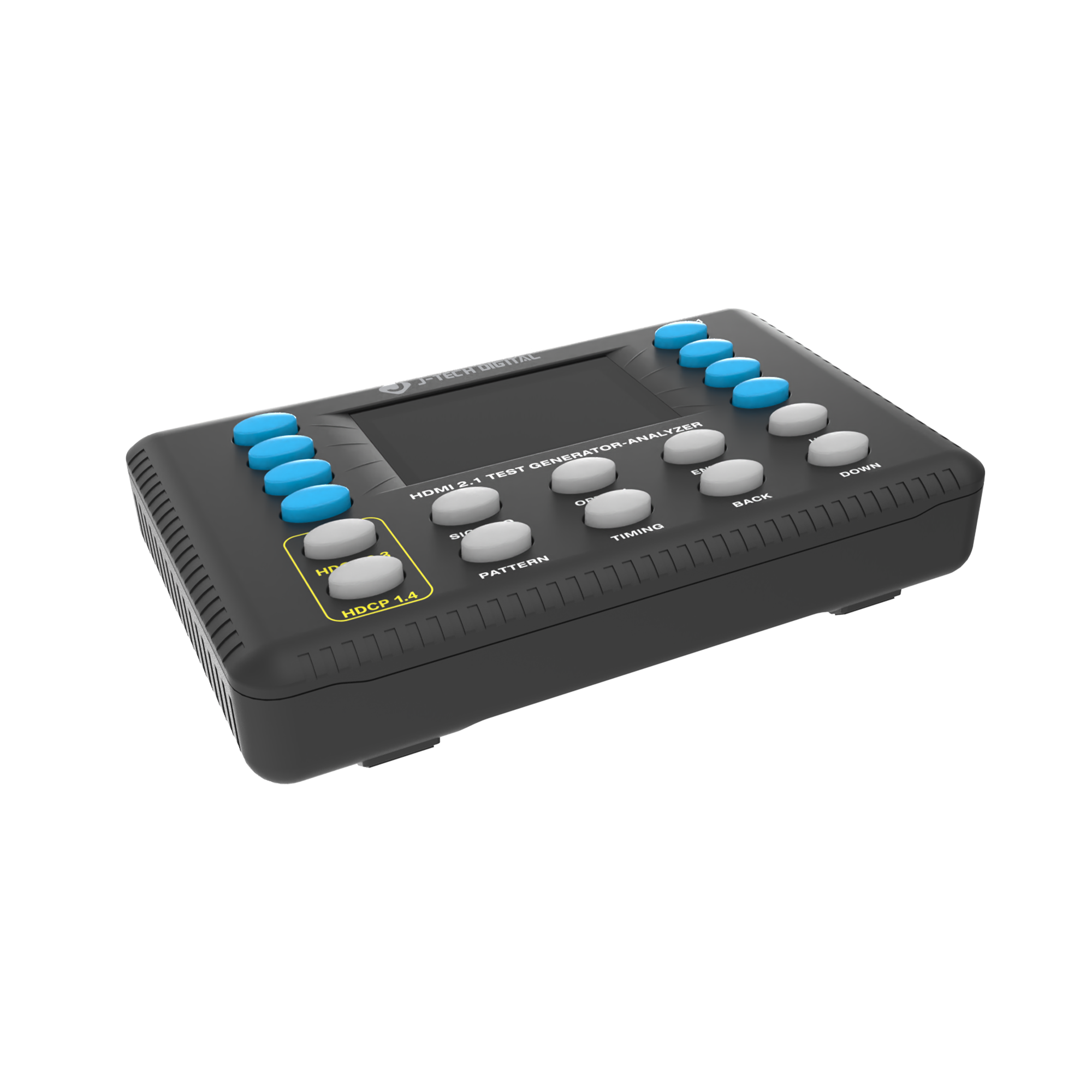

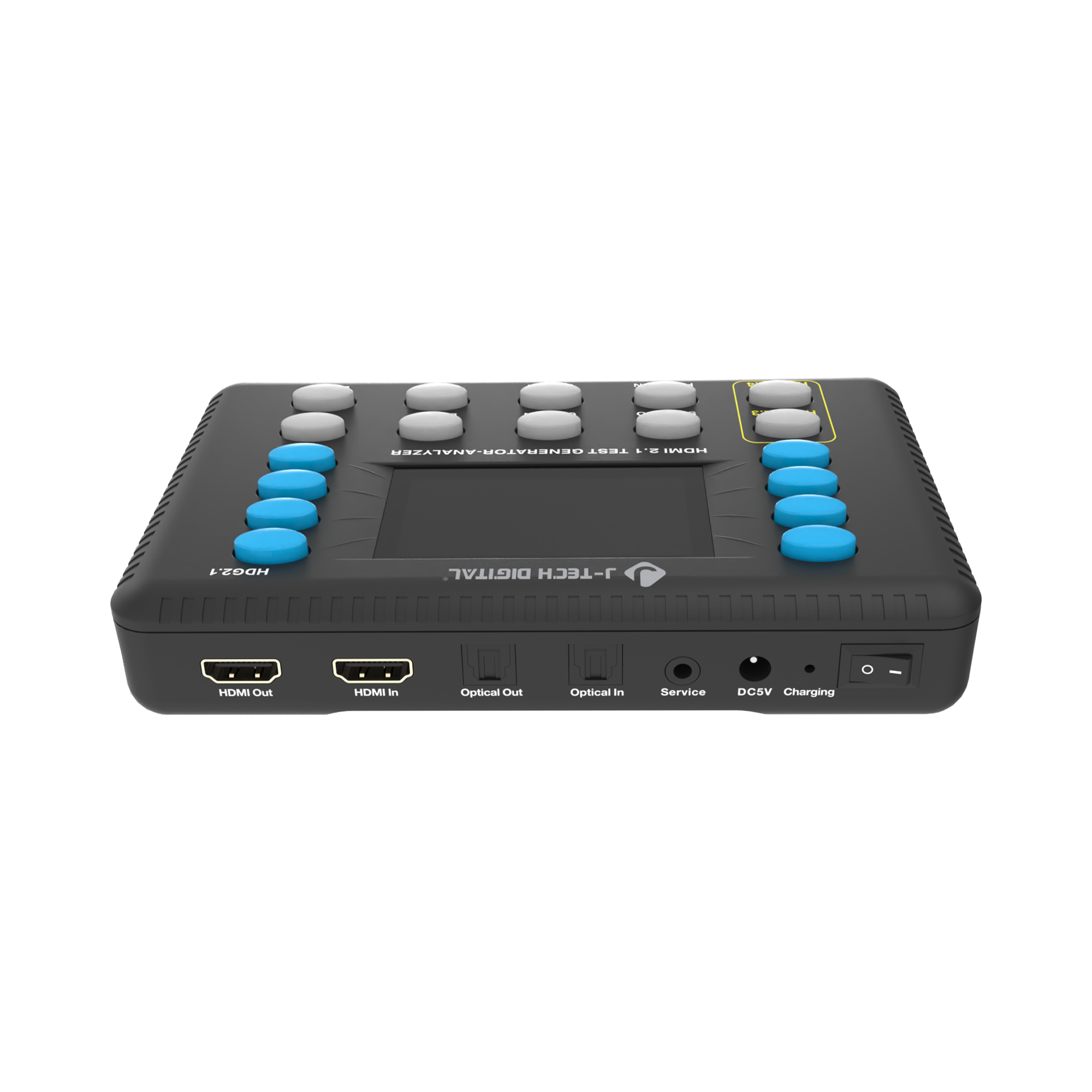

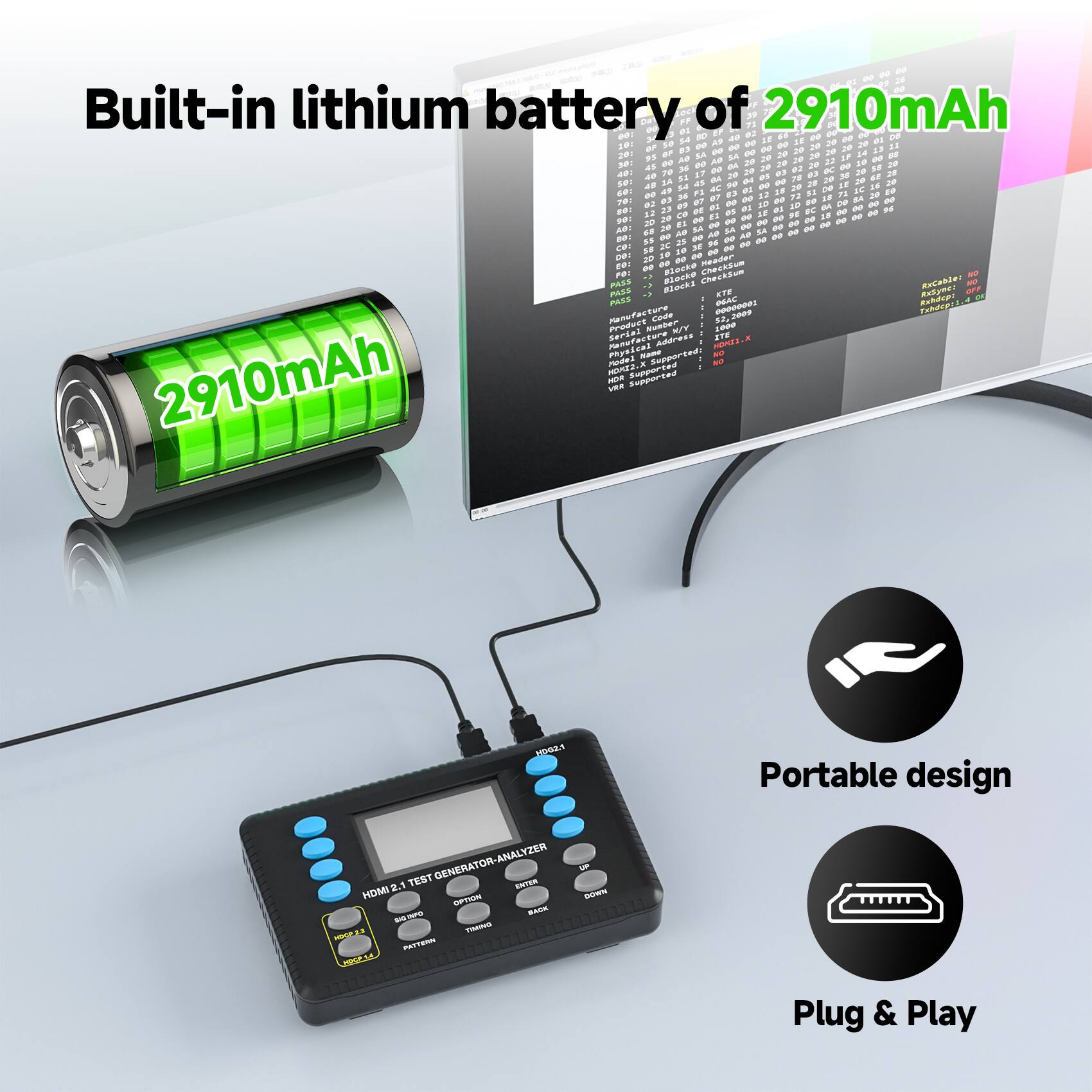

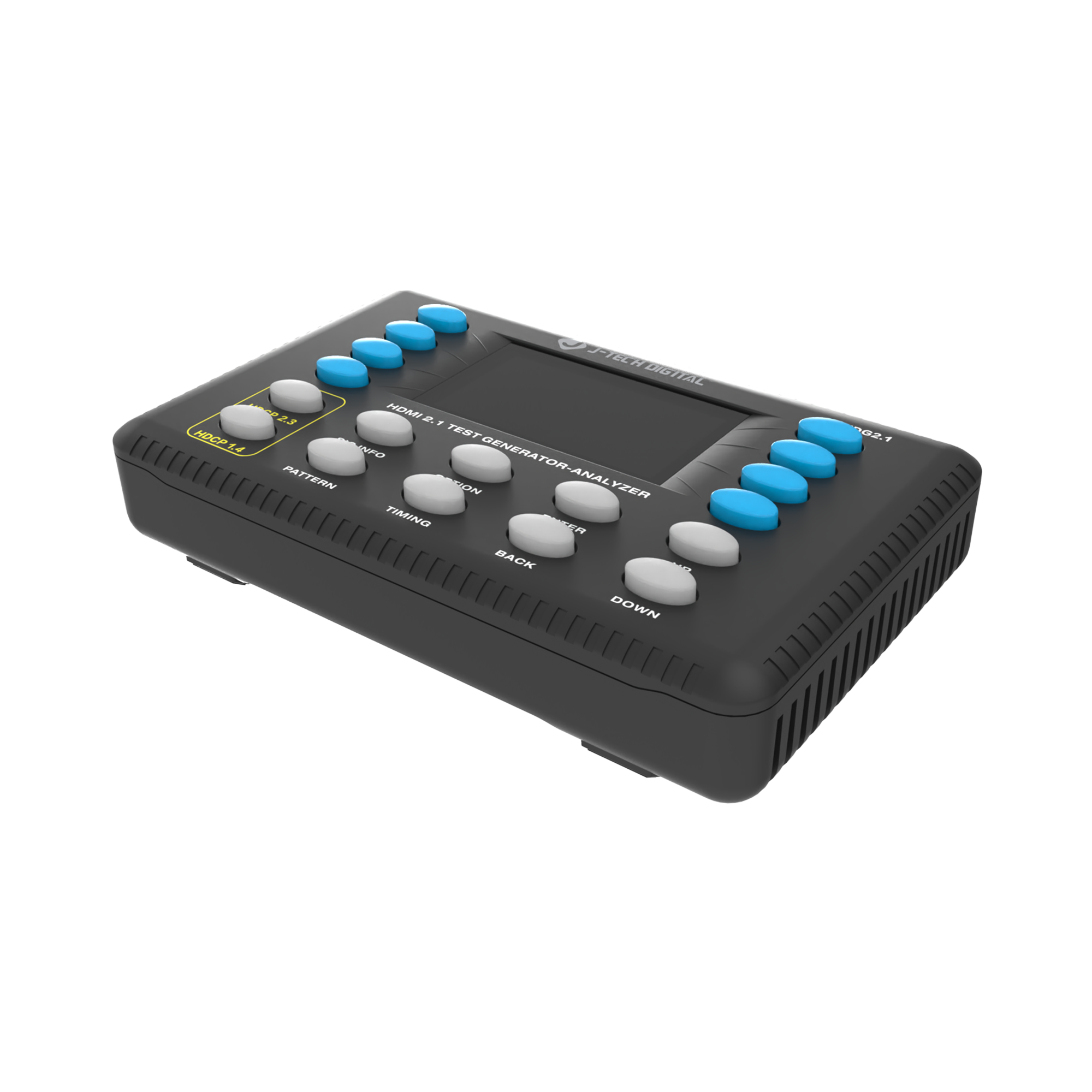

- User-Friendly Design: Portable with a built-in 2910mAh battery, featuring intuitive front panel controls for easy operation and HDMI signal analysis capabilities.
- Advanced HDMI 2.1 Compatibility: Supports resolutions up to 8K@60Hz with 10-bit color depth and 40Gbps bandwidth, meeting HDMI 2.1 standards.
- Comprehensive Video Testing: Offers up to 64 video resolutions and 33 patterns, covering RGB and multiple YCbCr color spaces.
- Enhanced HDR Capabilities: Built-in HDR test function for HDMI 2.1 ensures accurate high dynamic range performance verification.
- Versatile Audio Options: Allows HDMI audio from internal sources or external S/PDIF inputs, supporting LPCM 2CH format and HDCP 2.3/1.4 encryption.
- User-Friendly Design: Portable with a built-in 2910mAh battery, featuring intuitive front panel controls for easy operation and HDMI signal analysis capabilities.
Whats Included
- HDMI Signal Generator, 3.5mm to DB9 Cable, User Manual
- HDMI Signal Generator, 3.5mm to DB9 Cable, User Manual
