J-Tech Digital - 8K 60Hz HDMI Switch 2 In 1 Out with Audio Extraction - Black
J-Tech Digital - 8K 60Hz HDMI Switch 2 In 1 Out with Audio Extraction - Black
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-8KSW21AE
- Product Name: 8K 60Hz HDMI Switch 2 In 1 Out with Audio Extraction
- Color: Black
- Features
- Selector Switch Box Type: HDMI Switch
- Powered: true
- Indicator Lights: true
- Maximum Supported Resolution (Video Passthrough): 4320p (8K) @ 60 Hz (The highest video resolution supported by the device for passing through video to another device.)
- Surround Sound Supported: Dolby Audio, Dolby Digital Plus, Dolby Digital, Dolby Atmos (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Connectivity
- Input(s): 2 x HDMI
- Number of Inputs: 2
- Output(s): 1 x HDMI
- Number of Outputs: 1
- Dimensions
- Product Height: 0.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 810058922458

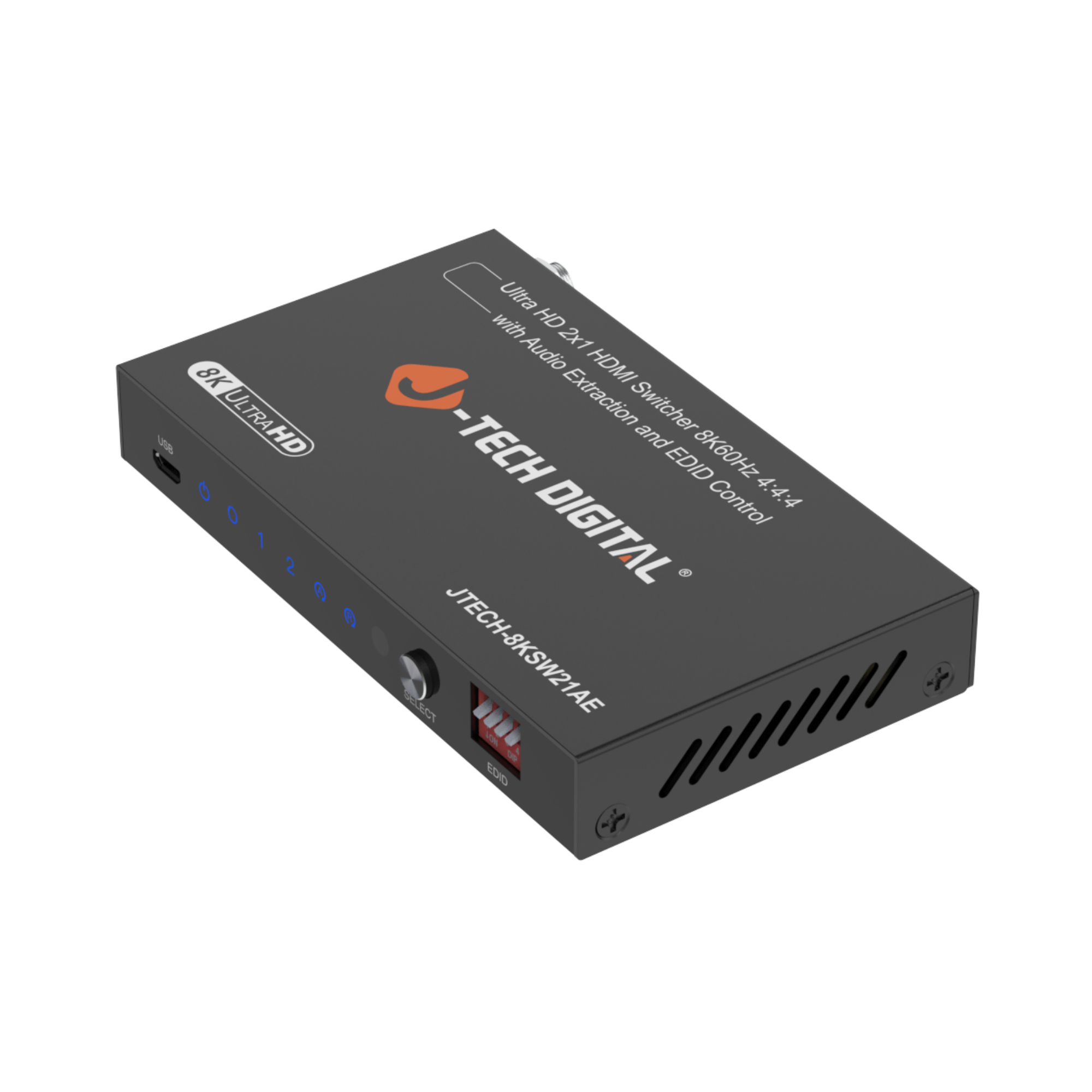

Introducing the J-Tech Digital JTECH-8KSW21AE; 8K HDMI Switch with 2 Inputs and 1 Output featuring audio extraction via Optical and 3.5mm, and EDID control. Effortlessly switch between two HDMI sources on a single display with support for 8K@60Hz, 4K@120Hz, and 1080P@240Hz. Enjoy stunning visuals with HDR10, HDR10+, and Dolby Vision for an immersive experience. Extract audio via optical and 3.5mm stereo output, supporting Dolby TrueHD, DTS-HD, and LPCM for premium sound quality. Advanced EDID management with 15 modes ensures seamless compatibility with TVs, projectors, and monitors. Built with HDMI 2.1, HDCP 2.3, and CEC support, it works with PS5, Xbox Series X, Apple TV, Roku, Fire Stick, Blu-ray players, and more.

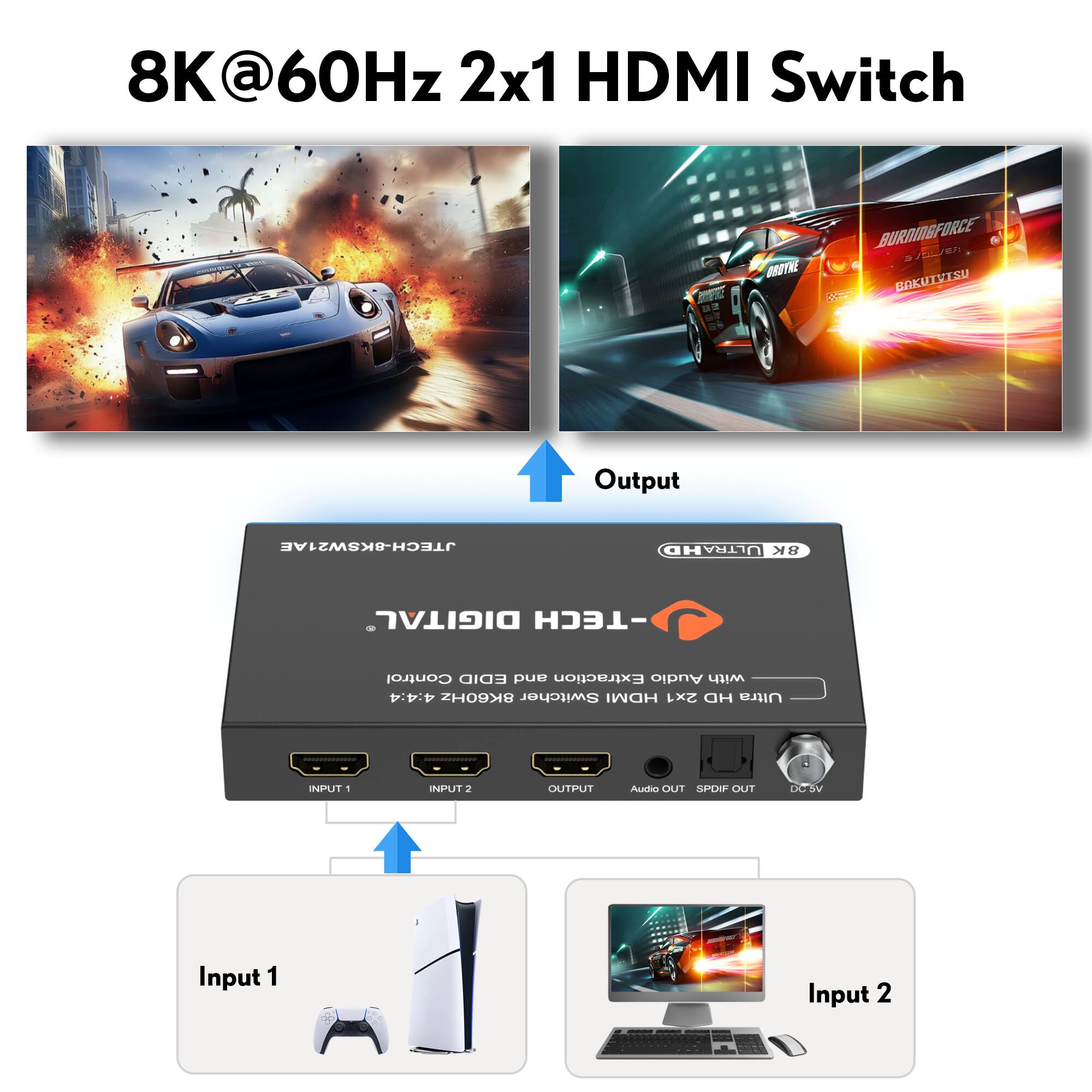

- 2x1 HDMI Switch 8K@60Hz | 4K@120Hz | 1080P@240Hz: Effortlessly switch between two HDMI source devices on a single display, supporting 8K@60Hz 4:4:4, 4K@120Hz, and 1080P@240Hz for crystal-clear visuals. Enjoy HDR10, HDR10+, Dolby Vision for an immersive viewing experience.
- Audio Extraction via Optical & 3.5mm: Extract high-quality audio from HDMI to Optical and 3.5mm stereo output, ideal for soundbars, AV receivers, and speakers. Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and uncompressed LPCM for premium surround sound.

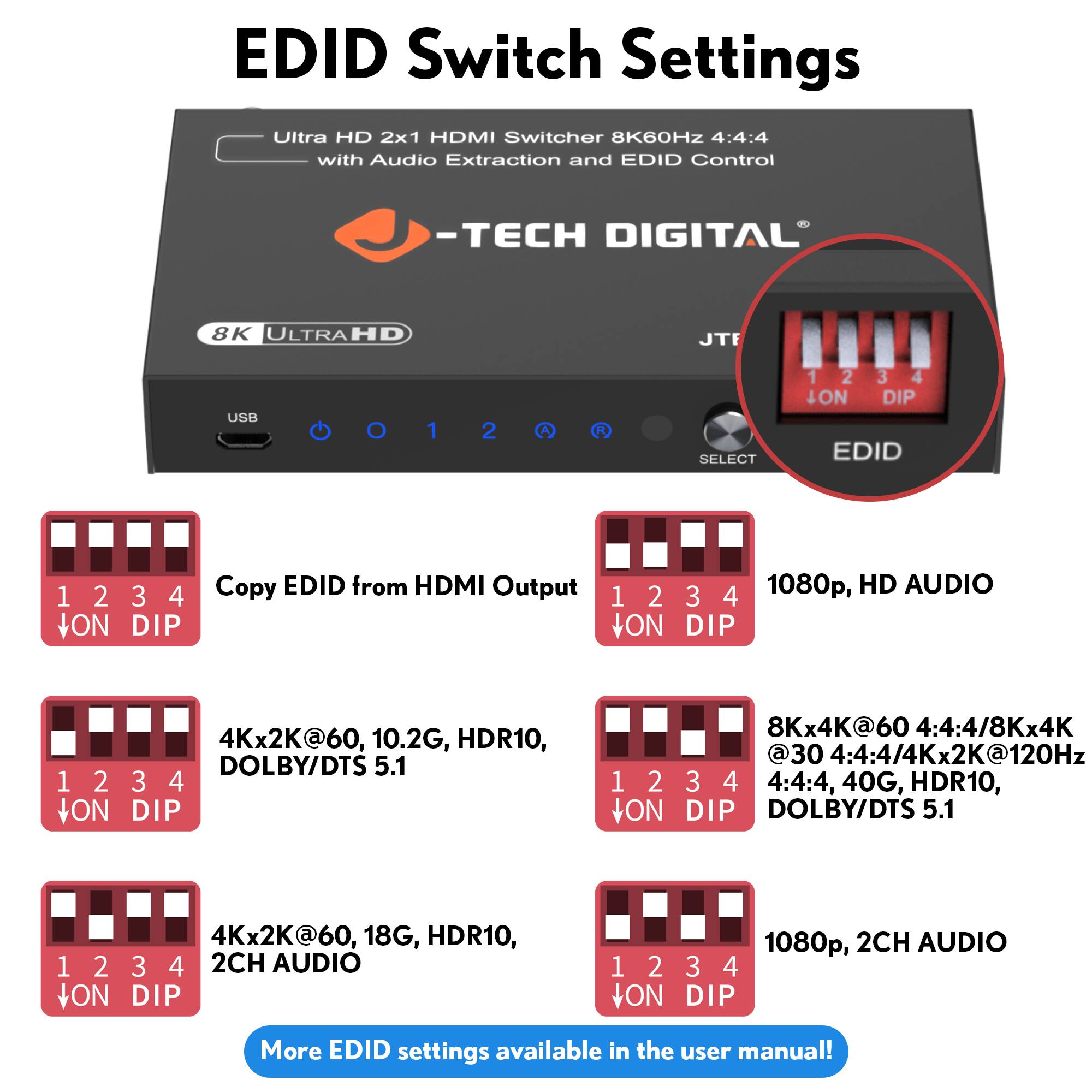

- EDID Management with 15 Modes for Maximum Compatibility: Advanced EDID control with 15 preset modes optimizes resolution and audio settings for different displays. The bypass EDID function ensures plug-and-play ease with TVs, projectors, and monitors.
- HDMI 2.1 | HDCP 2.3 | Wide Compatibility: Works with PS5, Xbox Series X, Apple TV, Roku, Fire Stick, Blu-ray players, PCs, and home theater systems for seamless integration. Supports CEC (consumer electronics control) function.
- 2x1 HDMI Switch 8K@60Hz | 4K@120Hz | 1080P@240Hz: Effortlessly switch between two HDMI source devices on a single display, supporting 8K@60Hz 4:4:4, 4K@120Hz, and 1080P@240Hz for crystal-clear visuals. Enjoy HDR10, HDR10+, Dolby Vision for an immersive viewing experience.
- Audio Extraction via Optical & 3.5mm: Extract high-quality audio from HDMI to Optical and 3.5mm stereo output, ideal for soundbars, AV receivers, and speakers. Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and uncompressed LPCM for premium surround sound.
- EDID Management with 15 Modes for Maximum Compatibility: Advanced EDID control with 15 preset modes optimizes resolution and audio settings for different displays. The bypass EDID function ensures plug-and-play ease with TVs, projectors, and monitors.
- HDMI 2.1 | HDCP 2.3 | Wide Compatibility: Works with PS5, Xbox Series X, Apple TV, Roku, Fire Stick, Blu-ray players, PCs, and home theater systems for seamless integration. Supports CEC (consumer electronics control) function.

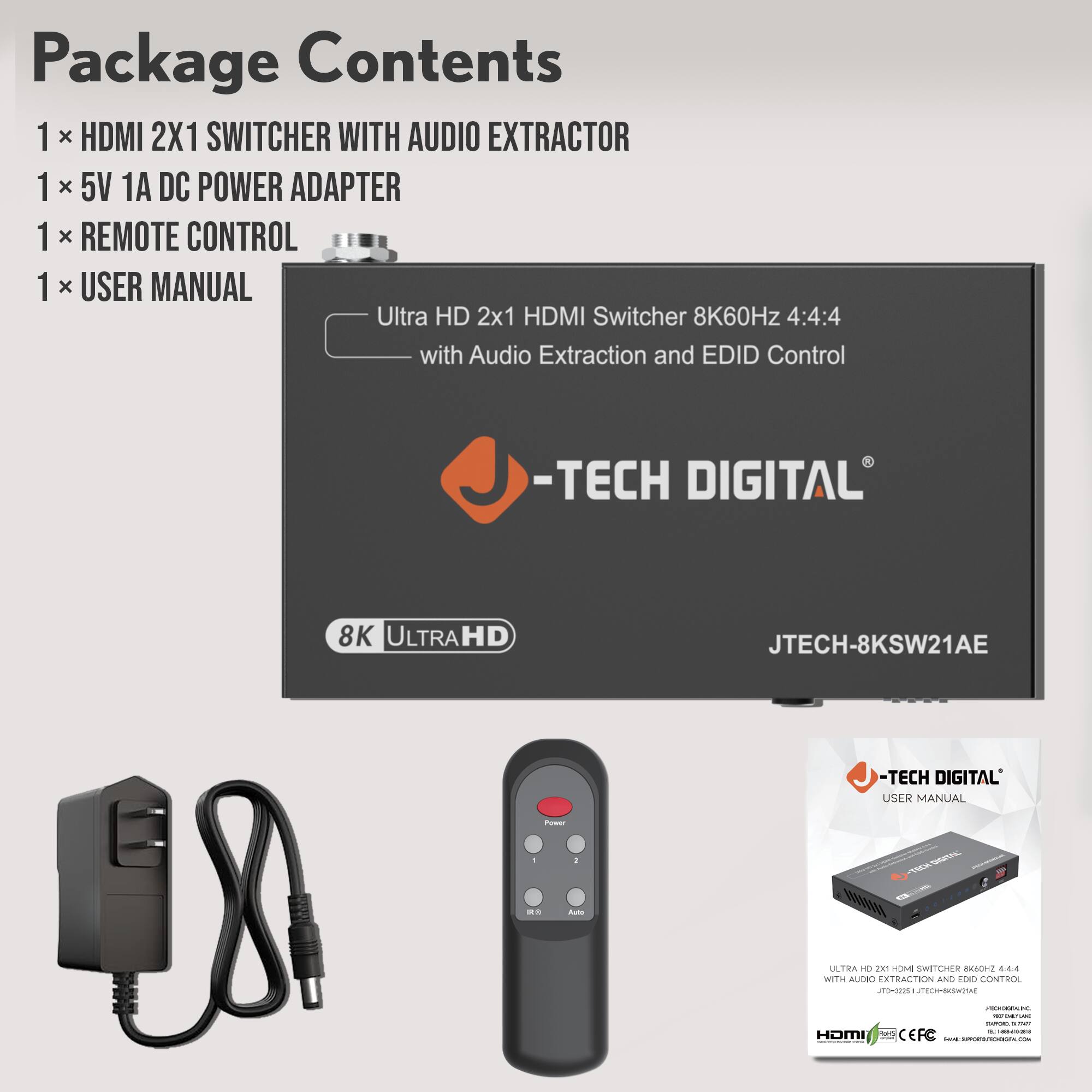

Whats Included
- Remote Control, User Manual, Power Adapter
- Remote Control, User Manual, Power Adapter
