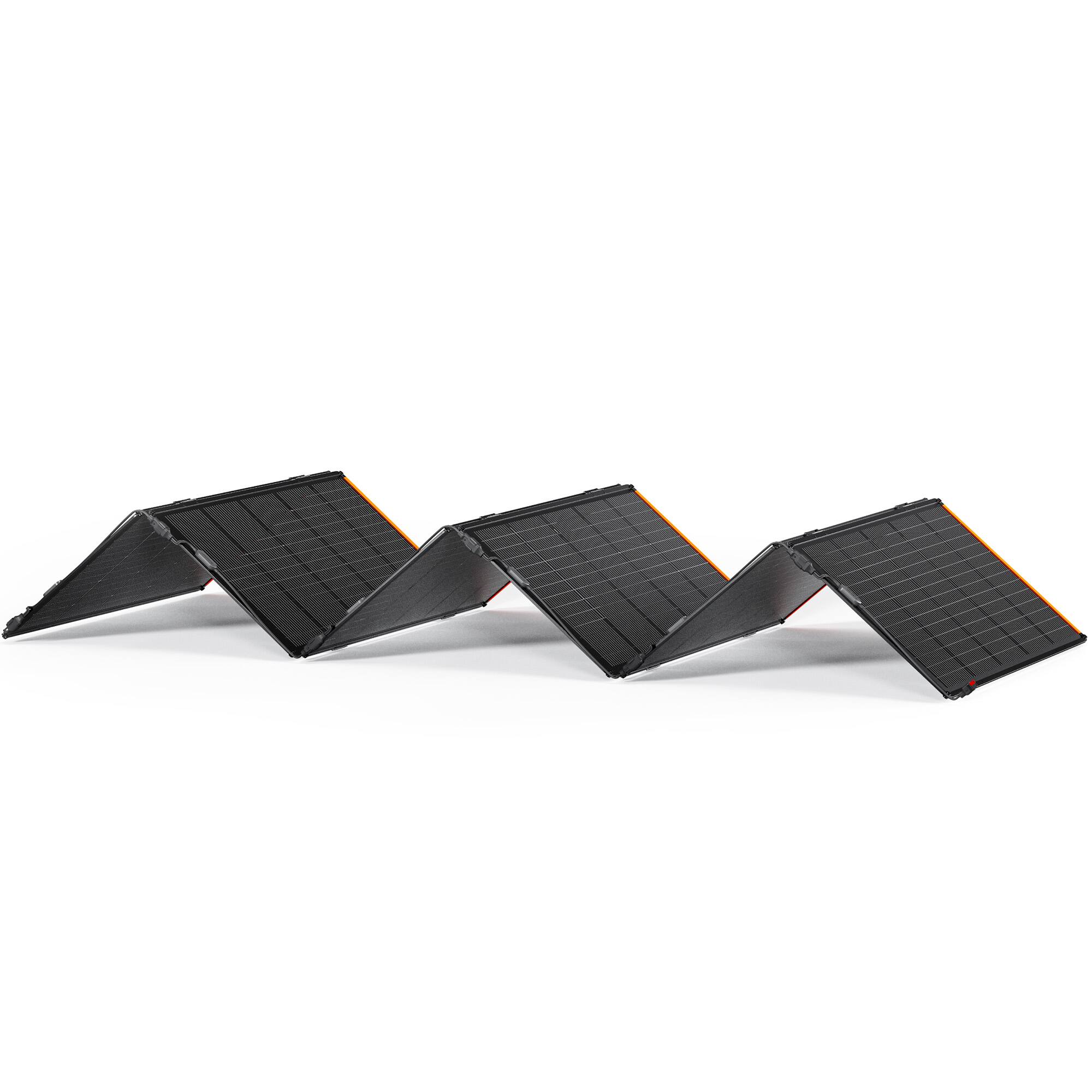

Jackery - SolarSaga 500X Foldable High Power Output 500w Solar Panel - Black
FREE shipping to
Related Item
- General
- Brand: Jackery
- Model Number: JS-500A
- Product Name: SolarSaga 500X Foldable High Power Output 500w Solar Panel
- Color: Black
- Power
- Power Supply Output: 1 x 12V DC (The connector type(s) used by the device to send electrical power to another device.)
- Maximum Power Delivery: 500 watts
- Features
- Number of Units Per Package: 1
- Product Use: Universal
- Mount Type: Roof, Vehicle, Wall, Freestanding
- Solar Panel Design: Portable, Foldable
- Ingress Protection (IP) Rating: 68 (A 4 to 6 character code classifying a product's degree of protection against intrusion of solid particles and liquids as well as impact. Each number in the IP Code denotes a level of protection, determined through testing and published by the International Electrotechnical Commission (IEC). The first digit represents the degree of protection against solid foreign objects or particles and the second digit represents the degree of protection against water ingress.)
- Dimensions
- Product Height: 3.82 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 39.21 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 20.71 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 23.15 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: The warranty period for Jackery power products is 36 months plus 24 months once registered. In each case, the warranty period is measured starting on the date of purchase by the original consumer purchaser.
- Warranty - Labor: Jackery Inc. warrants to the original consumer purchaser that the Jackery product will be free from defects in workmanship and material under normal consumer use during the applicable warranty period.
- Other
- UPC: 810105529289

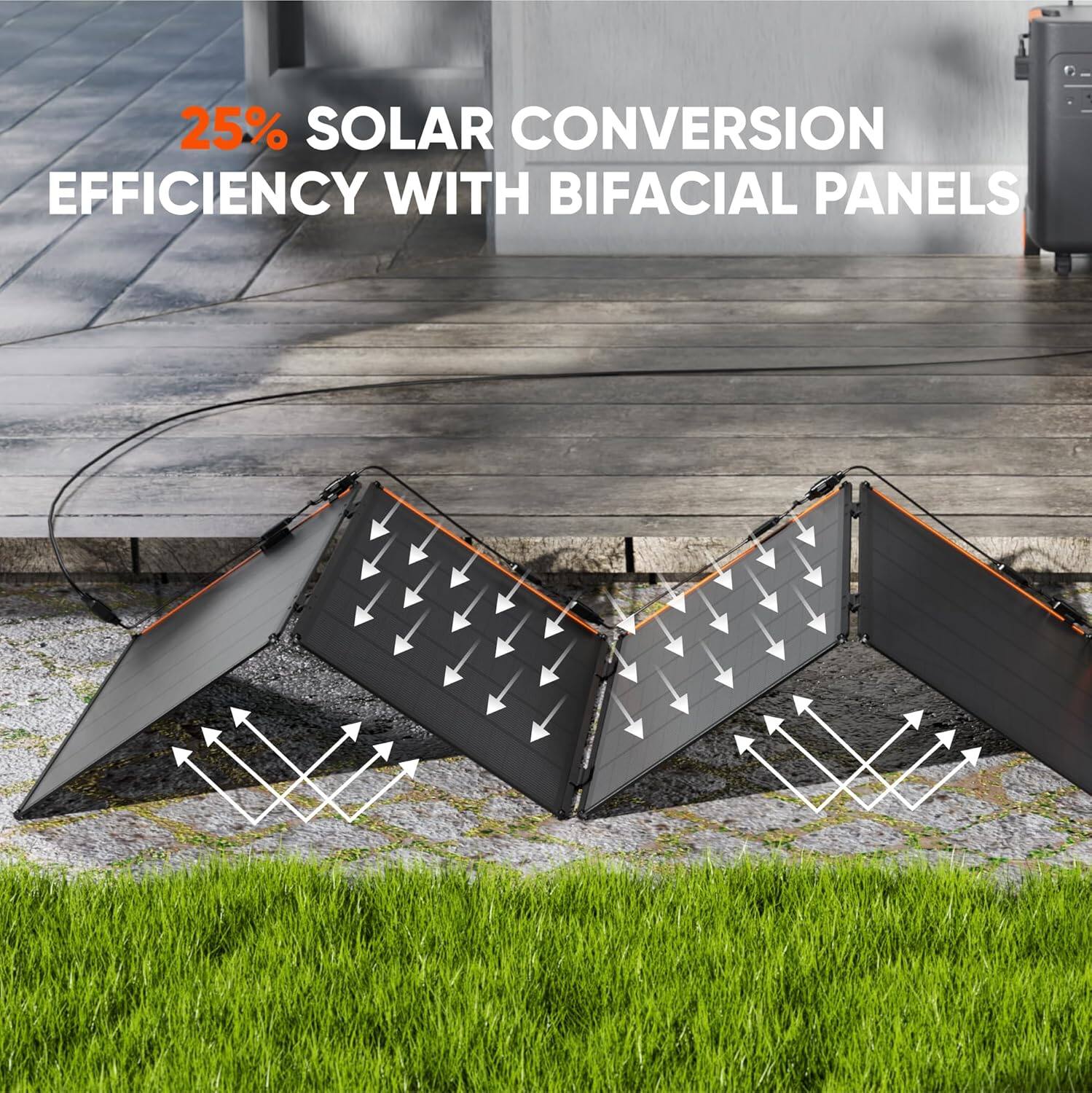

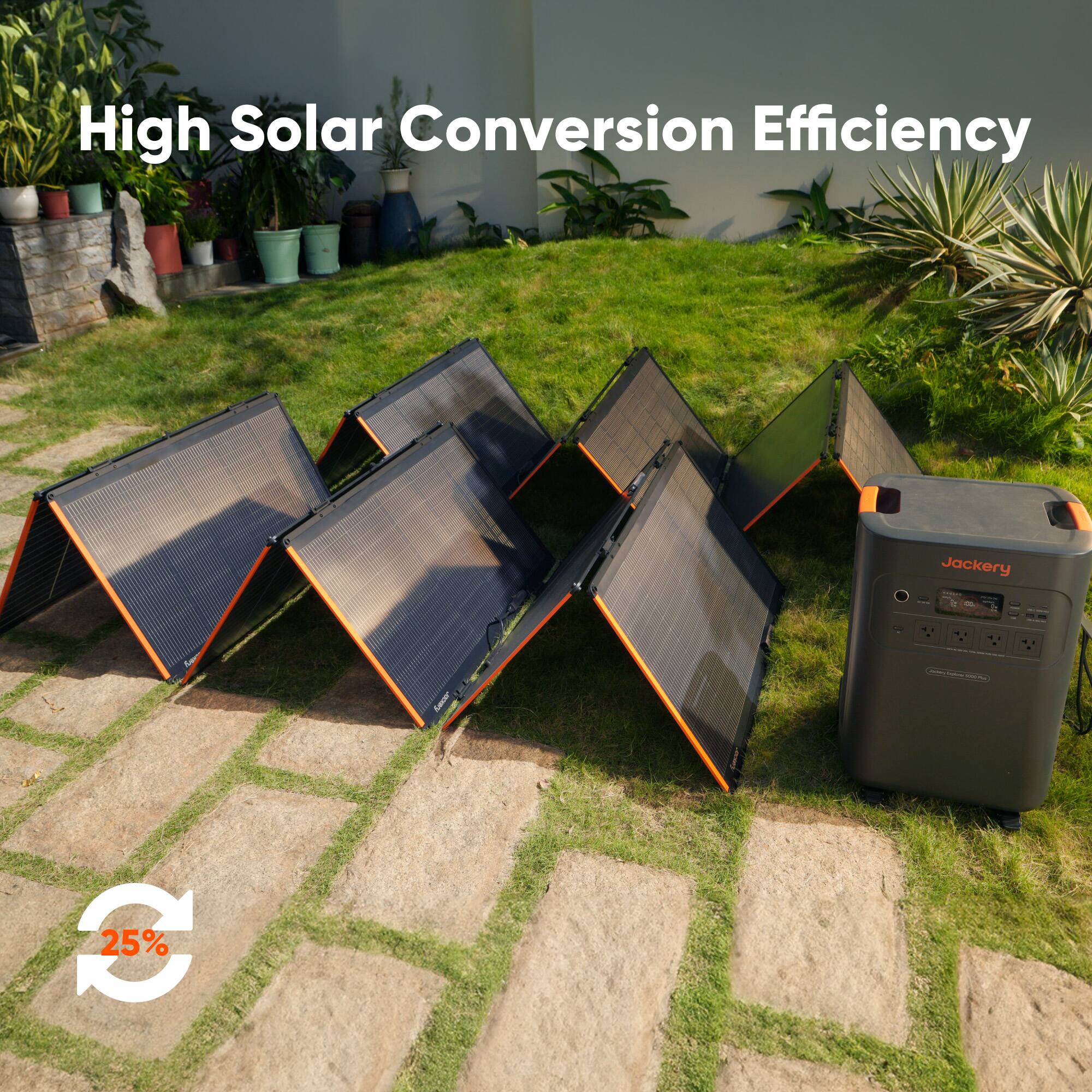

Jackery SolarSaga 500 X is a 500W high-efficiency solar panel with 25% conversion using TOPCON cells, ideal for DIY photovoltaic setups. It’s IP68-rated for outdoor durability, operating from -40℃ to 85℃. Its foldable, portable design ensures easy transport and installation, with a 5-year warranty for reliable long-term use.

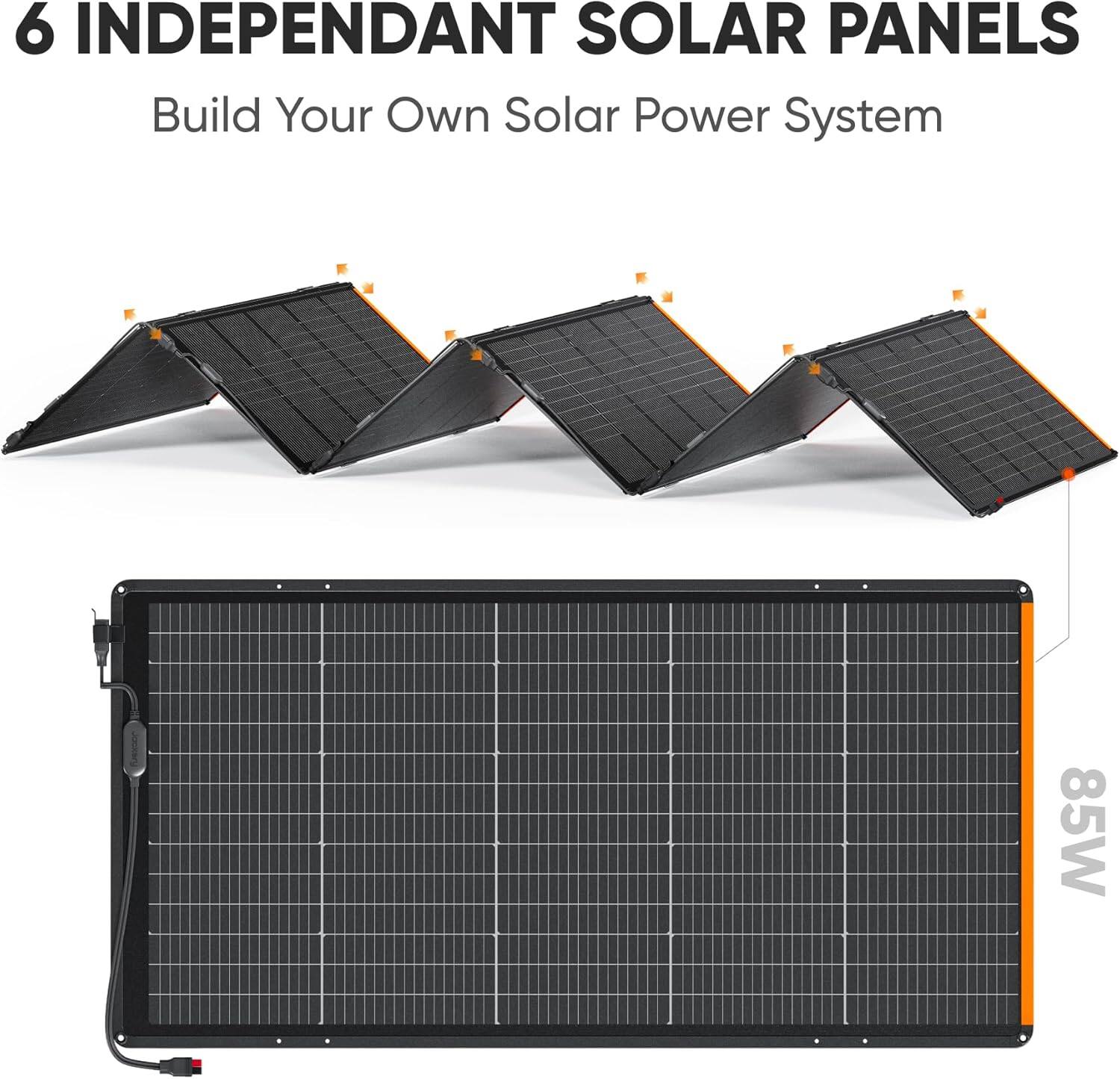

- Modular High-Efficiency Solar Charging: Composed of six 85W solar panels, delivering a total of 500W output. Each panel can be used independently, ensuring efficient and stable solar charging to keep your devices powered at all times.

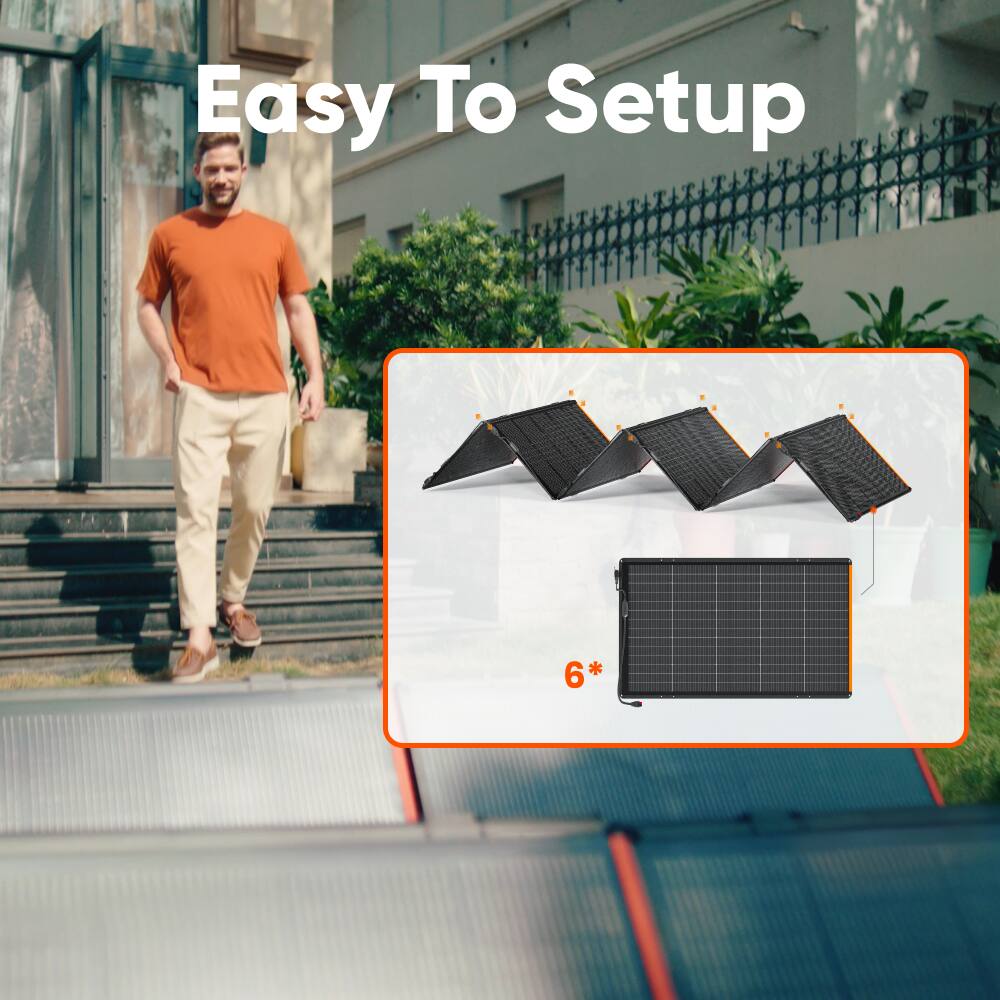

- DIY Quick-Setup System: Modular design for easy assembly, adaptable to various scenarios, providing seamless power solutions for outdoor adventures and home backup.
- Extreme Weather Durability: Withstands temperatures from -40°C to 85°C and features an IP68 waterproof rating, ensuring exceptional durability in harsh conditions.

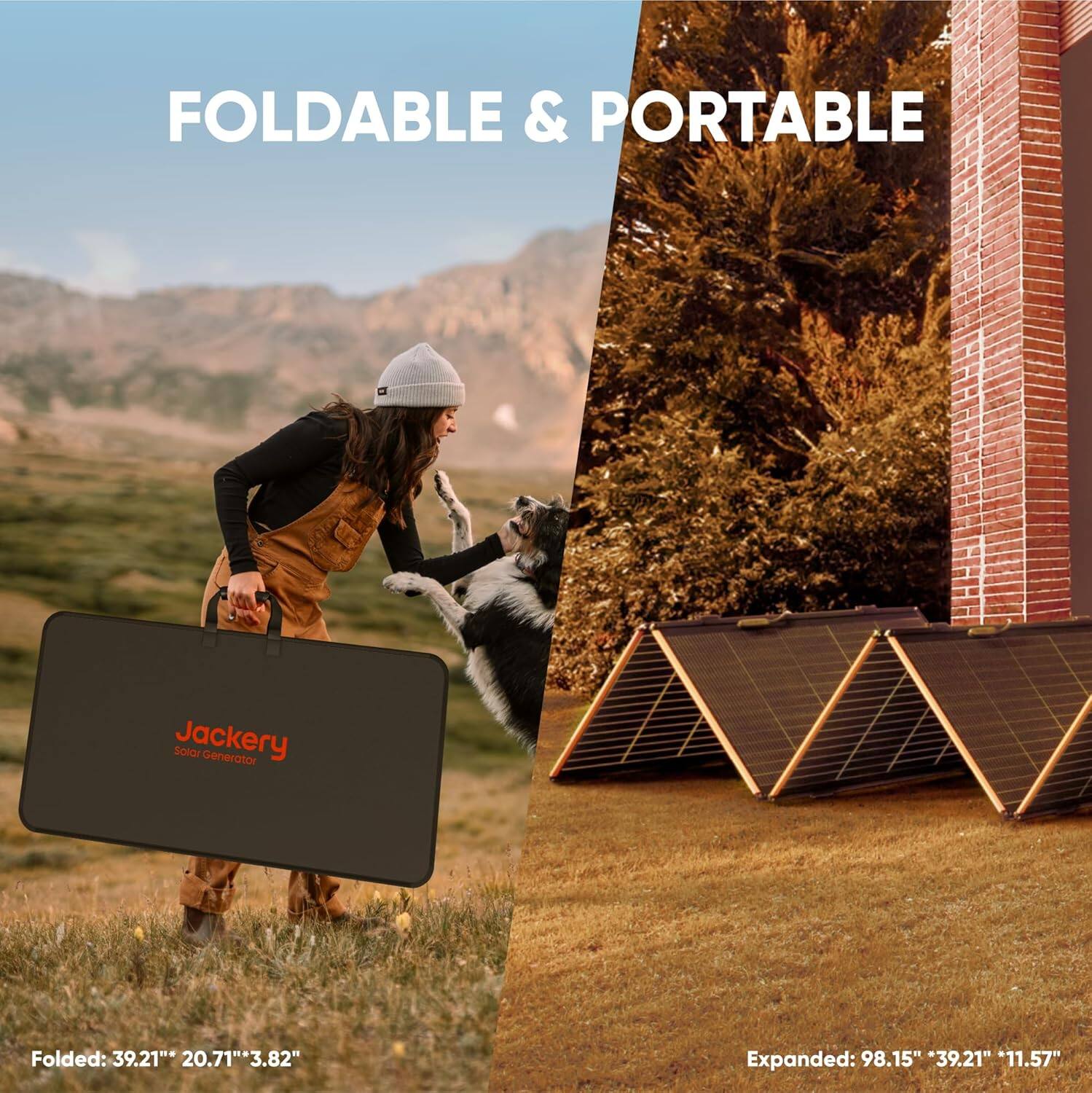

- Portable All-In-One Design: Lightweight and foldable for easy storage, making it perfect for outdoor travel, camping, and emergency backup power.
- Wide Compatibility: Compatible with Explorer 5000 Plus, 3000 Pro, 2000 Plus, 1000 Plus, and 1000 V2, seamlessly integrating with multiple power stations for efficient energy supply.
- Optimized Power Output: To maximize efficiency, do not connect more than six 85W solar panels in parallel to a single DC8020 input port.
- Flexible Expansion Options: Extend the connection between your solar panels and power station with one or multiple 5m DC extension cables and a DC8020 to DC7909 adapter (sold separately).
- Accessory Compatibility: For connecting the SolarSaga 500X with different Explorer power stations or other expansion options, ensure you check the required accessories.

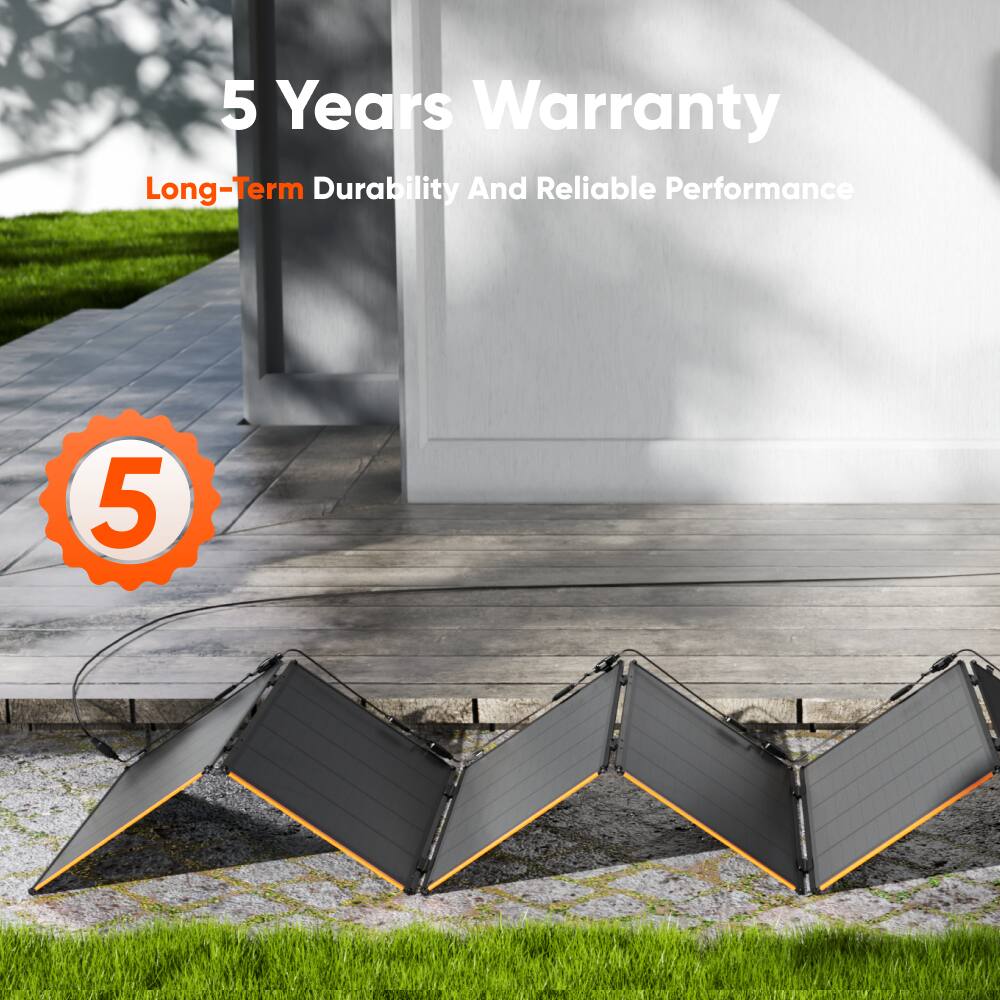

- Warranty: 3-year standard warranty + 2-year extended warranty to SolarSaga 500X. Extended warranty will be applied automatically after registered from the official website.
- Compatibility: SolarSaga 500X is compatible with the Explorer 5000 Plus, 3000 Pro, 2000 Plus, 1000 Plus, and 1000 V2.
- DC8020: Utilizes DC8020 connector.
- Modular High-Efficiency Solar Charging: Composed of six 85W solar panels, delivering a total of 500W output. Each panel can be used independently, ensuring efficient and stable solar charging to keep your devices powered at all times.
- DIY Quick-Setup System: Modular design for easy assembly, adaptable to various scenarios, providing seamless power solutions for outdoor adventures and home backup.
- Extreme Weather Durability: Withstands temperatures from -40°C to 85°C and features an IP68 waterproof rating, ensuring exceptional durability in harsh conditions.
- Portable All-In-One Design: Lightweight and foldable for easy storage, making it perfect for outdoor travel, camping, and emergency backup power.
- Wide Compatibility: Compatible with Explorer 5000 Plus, 3000 Pro, 2000 Plus, 1000 Plus, and 1000 V2, seamlessly integrating with multiple power stations for efficient energy supply.
- Optimized Power Output: To maximize efficiency, do not connect more than six 85W solar panels in parallel to a single DC8020 input port.
- Flexible Expansion Options: Extend the connection between your solar panels and power station with one or multiple 5m DC extension cables and a DC8020 to DC7909 adapter (sold separately).
- Accessory Compatibility: For connecting the SolarSaga 500X with different Explorer power stations or other expansion options, ensure you check the required accessories.
- Warranty: 3-year standard warranty + 2-year extended warranty to SolarSaga 500X. Extended warranty will be applied automatically after registered from the official website.
- Compatibility: SolarSaga 500X is compatible with the Explorer 5000 Plus, 3000 Pro, 2000 Plus, 1000 Plus, and 1000 V2.
- DC8020: Utilizes DC8020 connector.

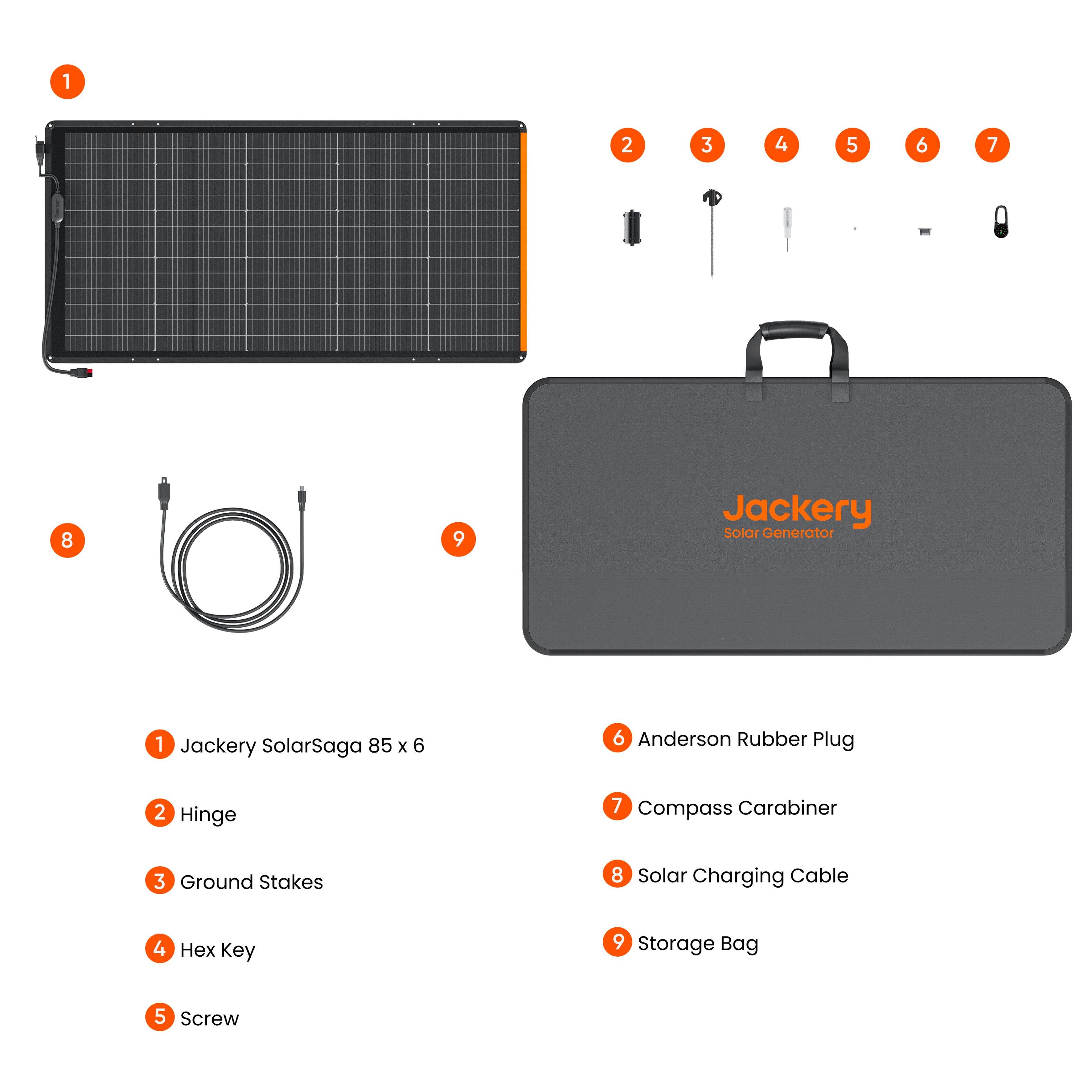

Whats Included
- SolarSaga 500 X Solar Panel
- Solar Charging Cable
- Storage Bag
- User Manual
- Hinge x 10
- Ground Stakes x 8
- Hex Key
- Screw x 40
- Anderson Rubber Plug x 2
- Compass Carabiner
- SolarSaga 500 X Solar Panel
- Solar Charging Cable
- Storage Bag
- User Manual
- Hinge x 10
- Ground Stakes x 8
- Hex Key
- Screw x 40
- Anderson Rubber Plug x 2
- Compass Carabiner
Q: What is the maximum power output of the SolarSaga 500X?
A: The SolarSaga 500X has a maximum power output of 500 watts.
Q: Is the SolarSaga 500X portable?
A: Yes, it has a lightweight and foldable design for easy storage and portability.
Q: Can I connect multiple SolarSaga 500X panels together?
A: You can connect multiple panels, but not more than six 85W panels to a single DC8020 input port.
Q: Which Jackery power stations is the SolarSaga 500X compatible with?
A: It's compatible with Explorer 5000 Plus, 3000 Pro, 2000 Plus, 1000 Plus, and 1000 V2 power stations.
Q: What is the warranty period for the SolarSaga 500X?
A: It has a 3-year standard warranty plus a 2-year extended warranty after registration, totaling 5 years.
Q: How durable is this solar panel in extreme weather?
A: The SolarSaga 500X can withstand temperatures from -40°C to 85°C and has an IP68 waterproof rating.
A: Hi! For the 500W solar panel STC (1000W/㎡, 25℃, AM 1.5), here are the key specifications: Max power (Pmax): 500W±5% Operating voltage (Vmp): 41.7V±5% Operating current (Imp): 12.0A±5% Open-circuit voltage (Voc): 48.5V±5% Short-circuit current (Isc): 13.02A±5% Please make sure your devices or solar generators are compatible with these specifications for safe operation. For any other questions or guidance, please contact us: 📧 [email protected] 📞 +1‑888‑502‑2236 (weekdays 9 AM – 5 PM PST)
Q: Can this item be delivered to a FedEx store
A: Dear customer, Thank you for your question! Yes, you can have your Jackery Explorer 500 delivered to a FedEx location for pickup using the FedEx Hold at Location service. This service allows you to request that your package be held at a participating FedEx location, such as a FedEx Office, Walgreens, or Dollar General store, for pickup at your convenience. You can request this service during the checkout process or by using the FedEx Delivery Manager after your order has shipped. Please note that the availability of this service may vary depending on the shipping method and destination. We recommend checking with FedEx or using their online tools to confirm that the service is available for your specific order. If you need further assistance or have more questions about the delivery options, feel free to reach out. We're here to help! Best regards, Jackery Customer Service Team
