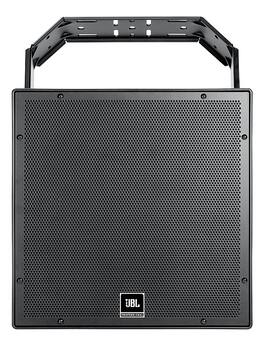

JBL - AWC129 All-Weather 12” 1600W 8 Ohm and 70V/100V 2-way Speaker (Each) - Black
JBL - AWC129 All-Weather 12” 1600W 8 Ohm and 70V/100V 2-way Speaker (Each) - Black
Reviews coming soon
Related Item
Specifications
- Speaker TypeLandscapeRMS Power400 watts
- Key Specs
- Speaker Type: Landscape
- RMS Power: 400 watts (The maximum amount of continuous power the device is able to handle.)
- General
- Brand: JBL
- Model Number: AWC129-BK
- Product Name: AWC129 All-Weather 12” 1600W 8 Ohm and 70V/100V 2-way Speaker (Each)
- Color: Black
- Audio
- Speaker Type: Landscape
- RMS Power: 400 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 1600 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 8 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 80 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 20 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 96 decibels
- Number of Speakers: 2
- Number of Tweeters: 1
- Tweeter Size: 1 inches
- Number of Woofers: 1
- Woofer Size: 3 inches
- Connectivity
- Speaker Connectivity: Wired
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Audio Only Inputs: No audio only inputs
- Network Connector(s): No network connectors
- Speaker Wire Connection Type: Banana Jack/Screw Terminals
- Features
- Indoor Or Outdoor Use: Indoor and outdoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 15.8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 15.8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 35 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 050036904209
The AWC129 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, outdoor background music/ paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types. The AWC129 is comprised of a high-power coaxial 300 mm (12 in) low frequency driver and 25 mm (1 in) high frequency compression driver. The co-axial design utilizes a unique design, the result is a coaxial speaker with wide, extremely consistent 90° coverage on a broadband basis. Component features include a Kevlar-reinforced low frequency cone for reliability, well-damped surround for smooth frequency response, high temperature 75 mm (3 in) voice coil and a reduced distortion design through saturated-gap magnet geometry. The high frequency compression driver features a unique patented design, high temperature polymer diaphragm, and fluid-cooling for high output levels with low distortion. The paintable enclosure is constructed of thick ABS plus fiberglass and is heavily braced to maximize low-frequency performance. The corrosion-resistant zinc-rich extra-thick powder coated steel grille is backed with open cell foam and high thread-count mesh, providing excellent protection in the harshest environments. The system is equipped with a 200W 70V/100V multi-tap transformer. Connection is made via outdoor-rated terminals in a recessed terminal cup.
- IP56 Rating: ABS with Glass enclosure is highly weather resistant.
- Pattern Control: Consistent 90° x 90° broadband pattern control
- Components:: 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm.
- Power Handling: 400 Watt (average continuous pink noise) with high sensitivity provides high SPL capability.
- Multi-tap: 200 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance
- 70V/100W Transformer Taps: 70V: 200W, 100W, 50W, 25W 100V: 200W, 100W, 50W
- Installation: U-type Mounting Bracket Included.
- IP56 Rating: ABS with Glass enclosure is highly weather resistant.
- Pattern Control: Consistent 90° x 90° broadband pattern control
- Components:: 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm.
- Power Handling: 400 Watt (average continuous pink noise) with high sensitivity provides high SPL capability.
- Multi-tap: 200 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance
- 70V/100W Transformer Taps: 70V: 200W, 100W, 50W, 25W 100V: 200W, 100W, 50W
- Installation: U-type Mounting Bracket Included.
Whats Included
- 1 Speaker
- 1 U-Bracket
- 1 Speaker
- 1 U-Bracket
Product Manuals
Q: Can the loudspeaker be used for both music and speech?
A: The AWC129 is ideal for both speech and music in a wide variety of applications.
Q: What is the frequency range of the loudspeaker?
A: The minimum frequency response is 80 hertz and the maximum frequency response is 20 kilohertz.
Q: What is the sensitivity rating of the loudspeaker?
A: The sensitivity of the loudspeaker is 96 decibels.
Q: What is the peak power handling of the loudspeaker?
A: The peak power handling of the loudspeaker is 1600 watts.
Q: What are the dimensions of the loudspeaker?
A: The loudspeaker has a height of 15.8 inches, a width of 15.8 inches, and a depth of 17.5 inches.
