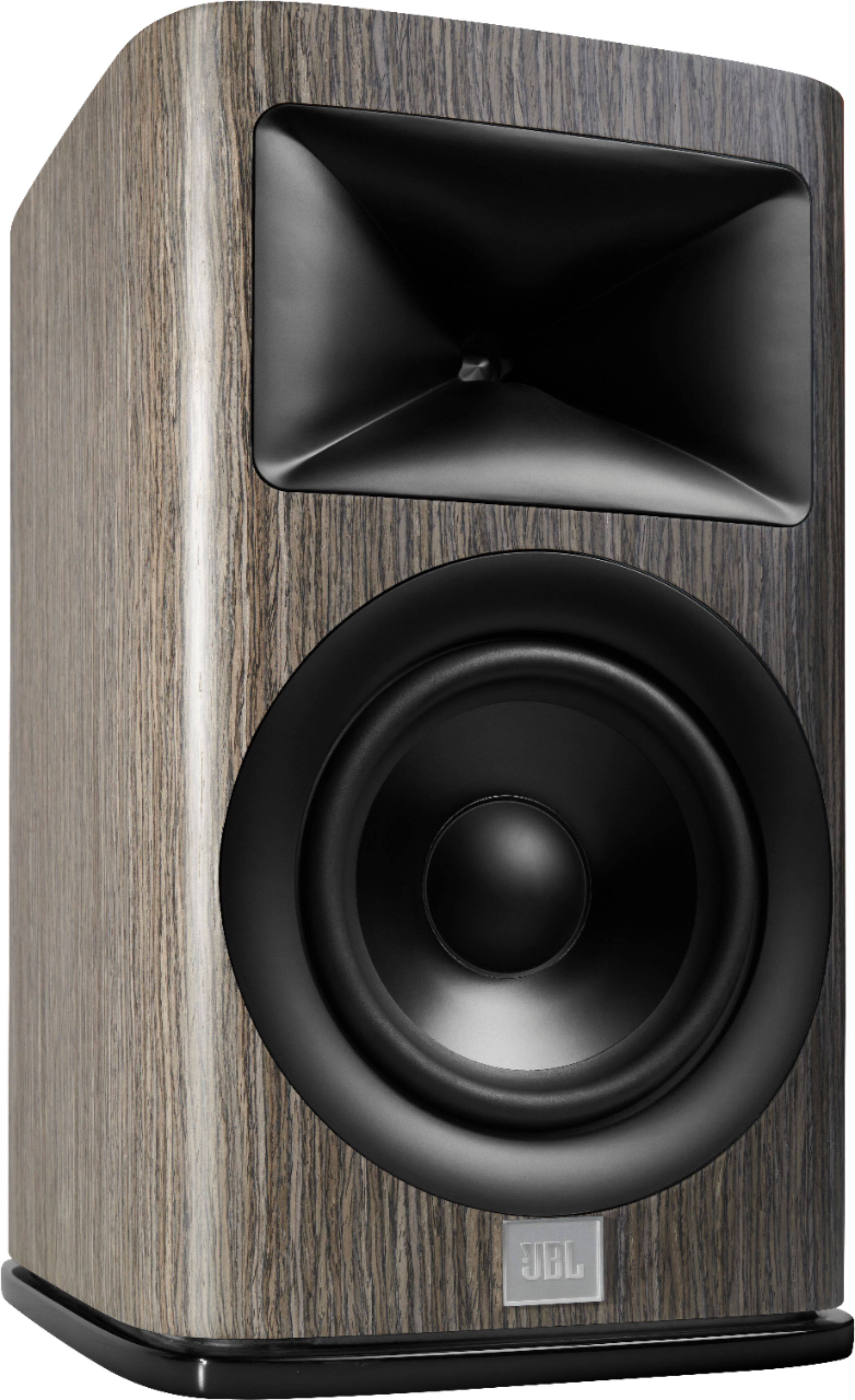

JBL - HDI1600 6.5" 2-way bookshelf loudspeaker with 1" compression tweeter, each - Gray Oak Finish
Model: JBLHDI1600GRO
SKU: 6426040
This item is no longer available in new condition. See similar items below
- Key Specs
- Speaker Type: Bookshelf
- General
- Brand: JBL
- Model Number: JBLHDI1600GRO
- Product Name: HDI1600 6.5" 2-way bookshelf loudspeaker with 1" compression tweeter, each
- Color: Gray Oak Finish
- Audio
- Speaker Type: Bookshelf
- Enclosure Type: Ported
- Peak Power Handling: 200 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 40 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 30 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 85 decibels
- Number of Speakers: 1
- Number of Tweeters: 1
- Tweeter Size: 1 inches
- Number of Drivers: 2
- Driver Size: 6.5 inches
- Connectivity
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Features
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 14.57 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.06 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11.43 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 21.96 pounds (The out of box weight of the item.)
- Included
- Speaker Wire Included: false
- Other
- UPC: 050036371315
JBL HDI1600 6.5" 2-way bookshelf loudspeaker with 1" compression tweeter, gray oak finish, each
- Patented HDI™ (High-Definition Imaging) waveguide technology: Delivering the most accurate, clean and neutral sound both on and off axis with low distortion
- Patented 2410H-2 1" high-frequency compression tweeter: High dynamic compression driver produces increased high-frequency extension over traditional tweeters, using shared technologies from JBL Pro D2 compression drivers
- 6.5-inch (165mm) Advanced Aluminum Matrix cone woofer: High output is produced by 6.5" driver with 1.5" voice coil and patented woofer materials, for powerful dynamics and incredibly accurate sound reproduction
- Contemporary design with premium finishes: Modern design finished in a choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers. A black cloth, magnetically attached grille completes the elegant appearance
- Rigid, modern cabinet: The HDI-1600 enclosure is heavily braced to provide a solid acoustic foundation, and incorporates a bass reflex design with a rear-firing, computer-optimized flared port, and a sophisticated curved cabinet
- Optional Floor Stands HDI-FS (not included): Matching HDI-FS gloss black floor stands available separately
- Patented HDI™ (High-Definition Imaging) waveguide technology: Delivering the most accurate, clean and neutral sound both on and off axis with low distortion
- Patented 2410H-2 1" high-frequency compression tweeter: High dynamic compression driver produces increased high-frequency extension over traditional tweeters, using shared technologies from JBL Pro D2 compression drivers
- 6.5-inch (165mm) Advanced Aluminum Matrix cone woofer: High output is produced by 6.5" driver with 1.5" voice coil and patented woofer materials, for powerful dynamics and incredibly accurate sound reproduction
- Contemporary design with premium finishes: Modern design finished in a choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers. A black cloth, magnetically attached grille completes the elegant appearance
- Rigid, modern cabinet: The HDI-1600 enclosure is heavily braced to provide a solid acoustic foundation, and incorporates a bass reflex design with a rear-firing, computer-optimized flared port, and a sophisticated curved cabinet
- Optional Floor Stands HDI-FS (not included): Matching HDI-FS gloss black floor stands available separately
Whats Included
- One HDI 1600 bookshelf loudspeaker
- user manual
- four (4) rubber feet
- one (1) grille
- speaker terminal jumpers (2)
- One HDI 1600 bookshelf loudspeaker
- user manual
- four (4) rubber feet
- one (1) grille
- speaker terminal jumpers (2)
Product Manuals
Q: Is the speaker designed for indoor or outdoor use?
A: This speaker is designed for indoor use.
Q: What is the size of the tweeter in this speaker?
A: This speaker has a 1 inch high-frequency compression tweeter.
Q: What is the maximum power handling of this speaker?
A: The peak power handling of this speaker is 200 watts.
Q: What is the impedance of this JBL speaker?
A: The impedance of this speaker is 4 ohms.
Q: Are floor stands included with this speaker?
A: No, matching floor stands are available separately.
Q: Does this speaker have a bass reflex design?
A: Yes, this speaker incorporates a bass reflex design.
Q: What is the size of the woofer in this speaker?
A: The speaker has a 6.5-inch advanced aluminum matrix cone woofer.
A: Under the default settings, the Yamaha RX-A780 is configured for 8Ohm speakers. You're unlikely to hurt the speakers, using an 8-ohm receiver with 4-ohm speakers. This just means that for a given voltage supplied by the receiver, the receiver is rated to send less current than it will have to power the 4-ohm speakers, so this is much more likely to hurt the receiver than the speakers. You may contact JBL Synthesis Customer Support if you have other questions and/or concerns. https://bit.ly/3uir2W7
