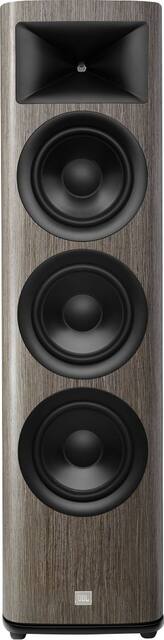

JBL - HDI3800 Triple 8-inch 2-1/2 way Floorstanding Loudspeaker with 1" compression tweeter - Gray Oak Finish
Model: JBLHDI3800GRO
SKU: 6426050
This item is no longer available in new condition. See similar items below
- Key Specs
- Speaker Type: Floorstanding
- General
- Brand: JBL
- Model Number: JBLHDI3800GRO
- Product Name: HDI3800 Triple 8-inch 2-1/2 way Floorstanding Loudspeaker with 1" compression tweeter
- Color: Gray Oak Finish
- Audio
- Speaker Type: Floorstanding
- Enclosure Type: Bass reflex
- Peak Power Handling: 300 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 37 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 30 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 92 decibels
- Number of Speakers: 1
- Tweeter Size: 1 inches
- Midrange Size: 8 inches
- Driver Size: 8 inches
- Woofer Size: 8 inches
- Connectivity
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Features
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 43.33 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 11.81 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 16.45 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 83.78 pounds (The out of box weight of the item.)
- Material
- Tweeter Material: Teonex
- Included
- Speaker Wire Included: false
- Other
- UPC: 050036371377
JBL HDI3800 Triple 8-inch 2-1/2 way Floorstanding Loudspeaker with 1" compression tweeter
- Patented HDI™ (High-Definition Imaging) waveguide technology: Delivering the most accurate, clean and neutral sound both on and off axis with low distortion
- Patented 2410H-2 1" high-frequency compression tweeter: High dynamic compression driver produces increased high-frequency extension over traditional tweeters, using shared technologies from JBL Pro D2 compression drivers
- Three 8-inch (200mm) Advanced Aluminum Matrix cone woofers: High output is produced by three 8" drivers with 1.5" voice coil and patented woofer materials, for powerful dynamics and incredibly accurate sound reproduction
- Contemporary design with premium finishes: Modern design finished in a choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers. A black cloth, magnetically attached grille completes the elegant appearance
- Rigid, modern cabinet: The HDI-3800 enclosure is heavily braced to provide a solid acoustic foundation, and incorporates a bass reflex design with dual rear-firing, computer-optimized flared port, and a sophisticated curved cabinet
- Patented HDI™ (High-Definition Imaging) waveguide technology: Delivering the most accurate, clean and neutral sound both on and off axis with low distortion
- Patented 2410H-2 1" high-frequency compression tweeter: High dynamic compression driver produces increased high-frequency extension over traditional tweeters, using shared technologies from JBL Pro D2 compression drivers
- Three 8-inch (200mm) Advanced Aluminum Matrix cone woofers: High output is produced by three 8" drivers with 1.5" voice coil and patented woofer materials, for powerful dynamics and incredibly accurate sound reproduction
- Contemporary design with premium finishes: Modern design finished in a choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers. A black cloth, magnetically attached grille completes the elegant appearance
- Rigid, modern cabinet: The HDI-3800 enclosure is heavily braced to provide a solid acoustic foundation, and incorporates a bass reflex design with dual rear-firing, computer-optimized flared port, and a sophisticated curved cabinet
Whats Included
- One HDI 3800 floorstanding loudspeaker
- user manual
- four (4) rubber feet
- one (1) grille
- speaker terminal jumpers (2)
- One HDI 3800 floorstanding loudspeaker
- user manual
- four (4) rubber feet
- one (1) grille
- speaker terminal jumpers (2)
Product Manuals
Q: WHAT ARE THE CROSSOVER POINTS (FREQUENCIES)
A: Our JBL HDI-3800 crossover points are as follows: 800Hz, 1800Hz
Q: Can I use these speakers with a vintage marantz 2325 stereo receiver which has 125 watts
A: undefined
A: I’ve used them with a Denon 3600 with Audiocontrol G4 amp and Arcam PA720. I preferred the G4 amp because it had more power. I just tried them with a JBL SDR 35 and it’s the best they have sounded so far. Late but hopefully helpful.
