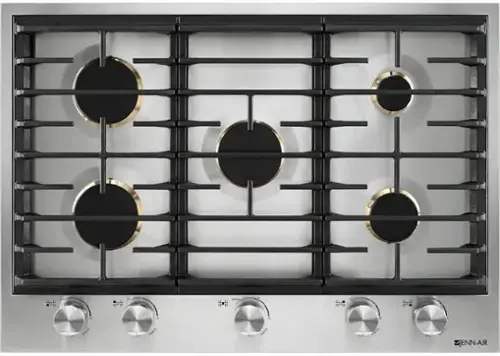

JennAir - 30 in. Wide 5 Burner Built-In Gas Cooktop - Stainless Steel
Need-haul away?
Related Item
Specifications
- Color FinishStainless steelProduct Height4 3/16 inchesProduct Width30 inchesProduct Depth21 inchesCooktop Surface TypeGrateNumber of Burners5
- Key Specs
- Color Finish: Stainless steel
- Product Height: 4 3/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 5
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: JennAir
- Model Number: JGC3530GS
- Product Name: 30 in. Wide 5 Burner Built-In Gas Cooktop
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 4 3/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 51 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 29 3/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 20 3/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 20 3/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true
- Control Type: Electromechanical
- Control Location: Top
- Digital Display: false
- Fingerprint Resistant: false
- Hot Surface Indicator(s): false (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Form Factor: Cooktop (The size, arrangement, and physical configuration of the product.)
- Portable: false
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Gas Type: Natural gas
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Stainless steel
- Number of Burners: 5
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Grate Type: Individual (Continuous grates allow cookware to be slid from burner to burner, while individual grates require the pot or pan to be lifted when moving around the cooktop.)
- Grate Material: Cast iron
- Dishwasher-Safe Grates: true (Cooktop grates are safe to be washed in a dishwasher if they are treated with a special coating that withstands the high heat, water pressure, and detergent used in a standard wash cycle.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Burner Rating
- Burner 1 Rating: 20000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 12000 british thermal units
- Burner 3 Rating: 12000 british thermal units
- Burner 4 Rating: 9000 british thermal units
- Burner 5 Rating: 6000 british thermal units
- Total Maximum BTU Rating: 53000 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Power
- Cooktop Power Source: Gas
- Ignition Type: Automatic
- Propane (LP) Convertible: true
- Propane Conversion Kit Included: true
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. Mandatory reporting is not required until January 1, 2025. Whirlpool Corporation is in the process of gathering more information on PFAS use across our supplier base, and will update this disclosure as we learn more. For more information about chemicals in this product, visit www.jennair.com/regulatory.html. [Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. No se requieren informes obligatorios hasta el 1 de enero de 2025. Whirlpool Corporation está en el proceso de recopilar más información sobre el uso de PFAS en nuestra base de proveedores y actualizará esta divulgación a medida que sepamos más. Para obtener más información sobre los químicos en este producto, visite www.jennair.com/regulatory.html.] (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 883049444048

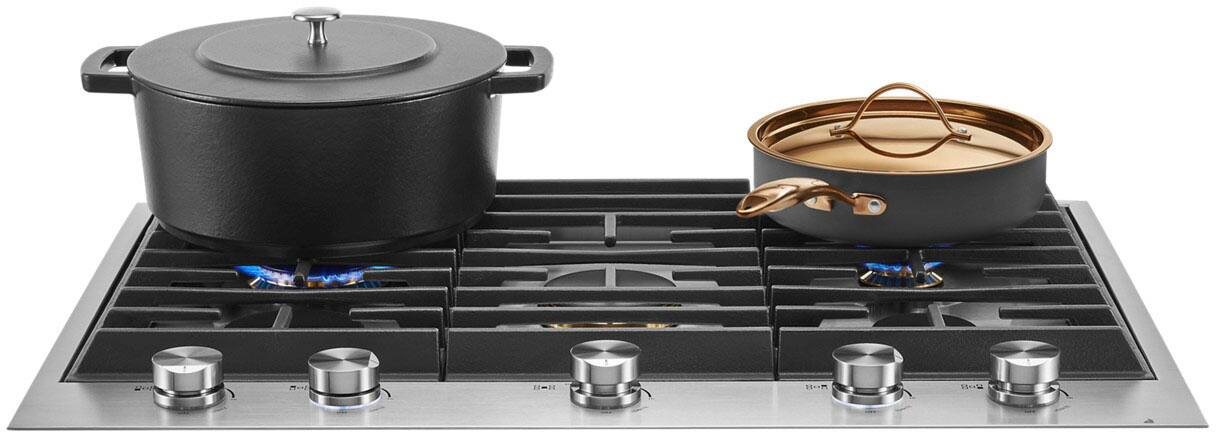

With a 20,000 BTU dual-stacked PowerBurner and a Simmer/Melt Burner reaching as low as 900 BTUs, this Jenn-Air gas cooktop is perfect for precision cooking. Luxury features include brass burners and backlit knobs which enhance the extremely low- profile design that provides a minimal look or near-flush installation with your countertop.
- 20,000 BTU Dual-Stacked PowerBurner: The most powerful cooktop burner offered by Jenn-Air, the 20,000 BTU dual-stacked PowerBurner can sear, create a rapid boil or achieve high heat for wok cooking, and can reach an ultra-low 700 BTUs that makes it possible to melt chocolate or butter.

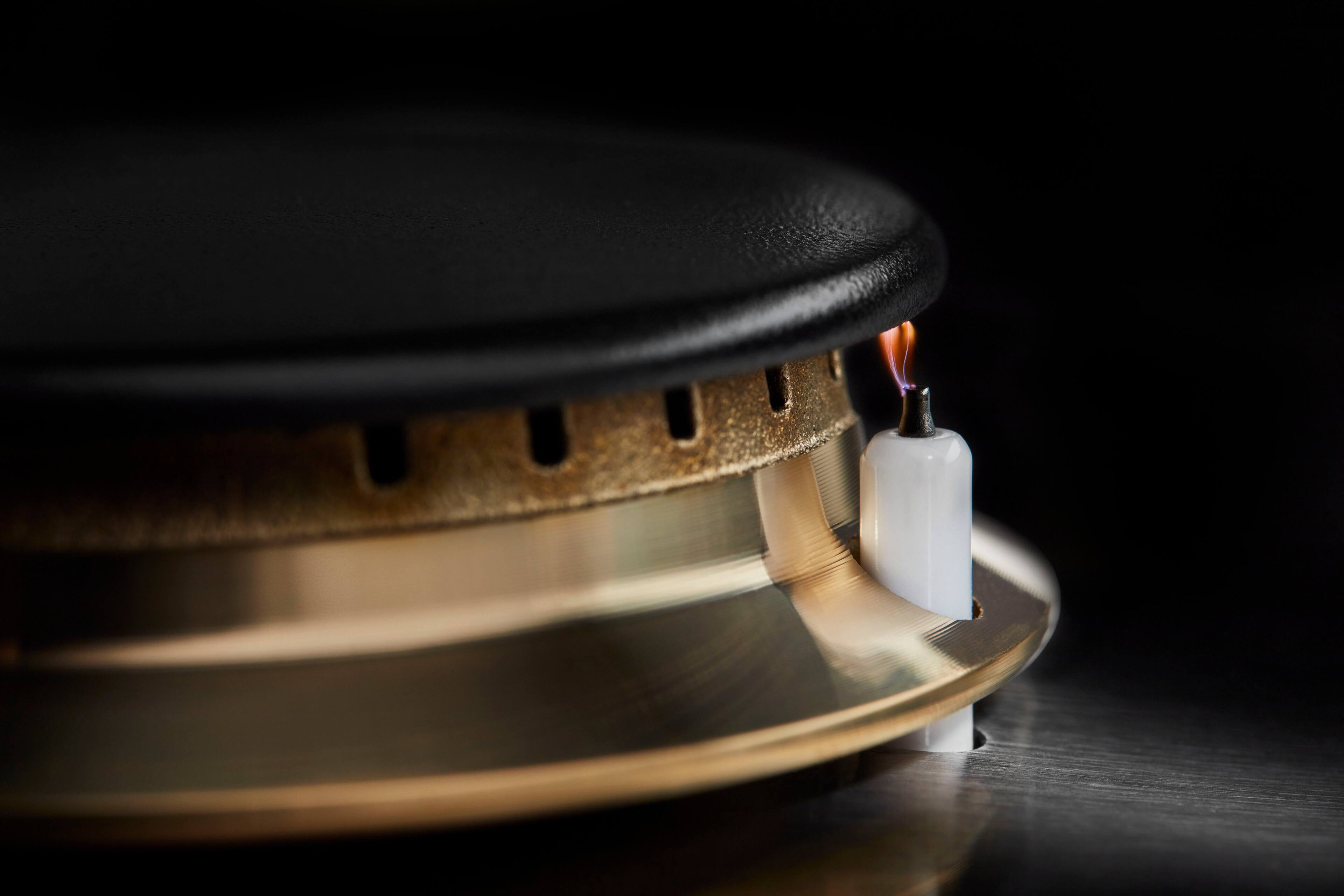

- Single Point Electronic Ignition and Flame-Sensing Re-ignition: If the flame is accidentally blown out by a draft, a spark occurs that automatically re-ignites the extinguished burner.
- 6,000 BTU Simmer Burner with Melt Cap: With a power output ranging from 6,000 BTUs to below 1,000 BTUs, this simmer burner gives you maximum control while simmering sauces and melting delicate ingredients like chocolate and butter.

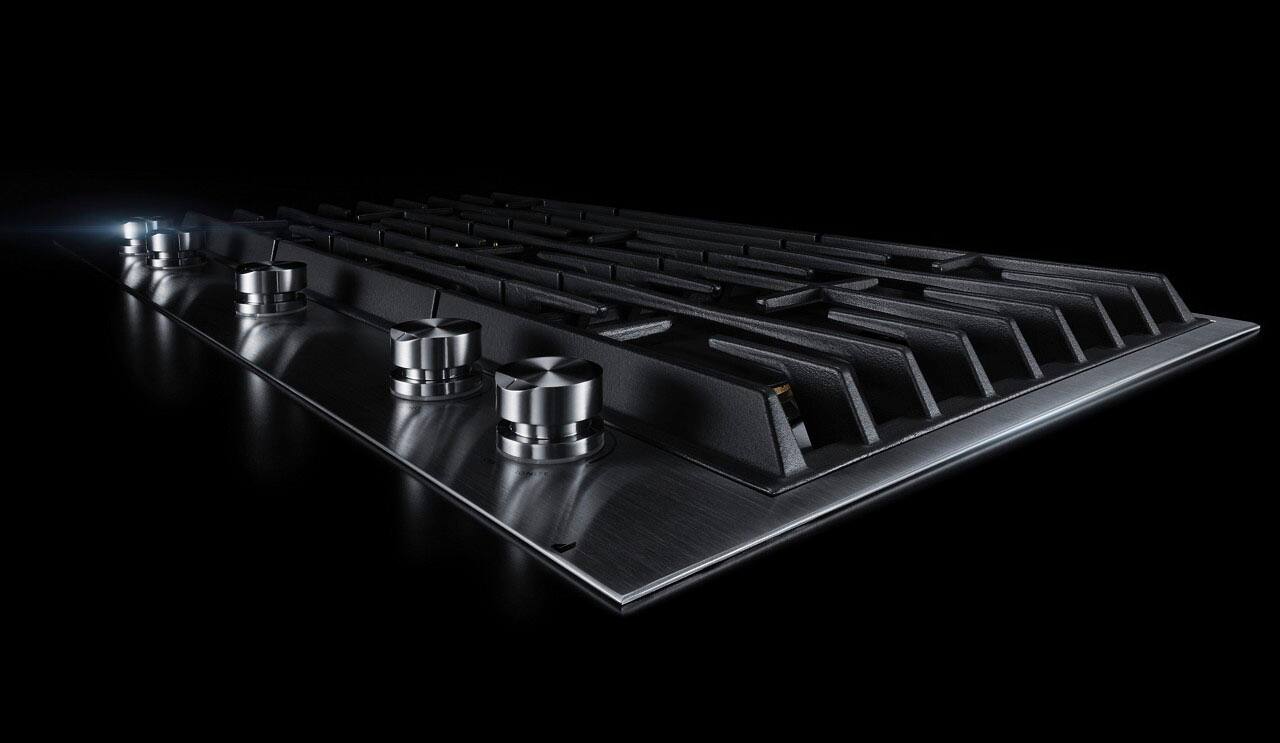

- Low-Profile Design: With an extremely low profile, you can have a minimal look —nearly flush with the countertop — for an integrated transition to the cooktop.

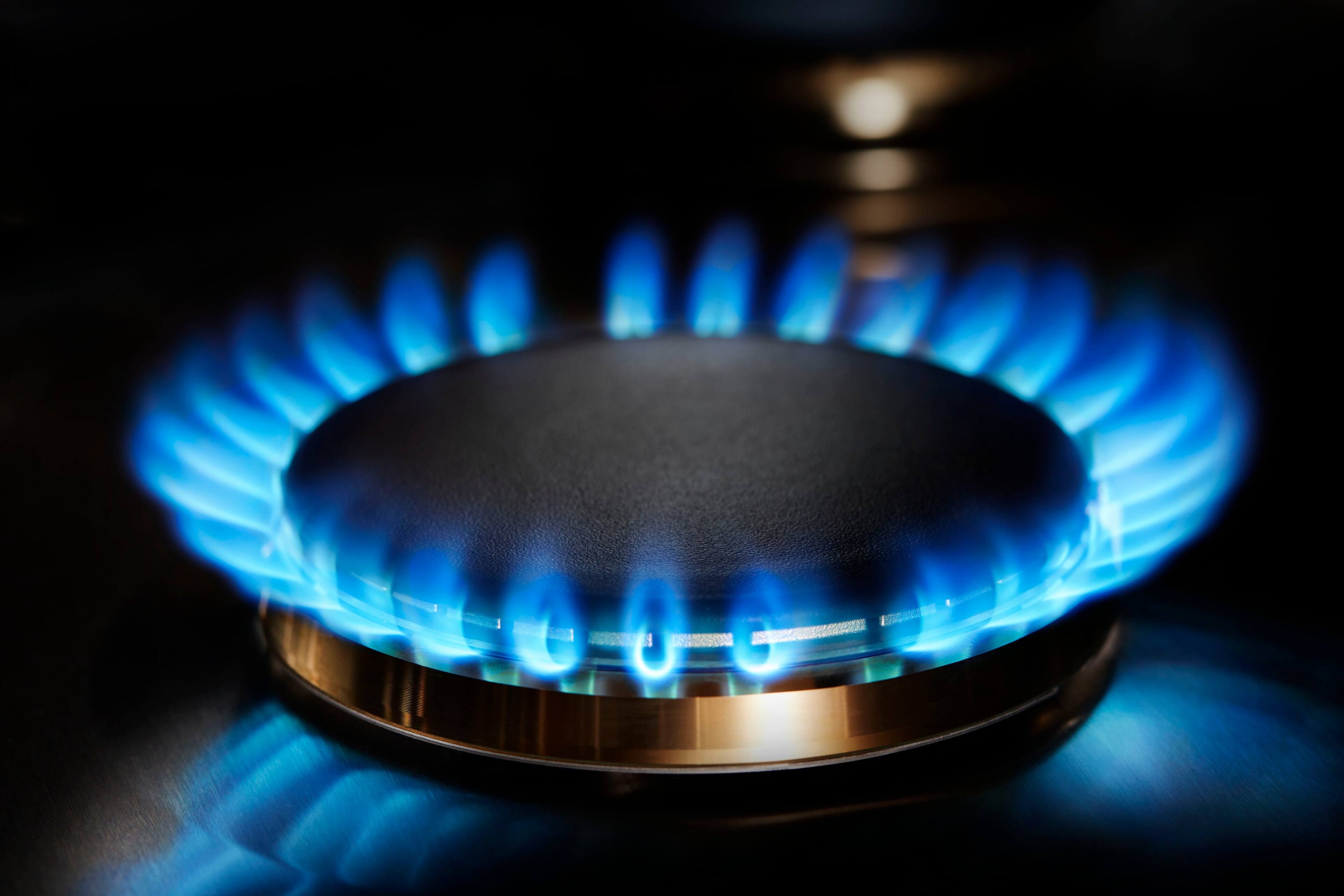

- Brass Burners with Removable Base: Elegant brass burners effectively direct heat for desired cooking results and can be removed for easy cleaning.
- White LED Burner Indicator: The white indicator light glows indicating when a burner is on, providing a modern look and a convenient reminder for cooks.
Whats Included
- Jenn-Air 30" Built-In Gas Cooktop
- Owner's manual
Product Manuals
Q: Are the grates on this cooktop dishwasher safe?
A: Yes, the grates are made of cast iron and are dishwasher safe.
Q: How many burners does this gas cooktop have?
A: This gas cooktop has five burners.
Q: Can this cooktop be used with propane?
A: Yes, it is convertible to propane and includes a conversion kit.
Q: What is the BTU rating of the most powerful burner?
A: The most powerful burner is the dual-stacked PowerBurner with 20,000 BTUs.
Q: What type of ignition does this Jenn-Air cooktop use?
A: This cooktop uses a single point electronic ignition system.
Q: Does this cooktop have a burner suitable for melting delicate ingredients?
A: Yes, it has a 6,000 BTU simmer burner with a melt cap that can go below 1,000 BTUs.
Q: lit when turned off but hot? Indicator light ON when in use and OFF when not ? GRIDDLE?
A: This is a gas cooktop. No indicator lights like in some induction smooth cooktops. This is also not like the original Jenn-Air modular setup. I have a griddle and use it often but place it on top of the rack over two burners and works perfectly. This is probably my favorite down draft cooktop and I have had 3 different models and manufacturers in the past. If you like cooking with gas and easy to clean... this would be a great choice
Q: Is the LP conversion kit included?
A: The installation guide found on the JennAir website indicates that an LP conversion kit IS included (page 3). https://www.jennair.com/content/dam/global/documents/201709/InstallationInstructions-W11125095-RevA.pdf
