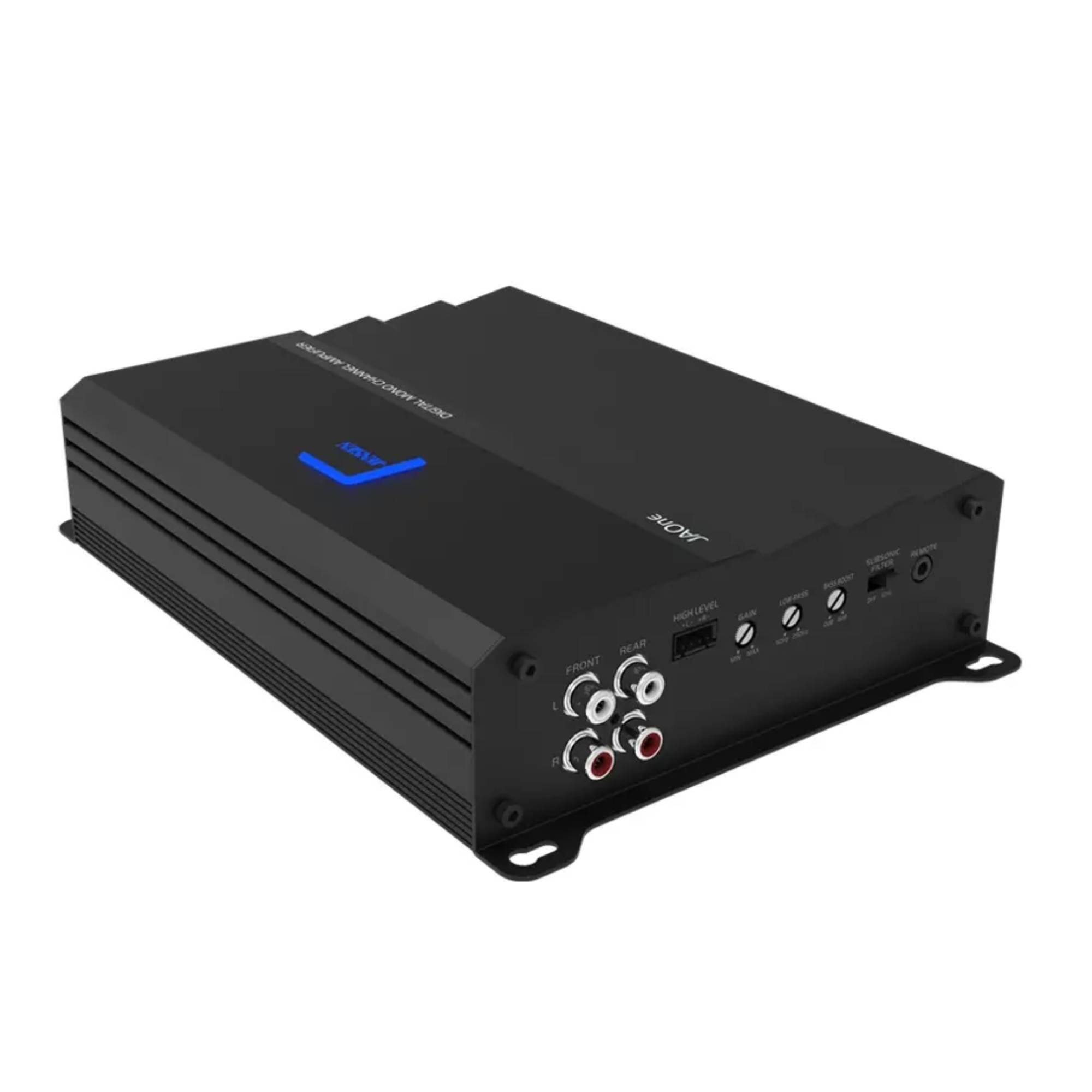

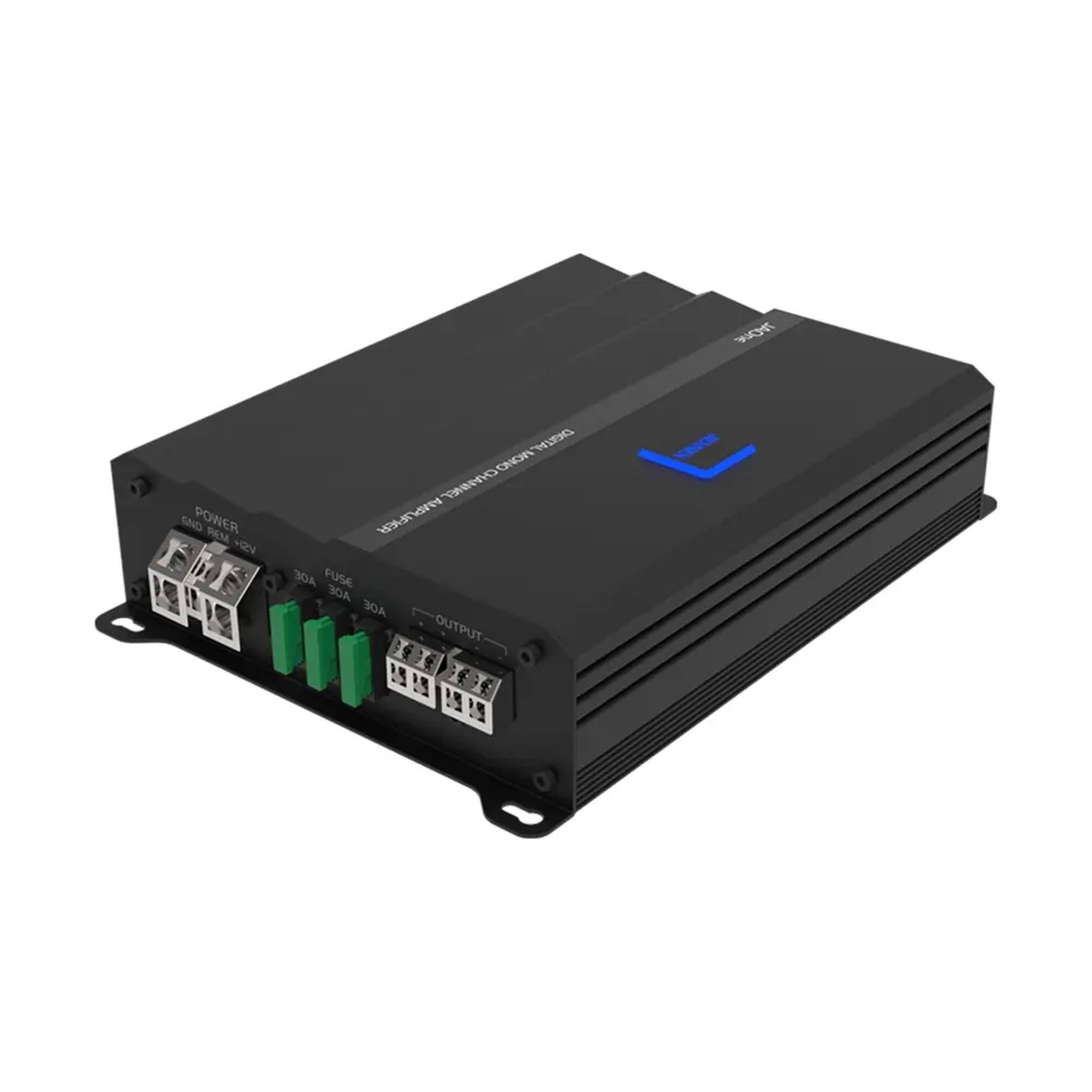

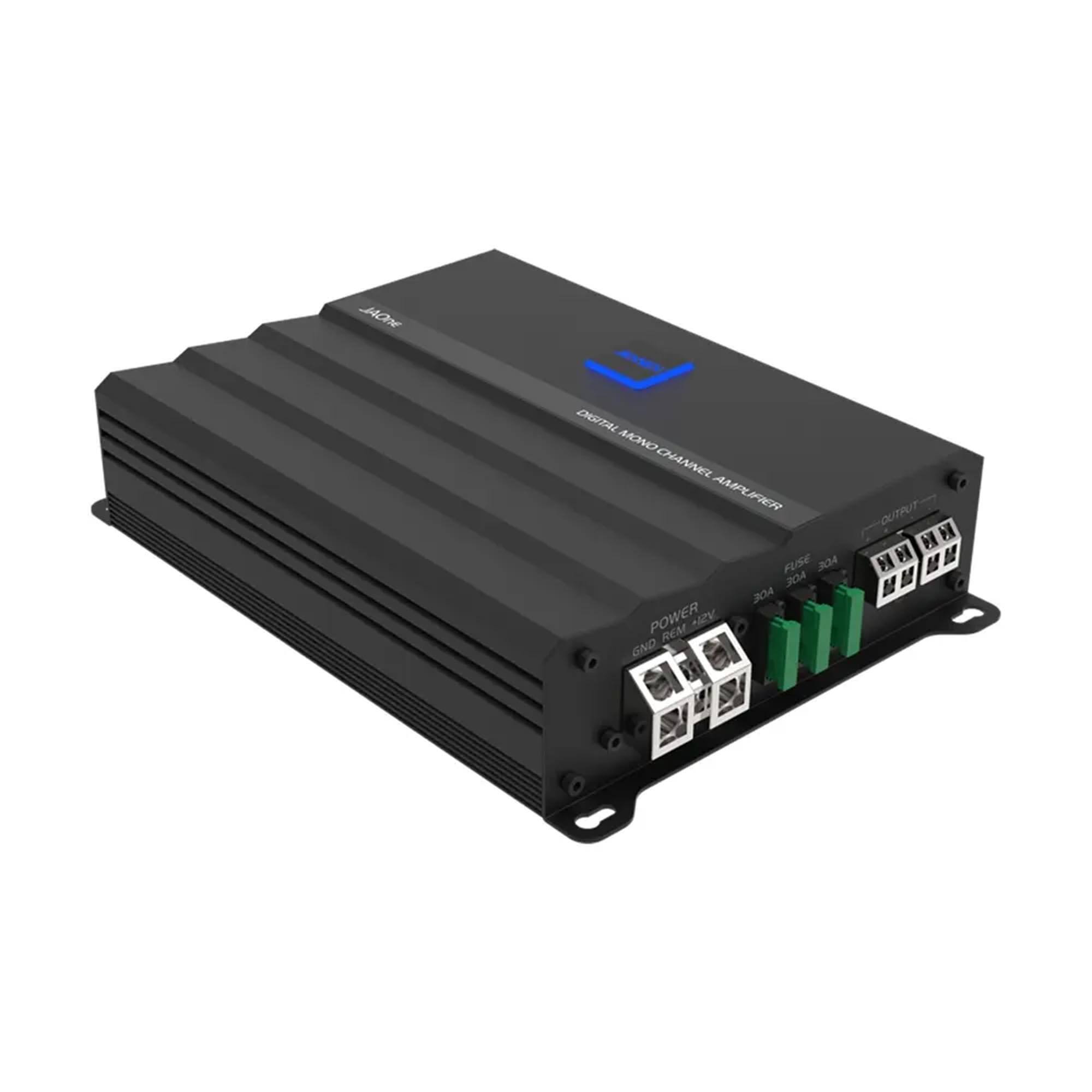

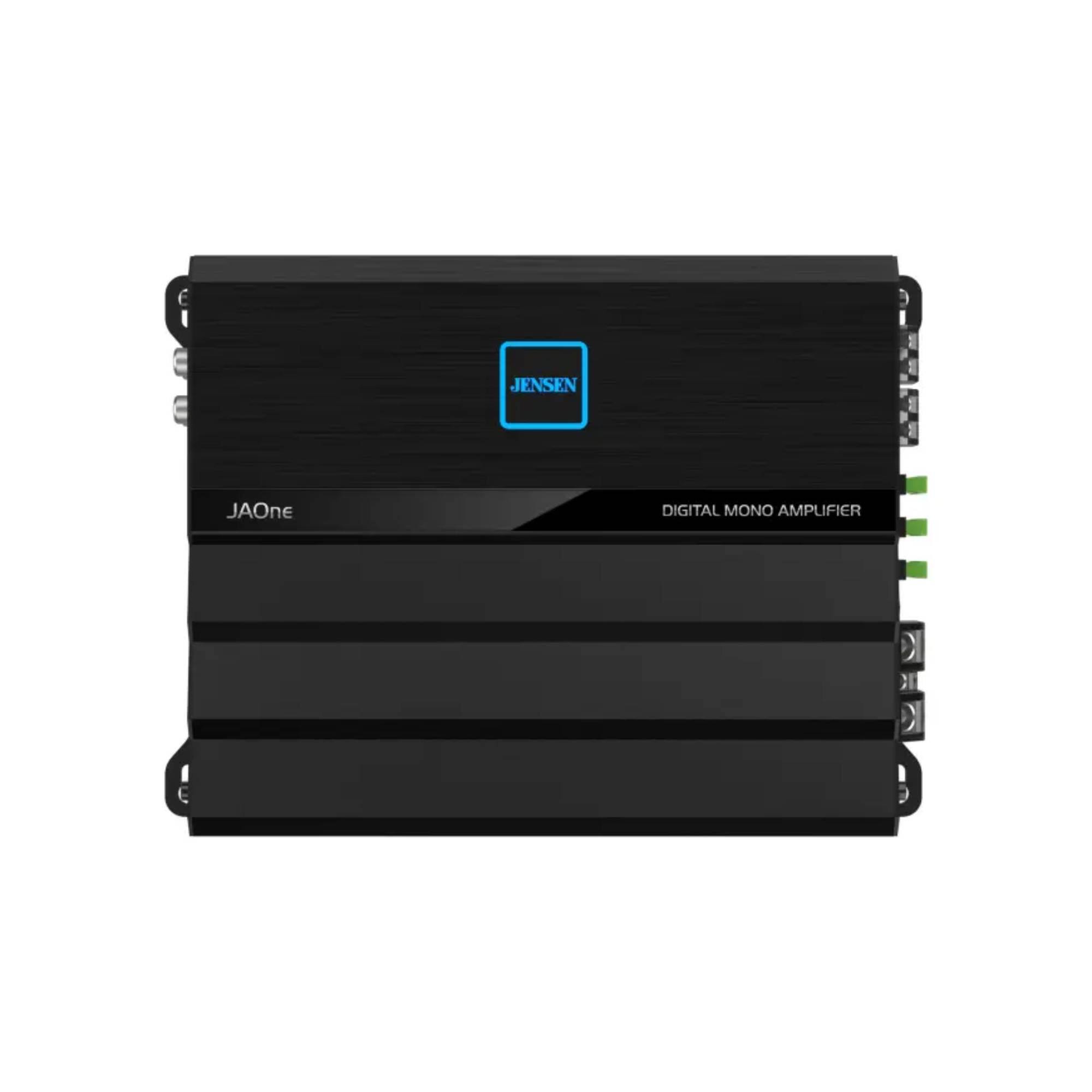

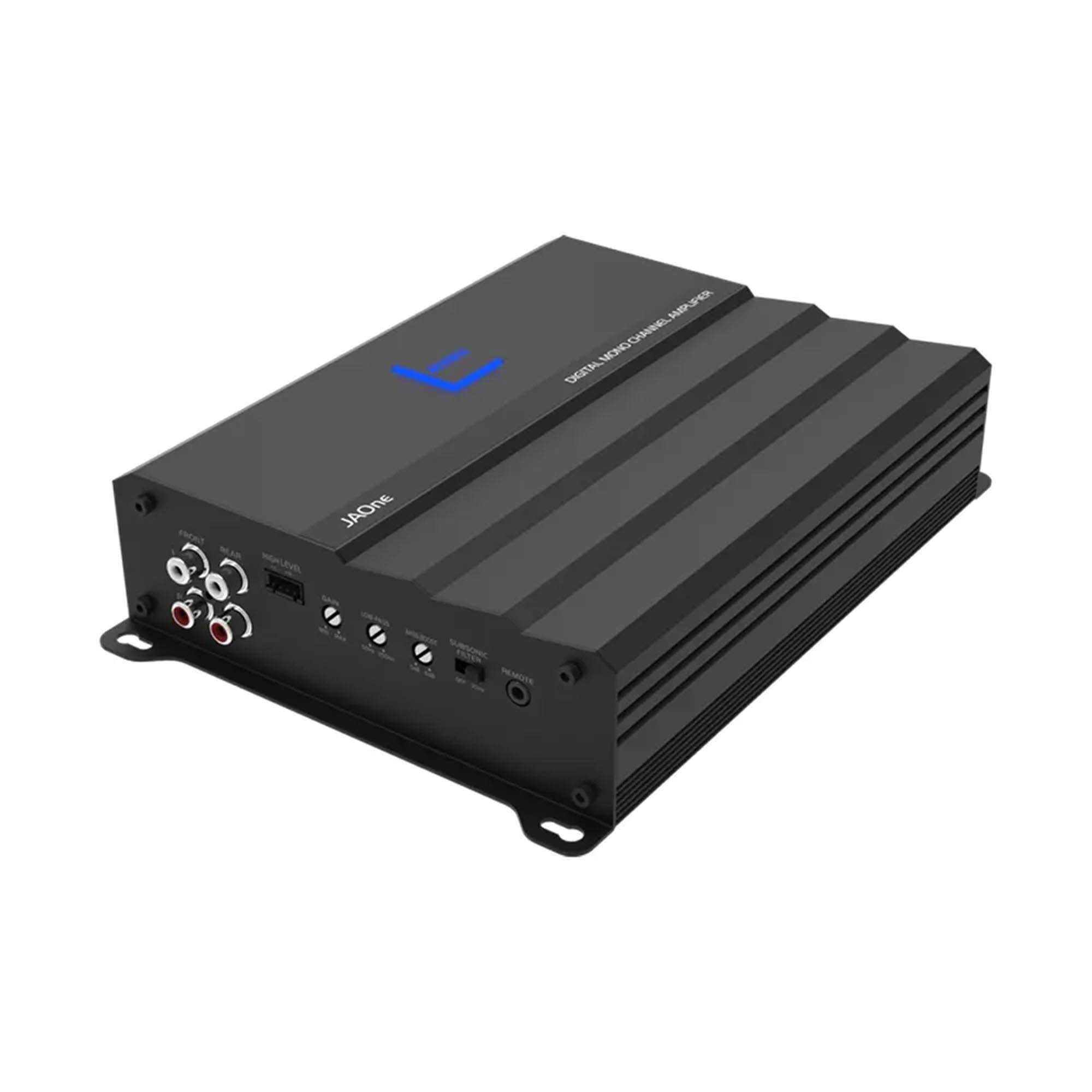

Jensen - JAONE 1 Channel MOSFET Amplifier 500 Watts RMS x 1 @ 4 Ohms, 985 Watts X 1 @ 2 Ohms - Black/Gray

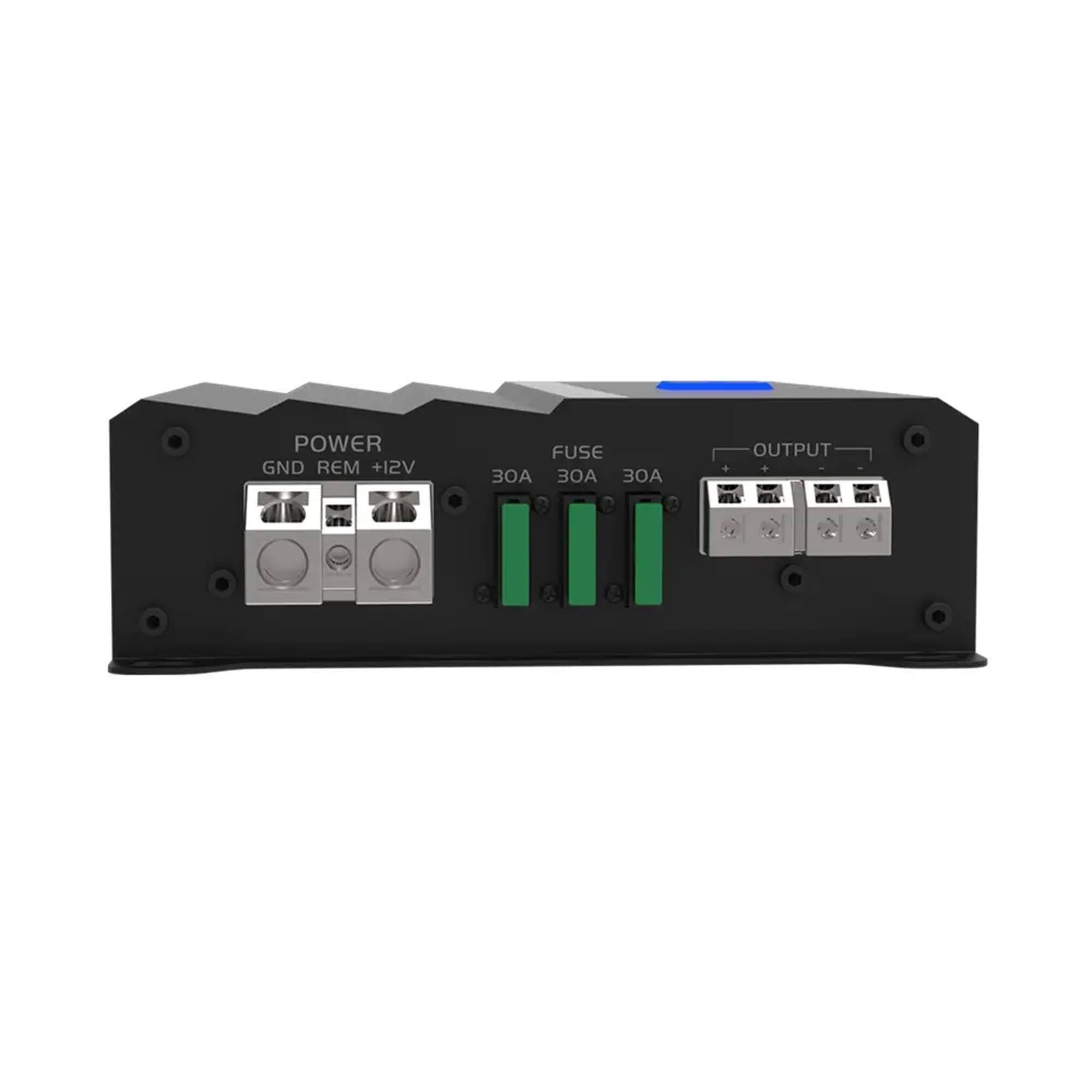

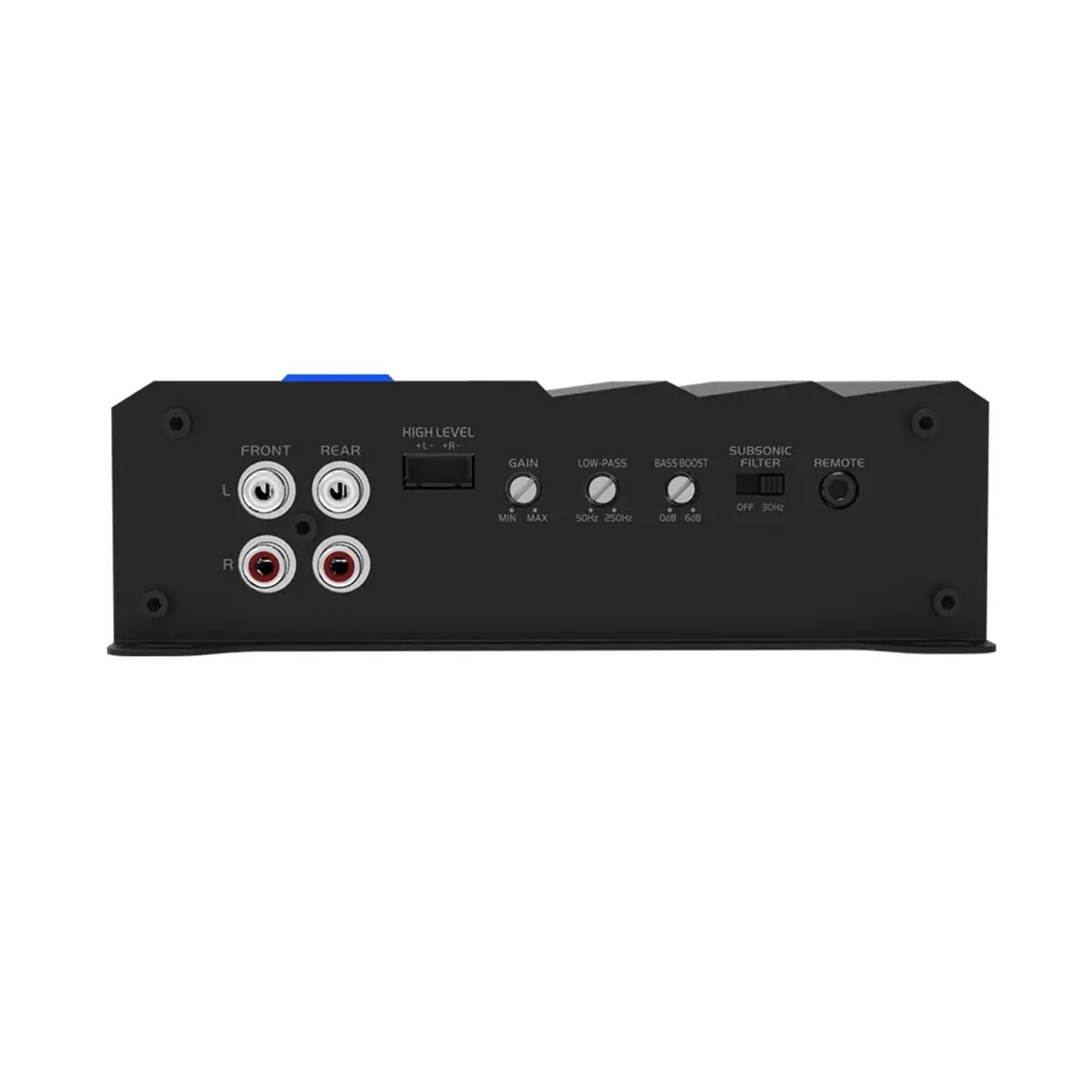

Built for clean, reliable bass amplification, the JAOne brings efficient Class-D performance in a compact mono-block layout. Whether you’re pushing a single subwoofer or looking for tight, distortion-free low end, this amp delivers. It supports both high-level (speaker wire) and low-level (RCA) inputs for easy integration with a variety of systems. With a selectable low-pass filter, variable bass boost, and bridgeable power, the JAOne gives you the flexibility to dial in serious low-frequency impact without taking up unnecessary space. Why it’s robust Real power you can use: 300W RMS @ 4Ω, 500W RMS @ 2Ω, or 1000W RMS @ 1Ω (1% THD+N). Strong dynamic headroom: Up to 1300W max dynamic power (10% THD+N). Precision tuning: Selectable low-pass filter (50–150 Hz), plus variable bass boost @ 45 Hz (0–6 dB). Clean signal path: 90 dBA S/N (1 W ref) and <0.12% THD+N at 1 W for clean, efficient output. Flexible integration: Works with high-level and RCA inputs; 1Ω stable for subwoofer applications. Installer friendly: Variable gain (200 mV–6 V), 8 AWG power/ground and 12 AWG speaker wire recommendations, 30A x 3 fuses, and a compact 2.01” x 5.67” x 8.25” (H x D x W) footprint. Peak Power This amp can reach a max dynamic power of 1525 Watts for a powerful listening experience! Compact Design This amp’s compact design makes for easy, non-intrusive, and convenient installation! Efficient Power Output The JAOne Amp has a class D design for improved longevity and high efficiency power output. Product Specs: Speaker Outputs: Mono Class: D Digital CTA-2006-D Certification: Certified Speaker Inputs: High level (Speaker Wire), Low Level (RCA) Total Dynamic Power: 1000 Watts Crossover: Adjustable low-pass crossover (50 Hz – 150 Hz) Frequency Response: 20 Hz – 150 Hz Gain Adjustment: Variable 200 mV ~ 6 V Signal to Noise Ratio: 90 dBA Recommended Power/Ground Wire: 8 AWG Recommended Speaker Wire: 12 AWG Dimensions: 2" x 5.63" x 8.24" (H x D x W) Fuse Size and Type: 20A x 3

• Key Feature: Class D Monoblock Subwoofer Amplifier delivering 300W RMS @ 4Ω, 500W RMS @ 2Ω, and 1000W RMS @ 1Ω (1% THD+N)
• Key Feature: Up to 1525W Peak Power (10% THD+N) for strong low-frequency output
• Key Feature: Selectable Low-Pass Crossover (50–150 Hz) with variable bass boost at 45 Hz (0–6 dB) for subwoofer tuning
• Key Feature: High-Level (Speaker Wire) and Low-Level (RCA) Inputs for flexible system integration
• Key Feature: Clean Signal Performance with 90 dBA signal-to-noise ratio and <0.12% THD+N at 1W
