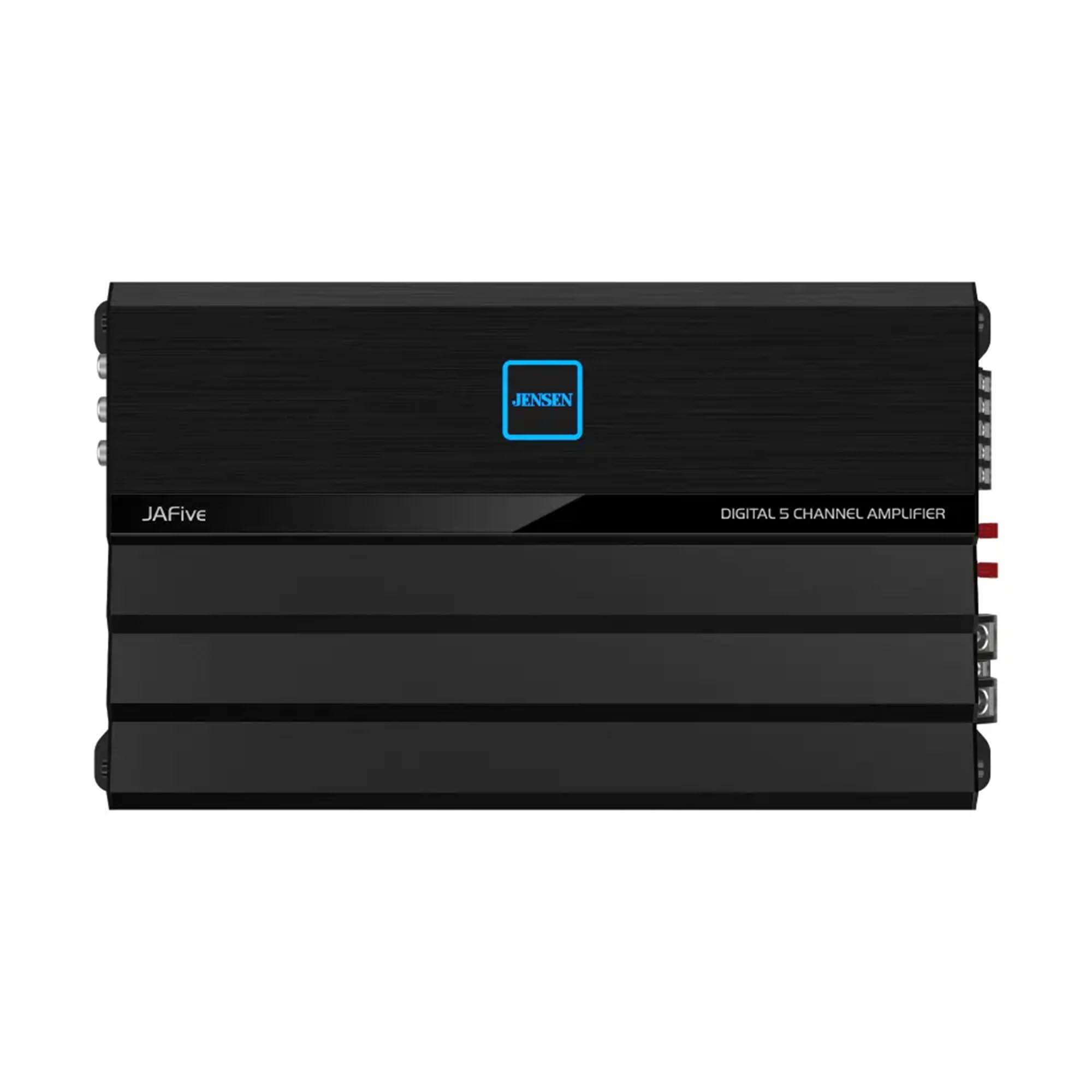

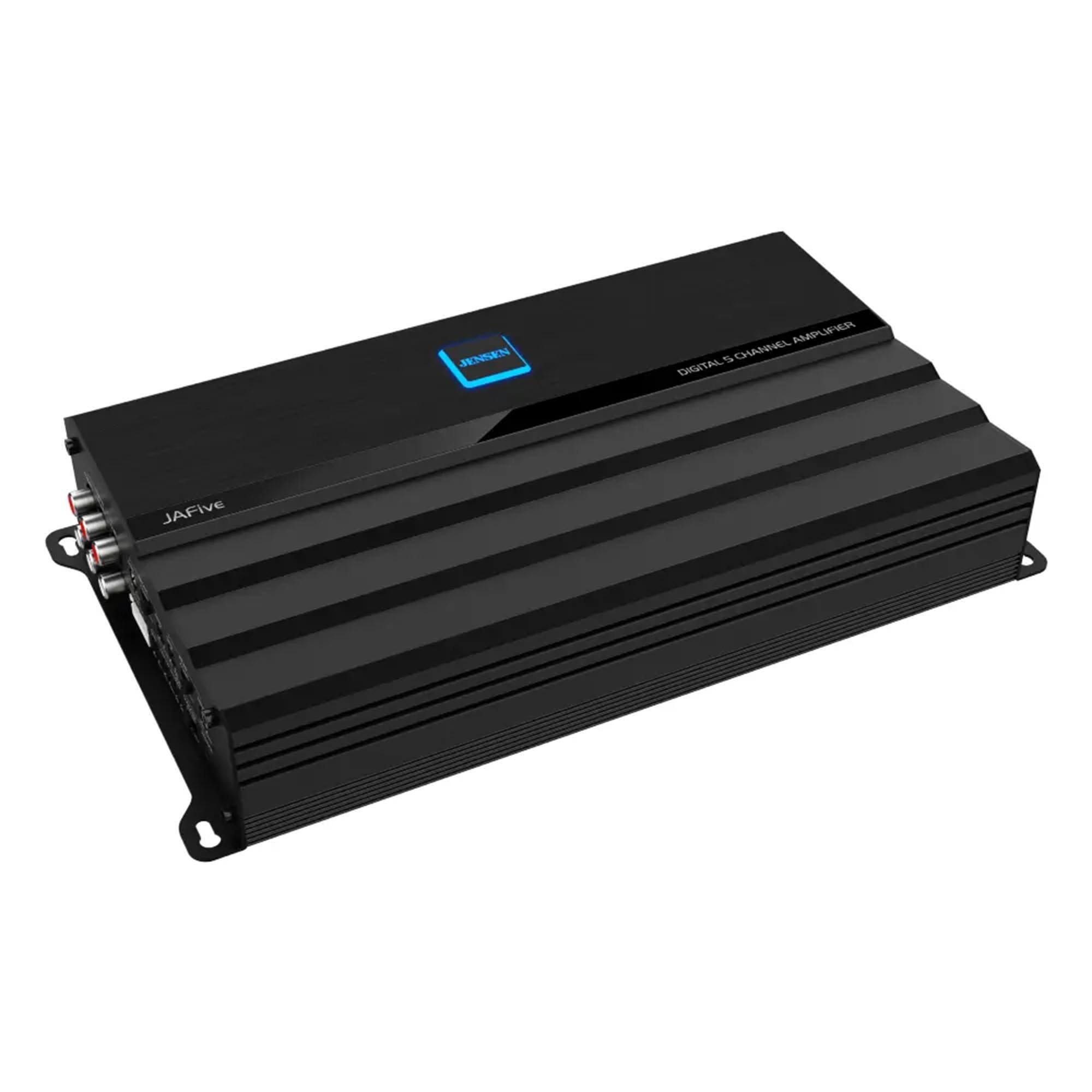

Jensen - JAFIVE 5 Channel MOSFET Amplifier 85 Watts RMS x 4 Channels @ 4 Ohms + 310 Watts RMS x 1 Channel @ 4 Ohms (S - Black/Gray

JAFive 5-Channel Class-D Amplifier All-in-One Powerhouse for Full-System Control The JAFive is a full-range 5-channel Class-D amplifier built for clean, efficient system-wide control in a single chassis. With four full-range outputs and a dedicated subwoofer channel, it’s ideal for powering an entire system — front, rear, and sub. High-level (speaker wire) and low-level (RCA) inputs ensure easy integration with factory or aftermarket head units. Adjustable crossovers, variable bass boost, and wide-range gain control give installers and enthusiasts flexible tuning without sacrificing clarity, control, or power. Why it’s robust System-wide performance: 85W x4 + 310W x1 @ 4Ω, or 135W x4 + 495W x1 @ 2Ω (1% THD+N). Dynamic headroom: Up to 1175W max dynamic power (10% THD+N). Precision tuning: Selectable high-pass/low-pass filters (50–250 Hz), subsonic filter (30 Hz/24 dB), and variable bass boost @ 45 Hz (0–6 dB). Clean signal path: 86 dBA S/N (CH1–4) / 88 dBA (Sub) and <0.12% / <0.20% THD+N at 1W for low-noise, high-impact output. Ready for any system: Works with RCA and speaker-level inputs; 2/4-ohm stereo stable for flexible installations. Installer focused: Variable gain (300 mV–6 V), 4 AWG power/ground and 12 AWG speaker wire recommendations, dual 40A fuses, and a compact chassis: 1.99” x 6.53” x 13.07” (H x D x W). Peak Power This amp can reach a max dynamic power of 1175 Watts for a powerful listening experience! Compact Design This amp’s compact design makes for easy, non-intrusive, and convenient installation! Product Specs: Speaker Outputs: 5 Class: D Digital CTA-2006-D Certification: Certified Speaker Inputs: High level (Speaker Wire), Low Level (RCA) Total Dynamic Power: 1175 Watts Crossover: Adjustable high-pass/low-pass/full range 50 Hz – 250 Hz Frequency Response: 20 Hz ~ 20 kHz Gain Adjustment: Variable 300mV ~ 6V Recommended Power/Ground Wire: 4 AWG Recommended Speaker Wire: 12 AWG Fuse Size and Type: 40A x 2

• Key Feature: 5-Channel Class D Amplifier delivering 85W x4 + 310W x1 @ 4Ω or 135W x4 + 495W x1 @ 2Ω (1% THD+N) for full-system amplification
• Key Feature: 1175W Maximum Dynamic Power for strong headroom and system-wide output

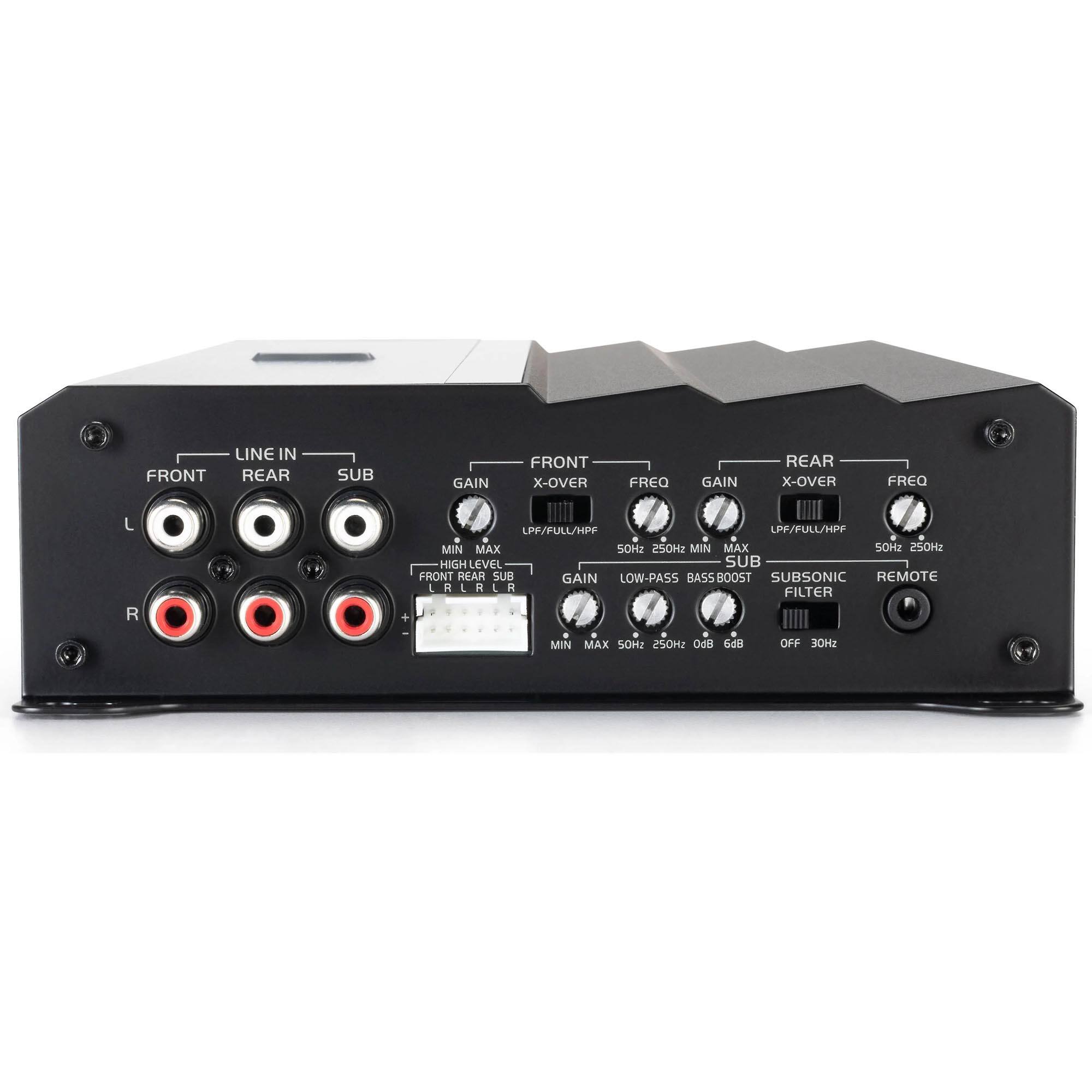

• Key Feature: Adjustable High-Pass / Low-Pass Crossovers (50–250 Hz) with 30 Hz subsonic filter (24 dB) and variable bass boost @ 45 Hz (0–6 dB)
• Key Feature: High-Level (Speaker Wire) and Low-Level (RCA) Inputs for easy integration with factory or aftermarket head units
• Key Feature: Clean Signal Performance with 86 dBA S/N (CH1–4) and 88 dBA S/N (Sub) for low-noise playback
• Key Feature: 5-Channel Class D Amplifier delivering 85W x4 + 310W x1 @ 4Ω or 135W x4 + 495W x1 @ 2Ω (1% THD+N) for full-system amplification
• Key Feature: 1175W Maximum Dynamic Power for strong headroom and system-wide output
• Key Feature: Adjustable High-Pass / Low-Pass Crossovers (50–250 Hz) with 30 Hz subsonic filter (24 dB) and variable bass boost @ 45 Hz (0–6 dB)
• Key Feature: High-Level (Speaker Wire) and Low-Level (RCA) Inputs for easy integration with factory or aftermarket head units
• Key Feature: Clean Signal Performance with 86 dBA S/N (CH1–4) and 88 dBA S/N (Sub) for low-noise playback
