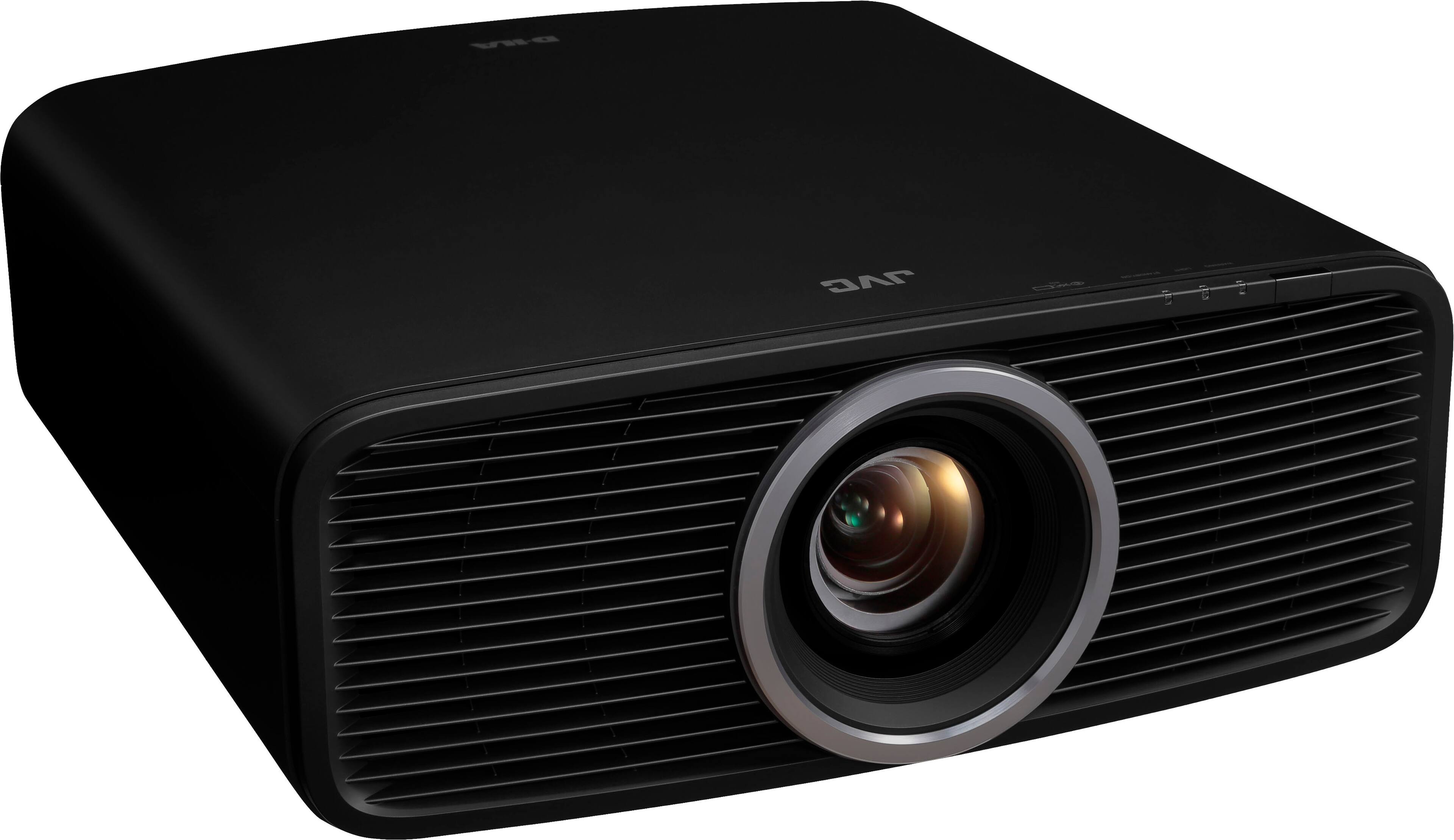

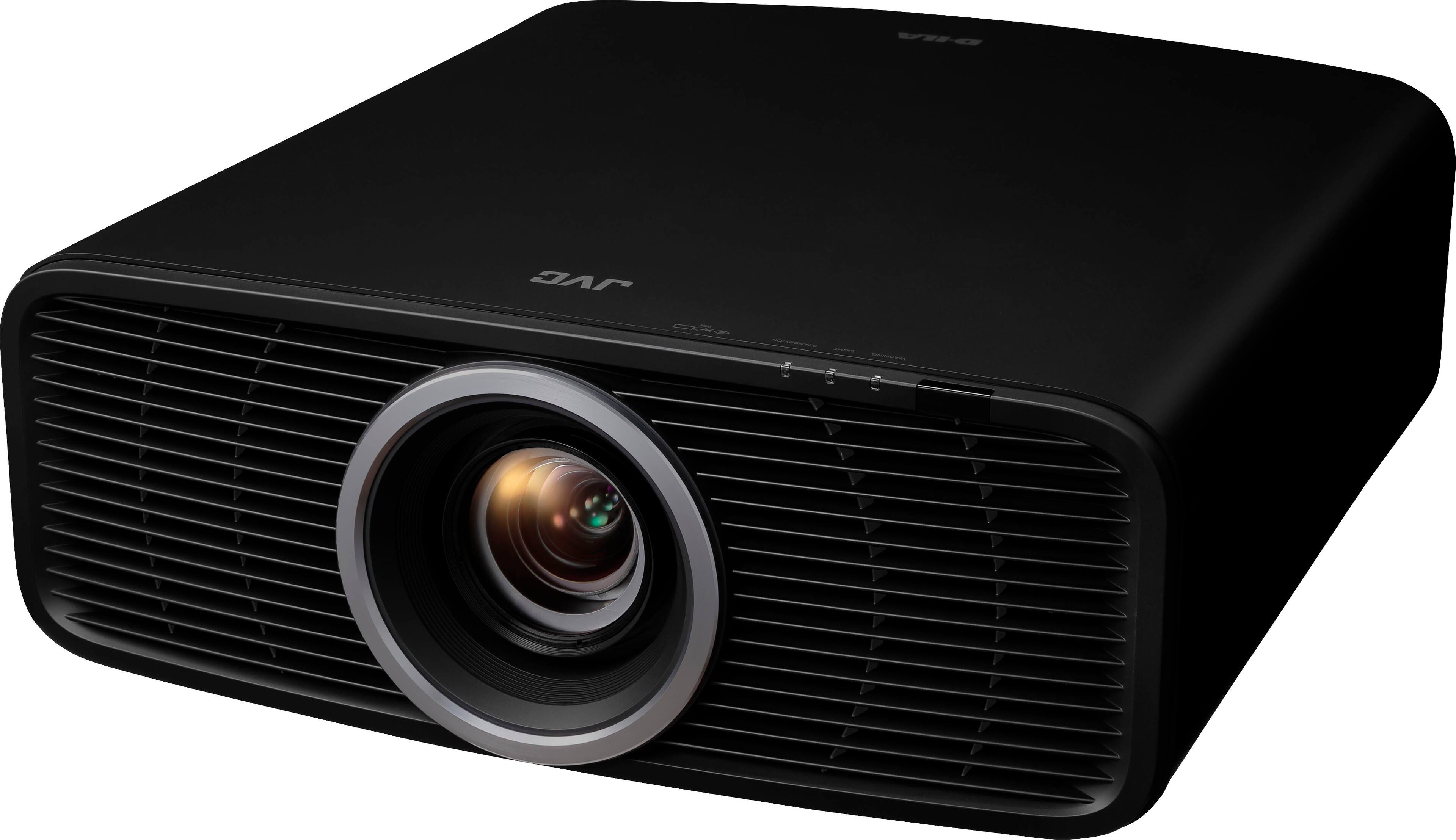

JVC - DLANZ700 LASER D-ILA Native 4K Home Theater Projector, 80K:1 Native Contrast, 4K/60P, HDR10+, Gen2 Frame Adapt HDR - Black
Valerion - 120" Long Throw Fresnel ALR Screen，4K/8K Ultra HD，1.8dB Gain - Black$1,439.00$1,799.00
Related Item
Specifications
- Product Weight32.1 poundsLight SourceLaserResolution4K (2160p)White Brightness (ISO)2300 lumensContrast Ratio80,000:1 Native, Infinate:1 Dynamic Contrast RatioProjector UseHome Theater, Gaming
- Key Specs
- Product Weight: 32.1 pounds (The out of box weight of the item.)
- Light Source: Laser
- Resolution: 4K (2160p) (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- White Brightness (ISO): 2300 lumens (Measurement of the device's white light output measured in accordance with standards established by the International Organization for Standardization (ISO). The more lumens, the brighter the output. In large and/or well-lit environments, such as auditoriums or rooms with plenty of natural light, a higher brightness improves the quality of the projected image.)
- Contrast Ratio: 80,000:1 Native, Infinate:1 Dynamic Contrast Ratio (Measured difference between a displayed image's brightest whites and darkest blacks. The larger the first number, the more detail and color that can be displayed.)
- Projector Use: Home Theater, Gaming
- Projector Throw Type: Standard Throw (The distance from the screen that the projector can be placed to project images. Standard throw projectors typically need to be at least 6 feet away while short throw and ultra short throw projectors can be placed closer to the screen for use in smaller rooms.)
- Portability: Fixed (Fixed projectors are ideal when creating an authentic theater atmosphere in your home. Often designed to stay in one place they may require significant recalibration if moved. Portable projectors, weighing around 5 pounds, are easy to move, but will still require set-up calibration and often have technology to reduce the complexity. Ultra-portable projectors are very light, often battery-powered, and ideal for on-the-go use.)
- Smart Capable: false (Smart, or smart-capable devices are able to connect directly to your home network in order to stream content from the Internet, run Internet-based apps, or connect to other smart devices.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Display Connector(s): 2 x HDMI (The number and type of connectors used to connect to an external display.)
- Power Source: Plug-in
- General
- Brand: JVC
- Model Number: DLANZ700
- Product Name: DLANZ700 LASER D-ILA Native 4K Home Theater Projector, 80K:1 Native Contrast, 4K/60P, HDR10+, Gen2 Frame Adapt HDR
- Color: Black
- Projector Mount Pattern: Dedicated (Universal mounts can be adjusted to support a variety of devices. Dedicated mounts are designed to fit a specific device.)
- Dimensions
- Product Height: 7.156 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.719 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.875 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 32.1 pounds (The out of box weight of the item.)
- Display
- Light Source: Laser
- Display Technology: D-ILA (Denotes the product’s visual process, sometimes manufacturer specific, used to display an image.)
- Resolution: 4K (2160p) (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Resolution (Native): 4096 x 2160 (4K) (Native resolution of a screen refers to its single, fixed resolution. Sometimes screens must scale an image up or down in order to fit the native resolution. This can cause a loss of resolution or detail.)
- 3-Chip Technology: true (Projectors with this technology are able to display images with optimal brightness, color, and detail. Because of their high-performance design, these projectors are primarily used in large venues and digital cinemas.)
- White Brightness (ISO): 2300 lumens (Measurement of the device's white light output measured in accordance with standards established by the International Organization for Standardization (ISO). The more lumens, the brighter the output. In large and/or well-lit environments, such as auditoriums or rooms with plenty of natural light, a higher brightness improves the quality of the projected image.)
- High Dynamic Range (HDR): true (An HDR-compatible 4K TV or other HDR-compatible product displays HDR video content when it's available from sources like 4K Ultra HD Blu-ray Discs and 4K streaming services.)
- High Dynamic Range Format: HDR 10+, HDR 10, Hybrid Log-Gamma (HLG) (There are a few HDR formats that tell the TV or other HDR-compatible product how to best utilize its capabilities to display HDR content. HDR technology can support one or multiple formats, each with various benefits to picture quality.)
- Light Source Life (Normal Mode): 20000 hours (The light source's estimated length of operating time when normal operating mode is enabled.)
- Contrast Ratio: 80,000:1 Native, Infinate:1 Dynamic Contrast Ratio (Measured difference between a displayed image's brightest whites and darkest blacks. The larger the first number, the more detail and color that can be displayed.)
- Aspect Ratio: 17:9 (The measurement of the width of a screen compared to the height of a screen, expressed as a ratio.)
- Throw Ratio Range: 1.34 Minimum, 2.14 (16x9) (This measurement indicates what size of projected image can be produced from a certain distance. The smaller the ratio, the closer the projector can be to the screen while still producing a large image.)
- Digital Keystone Correction: true ("Keystone effect" refers to the distortion of an image when it is projected on an angled surface or when the projector is positioned too high or too low from the center of the display. Projectors with a digital keystone correction feature are able to scale the image as needed before it is projected, resulting in the correct image orientation no matter where it is displayed.)
- Horizontal Scan Rate: 4096 (Number of horizontal lines displayed per second on the device.)
- Vertical Scan Rate: 2160 (Number of vertical lines displayed per second on the device.)
- 3D Technology: false
- Viewing
- Screen Included: false
- Minimum Viewable Screen Size: 60 inches
- Maximum Viewable Screen Size: 200 inches
- Features
- Projector Use: Home Theater, Gaming
- Projector Throw Type: Standard Throw (The distance from the screen that the projector can be placed to project images. Standard throw projectors typically need to be at least 6 feet away while short throw and ultra short throw projectors can be placed closer to the screen for use in smaller rooms.)
- Portability: Fixed (Fixed projectors are ideal when creating an authentic theater atmosphere in your home. Often designed to stay in one place they may require significant recalibration if moved. Portable projectors, weighing around 5 pounds, are easy to move, but will still require set-up calibration and often have technology to reduce the complexity. Ultra-portable projectors are very light, often battery-powered, and ideal for on-the-go use.)
- Smart Capable: false (Smart, or smart-capable devices are able to connect directly to your home network in order to stream content from the Internet, run Internet-based apps, or connect to other smart devices.)
- Remote Control Included: true
- TV Tuner: false (The ATSC TV Tuner is a component built into conventional TV sets or other devices for receiving over-the-air broadcast TV without a cable/satellite box. Digital tuners may be purchased separately and connected to a device if it does not have one built in.)
- Exposure Control
- Focus Adjustment: Powered (The method used to focus the device in order to view or display a sharper image.)
- Optical Zoom: 1.6x (The optical zoom uses a combination of lenses that magnify the image prior to it being registered at high resolution by the imaging sensor.)
- Digital Zoom Capability: true (Projectors with this feature allow for digital adjustment to the projected image size without changing the location of the projector.)

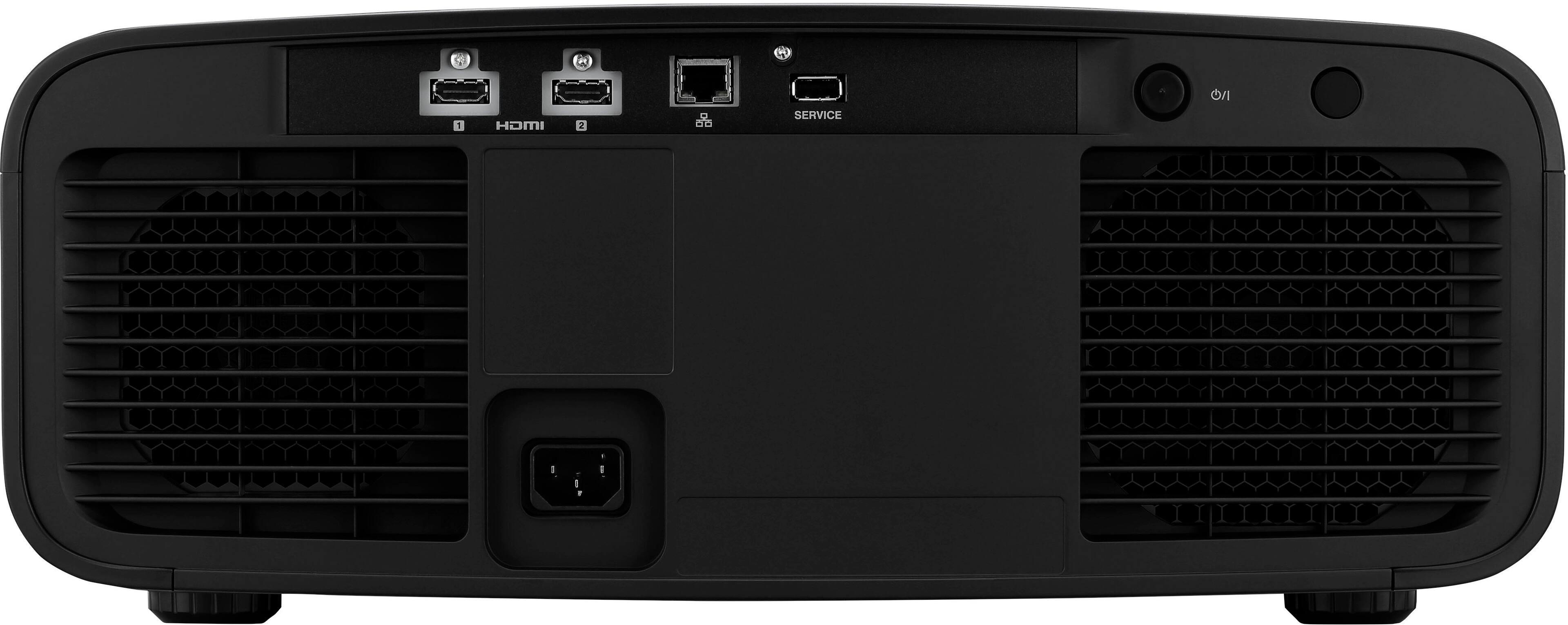

- Connectivity
- Number of HDMI Inputs (Total): 2
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Display Connector(s): 2 x HDMI (The number and type of connectors used to connect to an external display.)
- Network Connector(s): 1 x LAN
- Audio Only Outputs: No audio only outputs
- Number of USB Port(s): 1
- Audio
- Integrated Speaker(s): false
- Speaker(s) Included: false
- Compatibility
- Voice Assistant Built-in: Not Applicable, Not Applicable (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Power
- Power Source: Plug-in
- Voltage: 100 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 3 Years, 1st Year Advanced Warranty Exchange
- Warranty - Labor: 3 Years, 1st Year Advanced Warranty Exchange
- Other
- UPC: 046838503986

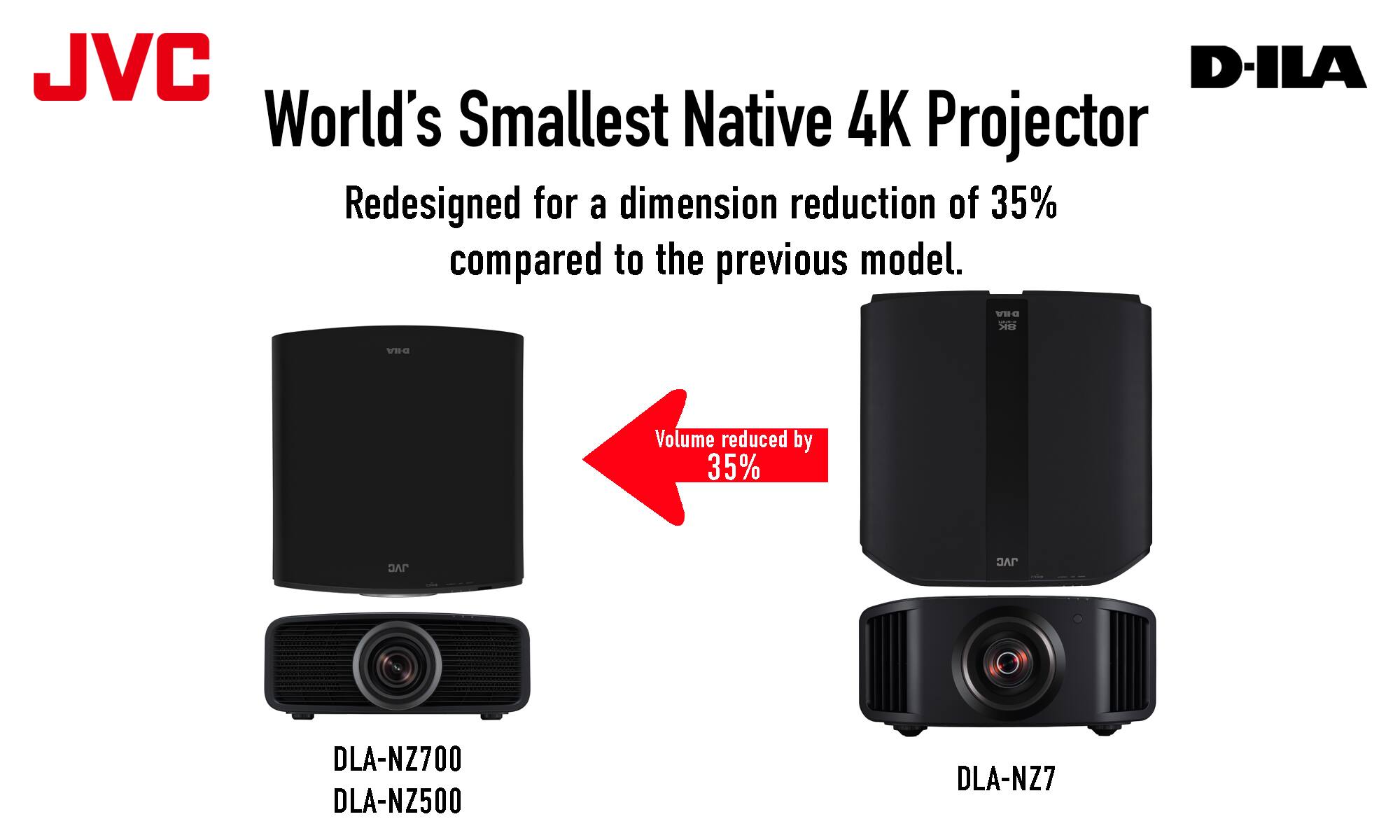

The JVC DLANZ700 is the world's smallest Native 4K projector offering proprietary 0.69-inch D-ILA devices (x3) and a 2300-lumen BLU-Escent Laser. JVC's superior high-contrast optical block allows the DLANZ700 to achieve a 80,000:1 Native Contrast and infinite:1 dynamic contrast ratio delivering images with exceptional reality. The 101-step Laser Light Control adjusts the light output to your viewing preference. The projector offers two HDMI 32 Gbps 4K/60p HDMI/HDCP 2.3 inputs. JVC's DLANZ700 has an 80mm Fully Motorized 4K Lens with 1.6X zoom and a 70% vertical and 28% horizontal shift range. This offers more flexibility with installation. Experience the art of projection with Gen2 Frame Adapt HDR Dynamic tone mapping that analizes at a frame-by-frame level. The new Deep Black Tone Control extends dark tones and detail with greater contrast. DML (Display Mastering Luminance) adjusts/sets the dynamic range for an even better HDR experience. HDR10+ Compatible. With "Vivid" Picture mode, content in SDR formats will come alive with vibrant vivid color. With a built in cinema filter achieve a wide color gamut equivalent to DCI-P3. The DLANZ700 offers 5 customizable preset models for installation. Turn on the basic Clear Motion Drive for smoother video and Multiple Pixel Control (MPC) for increased sharpness and detail. Includes a 3-year warranty with first-year advanced replacement.

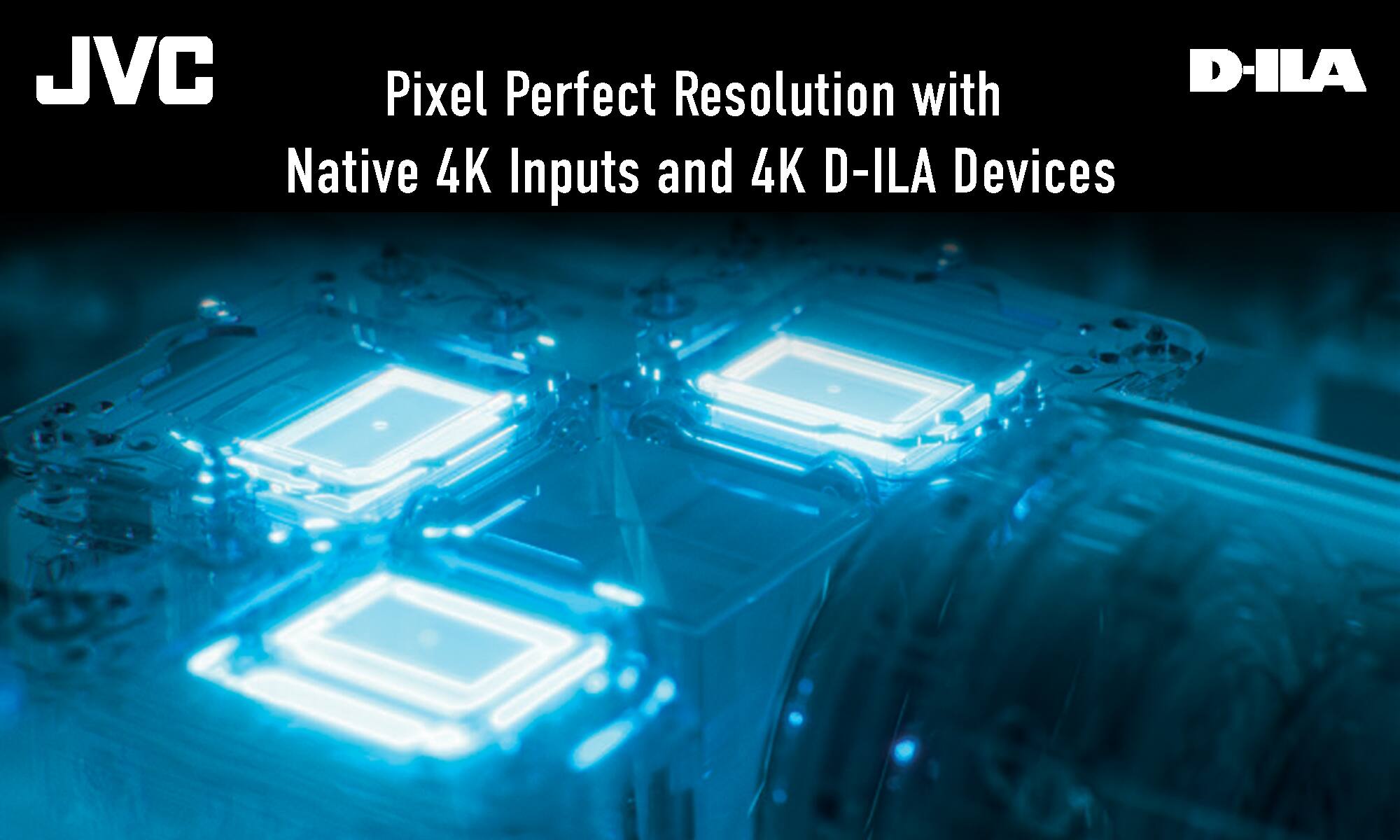

- 4k Hdr Laser Projector For Hi-Resolution Content: With JVC's proprietary (3) 0.69-inch native 4K D-ILA devices and a premium 4K 15-element, 11-group 80 mm fully motorized lens the enhancements to video quality especially in high resolution are astonishing. The JVC DLANZ700 offers a BLU-Escent laser phosphor light engine that delivers 2,300 lumens of brightness with a life expectancy of approximately 20,000 hours.
- Vibrant Images: See Native 4K content with two 32Gbps 4K/60p HDMI/HDCP 2.3 inputs. Amplify the color with SDR content by turning on "Vivid" picture mode and enjoy even brighter, richer, and more vibrant images.
- High Native Contrast: JVC's high-contrast optical block offers a superior native contrast of 80,000:1 and dynamic contrast of infinate:1. With Deep Black Tone Control, the new algorithm added to Generation 2 Frame Adapt HDR, you'll experience dark tones and more contrast than ever before. See more color with the built in cinema filter on the DLANZ700 supporting a wide color gamut equivalent to DCI-P3.
- Jvc Exclusive Gen2 Frame Adapt Hdr Auto Tone Mapping: With JVC's Exclusive Gen2 Frame Adapt HDR Dynamic Tone Mapping Technology, this projector instantly analyzes any HDR10 content frame-by-frame and performs real-time tone mapping to optimal dynamic range for video projection. The algorithm for tone mapping has been further enhanced to achieve HDR images that offer higher detail, are brighter, more colorful, and have a wider dynamic range. Supports HDR formats HDR10, HLG, and HDR10+ content.

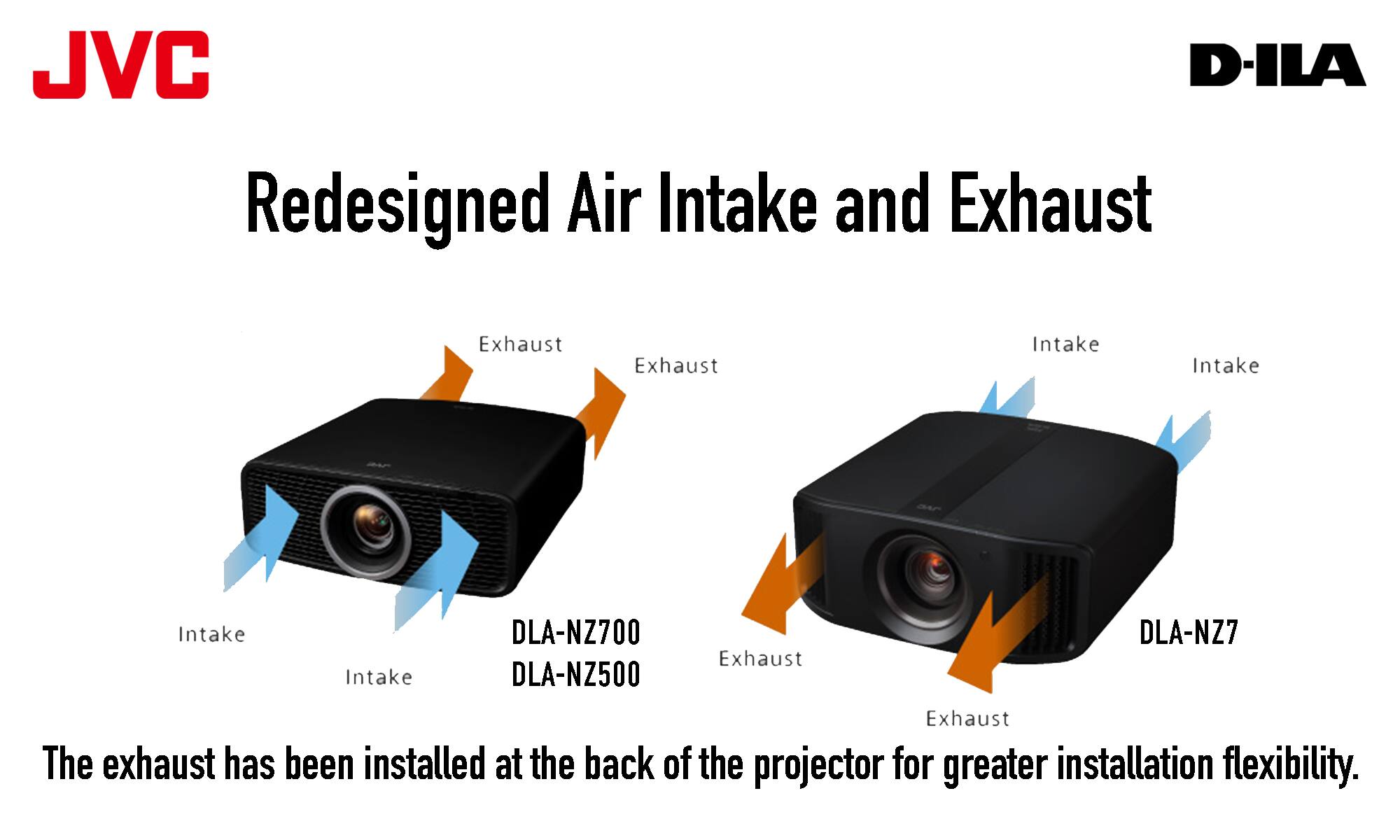

- Quick Set Up And Easy Installation: The five installation modes allow users to set different memory settings for lens control, pixel adjustment, masking, aspect ratios, and more. The fully motorized lens can zoom, shift, and focus at the touch of a button. The 80 mm lens has a 70% vertical and 28% horizontal shift. The projector is 35% smaller than the previous model. In addition, the exhaust has been moved to the back of the projector, to eliminate any potential impact of the image.
- Display Master Luminance: The DLANZ700 utilizes DML (Display Master Luminance) metadata, which represents the nit level of the professional monitor used to grade the movie to the director's standard is used to set the dynamic range of the title for improved HDR tone mapping. The DML and maxcll values are used for HDR levels.
- Fine Tune The Laser Output: JVC's BLU-Escent Laser can finely adjust the luminance according to the environment and preference using the Light Source Control slider adjustment. There are a total of 101 (0 – 100) luminance control steps that can make fine adjustments to match the target luminance in the environment and on the screen.
- Warranty: JVC offers a full 3 year warranty, with the 1st year from the date of purchase being an advanced exchange warranty.
- 4k Hdr Laser Projector For Hi-Resolution Content: With JVC's proprietary (3) 0.69-inch native 4K D-ILA devices and a premium 4K 15-element, 11-group 80 mm fully motorized lens the enhancements to video quality especially in high resolution are astonishing. The JVC DLANZ700 offers a BLU-Escent laser phosphor light engine that delivers 2,300 lumens of brightness with a life expectancy of approximately 20,000 hours.
- Vibrant Images: See Native 4K content with two 32Gbps 4K/60p HDMI/HDCP 2.3 inputs. Amplify the color with SDR content by turning on "Vivid" picture mode and enjoy even brighter, richer, and more vibrant images.
- High Native Contrast: JVC's high-contrast optical block offers a superior native contrast of 80,000:1 and dynamic contrast of infinate:1. With Deep Black Tone Control, the new algorithm added to Generation 2 Frame Adapt HDR, you'll experience dark tones and more contrast than ever before. See more color with the built in cinema filter on the DLANZ700 supporting a wide color gamut equivalent to DCI-P3.
- Jvc Exclusive Gen2 Frame Adapt Hdr Auto Tone Mapping: With JVC's Exclusive Gen2 Frame Adapt HDR Dynamic Tone Mapping Technology, this projector instantly analyzes any HDR10 content frame-by-frame and performs real-time tone mapping to optimal dynamic range for video projection. The algorithm for tone mapping has been further enhanced to achieve HDR images that offer higher detail, are brighter, more colorful, and have a wider dynamic range. Supports HDR formats HDR10, HLG, and HDR10+ content.
- Quick Set Up And Easy Installation: The five installation modes allow users to set different memory settings for lens control, pixel adjustment, masking, aspect ratios, and more. The fully motorized lens can zoom, shift, and focus at the touch of a button. The 80 mm lens has a 70% vertical and 28% horizontal shift. The projector is 35% smaller than the previous model. In addition, the exhaust has been moved to the back of the projector, to eliminate any potential impact of the image.
- Display Master Luminance: The DLANZ700 utilizes DML (Display Master Luminance) metadata, which represents the nit level of the professional monitor used to grade the movie to the director's standard is used to set the dynamic range of the title for improved HDR tone mapping. The DML and maxcll values are used for HDR levels.
- Fine Tune The Laser Output: JVC's BLU-Escent Laser can finely adjust the luminance according to the environment and preference using the Light Source Control slider adjustment. There are a total of 101 (0 – 100) luminance control steps that can make fine adjustments to match the target luminance in the environment and on the screen.
- Warranty: JVC offers a full 3 year warranty, with the 1st year from the date of purchase being an advanced exchange warranty.
Whats Included
- Remote
- Batteries
- Power Cord
- Lens Cover
- Projector
- Remote
- Batteries
- Power Cord
- Lens Cover
- Projector
Q: What is the projector's brightness?
A: The JVC DLANZ700 projector has a white brightness of 2300 lumens.
Q: Does the projector support HDR10+?
A: This projector supports HDR10+ technology.
Q: What is the maximum viewable screen size for the projector?
A: The maximum viewable screen size for the JVC DLANZ700 projector is 200 inches.
Q: What is the native contrast ratio of the projector?
A: The native contrast ratio of the JVC DLANZ700 projector is 80,000:1.
Q: How long does the laser light source last?
A: The laser light source lasts for 20,000 hours in normal mode.
Q: Does the JVC projector have to be mounted on the ceiling?
A: No — the JVC NZ700 (like most high-end projectors) does not have to be ceiling mounted. You have multiple installation options: Ceiling Mount (most common): Keeps the projector out of the way, aligned with the screen, and provides the cleanest setup. Shelf or Table Mounting: Thanks to the NZ700’s motorized lens shift (vertical and horizontal), you can place it on a rear shelf, a table, or even on the floor, and still align the image properly without distorting it. Rear Projection (optional): If you have the space and a suitable screen, the projector can also be configured for rear projection. So, ceiling mounting is recommended for a permanent home theater setup, but it’s not required. The motorized lens controls make the NZ700 very flexible for different room layouts.
Q: Does the price include installation?
A: undefined
Compare similar products
The JVC DLANZ700 is the world's smallest Native 4K projector offering proprietary 0.69-inch D-ILA devices (x3) and a 2300-lumen BLU-Escent Laser. JVC's superior high-contrast optical block allows the DLANZ700 to achieve a 80,000:1 Native Contrast and infinite:1 dynamic contrast ratio delivering images with exceptional reality. The 101-step Laser Light Control adjusts the light output to your viewing preference. The projector offers two HDMI 32 Gbps 4K/60p HDMI/HDCP 2.3 inputs. JVC's DLANZ700 has an 80mm Fully Motorized 4K Lens with 1.6X zoom and a 70% vertical and 28% horizontal shift range. This offers more flexibility with installation. Experience the art of projection with Gen2 Frame Adapt HDR Dynamic tone mapping that analizes at a frame-by-frame level. The new Deep Black Tone Control extends dark tones and detail with greater contrast. DML (Display Mastering Luminance) adjusts/sets the dynamic range for an even better HDR experience. HDR10+ Compatible. With "Vivid" Picture mode, content in SDR formats will come alive with vibrant vivid color. With a built in cinema filter achieve a wide color gamut equivalent to DCI-P3. The DLANZ700 offers 5 customizable preset models for installation. Turn on the basic Clear Motion Drive for smoother video and Multiple Pixel Control (MPC) for increased sharpness and detail. Includes a 3-year warranty with first-year advanced replacement.
The JVC DLANZ500 is the world's smallest Native 4K projector offering proprietary 0.69-inch D-ILA devices (x3) and a 2000-lumen BLU-Escent Laser. JVC's superior high-contrast optical block allows the DLANZ500 to achieve a 40,000:1 Native Contrast and infinite:1 dynamic contrast ratio delivering images with exceptional reality. The 101-step Laser Light Control adjusts the light output to your viewing preference. The projector offers two HDMI 32 Gbps 4K/60p HDMI/HDCP 2.3 inputs. JVC's DLANZ500 has an 80mm Fully Motorized 4K Lens with 1.6X zoom and a 70% vertical and 28% horizontal shift range. This offers more flexibility with installation. Experience the art of projection with Gen2 Frame Adapt HDR Dynamic tone mapping that analizes at a frame-by-frame level. The new Deep Black Tone Control extends dark tones and detail with greater contrast. DML (Display Mastering Luminance) adjusts/sets the dynamic range for an even better HDR experience. HDR10+ Compatible. With "Vivid" Picture mode, content in SDR formats will come alive with vibrant vivid color with a 100% sRGB color gamut. The DLANZ500 offers 5 customizable preset models for installation. Turn on the basic Clear Motion Drive for smoother video and Multiple Pixel Control (MPC) for increased sharpness and detail. Includes a 3-year warranty with first-year advanced replacement.
The sheer beauty of D-ILA images results from over 25 years of JVC engineering and technology. Enhance your home cinema experience with JVC's DLA-NZ800 8K D-ILA Home Theater Projector, featuring two 48Gbps 8K/60p, 4K/120p HDMI inputs. Proprietary Gen3 0.69-inch 4K Native D-ILA devices (x3), a high-quality 17-element, 15-group 65 mm all-glass lens with a full aluminum barrel, and a high-contrast optical block deliver stunning picture quality. The 2,700-lumen BLU-Escent laster light engine offers a 101-step laser light control and a longevity of 20,000 hours. The 2nd generation Frame Adapt HDR function instantaneously analyzes the different peak brightness per scene or frame for HDR10 content and performs real-time tone mapping for optimized brightness, color, and details. Discover images brimming with reality with a native contrast ratio of 100,000:1 translated to a spectacular dynamic contrast ratio of Infinity:1. Pixel perfect Gen2 8K e-shiftX with new 8K Scaling Engine featuring 4-way, multi-axis shift that yields 8,192 x 4,320 pixel projection. The Display Mastering Luminance (DML) adjusts/sets the dynamic range for better HDR experience and Vivid Picture mode enhances SDR content with more saturated colors with greater vividness. The DLA-NZ800 achieves a Color Gamut of over 100% DCI-P3 with a Cinema Filter. Pair this projector with your favorite gaming system with low latency mode and clear motion drive for the smoothest video. JVC's multiple pixel control (MPC) increases sharpness and detail. Motorized lens memory and 10 customized presets make this projector ideal for any screen size or aspect ratio. Controls include Control4, SDDP, LAN, RS-232C, IR, 12V screen trigger out, and 3D sync out. With hand-selected components, ISF certification, and JVC Auto Calibration the DLA-NZ800 offers a True Cinematic Experience. Enjoy piece of mind with a 3 year warranty, alongside a first year advanced replacement. Discover the pure beauty of reality with JVC.

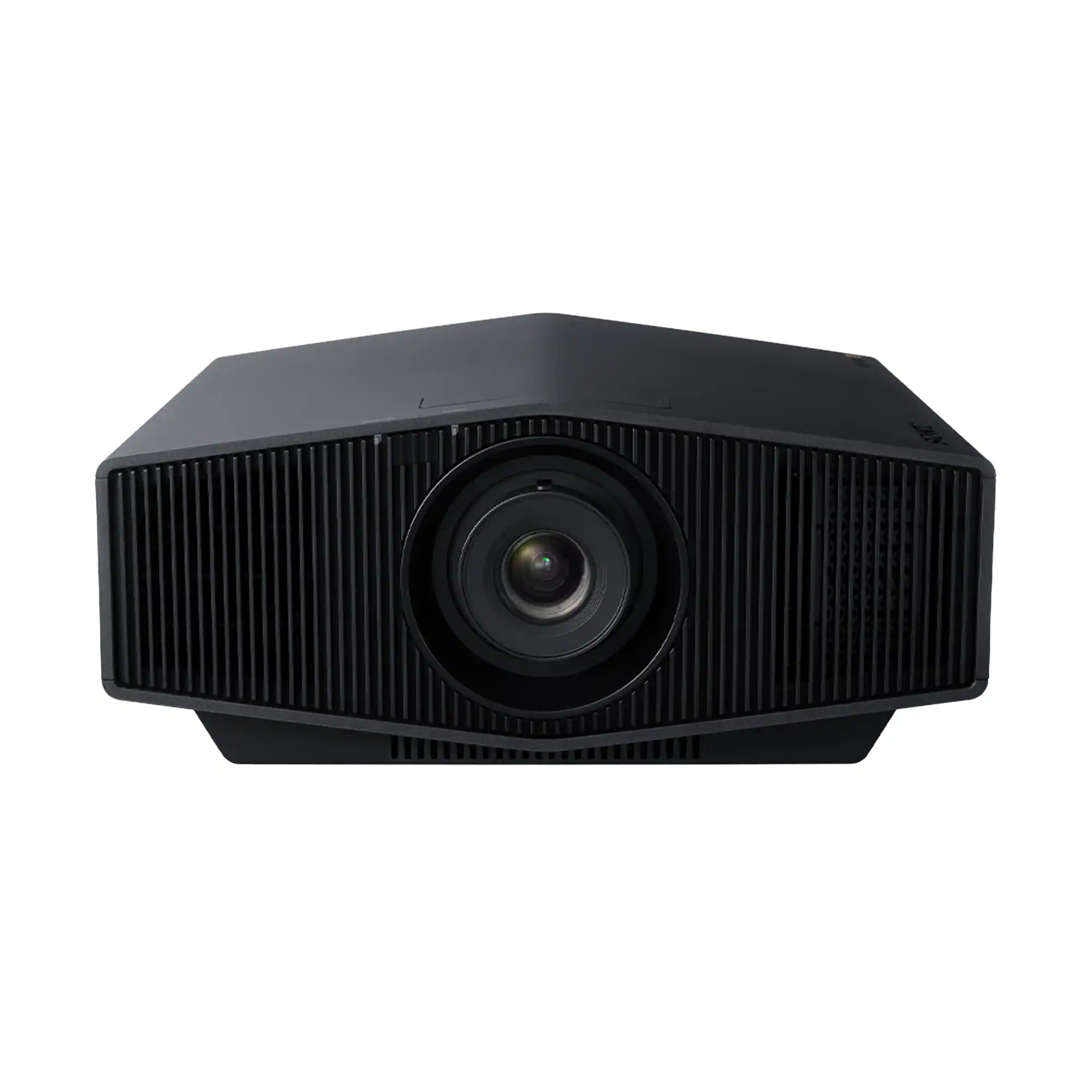

Bring true 4K HDR entertainment into your home with the BRAVIA Projector 7 (VPL-XW5100ES),1 a native 4K laser projector with up to 2,200 lumens of high brightness and the XR Processor for projector.
| Pros for JVC - DLANZ700 LASER D-ILA Native 4K Home Theater Projector, 80K:1 Native Contrast, 4K/60P, HDR10+, Gen2 Frame Adapt HDR - Black | |||
|---|---|---|---|
| There were no pros for this product— | Brightness, Contrast Ratio, Picture Quality | There were no pros for this product— | There were no pros for this product— |
Specs
Reviews
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Why the JVC NZ700 Outclasses the Sony Bravia 7
I believe the JVC NZ700 is absolutely worth the investment. Calibration took some effort at first, but once it was properly set up, the color accuracy was nothing short of phenomenal. I also tested the Sony Bravia 7 in the same price bracket, but ultimately returned it due to the unreliable lens shift mechanism. While Sony advertises 4K/120 fps, in practice it’s not as transformative as expected. The motion is smooth, but there’s still noticeable input lag in fast-paced shooting games, which makes the feature less compelling for serious gamers. Sony is also relying on the same older panel and hardware—charging $10K mainly for a new processor. The JVC NZ700, by contrast, comes equipped with JVC’s latest D-ILA panel, delivering deeper contrast, higher brightness efficiency, and a more refined image overall. It also features a fully motorized lens control system—something Sony doesn’t include at this price point—making setup and adjustments far more precise and convenient. Another important distinction is build quality. The JVC NZ700 is made in Japan with meticulous engineering and premium materials, while the Sony Bravia 7 is manufactured in China. For buyers who value craftsmanship and long-term durability, this is a key advantage that helps the NZ700 hold its value better over time. With its larger, higher-grade panel, superior optics, Japanese build quality, and advanced features, the NZ700 not only delivers best-in-class performance today but is also built to sustain its value and reliability for years to come.
Posted by ShaazA
