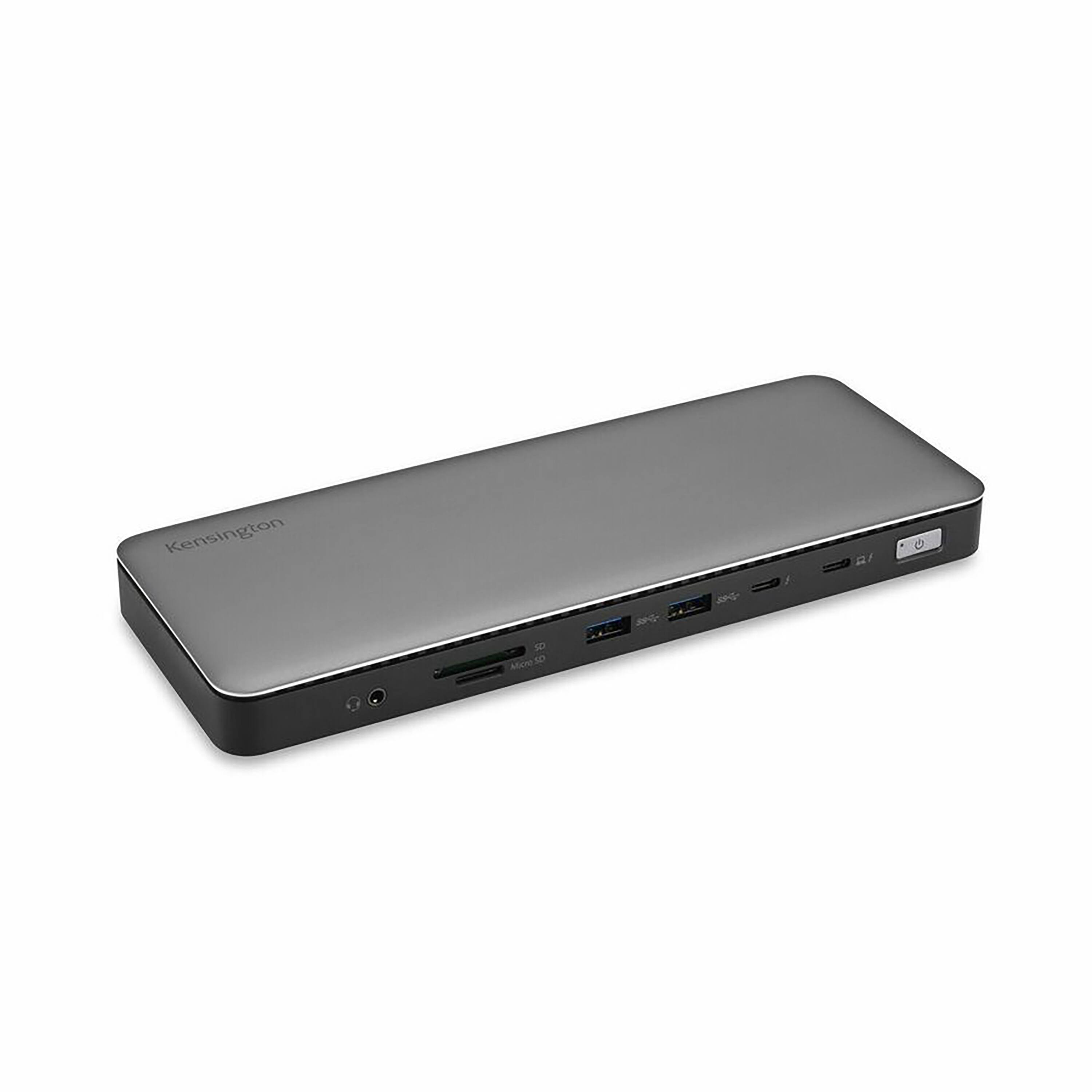

Name: Kensington - SD5765T Thunderbolt 4 Dual 4K Docking Station - Deep Space Grey/Black
Brand: Kensington
SKU: 6604279
Rating: 0 (0 reviews)

Key Specs
- Maximum Number of Displays Supported: 2
- Maximum Supported Resolution: 8K (4320p)
- Number of DisplayPort Outputs (Total): 0
- Number of Thunderbolt Ports (Total): 1
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
General
- Brand: Kensington
- Model Number: K34112NA
- Product Name: SD5765T Thunderbolt 4 Dual 4K Docking Station
- Color: Deep Space Grey/Black
Display
- Maximum Number of Displays Supported: 2
- Maximum Supported Resolution: 8K (4320p)
- Maximum Supported Refresh Rate: 240Hz (The number of frames per second the device can support, expressed as a frequency. Higher rates help produce smooth, seamless pictures.)
Ports
- Display Connector(s): 1 x Thunderbolt 4, 2 x HDMI 2.0 (The number and type of connectors used to connect to an external display.)
- Number of DisplayPort Outputs (Total): 0
- Number of HDMI Ports (Total): 2
- Number of Thunderbolt Ports (Total): 1
- Number of VGA Ports: 0 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
- Number Of Ethernet Ports: 1
- Number of USB Ports (Total): 5
- USB Ports: 4 x USB-A 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Memory Card Slot: true
- Memory Card Type: Secure Digital, microSD
Power
- Powered: true
- Power Supply Included: true
- Power Supply Input: DC Jack
- Maximum Input Power: 134 watts (The maximum amount of power allowed to come into the device.)
- Maximum Input Voltage: 240 volts
- Maximum Input Amperage: 2 amperes (The maximum amount of amperage allowed to come into the device.)
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- Power Supply Output: Thunderbolt 4 (The connector type(s) used by the device to send electrical power to another device.)
- Maximum Output Power: 96 watts (The maximum amount of power produced or allowed to flow through the device.)
Compatibility
- Brand Compatibility: Microsoft
- Model Compatibility: Surface
Features
- Cable Lock Slot: Kensington Security Slot (K-Slot)
- Material: PC + ABS, Aluminum
- Indicator Light(s): true
Dimensions
- Product Height: 0.87 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 3.34 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 8.86 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 12.64 ounces (The out of box weight of the item.)
Warranty
- Warranty - Parts: 3 Year Limited Manufacturer
- Warranty - Labor: 3 Year Limited Manufacturer
Other
- UPC: 085896341123

Ideal for professionals and creatives using Thunderbolt based Surface devices who want more speed to work with large files, support for multiple 4K monitors, and more ports so they can connect to accessories without using adapters, the SD5765T Thunderbolt 4 Dual 4K Docking Station is an affordable high-speed dock that provides everything you need to enhance your productivity now and well into the future. Designed exclusively for Surface, the SD5765T Thunderbolt 4 Dual 4K Docking Station provides more speed, more power, and more video options. Delivering 40Gbps data transfer speeds, support for Single 8K or Dual 4K @ 60Hz, two HDMI ports, multiple USB-C and USB-A ports, up to 96W of dynamic Power Delivery, and daisy chaining via Thunderbolt 4, the SD5765T provides a true plug-and-play experience and a tidier desktop—so you can be more productive and focused.

Designed exclusively for Microsoft Surface: Kensington worked directly with Microsoft to provide professionallevel connectivity that looks as good as it functions. Connect with confidence for a seamless dock and charge experience.
Plug and play: Offers a quick and powerful plug-and-play solution for Thunderbolt based Surface devices running Windows (10 or later).
Thunderbolt 4 technology: Transfer up to 40Gbps of data, video, and audio— all through the included 2.6’ (0.8m) Thunderbolt 4 cable. Blocks peripheral devices from unauthorized access to your system memory using Intel VT-d DMA protection.
Single 8K or dual 4K support for Thunderbolt devices: Extend visual productivity with the resolution, contrast, and color depth of Ultra HD. Supports up to single 8K @ 60Hz via a Thunderbolt 4 port or dual 4K @ 60Hz via two HDMI ports.
Up to 96W dynamic power delivery: Delivers power whenever and wherever you need it—to host and connected accessories. Supports up to 96W of Power Delivery and provides optimal performance under any usage scenario.
Multiple and varied ports: Extend your productivity with 2 HDMI, 1 Thunderbolt 4, a Thunderbolt 4 host port, 1 USB-C 3.2 Gen2 10Gbps, 2 USB-A 3.2 Gen2 10Gbps, 2 USB-A 3.2 Gen1 5Gbps, 1 Gigabit Ethernet, 1 audio combo jack, and 2 UHS-II 4.0 SD and micro SD card readers.
Zero-footprint mounting and security cable lock slots: Maximize desktop space by mounting your docking station out of the way. Mounting bracket sold separately (K34050WW). Standard and Nano lock slots allow you to protect your investment with a Kensington cable lock (K65020WW or K65021WW), sold separately.
Designed exclusively for Microsoft Surface: Kensington worked directly with Microsoft to provide professionallevel connectivity that looks as good as it functions. Connect with confidence for a seamless dock and charge experience.
Plug and play: Offers a quick and powerful plug-and-play solution for Thunderbolt based Surface devices running Windows (10 or later).
Thunderbolt 4 technology: Transfer up to 40Gbps of data, video, and audio— all through the included 2.6’ (0.8m) Thunderbolt 4 cable. Blocks peripheral devices from unauthorized access to your system memory using Intel VT-d DMA protection.
Single 8K or dual 4K support for Thunderbolt devices: Extend visual productivity with the resolution, contrast, and color depth of Ultra HD. Supports up to single 8K @ 60Hz via a Thunderbolt 4 port or dual 4K @ 60Hz via two HDMI ports.
Up to 96W dynamic power delivery: Delivers power whenever and wherever you need it—to host and connected accessories. Supports up to 96W of Power Delivery and provides optimal performance under any usage scenario.
Multiple and varied ports: Extend your productivity with 2 HDMI, 1 Thunderbolt 4, a Thunderbolt 4 host port, 1 USB-C 3.2 Gen2 10Gbps, 2 USB-A 3.2 Gen2 10Gbps, 2 USB-A 3.2 Gen1 5Gbps, 1 Gigabit Ethernet, 1 audio combo jack, and 2 UHS-II 4.0 SD and micro SD card readers.
Zero-footprint mounting and security cable lock slots: Maximize desktop space by mounting your docking station out of the way. Mounting bracket sold separately (K34050WW). Standard and Nano lock slots allow you to protect your investment with a Kensington cable lock (K65020WW or K65021WW), sold separately.
