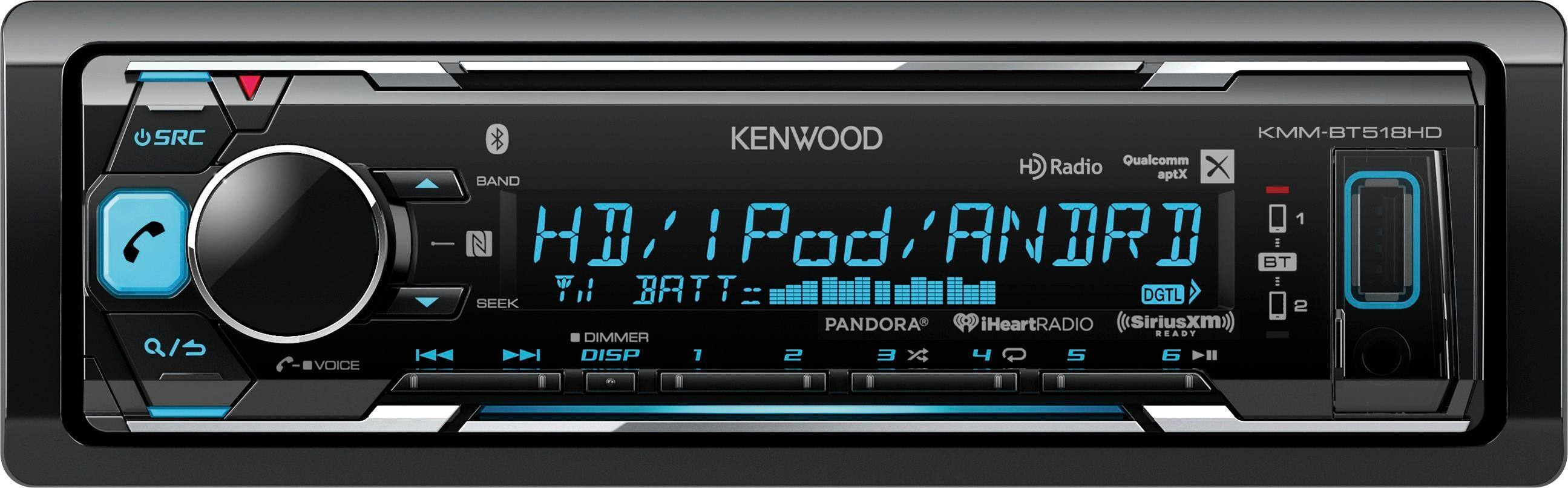

Kenwood - In-Dash Digital Media Receiver - Bluetooth - Satellite Radio-ready with Detachable Faceplate - Black

Name: Kenwood - In-Dash Digital Media Receiver - Bluetooth - Satellite Radio-ready with Detachable Faceplate - Black
Brand: Kenwood
SKU: 5713527
Rating: 4.4 (183 reviews)

Model: KMM-BT518HD

SKU: 5713527

This item is no longer available in new condition. See similar items below

Key Specs
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Bluetooth Enabled: true (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Tuner Type(s): AM/FM, Satellite Ready
- CD Player: false
- Selectable Color Illumination: true
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
General
- Brand: Kenwood
- Model Number: KMM-BT518HD
- Product Name: In-Dash Digital Media Receiver - Bluetooth - Satellite Radio-ready with Detachable Faceplate
- Color: Black
Audio
- Watts Per Channel: 50 watts
- RMS Power: 22 watts (The maximum amount of continuous power the device is able to handle.)
- Number Of Channels: 4
- Preamp Outputs: Front
- Preamp Output Level: 4 volts
Compatibility
- Mount Style: Single DIN
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Mobile Operating System Compatibility: Apple iOS, Android
- Bluetooth Enabled: true (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Front Facing Inputs: USB
- Rear Facing Inputs: USB
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
Tuner
- Tuner Type(s): AM/FM, Satellite Ready
- Satellite Radio: No
- Receivers With HD Radio: true
Players
- CD Player: false
- DVD Player: false
Features
- USB Device Charging: true
- Hands-Free Calling: true
- Number of Calling Presets: 6
- Built-In Microphone: false
- External Microphone: Included
- Remote Control Included: false
- Marine: false
- EQ Presets: true
Display
- Screen Type: LED
- Touch Screen: false (Touch-screen devices make navigating more intuitive. Using a touch-screen display, you can do things such as tap to select, hold and drag to move items, swipe to scroll, and pinch to zoom.)
- Display Color: Variable
- Selectable Color Illumination: true
- Faceplate Style: Detachable
Dimensions
- Product Height: 2.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 6.2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 2 pounds (The out of box weight of the item.)
Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
Other
- UPC: 019048217769

Upgrade your vehicle's sound system with this Kenwood receiver. It has built-in Bluetooth connectivity for easy music streaming and an HD radio tuner and multiple internet radio stations for versatile listening options. The USB port on the front of this Kenwood receiver makes it convenient to connect a smartphone or iPod.
Geek Squad® installation is strongly recommended for this product. Please visit your local Best Buy store for details.

WAV, WMA, AAC, and more playback formats: Offer versatile listening options.
Tap into your device's music library: Bluetooth connectivity and USB port allow you to connect your device and play music.
You're ready for Satellite Radio: Features the control and display functionality to support SiriusXM Satellite Radio. Tuner and subscription required for activation (not included).
Customize how your audio sounds: Use the customizable EQ and EQ presets to get the perfect audio quality for your music.
Control your favorite music apps: Once you've connected your phone, you can control the Pandora radio app or iHeartRadio app right from your receiver.
Apple iPhone- and iPod-ready: Lets you connect your compatible cell phone or portable audio device, so you can control music playback.
Connect your receiver to devices and speakers: Use the 3.5mm auxiliary input or the USB port to connect your device. It also has subwoofer output.
WAV, WMA, AAC, and more playback formats: Offer versatile listening options.
Tap into your device's music library: Bluetooth connectivity and USB port allow you to connect your device and play music.
You're ready for Satellite Radio: Features the control and display functionality to support SiriusXM Satellite Radio. Tuner and subscription required for activation (not included).
Customize how your audio sounds: Use the customizable EQ and EQ presets to get the perfect audio quality for your music.
Control your favorite music apps: Once you've connected your phone, you can control the Pandora radio app or iHeartRadio app right from your receiver.
Apple iPhone- and iPod-ready: Lets you connect your compatible cell phone or portable audio device, so you can control music playback.
Connect your receiver to devices and speakers: Use the 3.5mm auxiliary input or the USB port to connect your device. It also has subwoofer output.

Whats Included

Kenwood In-Dash Digital Media Receiver - Bluetooth - Satellite Radio-ready with Detachable Faceplate
Kenwood In-Dash Digital Media Receiver - Bluetooth - Satellite Radio-ready with Detachable Faceplate

Product Manuals

Q: Is the USB rapid charge?

A: No the USB is not

Q: how many watts?

A: This drives 50 watts per channel.

Q: Will this fit 2000 Accord? USB Charge iPhones?

A: Yes and yes

Q: show me wire diagram.foryl1-001k-00

A: Kenwood can provide installation diagram.

Q: how do I wire it up.

A: You will need an adapter harness that's specific to your vehicle,if you're not to sure I would seek a pro installer.

Q: Will this radio play a input signal from a DVD for audio through the speakers while video being shown through a 24" screen . This is in a mobile store

A: The unit has a 3.5mm AUX input, so if you can output audio from your DVD to this, I imagine you could do so.

Q: Will this fit in a 95 Chevy 1500 and link with a Moto e4?

A: It will fit into almost any vehicle with a corresponding dash mounting kit and wiring adapter harness. Best Buy guys can tell you what dash kit & harness you need, and they likely won't be too much more.

Q: Would it fit a 2011 Ford Fusion

A: Can’t tell without seeing the dash, but if you go to Best Buy they sales associate can advise.

Customers are saying

Customers are enthusiastic about the sound quality and Bluetooth connectivity of the In-Dash Digital Media Receiver. They appreciate the clear sound and the convenience of using Bluetooth without the need for CDs. The installation process is also praised for its smoothness. While some customers find the display to be small and ineffective, and others miss having a CD player, the overall sentiment is positive, with many customers expressing satisfaction with the product's features and price.

This summary was generated by AI based on customer reviews.

Customer Images

The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.

Rated 4 out of 5 stars
Better than stock HU in '06 NC MX5 Miata
Just installed this today in ‘06 NC MX5 Miata; better than stock, so far so good. My 2006 NC Non-Bose came with nice new Rockford Fosgate speakers in the doors, but the OEM head unit just couldn’t drive them enough. Some music / podcasts were barely audible even with the volume knob all the way up. Dramatic difference in volume, especially with Bluetooth music. Much better bass response even with EQ settings untweaked. I picked this one because it was relatively cheap, but offered HD Radio which sets it apart. It’s the next best thing to having satellite radio because it also gives extra channels (similar to HDTV), but for free over-the-air. It’s a digital media receiver so no CD, which I’m ok with. It also saves on weight (“adds lightness”) and space (does not extend as far behind the face plate). I also did the Metra ASWC-1 steering wheel control adapter, and surprisingly had no issues. Only a few of the wires are required, and the vehicle-specific guide helped tremendously. It says to connect to wires on the backside of the vehicle dash harness, but I elected instead to connect to the corresponding wires coming out of the Metra 70-7903 harness adapter. White/green wire from the ASWC-1 connects to the brown wire coming from the dash harness adapter. This is called 1N. Color may be different on the dash connector; what’s important is the position. The black/grey wire goes to ground; I basically crimped all of the ground wires together and that seems to work ok. The Kenwood harness has a light blue & yellow wire for steering wheel control; this connects to the brown wire coming from the 3.5mm plug on the ASWC-1. It auto-detected and programmed itself, and all left-side buttons work. The MUTE button doesn’t mute completely, only attenuates the volume. The MODE button switches between sources. It seems a bit muddled in FM until the HD radio signal kicks in. But I’ll likely forget about these once in motion. :-) I used the Metra dash kit; finish is ok and everything fit in ok. It kind of sticks out proud at the top edge but it’s even side-to side, and flush on the left & right sides. This deck came with a DIN mounting cage, but I decided to go with the ISO DIN brackets that attach to the sides and the clip into the faceplate. Much more secure and better fit. Matching trim ring included to keep the matte finish. Slight gap under the bottom edge of the deck but I don’t notice in the vehicle.
Posted 7 years ago by peacefrog0521
Rated 4 out of 5 stars
Good upgrade for an old stereo!
Upgraded my '04 stereo; now I have Bluetooth and auxiliary.
Posted 8 years ago by XPoint
Rated 4 out of 5 stars
Good value for the money
I was looking to replace the radio in a 1996 Honda Accord. I just wanted Bluetooth and be able to use my phone for music and listen audiobooks. I was basically looking for a no frills unit. I had read previous reviews and this unit fit the bill perfectly. I had read from previous reviews the display is hard to read in daylight but this was not a concern to me. Excellent value for the money. Hands free calling is a bonus I didn’t know this unit had.
Posted 8 years ago by Govenor2
