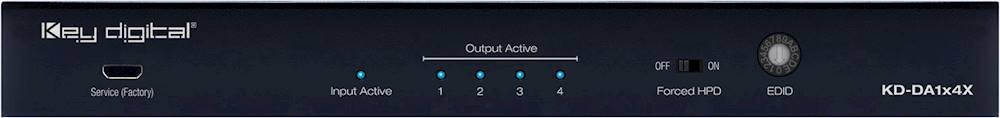

Name: Key Digital - HDMI Distribution Amplifier - Black
Brand: Key Digital
SKU: 6412878
Rating: 5 (1 reviews)

General
- Brand: Key Digital
- Model Number: KD-DA1X4X
- Product Name: HDMI Distribution Amplifier
- Color: Black
- Distribution Amplifier Type: Rack
Features
- Indicator Lights: true
- Number Of Inputs: 1
- Number of Outputs: 4
Connectivity
- Input(s): HDMI
- Output(s): 3.5mm audio, HDMI, Toslink optical
Compatibility
- Maximum Supported Resolution: 4096 x 2160 (4K)
- Surround Sound Supported: DTS-HD Master Audio, Dolby Atmos, Dolby Digital Plus, Dolby TrueHD (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
Dimensions
- Product Height: 1.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 6.25 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 3.1 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
Other
- UPC: 815996021010

Supply a single video signal across multiple displays with this Key Digital HDMI distribution amplifier. Compatibility with HDCP 2.2 supports up to four HDMI outputs and a wide range of resolutions for versatility. This Key Digital HDMI distribution amplifier features HDR10 and lossless compressed digital audio technology for an immersive viewing experience.

HDMI distribution amplifier: Provides distribution from one HDMI source to four HDMI outputs.
High-resolution video: Offers 4K Ultra HD video quality with HDR10 support for a perfect picture.
Lossless compressed digital audio: Supports Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, and Dolby Atmos for excellent sound.
Audio de-embedder: The audio of the selected HDMI input is output at the digital optical and analog 3.5mm stereo connectors.
Full Buffer System: Manages TMDS re-clocking/signal re-generation, HDCP authentication to source and display, and EDID Control handshake.
EDID management: Internal library with 15 internal EDID handshakes, including 4K with HDR in addition to native EDID data copied from the output or display.
CEC disconnect: Prevents unwanted control of the source.
HDMI distribution amplifier: Provides distribution from one HDMI source to four HDMI outputs.
High-resolution video: Offers 4K Ultra HD video quality with HDR10 support for a perfect picture.
Lossless compressed digital audio: Supports Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, and Dolby Atmos for excellent sound.
Audio de-embedder: The audio of the selected HDMI input is output at the digital optical and analog 3.5mm stereo connectors.
Full Buffer System: Manages TMDS re-clocking/signal re-generation, HDCP authentication to source and display, and EDID Control handshake.
EDID management: Internal library with 15 internal EDID handshakes, including 4K with HDR in addition to native EDID data copied from the output or display.
CEC disconnect: Prevents unwanted control of the source.
