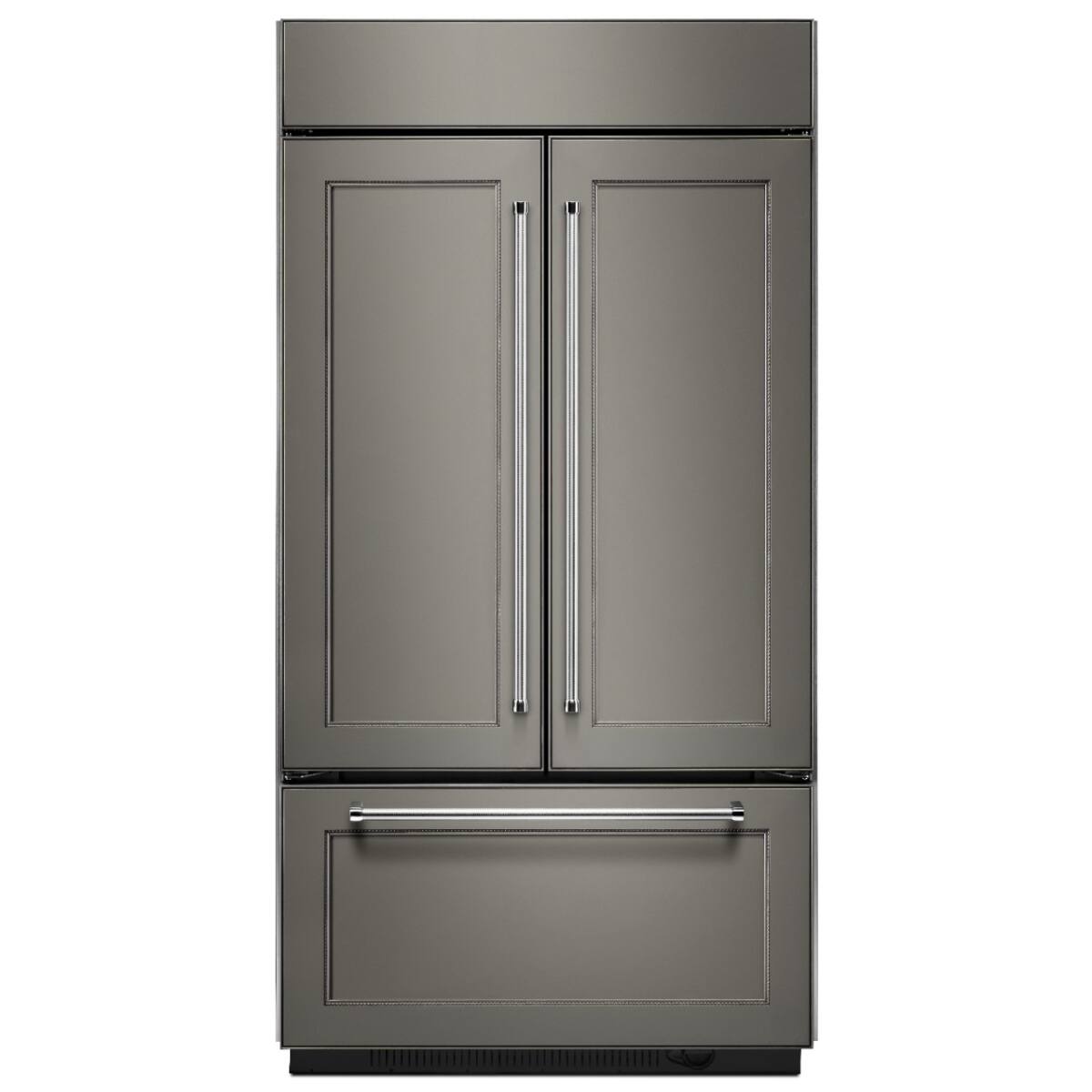

KitchenAid - 24.2 Cu. Ft. 42" Width Built-In Panel Ready French Door Refrigerator with Platinum Interior Design - Custom Panel Ready

Model: KBFN502EPA
SKU: 7138105
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Color Finish: Custom
    • Product Height: 83.375 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 41.25 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Height To Top Of Refrigerator (Without Hinges): 83 3/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
    • Height To Top Of Door Hinge: 83.375 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
    • Depth Without Handle: 25.125 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
    • Depth With Handle: 27 3/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
    • Total Capacity: 6.42 cubic feet
    • Refrigerator Style: French Door
    • Lighting Type: LED
    • Ice Maker: Optional
    • App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
  • General
    • Brand: KitchenAid
    • Model Number: KBFN502EPA
    • Product Name: KitchenAid - 24.2 Cu. Ft. 42" Width Built-In Panel Ready French Door Refrigerator with Platinum Interior Design
    • Color: Custom Panel Ready
    • Color Finish: Custom
  • Dimensions
    • Product Height: 83.375 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 41.25 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 27.75 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Height To Top Of Refrigerator (Without Hinges): 83 3/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
    • Height To Top Of Door Hinge: 83.375 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
    • Standardized Width: 24 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
    • Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
    • Depth Without Handle: 25.125 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
    • Depth With Handle: 27 3/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
    • Depth Without Door: 23 3/8 inches (Measurement from the back of the product to its front, not including the door.)
    • Depth With Door 90 Degrees Open: 44 1/4 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
    • Product Weight: 570 pounds (The out of box weight of the item.)
  • Cut-Out Dimensions
    • Cut-Out Height: 83.5 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
    • Cut-Out Width: 41.5 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
    • Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
  • Capacity
    • Total Capacity: 6.42 cubic feet
    • Refrigerator Capacity: 17.75 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
    • Freezer Capacity: 6.42 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
  • Features
    • Configuration: Built-in (The size, arrangement, and physical configuration of the product.)
    • Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
    • Refrigerator Style: French Door
    • Fingerprint Resistant: false
    • Convertible Temperature Zone: false (Refrigerators with this feature include a separate compartment with independent temperature controls from the main product. These compartments offer a flexible space that allows you to change the temperature based on your additional storage needs. Whether it’s a place to chill beverages for an evening with friends, keep snacks cool, or even provide extra freezer space.)
    • Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
    • Temperature Control Type: Electronic
    • Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
    • Hinge Setting: Not Applicable
    • Lighting Type: LED
  • Ice & Water
    • Ice Maker: Optional
    • Ice Maker Location(s): Freezer
    • Ice and Water Dispenser: None
  • Storage
    • Number of External Doors/Drawers: 3
    • Number of Refrigerator Shelves: 4
    • Refrigerator Shelf Style: Adjustable, Fixed
    • Gallon Door Storage: true (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
    • Humidity-Controlled Crisper: true
    • Refrigerator Shelf Material: Glass
  • Freezer Info
    • Freezer Compartment: true
    • Freezer Location: Bottom
    • Freezer Door Type: Pull Out Drawer
    • Freezer Shelf Material: Other
    • Freezer Interior Light: true
  • Filter Info
    • Water Filtration: true
    • Water Filter Model Number: EDRARXD1 (The water filter model(s) recommended for use with the product.)
  • Electrical
    • Amperage: 15 amperes (Strength of electrical current.)
    • Voltage: 120 volts (Amount of power needed to support an electrical current.)
    • Estimated Annual Electricity Use: 633 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
    • Estimated Annual Operating Cost: 76 United States dollars (Predicted cost of operating the product under average conditions for one year.)
  • Certifications Listings & Approvals
    • ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
    • ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
    • Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
    • Chemical Disclosures: "This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. Mandatory reporting is not required until January 1, 2025. Whirlpool Corporation is in the process of gathering more information on PFAS use across our supplier base, and will update this disclosure as we learn more. For more information about chemicals in this product, visit www.whirlpool.com/regulatory.html. [Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. No se requieren informes obligatorios hasta el 1 de enero de 2025. Whirlpool Corporation está en el proceso de recopilar más información sobre el uso de PFAS en nuestra base de proveedores y actualizará esta divulgación a medida que sepamos más. Para obtener más información sobre los químicos en este producto, visite www.whirlpool.com/regulatory.html.] " (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
  • Warranty
    • Warranty - Parts: 1 year limited
    • Warranty - Labor: 1 year limited
  • Compatibility
    • App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
  • Other
    • UPC: 883049336923

Outside, this built-in panel-ready French door refrigerator seamlessly integrates with your kitchen cabinetry. Inside its Preserva® Food Care System features three technologies that work in concert to assure crisp produce and deliciously flavorful foods while helping to eliminate refrigerator odors and the beautiful glossy silver Platinum Interior Design highlights the metallic accents of the shelves, crisper and baskets

  • Panel Ready: Allows the refrigerator to be customized to match surrounding cabinets with custom panels and handles (not included).
  • Preserva Food Care System: Two independent cooling systems provide a dedicated refrigeration unit to help keep food fresh longer, and a separate system for frozen food. The FreshFlow Air Filter helps minimize odors while the FreshFlow Produce Preserver helps delay over-ripening.
  • Platinum Colored Interior with Metallic Accents: Brings premium style inside the refrigerator to complement the quality ingredients you keep on hand. Sleek silver colored walls accented by metallic trim on shelves, drawers and door bins offer a step up from the standard white interior.
  • Automatic Ice Maker: Ensures that you have a constant supply of ice for entertaining.
  • LED Lighting: Uses less energy than incandescent bulbs. Multiple lights are purposefully placed throughout the refrigerator and freezer, making it easy to find items at a glance.
Whats Included
  • KitchenAid 24.2 Cu. Ft. French Door Refrigerator with Panel Ready Design
  • Warranty
  • Owners Manual
Documents
  • Energy_Guide_PDF

Q: Does this refrigerator have a door alarm?

A: Yes, this refrigerator has a door alarm that alerts you when the door is left open.

Q: Does this refrigerator have humidity-controlled crispers?

A: Yes, this refrigerator has humidity-controlled crispers.

Q: Is the water filtered in this refrigerator?

A: Yes, the water is filtered in this refrigerator.

Q: Are there electronic controls on this refrigerator?

A: Yes, this refrigerator has electronic controls.

Q: Does this refrigerator come with an automatic ice maker?

A: Yes, this refrigerator has an automatic ice maker.

Q: Does this refrigerator have LED interior lighting?

A: Yes, this refrigerator has LED interior lighting.

Q: Does this refrigerator have a door open alarm?

A: Yes, this refrigerator has a door-open alarm.

Q: Does this refrigerator have an automatic defrost feature?

A: Yes, this refrigerator has an automatic defrost feature to simplify maintenance.
