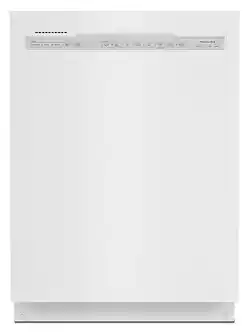

KitchenAid - 24" Front Control Built-In Stainless Steel Tub Dishwasher with ProWash and 47 dBA - White
Model: KDFE104KWH
SKU: 6473503
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: White
- Product Height: 33 5/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 47 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 2
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 12 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: KitchenAid
- Model Number: KDFE104KWH
- Product Name: 24" Front Control Built-In Stainless Steel Tub Dishwasher with ProWash and 47 dBA
- Color: White
- Color Finish: White
- Dimensions
- Product Height: 33 5/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 24 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 24 1/2 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth With Door Open: 51 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 89 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 34 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: false (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Drying Method: Heated drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 47 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Filtered Water: true (Internal water filter(s) remove minerals and chemicals from hard water before the wash cycle. Filtered water is less likely to leave mineral deposits or stains, meaning your dishware will look cleaner for longer.)
- Water Soil Sensor: false (Feature that measures how dirty the water is throughout the wash cycle and adjusts the energy and water usage as needed. This can increase washing efficiency and may reduce energy costs.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cycle Specifications
- Number of Cycles: 5 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Dishwasher Cycles: Express Wash; Normal; ProWash; Rinse; Tough
- Options and Programs: Extended Heat Dry; 4 Hour Delay; Control Lock; Heated Dry; Hi Temp Wash; Sani Rinse
- Sensor Wash: true (Feature that automatically senses the load's soil levels and adjusts the wash cycle as needed. This often results in reduced water usage, which in turn may reduce energy costs.)
- Steam Cleaning: false (Wash cycle that primarily uses steam to loosen food debris and clean fragile dishware without force.)
- Steam Pre-Wash: false (Loosens food debris by creating steam inside the washer before the primary wash cycle, allowing for an easier, gentler clean of dishware.)
- NSF-Certified Sanitization Cycle: true (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Water Consumption Per Cycle: 2.5 gallons (Estimated amount of water used during a standard wash cycle. Most standard-size dishwashers today use an average of 3-6 gallons.)
- Rack Features
- Number Of Racks: 2
- Upper Rack Features: Adjustable height, Ball-tipped tines, Cup shelf, Glide rail, Stemware holders (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Ball-tipped tines, Glide rail, Silverware basket (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Rack Material: Nylon
- Design
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Touchpad
- Control Location: Front control
- Handle Type: Pocket handle
- Fingerprint Resistant: false
- Place Setting Capacity: 12 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Integrated Water-Softener: false (A built-in water softener that automatically filters minerals from hard water to clean your dishes, reducing clouding, streaks, hard-water stains, or mineral deposit build-up.)
- Electrical Specification
- Estimated Annual Electricity Use: 270 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 35 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Other
- UPC: 883049540597
Because no two meals or the dishes that result are exactly the same, this dishwasher features the ProWash Cycle, which automatically adapts settings for different loads. An adjustable upper rack adds flexibility to fit tall items. Heated drying ensures dishes come out ready for your next creation.
- 47 dBA: Provides quiet cleaning without compromising performance, so there’s no need to wait to run a wash cycle while entertaining and enjoying meals, even in open concept kitchens.
- ProWash Cycle: Uses sensors to measure soil levels throughout the cycle and adapts wash time and water temperature as needed for tough messes or lighter loads, because no two meals or the dishes that result are exactly the same.
- Adjustable Upper Rack: Adds flexibility to fit tall items like a stand mixer bowl. Lower the rack to place large dishes inside or raise it to make room for platters, pitchers, blender jars and more in the rack below.
- Heat Dry Option: Heats both the final rinse water and the air inside the dishwasher to help dishes come out dry and ready for your next creation.
- Extended Heat Dry Option: Increases the cycle time for excellent drying performance.
- Durable Stainless Steel Interior: Offers the beauty and benefits of stainless steel inside the dishwasher. It resists streaks, stains and odors, while retaining heat to help improve drying.
- SatinGlide Rails in Upper Rack: Move smoothly for easy loading and unloading.
- Fold-Down Shelf with Stemware Holders: Features molded indents that fit wine glass stems to secure them in the upper rack during washing. The space on top of the shelf also accommodates small cups or longer items like utensils and spatulas.
- Express Wash Cycle: Cleans in less time, so you always have the dishes you need while prepping, cooking and entertaining.
- Sani-Rinse Option: Eliminates 99.999% of food soil bacteria by adding a high-heat final rinse to sanitize dishes.
- Triple Filtration System: Uses three levels of filtration to remove food particles during the wash and rinse cycles. This ensures clean water circulates through the wash arms and onto dishes, even with dirty cookware in the load.
- Leak Detection System: Provides peace of mind with three levels of protection against potential sources of leaks, from multiple sensing points with a water flow monitor and drip tray. If the system detects a problem, the dishwasher will stop filling, drain the tub and alert that service is needed.
- 47 dBA: Provides quiet cleaning without compromising performance, so there’s no need to wait to run a wash cycle while entertaining and enjoying meals, even in open concept kitchens.
- ProWash Cycle: Uses sensors to measure soil levels throughout the cycle and adapts wash time and water temperature as needed for tough messes or lighter loads, because no two meals or the dishes that result are exactly the same.
- Adjustable Upper Rack: Adds flexibility to fit tall items like a stand mixer bowl. Lower the rack to place large dishes inside or raise it to make room for platters, pitchers, blender jars and more in the rack below.
- Heat Dry Option: Heats both the final rinse water and the air inside the dishwasher to help dishes come out dry and ready for your next creation.
- Extended Heat Dry Option: Increases the cycle time for excellent drying performance.
- Durable Stainless Steel Interior: Offers the beauty and benefits of stainless steel inside the dishwasher. It resists streaks, stains and odors, while retaining heat to help improve drying.
- SatinGlide Rails in Upper Rack: Move smoothly for easy loading and unloading.
- Fold-Down Shelf with Stemware Holders: Features molded indents that fit wine glass stems to secure them in the upper rack during washing. The space on top of the shelf also accommodates small cups or longer items like utensils and spatulas.
- Express Wash Cycle: Cleans in less time, so you always have the dishes you need while prepping, cooking and entertaining.
- Sani-Rinse Option: Eliminates 99.999% of food soil bacteria by adding a high-heat final rinse to sanitize dishes.
- Triple Filtration System: Uses three levels of filtration to remove food particles during the wash and rinse cycles. This ensures clean water circulates through the wash arms and onto dishes, even with dirty cookware in the load.
- Leak Detection System: Provides peace of mind with three levels of protection against potential sources of leaks, from multiple sensing points with a water flow monitor and drip tray. If the system detects a problem, the dishwasher will stop filling, drain the tub and alert that service is needed.
Whats Included
- KitchenAid 24" Front Control Built-In Stainless Steel Tub Dishwasher with ProWash and 47 dBA
- KitchenAid 24" Front Control Built-In Stainless Steel Tub Dishwasher with ProWash and 47 dBA
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
A: It does have a small spray arm up top that does spray downward on the top rack. I know I said it is a small spray arm but I have had no problems with the dishes up top to be cleaned quite well after every wash.
Q: Where is the water connection underneath the unit? Left front?
A: Hello Hofty, please feel free to view the Installation Instructions for this model at the link provided. bit.ly/3khaEVZ Thank you for your inquiry on our KitchenAid appliances.
A: Hello warrenty! We would recommend using affresh® Dishwasher cleaner. Thank you for your inquiry on our KitchenAid appliances.
Q: dose this model have heated dry on all cycles or only available on pro wash cycle?
A: Hello nini, yes, heated dry is available on all cycles. We hope this helps.
Q: Is there any care requirements for the Printshield? How long does it last?
A: Hello, per the Owner's Manual: Exterior Cleaning Clean the exterior of dishwasher with a soft, damp cloth and mild detergent. Avoid using abrasive cleaning products on the exterior of the dishwasher. Abrasive cleaning products can damage the finish. Thank you for your inquiry on our KitchenAid appliances.
Q: How long are the wash cycles?
A: A full clean dry about 50 minutes
Q: Is the noise low when turned on?
A: Hello, this model has a dBA sound rating of 47. Thank you for your inquiry on our KitchenAid appliances.
