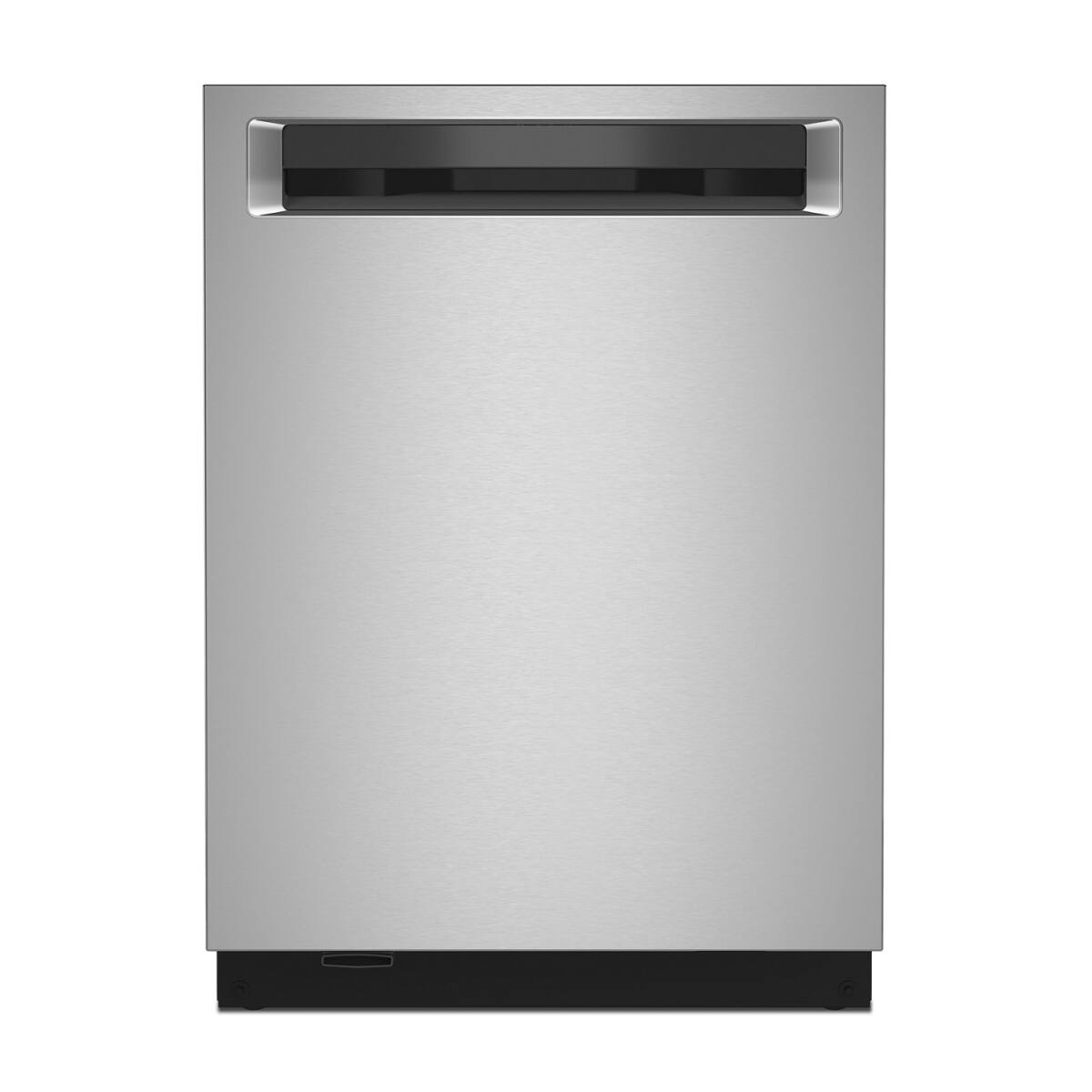

KitchenAid - 24" Top Control Built-in Tub Dishwasher with 3rd Rack, 360 Max Jets, 44 dBA - Stainless Steel - Stainless Steel with PrintShieldâ„¢ Finish
Model: KDPM804KPS
SKU: 6398254
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 33.625 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23.875 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 44 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 3
- Tub Finish: Hybrid stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: KitchenAid
- Model Number: KDPM804KPS
- Product Name: KitchenAid - 24" Top Control Built-in Tub Dishwasher with 3rd Rack, 360 Max Jets, 44 dBA - Stainless Steel
- Color: Stainless Steel with PrintShieldâ„¢ Finish
- Color Finish: Stainless steel
- Dimensions
- Product Height: 33.625 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23.875 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 24.5 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 24 1/2 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth With Door Open: 51 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 105 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 34 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: false (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Drying Method: Heated drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 44 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Filtered Water: true (Internal water filter(s) remove minerals and chemicals from hard water before the wash cycle. Filtered water is less likely to leave mineral deposits or stains, meaning your dishware will look cleaner for longer.)
- Water Soil Sensor: true (Feature that measures how dirty the water is throughout the wash cycle and adjusts the energy and water usage as needed. This can increase washing efficiency and may reduce energy costs.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cycle Specifications
- Number of Cycles: 5 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Dishwasher Cycles: Express Wash, Normal, ProWash, Rinse, Tough
- Options and Programs: Top 2 Racks, Extended ProDry, 1-24 Hour Delay, Hi Temp Wash, ProDry, Sani Rinse
- Sensor Wash: false (Feature that automatically senses the load's soil levels and adjusts the wash cycle as needed. This often results in reduced water usage, which in turn may reduce energy costs.)
- Steam Cleaning: false (Wash cycle that primarily uses steam to loosen food debris and clean fragile dishware without force.)
- Steam Pre-Wash: false (Loosens food debris by creating steam inside the washer before the primary wash cycle, allowing for an easier, gentler clean of dishware.)
- NSF-Certified Sanitization Cycle: true (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Water Consumption Per Cycle: 2.4 gallons (Estimated amount of water used during a standard wash cycle. Most standard-size dishwashers today use an average of 3-6 gallons.)
- Rack Features
- Number Of Racks: 3
- Third Rack Features: Glide rail, Removable (Aspects of third rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Upper Rack Features: Adjustable tines, Glide rail, Removable, Stemware holders (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Adjustable tines, Glide rail, Silverware basket, Utility basket (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Rack Material: Nylon
- Design
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Hybrid stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Location: Top control
- Display Type: LED
- Handle Type: Pocket handle
- Fingerprint Resistant: true
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Electrical Specification
- Estimated Annual Electricity Use: 270 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 35 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 0 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 883049532790
Fall in love at first wash with this top control dishwasher’s MaxTub largest dishwasher tub,* over 50 total wash jets and TRUE self-cleaning filtration that eliminates pre-rinsing and manual filter cleaning. The only third rack with 360° wash jets fits 10 extra glasses and mugs,** freeing up space for larger items below. Ultra-Bright LED Lighting turns on when the door is open to illuminate loading and unloading. And the Fan-Enabled ProDry™ System circulates hot air after the wash cycle to give dishes a thorough dry. *Based on usable volume. **Compared to KDTE204K and KDFE204K models.
- FreeFlex third rack: The large third rack has a deep, angled design that fits 6" glasses, mugs, and bowls.
- 44dBA: Provides quiet cleaning without compromising performance, so there's no need to wait to run a wash cycle while entertaining and enjoying meals even in open concept kitchens.
- Advanced clean-water wash system: Uses microfiltration to continuously remove food particles during the wash and rinse cycles and circulates clean water to dishes in all three racks. This allows dirty cookware and delicate glassware to be washed together in the same load.
- Fan-enabled ProDry system: Combines a heating element and fan for optimal drying performance. It circulates hot air around dishes after the wash cycle to give them a thorough dry. To activate, select the ProDry option or Extended ProDry option.
- ProWash cycle: Utilizes sensors to measure soil levels throughout the cycle and adapts wash time and water temperature as needed for tough messes or lighter loads, because no two meals or the dishes that result are exactly the same.
- LED interior lighting: Illuminates inside the dishwasher when the door is open, allowing clearer visibility for easy loading and unloading.
- PrintShield finish: Resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up the kitchen.
- Adjustable middle rack: Adds flexibility to fit tall items, such as a stand mixer bowl. Lower the rack to place large dishes inside, or raise it to make room for platters, pitchers, blender jars and more in the rack below.
- Extended ProDry option: Extends the cycle time by 15 minutes for loads that need extra drying time.
- Durable stainless steel interior: Offers the beauty and benefits of stainless steel inside the dishwasher. It resists streaks, stains and odors while retaining heat to help improve drying.
- SatinGlide Max Rails in third and middle racks: Allow racks to move effortlessly, even when fully loaded.
- Adjustable rows in middle and lower racks: Fold down to make room for dishes in a variety of shapes and sizes, such as roasting pans, serving bowls, colanders, and Dutch ovens.
- Six stemware holders in middle rack: Secure wine glasses along the side of the rack to prevent them from moving around during the wash cycle.
- Express Wash cycle: Cleans in less time, so you always have the dishes you need while preparing, cooking, and entertaining.
- Culinary Caddy utensil basket: Provides convenient space in the lower rack for tall utensils, such as whisks, spatulas, overflow silverware, and small items that need to be secured for cleaning and drying.
- Sani Rinse option: Eliminates food soil bacteria.
- Top controls: Controls are tucked away on top of the dishwasher door for a clean look to match your kitchen style. An indicator light on the front of the door changes colors to subtly display cycle progress.
- FreeFlex third rack: The large third rack has a deep, angled design that fits 6" glasses, mugs, and bowls.
- 44dBA: Provides quiet cleaning without compromising performance, so there's no need to wait to run a wash cycle while entertaining and enjoying meals even in open concept kitchens.
- Advanced clean-water wash system: Uses microfiltration to continuously remove food particles during the wash and rinse cycles and circulates clean water to dishes in all three racks. This allows dirty cookware and delicate glassware to be washed together in the same load.
- Fan-enabled ProDry system: Combines a heating element and fan for optimal drying performance. It circulates hot air around dishes after the wash cycle to give them a thorough dry. To activate, select the ProDry option or Extended ProDry option.
- ProWash cycle: Utilizes sensors to measure soil levels throughout the cycle and adapts wash time and water temperature as needed for tough messes or lighter loads, because no two meals or the dishes that result are exactly the same.
- LED interior lighting: Illuminates inside the dishwasher when the door is open, allowing clearer visibility for easy loading and unloading.
- PrintShield finish: Resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up the kitchen.
- Adjustable middle rack: Adds flexibility to fit tall items, such as a stand mixer bowl. Lower the rack to place large dishes inside, or raise it to make room for platters, pitchers, blender jars and more in the rack below.
- Extended ProDry option: Extends the cycle time by 15 minutes for loads that need extra drying time.
- Durable stainless steel interior: Offers the beauty and benefits of stainless steel inside the dishwasher. It resists streaks, stains and odors while retaining heat to help improve drying.
- SatinGlide Max Rails in third and middle racks: Allow racks to move effortlessly, even when fully loaded.
- Adjustable rows in middle and lower racks: Fold down to make room for dishes in a variety of shapes and sizes, such as roasting pans, serving bowls, colanders, and Dutch ovens.
- Six stemware holders in middle rack: Secure wine glasses along the side of the rack to prevent them from moving around during the wash cycle.
- Express Wash cycle: Cleans in less time, so you always have the dishes you need while preparing, cooking, and entertaining.
- Culinary Caddy utensil basket: Provides convenient space in the lower rack for tall utensils, such as whisks, spatulas, overflow silverware, and small items that need to be secured for cleaning and drying.
- Sani Rinse option: Eliminates food soil bacteria.
- Top controls: Controls are tucked away on top of the dishwasher door for a clean look to match your kitchen style. An indicator light on the front of the door changes colors to subtly display cycle progress.
Whats Included
- KitchenAid 24" Top Control Built-in Stainless Steel Tub Dishwasher with 3rd Rack, 360 Max Jets, 44 dBA
- Dishwasher hookup kit is not included
- Owner's manual
- KitchenAid 24" Top Control Built-in Stainless Steel Tub Dishwasher with 3rd Rack, 360 Max Jets, 44 dBA
- Dishwasher hookup kit is not included
- Owner's manual
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: What is the Culinary Caddy utensil basket, and how does it provide convenience and organization?
A: The Culinary Caddy utensil basket is a convenient space in the lower rack of the dishwasher. It provides a designated spot for tall utensils like whisks and spatulas, as well as overflow silverware and small items that need to be secured for cleaning and drying. This organization helps keep the dishwasher neat and ensures that these items are properly cleaned and dried.
A: The Fan-enabled ProDry system combines a heating element and a fan to circulate hot air around the dishes after the wash cycle. This optimized drying performance ensures that the dishes are thoroughly dried. To activate this feature, users can select the ProDry™ option or the Extended ProDry™ option.
Q: What are the benefits of the Extended ProDry option, and when is it recommended to use it?
A: The Extended ProDry option extends the drying cycle by 15 minutes, ensuring that dishes are thoroughly dry. It is recommended for loads that need extra drying time, such as plastic items or cookware. This option is particularly useful in humid environments or during the rainy season.
A: The durable stainless steel interior of the KitchenAid dishwasher is preferred because it resists streaks, stains, and odors, making it easy to maintain and keep clean. Additionally, it retains heat, which helps improve the drying process of dishes.
A: The ProWash cycle utilizes sensors to measure soil levels throughout the wash cycle. Based on the soil level detected, it automatically adjusts the wash time and water temperature to optimize cleaning performance for both tough messes and lighter loads. This ensures efficient and effective cleaning for different types of dishes and soil levels.
Q: What is the purpose of the LED interior lighting, and how does it enhance the user experience?
A: The LED interior lighting illuminates the inside of the dishwasher when the door is open, providing clearer visibility for easy loading and unloading of dishes. This enhances the user experience by making it easier to see and place dishes in the dishwasher, ensuring that they are properly positioned for optimal cleaning.
Q: How does the Sani Rinse option contribute to the overall cleanliness and hygiene of the dishes?
A: The Sani Rinse option in the KitchenAid dishwasher eliminates food soil bacteria, ensuring the overall cleanliness and hygiene of the dishes. It sanitizes dishes and glassware in accordance with NSF International NSF/ANSI Standard 184 for Residential Dishwashers, meeting the requirements for soil removal and sanitization efficacy. The Sani Rinse indicator glows at the end of the cycle to confirm successful completion of the option.
Q: How do the top controls contribute to the overall design and aesthetics of the dishwasher?
A: The top controls of the KitchenAid dishwasher are tucked away on top of the dishwasher door, providing a clean and sleek look that complements various kitchen styles. The indicator light on the front of the door subtly changes colors to display the cycle progress, adding a touch of modern design to the appliance.
