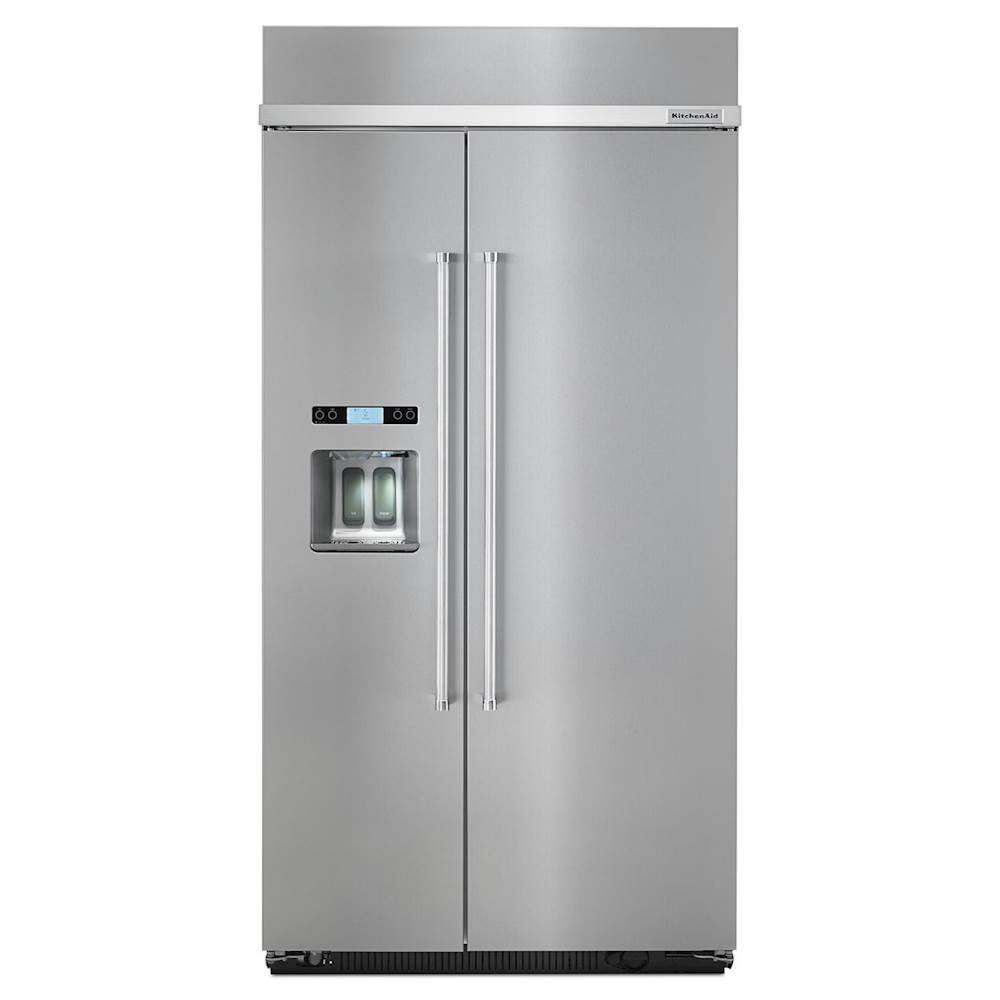

KitchenAid - 25 Cu. Ft. Side-by-Side Built-In Refrigerator - Stainless Steel
Model: KBSD612ESS
SKU: 5333502
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 83 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 42 1/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 83 3/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 83 3/8 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 25 3/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 27 3/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 25.02 cubic feet
- Refrigerator Style: Side-by-Side
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: KitchenAid
- Model Number: KBSD612ESS
- Product Name: 25 Cu. Ft. Side-by-Side Built-In Refrigerator
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 83 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 42 1/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 83 3/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 83 3/8 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 42 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: false (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 25 3/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 27 3/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 24 1/8 inches (Measurement from the back of the product to its front, not including the door.)
- Depth With Door 90 Degrees Open: 47 7/8 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 625 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 83 1/2 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 41 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 25.02 cubic feet
- Refrigerator Capacity: 16.41 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 8.61 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Built-in (The size, arrangement, and physical configuration of the product.)
- Refrigerator Style: Side-by-Side
- Fingerprint Resistant: false
- Convertible Temperature Zone: false (Refrigerators with this feature include a separate compartment with independent temperature controls from the main product. These compartments offer a flexible space that allows you to change the temperature based on your additional storage needs. Whether it’s a place to chill beverages for an evening with friends, keep snacks cool, or even provide extra freezer space.)
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Defrost Type: Manual (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Hinge Setting: Fixed right
- Lighting Type: LED
- Ice & Water
- Ice Maker: Yes
- Ice Maker Location(s): Freezer
- Ice and Water Dispenser: Ice and water
- Ice and Water Dispenser Location: External
- Dispensed Water Type: Cold Water
- Dispenser Features: Dispenser light, Filtration replacement light, Measured fill
- Storage
- Number of External Doors/Drawers: 2
- Number of Refrigerator Shelves: 5
- Refrigerator Shelf Style: Adjustable, Spill proof
- Refrigerator Shelf Material: Spill-proof glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Freezer Shelf Material: Wire
- Freezer Interior Light: true
- Filter Info
- Water Filtration: false
- Electrical
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 752 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 90 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Not Qualified
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 883049407104
Keep food cold and organized in this KitchenAid refrigerator. The fridge section has a capacity of 16.41 cu. ft., while the freezer has a capacity of 8.61 cu. ft., so you have plenty of storage space. Keep food fresh and tasting great longer with the ExtendFresh Plus temperature management system in this KitchenAid refrigerator.
- Stainless-steel finish: Aligns perfectly with any stylish kitchen design.
- Temperature controlled full-width: For optimal freshness and more accurate refrigerator temperature control.
- Generous storage: Includes 2 fixed full-width wire shelves, 4 adjustable full-width wire shelves, 3 adjustable full-width door bins and 2 slide-out full-width wire baskets to create plenty of space to organize frozen food.
- Organize contents with ease: Includes a full-width SpillSafe shelf, a temperature controlled full-width drawer, a dairy bin and more to provide ample space for storing items.
- LED interior lighting: Bright lights to illuminate interior.
- Automatic Defrost: Keep your fridge clear of ice using the automatic defrost function.
- Free delivery on appliance orders $399 and up: For new water line connections, special installation is required which is not included with delivery. Call 1-888-BEST BUY (1-888-237-8289) to find out more and to purchase installation.
- Required parts sold separately: Find essential parts for installation in the accessories section on this page.
- Need more information?: See what's included with home delivery and installation.
Whats Included
- KitchenAid 25 Cu. Ft. Side-by-Side Built-In Refrigerator
- Owner's manual
Product Manuals
Documents
- Energy_Guide_PDF
Q: Does this refrigerator have dual compressors
A: Hello, Please contact the manufacturer for this question. Thank you
Q: How do I get a manual for our KBSD612ESS
A: Hi Baney, We would recommend to visit the KitchenAid Website to obtain a use and care guide. We hope this helps.
Q: What is the difference between model numbers KBSD602ESS and 612ESS?
A: Hi Fred. Model KBSD602ESS has a PrintShield™ Finish, a fingerprint resistant finish, which protects against smudges and enhances the look of the refrigerator while model KSD612ESS does not. We hope this helps!
A: Hey Duffer, we're so sorry to hear about this concern surrounding your Refrigerator. Please email us at [email protected]. Please include your phone number, address and model/serial number. Please also include a brief description of the issue on hand.
Q: What size do we need for rough in to allow air flow recommended on sides and top of unit?
A: TP, page 5 of the Installation Instructions advises of the installation requirements. We've included a link below for the instructions. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our KitchenAid appliances! file:///C:/Users/blankar/Downloads/Installation%20Instruction.pdf
