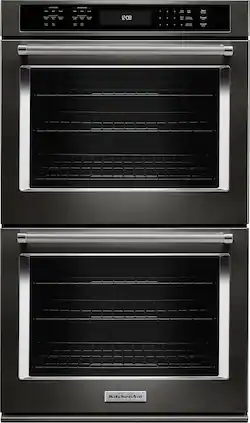

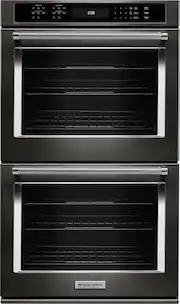

KitchenAid - 30" Built-In Double Electric Convection Wall Oven - Black stainless steel
Model: KODE500EBS
SKU: 4956320
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Black stainless steel
- Product Height: 51 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 24 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: KitchenAid
- Model Number: KODE500EBS
- Product Name: 30" Built-In Double Electric Convection Wall Oven
- Color: Black stainless steel
- Color Finish: Black stainless steel
- Dimensions
- Product Height: 51 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 24 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Door 90 Degrees Open: 46 3/4 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 260 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 50 1/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven 1 Capacity: 5 cubic feet
- Oven 2 Capacity: 5 cubic feet
- Features
- Oven Type: Double wall oven
- Oven Power Source: Electric
- Fingerprint Resistant: false
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Control Type: Touchpad, Touchpad, Touchpad
- Clock Display: true
- Oven Light: true
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Design
- Display Type: None
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Delay Clean Option: false
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Keep Warm Setting: true
- Variable Broil: true (This feature allows you to change the temperature of the broil function, which provides more versatility and control when preparing your favorite foods.)
- Timer: true
- Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
- Rapid Preheat: false
- Dehydration Settings: false (This function sets the oven at a low temperature, typically under 200 degrees Fahrenheit, for an extended period of time. During this time, warm air circulates throughout the oven to draw moisture out of foods.)
- Oven 1 Specification
- Oven 1 Location: Lower
- Oven 1 Interior Height: 18 inches
- Oven 1 Interior Width: 25 inches
- Oven 1 Interior Depth: 19 inches
- Oven 1 Cavity Material: Porcelain
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 1 Window: true
- Oven 1 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 1 Rack Positions: 6
- Number of Oven 1 Racks: 3
- Oven 1 Bake Element: 2800 watts
- Oven 1 Broil Element: 4000 watts
- Oven 2 Specification
- Oven 2 Location: Upper
- Oven 2 Interior Height: 18 inches
- Oven 2 Interior Width: 25 inches
- Oven 2 Interior Depth: 19 inches
- Oven 2 Cavity Material: Porcelain
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Window: true
- Oven 2 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 2 Rack Positions: 6
- Number of Oven 2 Racks: 3
- Oven 2 Bake Element: 2800 watts
- Oven 2 Broil Element: 4000 watts
- Electrical Specification
- Amperage: 40 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Wattage: 3200 watts (Measurement of electrical power.)
- Amperage At 208 Volts: true
- Amperage At 240 Volts: true
- Kilowatt Rating At 208 Volts: true
- Kilowatt Rating At 240 Volts: true
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. Mandatory reporting is not required until January 1, 2025. Whirlpool Corporation is in the process of gathering more information on PFAS use across our supplier base, and will update this disclosure as we learn more. For more information about chemicals in this product, visit www.kitchenaid.com/regulatory. [Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. No se requieren informes obligatorios hasta el 1 de enero de 2025. Whirlpool Corporation está en el proceso de recopilar más información sobre el uso de PFAS en nuestra base de proveedores y actualizará esta divulgación a medida que sepamos más. Para obtener más información sobre los químicos en este producto, visite www.kitchenaid.com/regulatory.] (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 Year Limited
- Warranty - Labor: 1 Year Limited
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 883049362373
Bake and broil simultaneously with this 30-inch KitchenAid double oven. Both ovens come with Even-Heat convection technology for faster cooking, and temperature probes help ensure tasty foods that are safely prepared. A built-in conversion system makes it easy to get delicious results when using the convection cooking option on this KitchenAid double oven.
- Even-Heat True Convection Oven (both ovens): Produces flawless results. The unique bow-tie design and convection fan ensure the inside of the oven is heated to, and stays at, the perfect temperature.
- Self-cleaning cycle: Does the scrubbing so you don't have to.
- Provides space to cook multiple dishes at different temperatures: Two 5.0 cu. ft. capacity ovens let you tackle dinner and dessert at the same time.
- Arrive home to freshly baked foods: Delay-start ensures your dinner starts when it is most convenient for you.
- Auto shutoff: Timed bake turns the oven off after the cycle finishes.
- Safely maintains a temperature for an extended period of time: Sabbath mode simplifies compliance with kosher cooking practices.
- Control lock: Prevents accidental or unsupervised use.
- Monitor your meal's progress: Oven light and window let you see how each dish is cooking with ease.
- Even-Heat True Convection Oven (both ovens): Produces flawless results. The unique bow-tie design and convection fan ensure the inside of the oven is heated to, and stays at, the perfect temperature.
- Self-cleaning cycle: Does the scrubbing so you don't have to.
- Provides space to cook multiple dishes at different temperatures: Two 5.0 cu. ft. capacity ovens let you tackle dinner and dessert at the same time.
- Arrive home to freshly baked foods: Delay-start ensures your dinner starts when it is most convenient for you.
- Auto shutoff: Timed bake turns the oven off after the cycle finishes.
- Safely maintains a temperature for an extended period of time: Sabbath mode simplifies compliance with kosher cooking practices.
- Control lock: Prevents accidental or unsupervised use.
- Monitor your meal's progress: Oven light and window let you see how each dish is cooking with ease.
Whats Included
- 30" Built-In Double Electric Convection Wall Oven
- Owner's manual
- 30" Built-In Double Electric Convection Wall Oven
- Owner's manual
Q: how do you use the self clean feature
A: Never use the self-clean feature on these ovens. There are a couple things that can and often go wrong with self clean. Mine got permanently locked and I had to pay a technician $200 to fix it. He advised to never use self clean again. I recently had the ovens serviced for a issue not related to self clean and the technician felt the overwhelming need to tell me all the bad things that often go wrong with self clean. Most of the negative reviews are associated with self clean.
Q: What are the cut out dimensions
A: The cutout dimensions are 24 inches deep by 50.25 inches tall by 28.5 inches wide.
A: Ours is located in a cabinet above the double wall oven
A: Austin7547, touch clock/tools button, select 8 keypad for language. Change the language from French to English.
Q: what are the differences between model #kode300ess and model #kode500ess?
A: Hello Reggae, Please see the link for the differences on these two models. https://bit.ly/3ahwgrh, KODE300ESS- Even-Heat™ True Convection Oven (upper oven), SatinGlide™ Roll-Out Extension Rack (upper oven), Temperature Probe (upper oven), Standard Racks, Number of Lower Oven Racks 2 lower, KODE500ESS- Even-Heat™ True Convection Oven (both ovens), SatinGlide™ Roll-Out Extension Rack (both ovens), Temperature Probe (both ovens), Heavy Duty Racks, Number of Lower Oven Racks 3 lower.
A: Hint. This is the time.of the year they change out floor models. I picked mine up for less than 1700 as an open box sale.
A: Yes they open flat
Q: We looked at this oven but could not tell does it have two timers one for each oven?
A: Kipper- Yes, there is an independent timer for both ovens.
