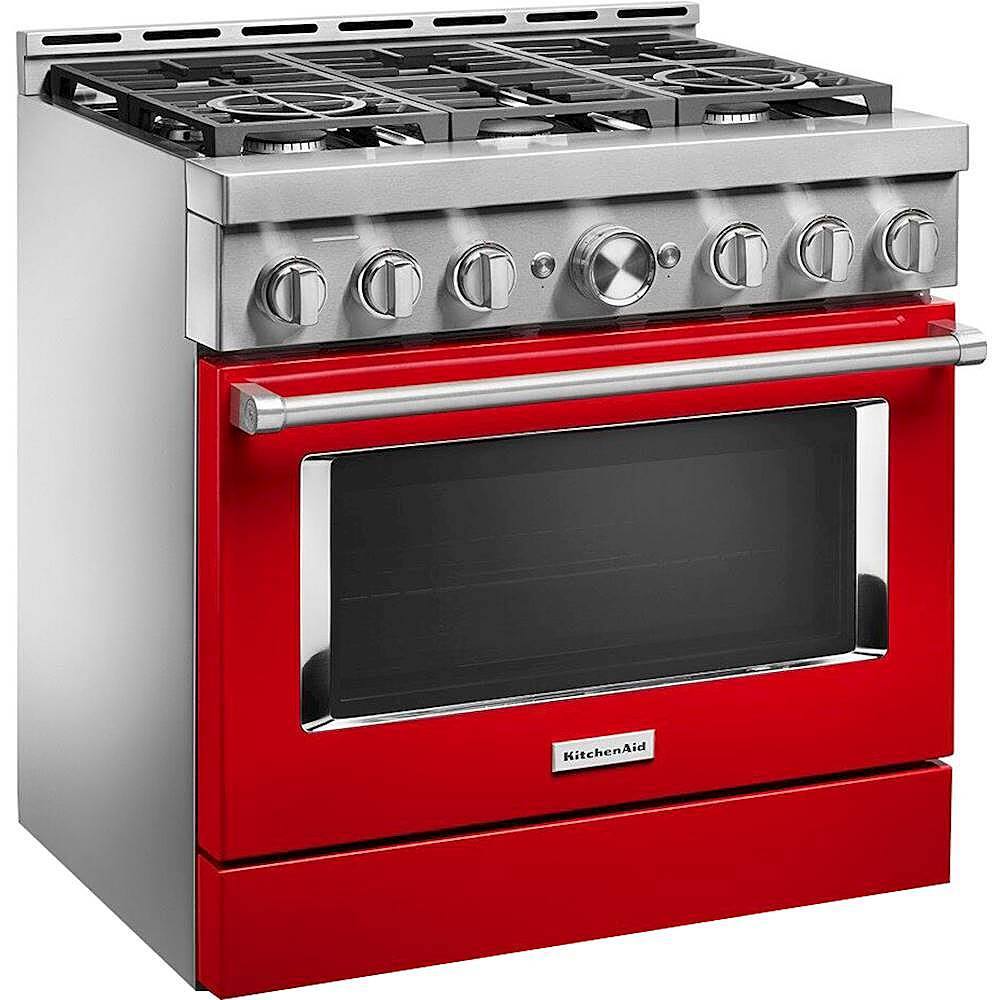

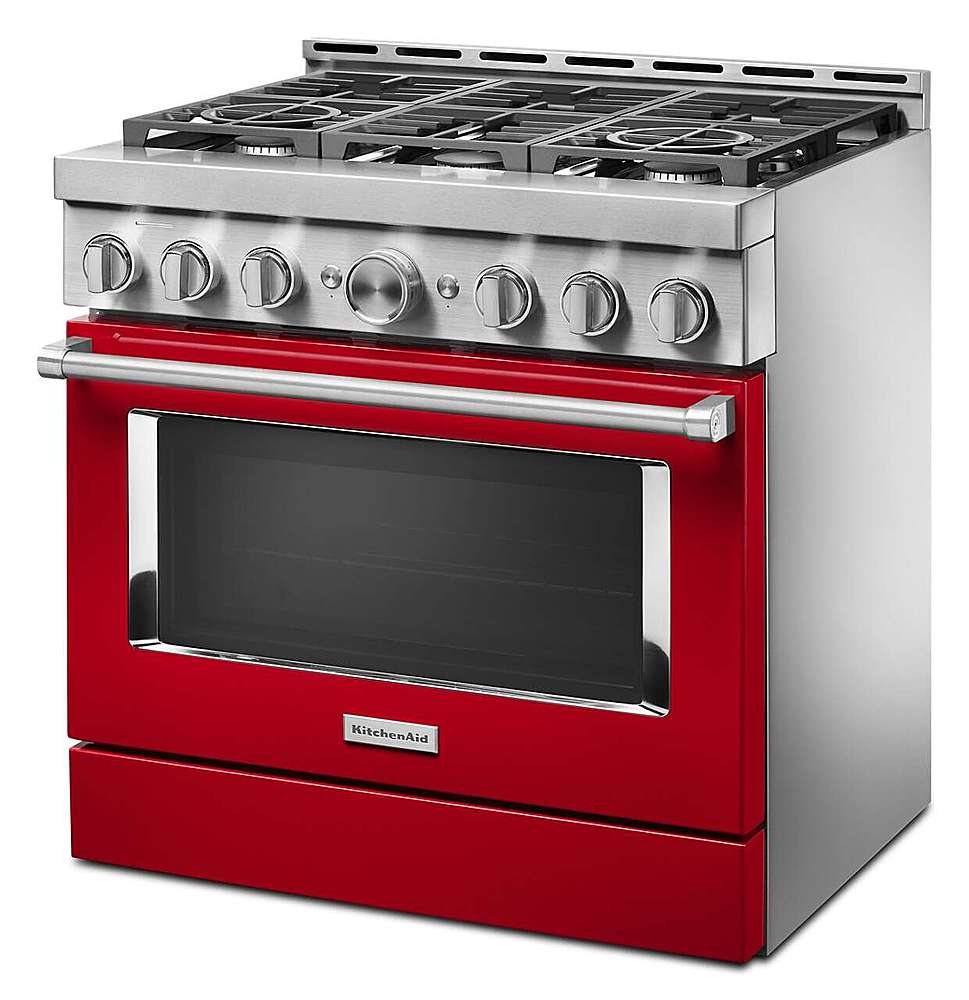

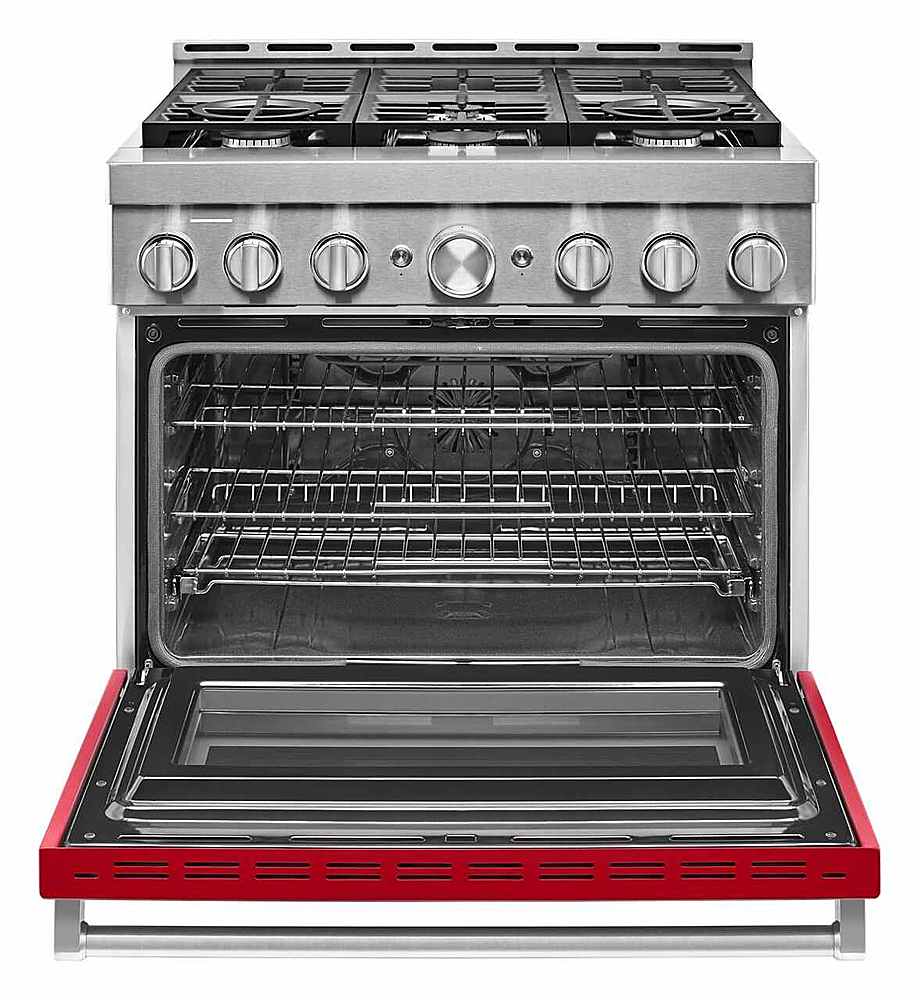

KitchenAid - Commercial-Style 5.1 Cu. Ft. Slide-In Gas True Convection Range with Self-Cleaning - Passion Red
Range Power Source
GasColor
Passion Red
Specifications
- Color FinishRedProduct Height36 inchesProduct Width35 7/8 inchesProduct Depth30 1/4 inchesDepth Without Handle27 3/4 inchesDepth With Handle30 1/4 inches
- Key Specs
- Color Finish: Red
- Product Height: 36 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 30 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 27 3/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 30 1/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Range Type: Slide-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Oven Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Number of Burners: 6
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: KitchenAid
- Model Number: OBX KFGC506JPA
- Product Name: Commercial-Style 5.1 Cu. Ft. Slide-In Gas True Convection Range with Self-Cleaning
- Color: Passion Red
- Color Finish: Red

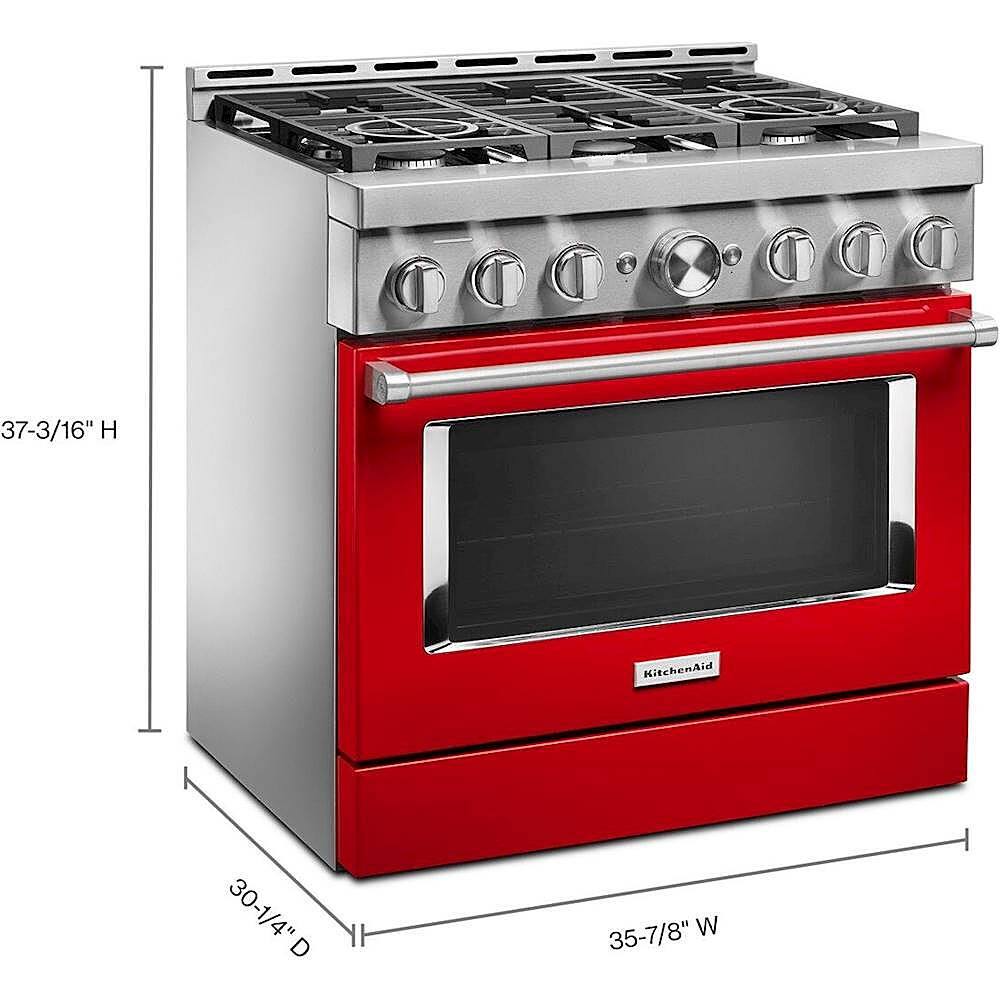

- Dimensions
- Product Height: 36 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 30 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 27 3/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 30 1/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 389 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 36 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 36 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven Capacity: 5.1 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Slide-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Gas
- Gas Type: Natural gas
- Soft Close Door: false

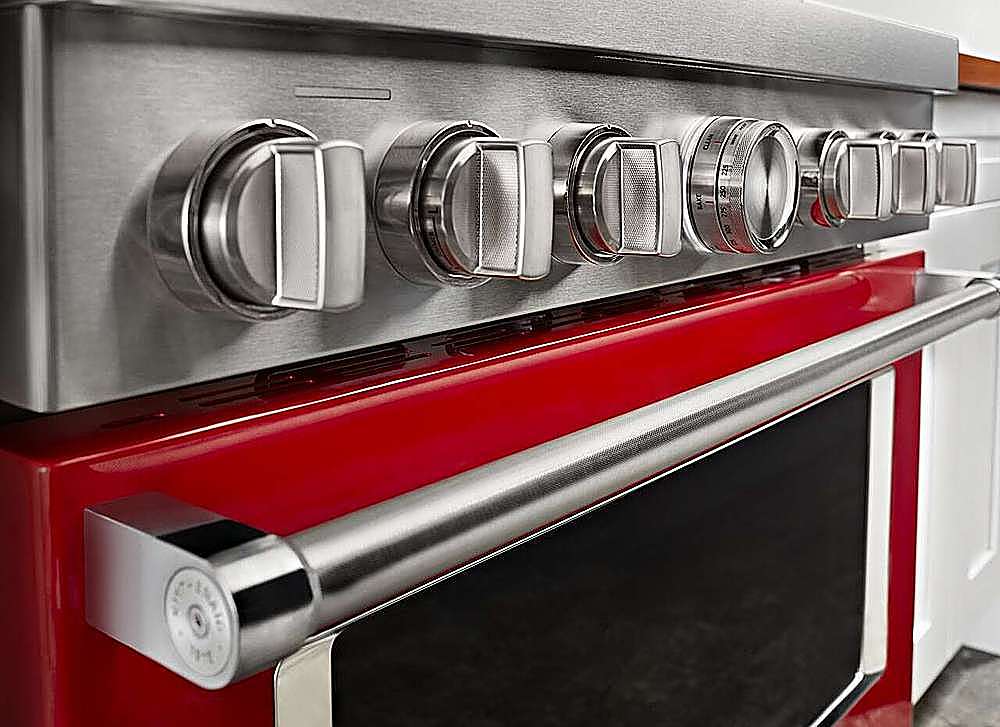

- Control Type: Knob
- Oven Control Location: Front panel
- Clock Display: false
- Lock Type: Self-cleaning mode lock
- Oven Light: true
- Propane (LP) Convertible: true
- Propane Kit Model Compatibility: W11502161
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Design
- Display Type: LED
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Oven Cooking Modes: Convection
- Oven Settings: Keep Warm Setting
- Oven Features
- Convection Type: Single-fan with heating element (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Drawer Type: None (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Broiler Location: Oven
- Number of Oven Racks: 3
- Number of Oven Rack Positions: 6
- Oven Window: true
- Cooktop Features
- Cooktop Surface Material: Stainless steel, Stainless steel

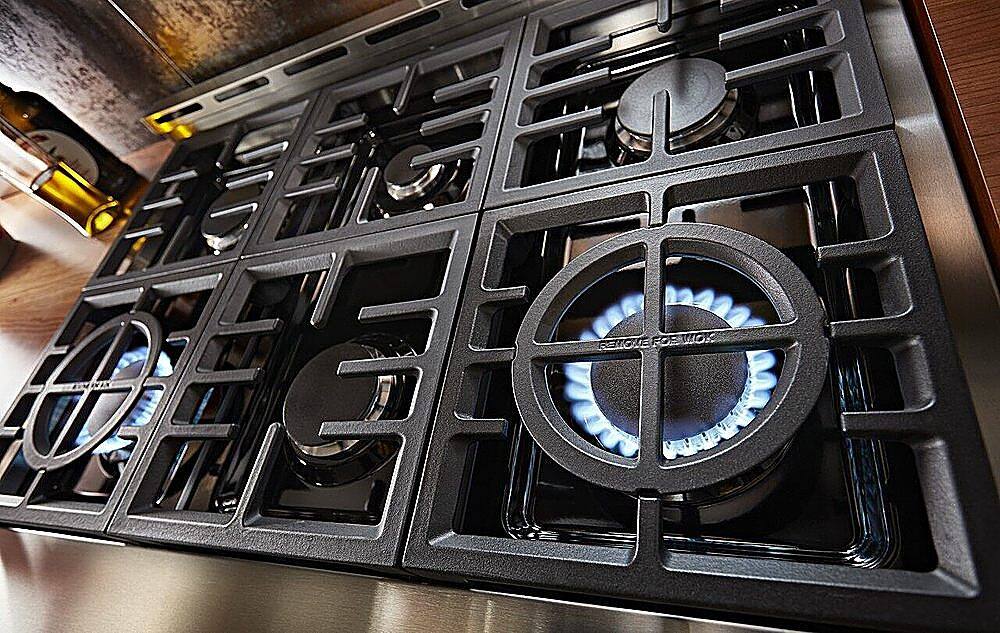

- Number of Burners: 6
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): 2 Dual-Flame burners, 3 Power burner, 1 Simmer burner (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron, Porcelain
- Griddle Included: false
- Burner Rating
- Burner 1 Rating: 15000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 5000 british thermal units
- Burner 3 Rating: 20000 british thermal units
- Burner 4 Rating: 15000 british thermal units
- Burner 5 Rating: 20000 british thermal units
- Burner 6 Rating: 15000 british thermal units
- Broiler Burner Rating: 11000 british thermal units
- Total Maximum BTU Rating: 107000 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Included

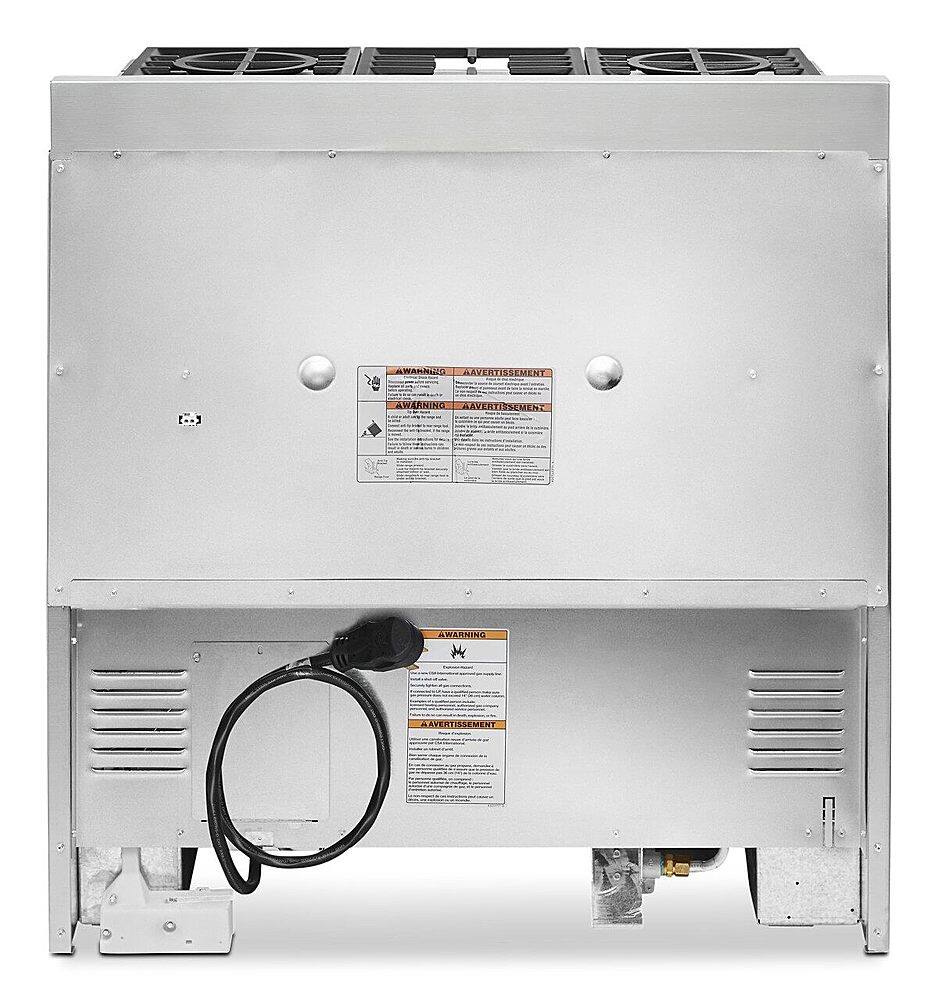

- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Propane Conversion Kit Included: true
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. Mandatory reporting is not required until January 1, 2025. Whirlpool Corporation is in the process of gathering more information on PFAS use across our supplier base, and will update this disclosure as we learn more. For more information about chemicals in this product, visit www.kitchenaid.com/regulatory. [Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. No se requieren informes obligatorios hasta el 1 de enero de 2025. Whirlpool Corporation está en el proceso de recopilar más información sobre el uso de PFAS en nuestra base de proveedores y actualizará esta divulgación a medida que sepamos más. Para obtener más información sobre los químicos en este producto, visite www.kitchenaid.com/regulatory.] (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 400065812349
Expand your skills with a 36" KitchenAid commercial-style range with 6 burners. This gas range features two versatile 20,000 BTU Ultra Power dual-flame burners with the power and precision needed to successfully sear, simmer, stir-fry, and sauté. The Even-Heat true convection helps you achieve more consistent baking and roasting.
- Even-Heat true convection: Features a unique bow-tie design with a heating element and fan that provide even airflow and consistent temperatures throughout the entire oven for crisp, flaky baked goods, juicy, evenly browned roasts, and flavorful, caramelized vegetables.

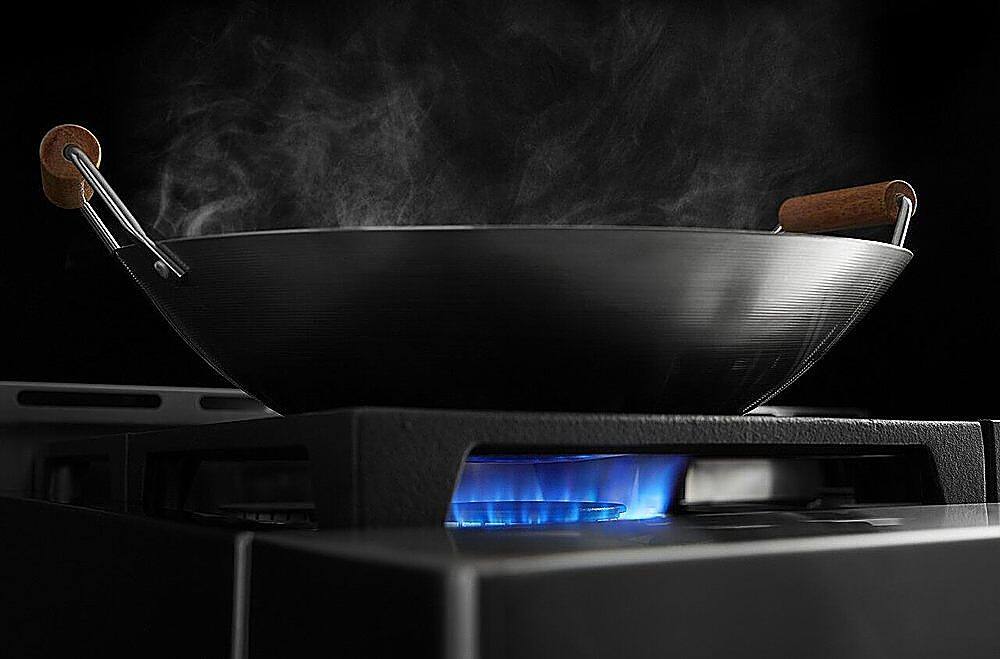

- Two 20,000 BTU Ultra Power dual-flame burners: Give you precise control of powerful highs, steady lows, and a wide range of temperatures in between. The versatile, dual-flame design lets you sear, sauté, simmer, and sizzle, all on the same burner.

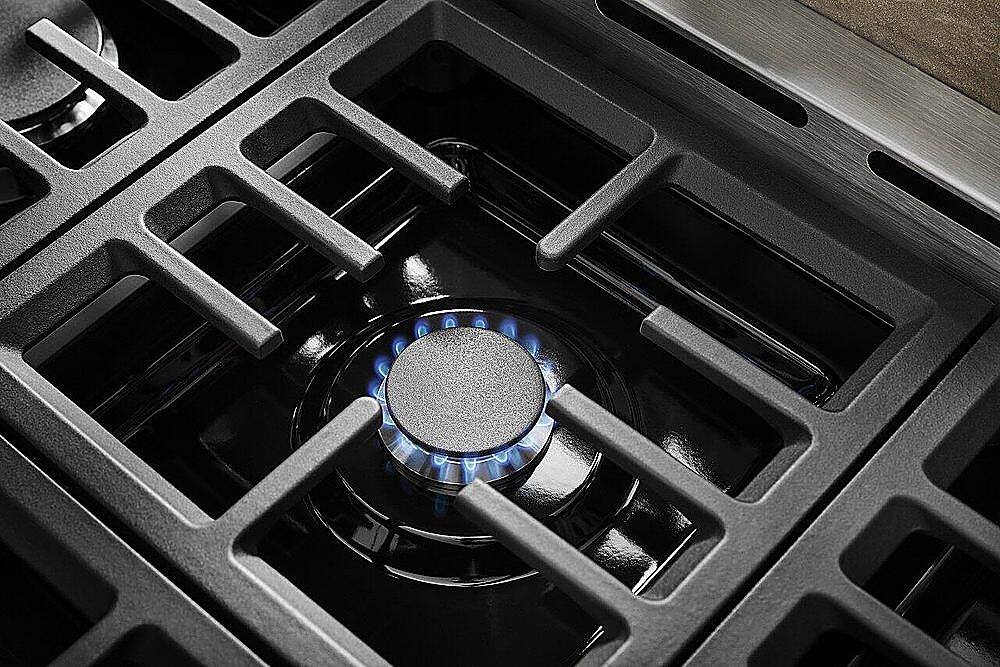

- 5,000 BTU simmer and melt burner: With a low flame sized for small saucepans, lets you reach and maintain low temperatures. Simmer sauces until they look, feel, and taste just right, and melt even delicate ingredients.

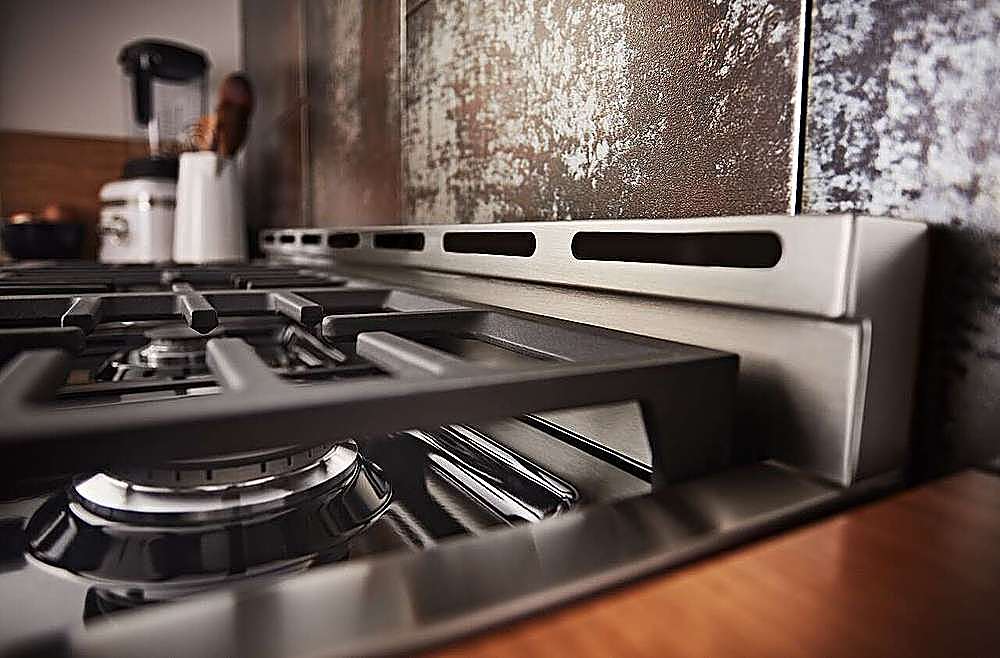

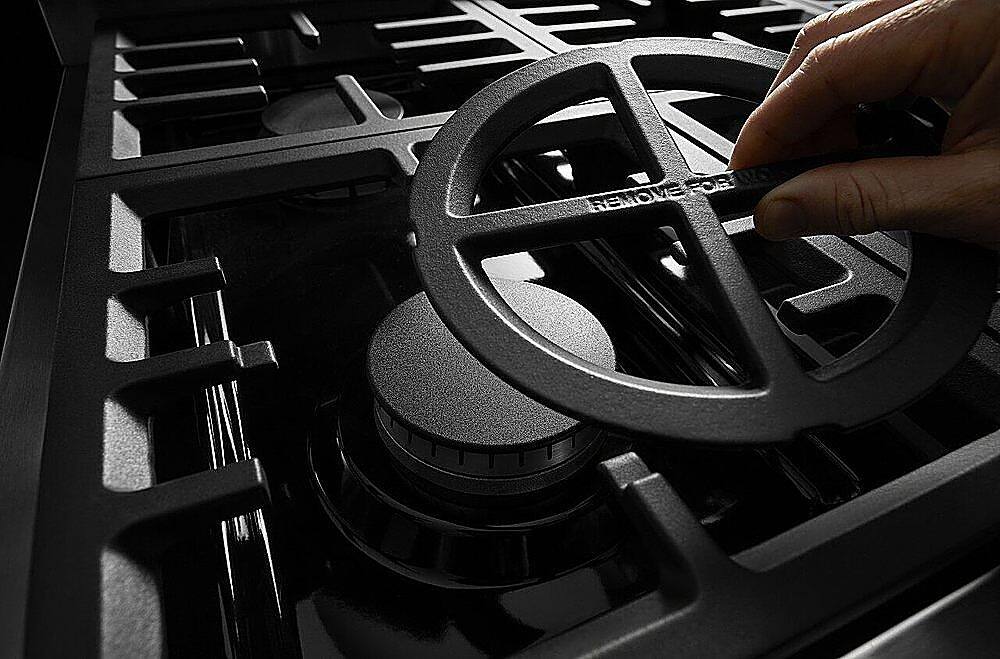

- Three-level convertible grates: With removable inserts, match the heat to your technique. Leave the insert level for high-heat searing and sautéing, flip it over to lift your pan above the flame to simmer and melt, or remove it to nestle a round-bottom wok in the flame for stir-fry.
- Smart appliance: lets you control the oven with your Google Assistant or an Alexa-enabled device to stay hands on or hands off. Use the KitchenAid App to preheat, proof, bake and roast, save custom cooking instructions for favorite recipes and more.

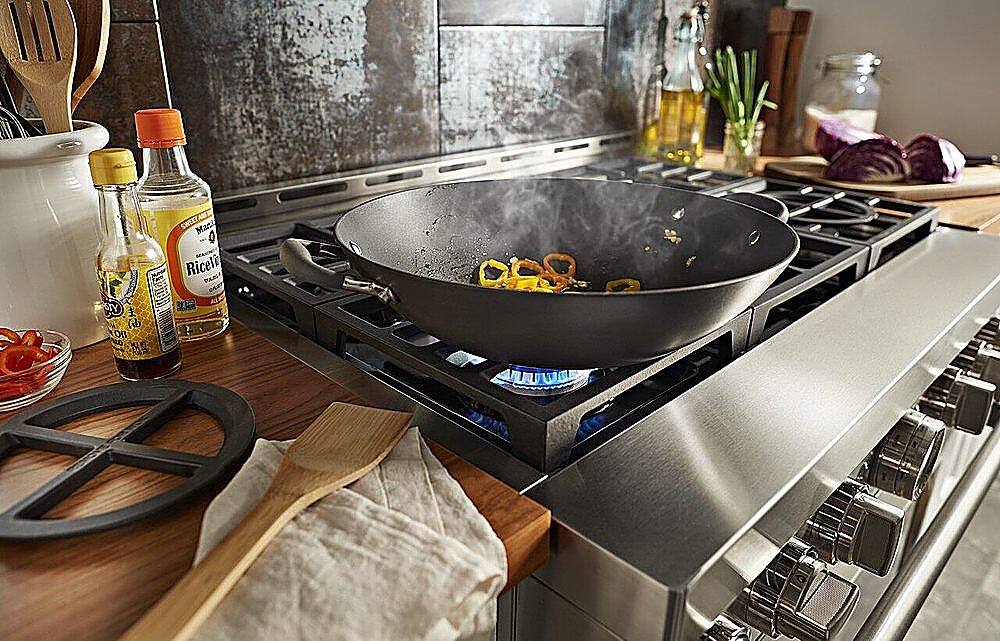

- Three 15,000 BTU burners: Deliver the high heat you need for successful searing, sautéing, stir-frying, and quickly bringing large stock pots to a rolling boil.

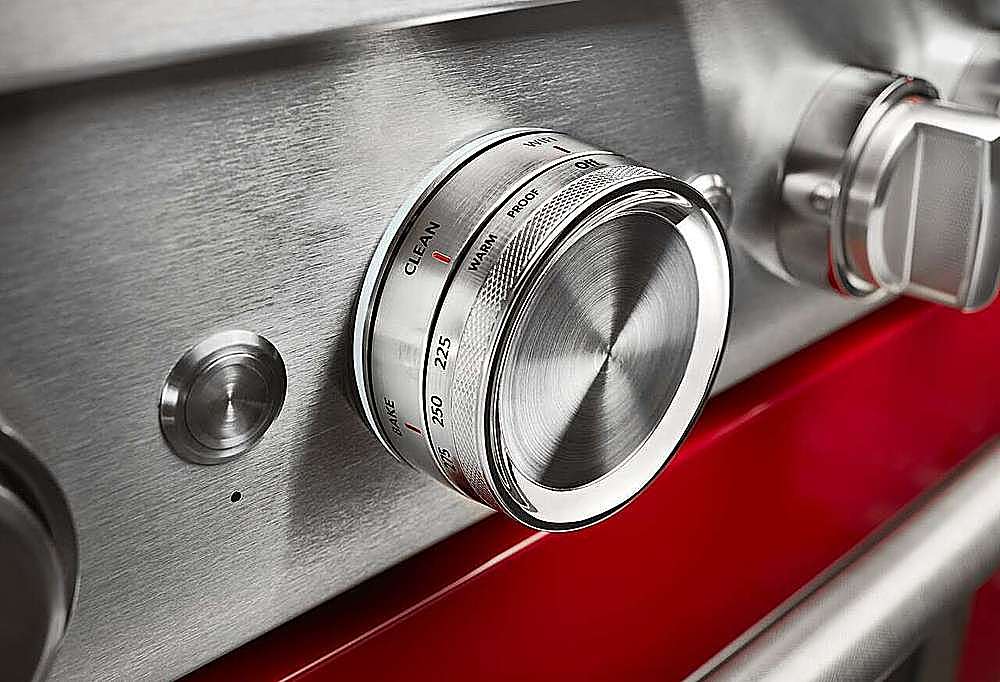

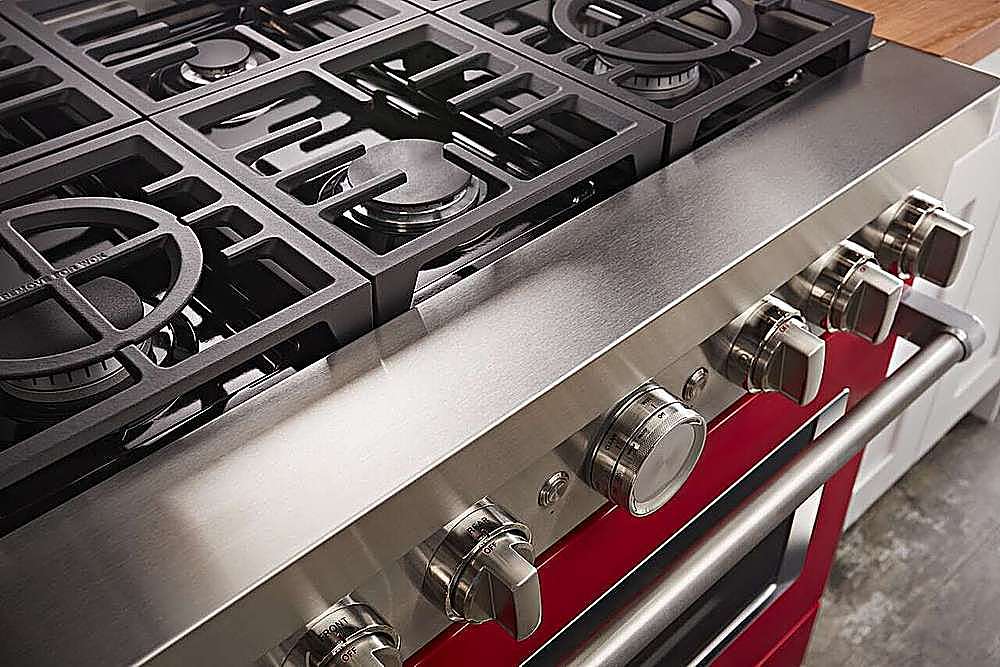

- Dual-concentric oven knob: Provides one-handed control of both oven mode and temperature. Two knobs in one let you first choose Bake, Broil, or Convection, then select the temperature. Responsive backlighting confirms settings are correct or alerts you to needed adjustments.

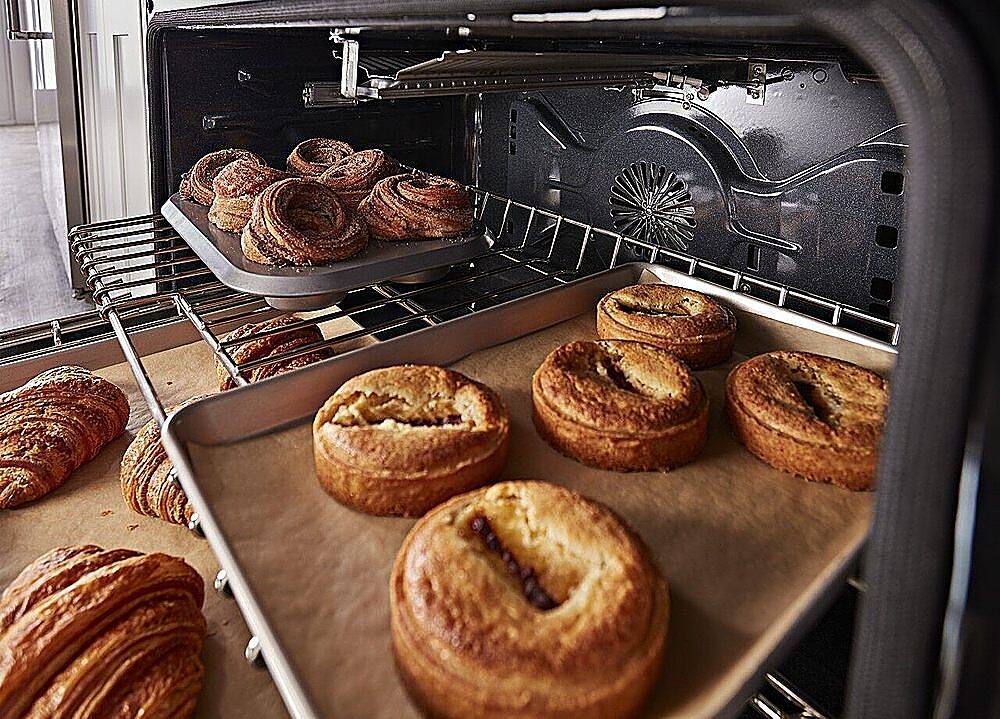

- SatinGlide roll-out extension rack: Makes it easier to cook with large or heavy bakeware. The sure-grip handle and smooth roll-out simplify loading and unloading.

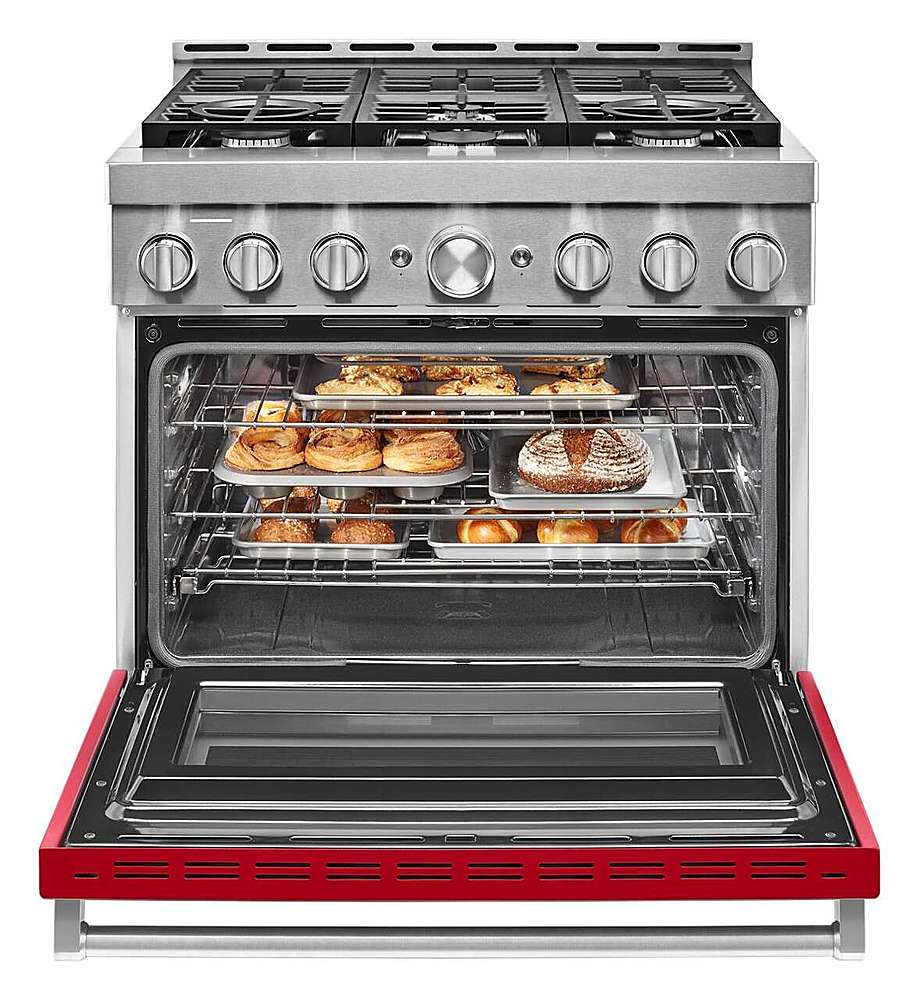

- 5.1 cu. ft. capacity: Offers extra room for multiple dishes, so you can cook a whole turkey or roast and sides at the same time.
- EasyConvect conversion system: Automatically adjusts conventional baking temperatures to their convection equivalents from the KitchenAid app, making it effortless to use convection with recipes of all kinds.

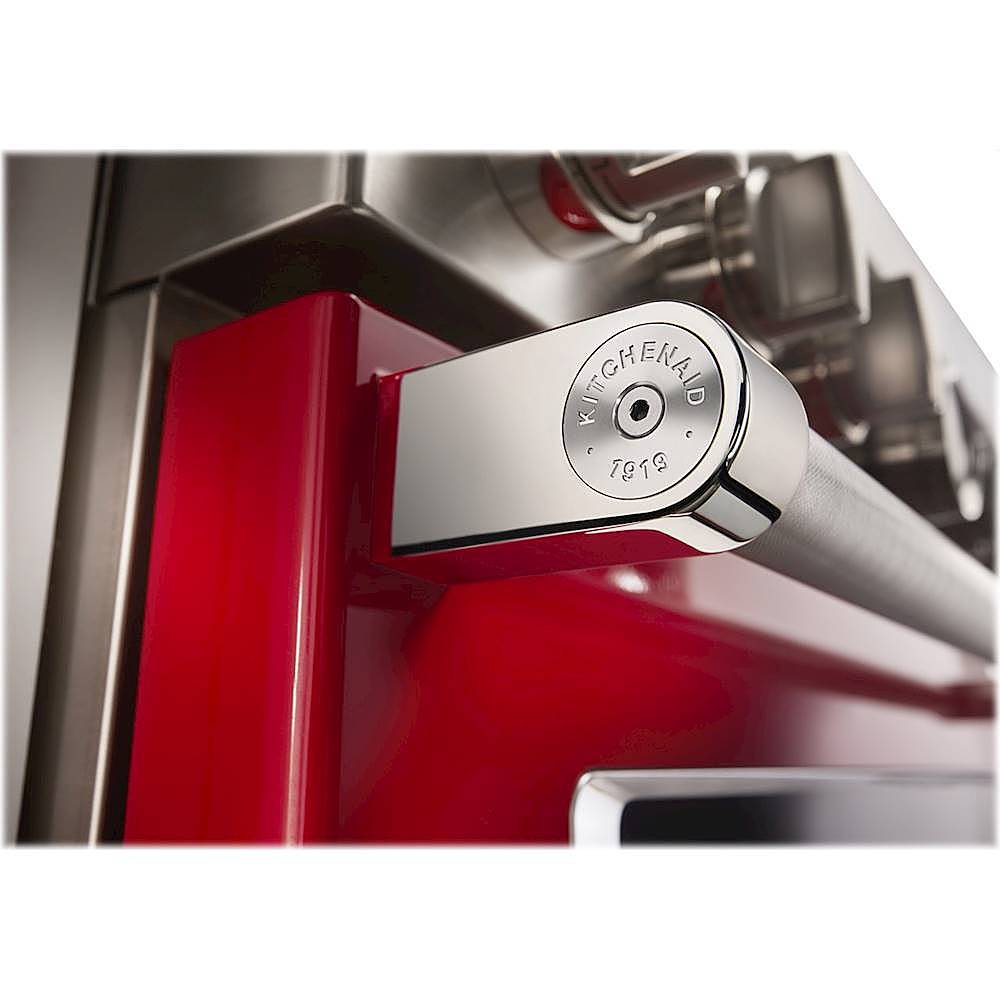

- KitchenAid handle medallion kit (sold separately): Accent the range handle with colored medallions.
Whats Included
- Gas connector is not included
- KitchenAid Commercial-Style 5.1 Cu. Ft. Slide-In Gas True Convection Range with Self-Cleaning
- Owner's manual
Q: What are the dimensions of the cutout required for installation?
A: The cutout dimensions required for installation are: - Cutout Depth: 24 inches - Cutout Height: 36 inches - Cutout Width: 36 inches
Q: What is the BTU rating of the most powerful burner on the range?
A: The most powerful burner on the KitchenAid Commercial-Style 5.1 Cu. Ft. Slide-In Gas True Convection Range is the dual- flame burner, which has a BTU rating of 20,000. This burner provides precise control of powerful highs, steady lows, and a wide range of temperatures in between.
Q: What is the maximum temperature the oven can reach?
A: The maximum temperature the oven can reach is 500°F (260°C). This information can be found in the "Temperature Knob" section of the provided context.
Q: Can I control the range using a smart device or app?
A: Yes, you can control the range using a smart device or app. The KitchenAid™ app, available for either iOS or Android®‡ devices, allows you to preheat, check cooking status, and configure oven features remotely. You can also use the app to access additional cycles, adjust cooking temperatures and times, set the cook timer, and save favorite cooking cycles.
Q: What type of convection system does the oven use?
A: The oven uses a "True Convection" system, which features a unique bow-tie design with a heating element and fan that provide even airflow and consistent temperatures throughout the entire oven. This results in crisp, flaky baked goods, juicy, evenly browned roasts, and flavorful, caramelized vegetables.
Q: How many oven racks does it come with?
A: The KitchenAid Commercial-Style 5.1 Cu. Ft. Slide-In Gas True Convection Range with Self-Cleaning comes with 3 oven racks.
Q: What is the oven capacity of this KitchenAid range?
A: The oven capacity of the KitchenAid Commercial-Style 5.1 Cu. Ft. Slide-In Gas True Convection Range with Self-Cleaning is 5.1 cubic feet. This spacious oven provides ample room for cooking multiple dishes simultaneously, including a whole turkey or roast with sides.
Q: Does the range have a self-cleaning feature?
A: Yes, the range has a self-cleaning feature. The "Self-Cleaning" text can be found under the "Details|Oven Cleaning Type" section. The manual also provides detailed instructions on how to use the self-cleaning function.
