Leviton - 660-515CV-0CV 15A Vinyl Grounding Connector, 125V - Yellow
Leviton - 660-515CV-0CV 15A Vinyl Grounding Connector, 125V - Yellow
About This Item
- Key Specs
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Leviton
- Model Number: 5216895
- Product Name: 660-515CV-0CV 15A Vinyl Grounding Connector, 125V
- Color: Yellow
- Power
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Features
- Grounded Receptacle: Grounding
- Indoor or Outdoor Use: Outdoor
- Material: Polyvinyl Chloride (PVC)
- Certifications Listings & Approvals

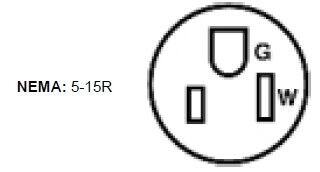

- NEMA Configuration: NEMA
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)

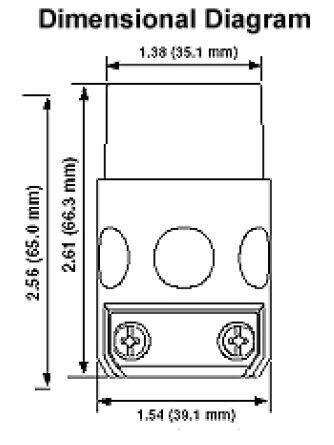

- Dimensions
- Product Height: 1.099999998878 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 1.49999999847 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 2.699999997246 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 0.15 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 5526680003766
15 Amp, 125 Volt vinyl grounding connector with a durable PVC housing designed for outdoor use. The dimpled body provides a secure, non-slip grip while the adjustable cord-grip accepts #18-3, #16-3, #14-3 and #12-3 cords for reliable strain relief. Triple-drive head screws speed installation, and the device is UL Listed, CSA Certified and NOM Certified. Compact dimensions (approx. 2.7 in L x 1.1 in H x 1.5 in W) and 0.15 lb weight make it easy to handle, and it includes a 2-year parts and labor warranty.
- Rugged PVC housing: Durable PVC housing resists moisture and common chemicals, making the connector suitable for outdoor and damp locations.
- Non-slip dimpled grip: Dimpled body design improves grip for easier handling during installation and removal.
- Triple-drive screws: Triple-drive head screws speed installation and reduce driver slippage for faster wiring.
- Adjustable cord grip: Adjustable cord-grip fits #18-3, #16-3, #14-3 and #12-3 cables to provide secure strain relief.
- Safety certifications: UL Listed, CSA Certified and NOM Certified for compliance with common safety standards and includes grounding for protected connections.
- Rugged PVC housing: Durable PVC housing resists moisture and common chemicals, making the connector suitable for outdoor and damp locations.
- Non-slip dimpled grip: Dimpled body design improves grip for easier handling during installation and removal.
- Triple-drive screws: Triple-drive head screws speed installation and reduce driver slippage for faster wiring.
- Adjustable cord grip: Adjustable cord-grip fits #18-3, #16-3, #14-3 and #12-3 cables to provide secure strain relief.
- Safety certifications: UL Listed, CSA Certified and NOM Certified for compliance with common safety standards and includes grounding for protected connections.
