LG - 30" Built-In Electric Cooktop with 5 Elements and Warming Zone - Black
- Key Specs
- Color Finish: Black
- Product Height: 4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 15/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Elements: 5
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: LG
- Model Number: LCE3010SB
- Product Name: 30" Built-In Electric Cooktop with 5 Elements and Warming Zone
- Color: Black
- Color Finish: Black
- Dimensions
- Product Height: 4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 15/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 34.2 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 6 1/2 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 29 3/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 20 1/4 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true
- Control Type: Electronic
- Control Location: Top
- Digital Display: false
- Power-On Indicator Light(s): true
- Fingerprint Resistant: false
- Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Form Factor: Cooktop (The size, arrangement, and physical configuration of the product.)
- Portable: false
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cooktop Features
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Ceramic, Glass
- Number of Cooking Zones: 5
- Number of Elements: 5
- Bridge Element: false (This feature is an additional heating element located between two individual burners. When this is enabled, the individual burners and the bridge element act as one connected cooktop. This equal heat distribution on the cooktop surface helps accommodate larger cookware, such as roaster pans or griddles.)
- Specialty Element(s): Warming Zone, Triple Cooktop Elements
- Expandable Element: true (Accommodate large cookware and ensure even heat distribution with this feature, which allows more surface area for the individual heating element.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Power
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Cooktop Power Source: Electric
- Element Wattage
- Element 1 Wattage: 1200 watts
- Element 2 Wattage: 1900 watts
- Element 3 Wattage: 1500 watts
- Element 4 Wattage: 100 watts
- Element 5 Wattage: 3000 watts
- Electrical Specification
- Wattage: 7700 watts (Measurement of electrical power.)
- Amperage: 40 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Product Safety Certifications and Standard(s): None (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: This product does not contain PFAS. For more information about PFAS chemicals in this product, visit https://www.lg.com/us/cookware-chemical-compliance-information. Este product no contiene PFAS. Para más información sobre químicas PFAS en este producto, visite https://www.lg.com/us/cookware-chemical-compliance-information. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Warranty - Parts: 1 Year General
- Warranty - Labor: 1 Year General
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 048231317115
LG's premium 30" radiant cooktop is equipped with steady-heat technology to deliver constant heat at any temperature for more precise cooking control. The best part is, the temperature settings respond quickly to power setting adjustments so there is less chance you'll burn your food. LG cooktops truly are style and convenience in perfect harmony.
- Style and Design: LG’s premium 30" radiant cooktop offers the perfect harmony between style and convenience.
- Intuitive SmoothTouch Controls: Sleek, centralized touch controls allow for effortless operation, with just a touch of your finger, and the ability to easily see which heating elements are activated at a glance. Plus, the smooth, seamless surface not only looks great, but also easily wipes clean.
- Warming Zone: This low-watt element gives you control of temperatures so you can keep cooked foods warm until ready to serve.
- Versatility: The two left elements can be joined by the bridge element to evenly heat longer pans and griddles.
- 2 Dual Cooktop Elements – (1) 6/9", (1) 9/12": LG offers versatile elements that you can adjust to fit different sized cookware for convenient – even your largest sauté pan.
- Style and Design: LG’s premium 30" radiant cooktop offers the perfect harmony between style and convenience.
- Intuitive SmoothTouch Controls: Sleek, centralized touch controls allow for effortless operation, with just a touch of your finger, and the ability to easily see which heating elements are activated at a glance. Plus, the smooth, seamless surface not only looks great, but also easily wipes clean.
- Warming Zone: This low-watt element gives you control of temperatures so you can keep cooked foods warm until ready to serve.
- Versatility: The two left elements can be joined by the bridge element to evenly heat longer pans and griddles.
- 2 Dual Cooktop Elements – (1) 6/9", (1) 9/12": LG offers versatile elements that you can adjust to fit different sized cookware for convenient – even your largest sauté pan.
Whats Included
- LCE3010SB LG 30" Built-In Electric Cooktop
- Owner's manual
- LCE3010SB LG 30" Built-In Electric Cooktop
- Owner's manual
Q: What is the are the underneath cutout dimensions of this cooktop?
A: The width is 29 3/8" and the depth is 20 1/4". We had to have our granite countertops ground to fit but it was done perfectly by our local Kitchen Remodling store.
A: Yes we have drawers under our cooktop.
A: Not sure how big your pots are but: The biggest burner is 9 1/4 inches. The next biggest is 8 1/4 inches. The third biggest is 7 inches. The two smallest are 6 inches. The top right hand 6 inch burner is just a warming burner. Does not really cook.
Q: What kind of power source is needed ?
A: The LG 30" Built-In Electric Cooktop - Black, Model # LCE3010SB must be electrically grounded in accordance with local codes or, in their absence, with the National Electrical Code ANSI/NFPA No. 70, latest edition in the United States. A 3-wire or 4-wire single-phase 120/240 or 120/208 volt, 60 Hz AC-only electrical supply is required on a separate circuit fused on both sides of the line (time-delay fuse or circuit breaker is recommended). DO NOT fuse neutral. The fuse size must not exceed the circuit rating of the appliance specified on the nameplate. The cooktop can consume up to 7700 W at 240 VAC. A 40 Amp circuit breaker with wire gauge #8 AWG must be used. Wire sizes and connections must conform with the fuse size and rating of the appliance in accordance with the National Electrical Code ANSI/NFPA No. 70, latest edition, and local codes and ordinances. You will need to install a unction box under the cabinet and run 120/240 or 120/208 volt, AC wire from the main circuit panel. The cooktop should be connected to the fused disconnect (or circuit breaker) box through flexible armored or nonmetallic sheathed cable. The flexible armored cable extending from this appliance should be connected directly to the grounded junction box. A suitable strain relief must be provided to attach the flexible armored cable to the junction box. This appliance is equipped with a copper conductor flexible cable. If connection is made to aluminum house wiring, use only special connectors which are approved for joining copper and aluminum wires in accordance with the National Electrical Code and local codes and ordinances. Improper connection of aluminum house wiring to copper leads can result in a short circuit or fire. You may not ground the cooktop through the neutral (white) wire if the cooktop is used in a new branch circuit installation (1996 NEC), mobile home, recreational vehicle, or where local codes do not permit grounding to the neutral (white) wire. When grounding to the neutral (white) wire is prohibited, you must use a 4-wire power supply cable. Failure to heed this warning may result in electrocution or other serious personal injury...^IFV
Q: Where do you find the serial number
A: The serial number for the LCE3010SB is located under the front side of the unit.
Q: Doesn't the area, where the controls are, get hot to touch?

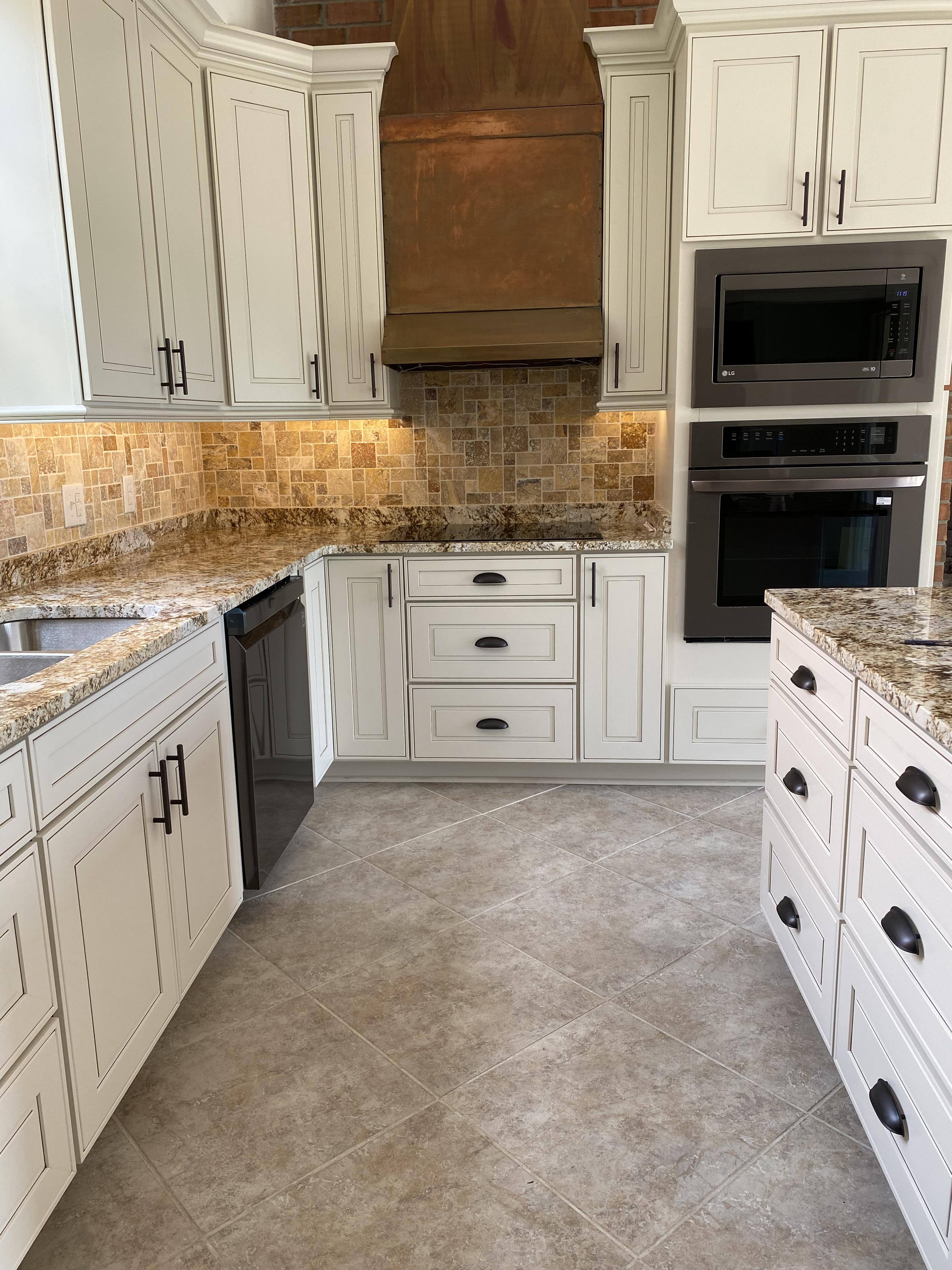

A: We just had one put in our kitchen remodeling project and we love it. No, the controls do not heat up only the burner area.
Q: is it hardwired or plug in?
A: Thank you for your interest in the LG Cooktop. The LG LCE3010SB electric cooktop is a hardwired appliance, not a plug-in. You can download its owner's manual through this link for more information: https://www.lg.com/us/support/product/lg-LCE3010SB.ABKLLGA. ^Cris
Q: A fan noise runs often is it supposed to or what is that noise?
A: We do not hear a fan or any type of noise from our cook top stove.
