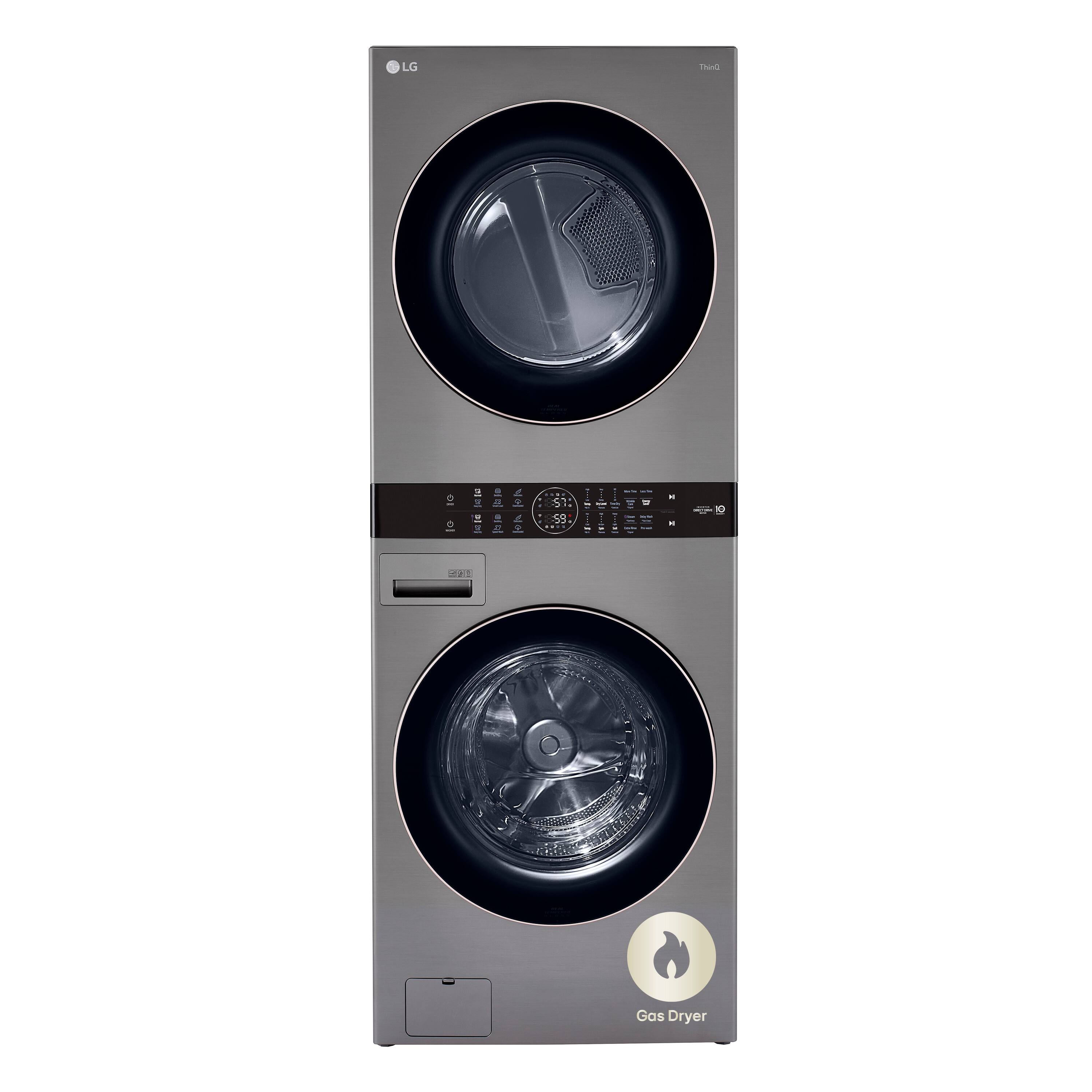

LG - 4.5 Cu. Ft. HE Smart Front Load Washer and 7.4 Cu. Ft. Gas Dryer WashTower with Steam and Built-In Intelligence - Graphite Steel
Dryer Heating Source
GasColor
Graphite SteelRelated Item
Specifications
- Color FinishGraphite steelProduct Height74 3/8 inchesProduct Width27 inchesProduct Depth30 3/8 inchesHigh-EfficiencyYesWasher/Dryer Combo TypeStacked units
- Key Specs
- Color Finish: Graphite steel
- Product Height: 74 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 30 3/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- High-Efficiency: true (Washers with this label feature technology meant to use less water. High Efficiency (HE) washers may also be larger in capacity. Using High Efficiency (HE) detergent in these washers is highly recommended as they are designed to be quick-dispersing and operate in low water conditions by producing less suds, requiring less detergent. Not using the recommended detergent can lead to additional rinse cycles and increased water usage.)
- Washer/Dryer Combo Type: Stacked units
- Washer Load Type: Front load
- Propane Conversion Kit Model Compatibility: 383EEL3002D
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: LG
- Model Number: WKG101HVA
- Product Name: 4.5 Cu. Ft. HE Smart Front Load Washer and 7.4 Cu. Ft. Gas Dryer WashTower with Steam and Built-In Intelligence
- Color: Graphite Steel
- Color Finish: Graphite steel
- Commercial Merchandise: false
- Dimensions
- Product Height: 74 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 30 3/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Dryer Depth With Door Open: 55 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 311 pounds (The out of box weight of the item.)
- Capacity
- Washer Capacity: 4.5 cubic feet
- Dryer Capacity: 7.4 cubic feet
- Performance
- High-Efficiency: true (Washers with this label feature technology meant to use less water. High Efficiency (HE) washers may also be larger in capacity. Using High Efficiency (HE) detergent in these washers is highly recommended as they are designed to be quick-dispersing and operate in low water conditions by producing less suds, requiring less detergent. Not using the recommended detergent can lead to additional rinse cycles and increased water usage.)
- Vibration Reduction: true (Additional features, such as sensors that adjust spin speeds or weights that counter unbalanced loads, help to minimize vibration for smoother, quieter operation.)
- Maximum Spin Speed: 1300 revolutions per minute (This is the maximum spin speed of the tub in the final cycle. Higher revolutions per minute (RPM) will remove the water out of the clothes more quickly and effectively which can reduce drying time.)
- Total Maximum BTU Rating: 20000 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Features
- Steam Function: true (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Fingerprint Resistant: false
- Integrated Water Heater: true
- Automatic Temperature Control: true (This feature regulates hot and cold temperatures of the water or air within the appliance in order to keep them in the optimal range for each cycle.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Delay Start: false (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Time-Remaining Display: true
- Bleach Dispenser: true
- Fabric Softener Dispenser: true
- Pre-Wash Detergent Dispenser: true
- Second Rinse: true
- Washer Interior Light: true
- Dryer Heating Source: Gas
- Sensor Dry: true (Feature that automatically senses the load's moisture level and adjusts the drying cycle time as needed.)
- Dryer Interior Light: true
- Design
- Washer/Dryer Combo Type: Stacked units
- Washer Load Type: Front load
- Exhaust Vent Location: Rear, Left
- 4-Way Venting: false (The appliance has four possible vent locations (right, left, front, or rear), which allows for placement versatility.)
- Control Type: Touchpad
- Display Type: LED
- Washer Tub/Drum Material: Stainless steel
- Dryer Drum Material: Stainless steel
- Dryer Door Style: Left swing
- Washer Window: true
- Dryer Window: true
- Drying Rack: false
- Cycle Specifications
- Number of Wash/Rinse Cycles: 6
- Wash/Rinse Cycles: Normal, Bedding, Delicates, Heavy Duty, Speed Wash, Downloaded
- Number Of Drying Cycles: 6
- Drying Cycles: Normal, Bedding, Delicates, Heavy Duty, Small Load, Downloaded (Dryers typically have multiple pre-programmed drying cycles to accommodate various fabrics and materials. These often include Normal/Regular, Permanent Press/Wrinkle Reduction, Heavy Duty, and Delicate/Gentle.)
- Options and Programs: WASHER: TurboWash, Steam, Extra Rinse, Pre-wash, Sanitary, Tub Clean, Drum Light, Child Lock, Signal, Wi-Fi/Remote Start -- DRYER: Wrinkle Care,Reduce Static, Energy Saver, Drum Light, Child Lock, Signal, Wi-Fi/Remote Start
- Number of Wash Temperatures: 5
- Number of Rinse Temperatures: 5
- Number of Drying Temperatures: 5
- Temperature Settings: Hot, Warm/Hot, Warm, Cold/Warm, Cold
- Number of Spin Speeds: 5
- Soil Levels: Light, Light/Medium, Medium, Medium/High, High (Washers with the option to select the soil level will employ different wash cycles to optimally clean the respective load. Most have three options: light, normal, or heavy.)
- Compatibility
- Propane Conversion Kit Model Compatibility: 383EEL3002D
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Fill Hoses Included: false
- Drain Hose Included: true
- Propane (LP) Convertible: true
- Propane Conversion Kit Included: false
- Filter Info
- Self-Cleaning Filter: false (Filter that requires little to no cleaning maintenance.)
- Electrical Specification
- Estimated Annual Electricity Use (Washer): 105 kilowatt hours (Predicted amount of electricity needed to operate the washing machine under average conditions for one year.)
- Estimated Annual Electricity Use (Dryer): 105 kilowatt hours (Predicted amount of electricity needed to operate the dyer under average conditions for one year.)
- Estimated Annual Operating Cost (Washer): 13 United States dollars (Predicted cost of operating the washine machine under average conditions for one year.)
- Estimated Annual Operating Cost (Dryer): 13 United States dollars (Predicted cost of operating the dryer under average conditions for one year.)
- Amperage: 30 amperes (Strength of electrical current.)
- Washer Voltage: 120 volts
- Dryer Voltage: 120 volts
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- ANSI Certified: false (Meets the requirements of the American National Standards Institute.)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 2
- Product Safety Certifications and Standard(s): CSA Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- NSF Listed: false (Meets the National Sanitation Foundation's standards for public health protection.)
- Warranty
- Warranty - Parts: 1 Year General, 3 Years Drum, 10 Year Direct Drive Motor
- Warranty - Labor: 1 Year General
- Connectivity
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Other
- UPC: 048231029377
Full-size and fully featured, with the washer on the bottom and dryer on top, the sleek single unit LG WashTower, giving you room to add a sink, a folding table or whatever you like. But unlike conventional stacked pairs, LG’s exclusive Center Control panel is perfectly positioned with both washer and dryer controls at just the right height. Built-in intelligence makes laundry less of a chore by taking out the guesswork, while top-of-the-line innovations put advanced cleaning power within reach.
- Ultra Large Capacity 4.5 cu.ft. Washer and 7.4 cu.ft. Dryer (WashTower): Get It All Done In Less Time. Ultra Large Capacity (4.5 cu. ft. in the washer and 7.4 cu. ft. in the dryer) means you have even more room to do laundry in fewer loads.
- Single Unit WashTower Design: This vertical laundry solution puts everything within reach. Full-size capacity and features with a centralized control panel for the easiest access ever.
- Built-In Intelligence: Built-in intelligence takes out the guesswork— AI technology can select optimal wash & dry motions and settings. Washer can auto-select a compatible drying cycle.
- ThinQ Care: Keep your appliances running smoothly with ThinQ Care, now in the ThinQ app. Get notifications about usage, maintenance, plus early diagnosis right on your phone. ThinQ Care will help you understand your appliance needs, avoid potential problems, and keep your appliance running its best.
- Advanced Washing and Drying: From ultra-large capacity to top-of-the-line innovations, the LG WashTower delivers the advanced cleaning performance you need.
- AAFA Certified LG Washer: AAFA certified LG washers with the Allergiene Cycle use the power of steam to remove over 95%* of pet dander and dust.
- ThinQ Technology: The ThinQ App controls laundry remotely and ThinQ Care sends maintenance tips & alerts.
- Tempered Glass Doors: Real tempered glass doors provide a sleek, stylish look that also resists shock and scratches.
- Direct Drive Motor 10-Year Limited Warranty (Washer): Backed by a 10-year limited warranty, the LG Direct Drive Motor delivers peace of mind with every load. Fewer moving parts means less noise and vibration, greater stability and durable performance you can depend on for years to come.
- ENERGY STAR Certified: Get additional savings that add up with each load without sacrificing performance.
- FlowSense Duct Clogging & Lint Filter Indicators (Dryer): With the FlowSense Duct Clogging and Clean Filter Indicators, you'll know when it's time to clean the ducts and the lint filter out to ensure great drying every time, lower utility bills and fewer service calls.
- NeveRust Stainless Steel Tubs: Unlike tubs made from porcelain or plastic, the full stainless steel tubs avoid the chips and nicks that can snag fabrics and ruin clothing.
- TubClean System (Washer): Thoroughly cleans and dries the tub, door and gaskets with the press of a button.
- TrueBalance Anti-Vibration System (Washer): Keeps even big loads in balance to reduce washer noise and vibration.
- LoDecibel Quiet Operation: Designed for quiet operation, run the washer or dryer without interrupting naptime or your favorite show.
- Wrinkle Care Option (Dryer): Periodically tumbles dry for up to 3 hours after the cycle is done to help keep wrinkles at bay.
- SpeedWash Cycle (Washer): SpeedWash Cycle gets small loads clean and refreshed in just 15 minutes.
- Ultra Large Capacity 4.5 cu.ft. Washer and 7.4 cu.ft. Dryer (WashTower): Get It All Done In Less Time. Ultra Large Capacity (4.5 cu. ft. in the washer and 7.4 cu. ft. in the dryer) means you have even more room to do laundry in fewer loads.
- Single Unit WashTower Design: This vertical laundry solution puts everything within reach. Full-size capacity and features with a centralized control panel for the easiest access ever.
- Built-In Intelligence: Built-in intelligence takes out the guesswork— AI technology can select optimal wash & dry motions and settings. Washer can auto-select a compatible drying cycle.
- ThinQ Care: Keep your appliances running smoothly with ThinQ Care, now in the ThinQ app. Get notifications about usage, maintenance, plus early diagnosis right on your phone. ThinQ Care will help you understand your appliance needs, avoid potential problems, and keep your appliance running its best.
- Advanced Washing and Drying: From ultra-large capacity to top-of-the-line innovations, the LG WashTower delivers the advanced cleaning performance you need.
- AAFA Certified LG Washer: AAFA certified LG washers with the Allergiene Cycle use the power of steam to remove over 95%* of pet dander and dust.
- ThinQ Technology: The ThinQ App controls laundry remotely and ThinQ Care sends maintenance tips & alerts.
- Tempered Glass Doors: Real tempered glass doors provide a sleek, stylish look that also resists shock and scratches.
- Direct Drive Motor 10-Year Limited Warranty (Washer): Backed by a 10-year limited warranty, the LG Direct Drive Motor delivers peace of mind with every load. Fewer moving parts means less noise and vibration, greater stability and durable performance you can depend on for years to come.
- ENERGY STAR Certified: Get additional savings that add up with each load without sacrificing performance.
- FlowSense Duct Clogging & Lint Filter Indicators (Dryer): With the FlowSense Duct Clogging and Clean Filter Indicators, you'll know when it's time to clean the ducts and the lint filter out to ensure great drying every time, lower utility bills and fewer service calls.
- NeveRust Stainless Steel Tubs: Unlike tubs made from porcelain or plastic, the full stainless steel tubs avoid the chips and nicks that can snag fabrics and ruin clothing.
- TubClean System (Washer): Thoroughly cleans and dries the tub, door and gaskets with the press of a button.
- TrueBalance Anti-Vibration System (Washer): Keeps even big loads in balance to reduce washer noise and vibration.
- LoDecibel Quiet Operation: Designed for quiet operation, run the washer or dryer without interrupting naptime or your favorite show.
- Wrinkle Care Option (Dryer): Periodically tumbles dry for up to 3 hours after the cycle is done to help keep wrinkles at bay.
- SpeedWash Cycle (Washer): SpeedWash Cycle gets small loads clean and refreshed in just 15 minutes.
Whats Included
- WKG101HVA 4.5 Cu. Ft. HE Smart Front Load Washer and 7.4 Cu. Ft. Gas Dryer WashTower
- Owner's Manual
- Non-skid Pads
- Hole Caps
- Wrench
- WKG101HVA 4.5 Cu. Ft. HE Smart Front Load Washer and 7.4 Cu. Ft. Gas Dryer WashTower
- Owner's Manual
- Non-skid Pads
- Hole Caps
- Wrench
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
A: To ensure sufficient clearance for water inlet hoses, drain hose and airflow, allow minimum clearances of at least 1'' (2.5 cm) at the sides and 4'' (10 cm) behind the appliance. Be sure to allow for wall, door, or floor moldings that may increase the required clearances. ^Daphane
Q: Are these stackable? If so, how much does the the kit cost?
A: The washtower is a stacked unit. No additional hardware is required. The washtower can be disassembled to facilitate moving or servicing but will not operate as a side by side. ^Daphane
Q: Is it possible to have this dryer unit vented to the side and not the rear?
A: Yes, this dryer can be vented from the left side. Right-side venting is not available on gas models. The side venting kit is part number 3911EZ9131X, https://www.lg.com/us/laundry-accessories/lg-3911ez9131x. ^Daphane
Q: What is the height of the dryer vent on the back of the dryer?
A: The vent is in the middle of the unit at the same height as the controls, about three feet from the floor Hope this helps
Q: Does it come with a LP conversion kit for propane?
A: No, the washer does not come with an LP Conversion Kit. You will need to purchase part number 383EEL3002D, https://lgparts.com/item/8226346/LG/383EEL3002D/. ^Daphane
Q: do the doors open from the right to the left?
A: Yes, the doors open right to left and are not reversible. ^Daphane
Q: Can I wash a king Size quilt?
A: Thank you for your interest in the LG Single Unit Front Load LG WashTower™ with Center Control™ 4.5 cu. ft. Washer and 7.4 cu. ft. Gas Dryer (WKG101HVA) model. The LG WKG101HVA, a 4.5 cu. ft. washer, is suitable for washing a king-size quilt or comforter. You can download its owner's manual through this link for more information: https://www.lg.com/us/support/product/lg-WKG101HVA.ASSEEUS. ^Cris
