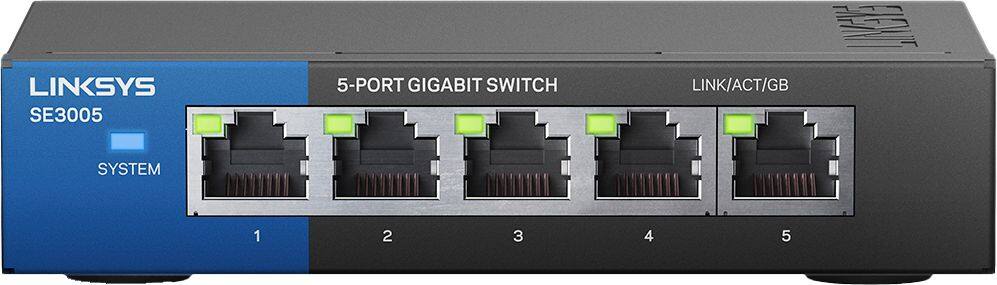

Linksys - 5-Port Gigabit Ethernet Switch - Black/Blue
- Key Specs
- Form Factor: Desktop, Wall mount (mount not included)
- Maximum Data Speed: 1000 megabits per second
- Switch Management Type: Unmanaged (Unmanaged switches don't require user configuration and are typically used for basic connectivity. Managed switches have more features and can be configured by the user for custom network use.)
- Number of LAN Ports: 5 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- General
- Brand: Linksys
- Model Number: SE3005
- Product Name: 5-Port Gigabit Ethernet Switch
- Color: Black/Blue
- Network
- Quality Of Service (QoS) Traffic Prioritization: true (Allows a user to manage a device's network performance by configuring the types of traffic that receive top priority for transmission. High priority functions and applications receive maximum network performance, while low priority traffic receives minimum performance.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Features
- Auto Speed Sensing: true
- Ports
- Auto Sending Ports: true (Automatically send incoming signals to the correct destination.)
- Speed
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Dimensions
- Product Height: 1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 3 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 4.8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.54 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 Year
- Warranty - Labor: 1 Year
- Other
- UPC: 722868997659
Expand your network and add network devices with this Linksys five-port gigabit switch, letting you transfer 10 times faster than Fast Ethernet. Five ports offer 5X Ethernet so you can plug and play without missing a beat. Power is reduced to unused ports on this Linksys five-port gigabit switch, saving you money by reducing energy costs.
- 5-port unmanaged Gigabit Ethernet switch: Provides a wired network connection for up to 5 devices.
- 10/100/1000 Mbps speed: For efficient performance.
- Complies with a variety of IEEE standards: Including IEEE 802.3, 802.3u, 802.3x, 802.3ab and 802.3az for flexible use with a variety of networks.
- Auto sensing: Automatically adjusts to the speed of your network to simplify setup of devices.
- PC system requirements: Microsoft Windows.
- 5-port unmanaged Gigabit Ethernet switch: Provides a wired network connection for up to 5 devices.
- 10/100/1000 Mbps speed: For efficient performance.
- Complies with a variety of IEEE standards: Including IEEE 802.3, 802.3u, 802.3x, 802.3ab and 802.3az for flexible use with a variety of networks.
- Auto sensing: Automatically adjusts to the speed of your network to simplify setup of devices.
- PC system requirements: Microsoft Windows.
Whats Included
- Linksys 5-Port Gigabit Ethernet Switch
- Linksys 5-Port Gigabit Ethernet Switch
A: If you go from the modem directly into a wireless router, then any hard wire connection off the router can go into as many switches as you want. I have my cable modem feeding into my Linksys wireless router, then out of my router into my 12 port switch, and then from my 12 port switch I have 2 other 8 port switches in other parts of the house. Then problem for most people is they try and come right off the modem right into a switch and you will get blocked every time. If you go into the router 1st, the ISPs can't see past the router.
A: If that was the only use for this then yes, but you could use this to just connect 5 computers together for LAN sharing
A: This product has LED indicators on the front that indicate link is active and and the LED's will either light orange or blue to show the internet speed that port is processing at.
A: Yes, exactly what this is for. Good luck to her..
A: This will work from a modem connection for additional ports. It DOES NOT issue DHCP, so you would have to use a computer to issue IP addresses to additional devices (setup as DHCP server), or set each static and tell Windows to share your internet connection to network. Router would be better if you are not technically savvy, or if you want WiFi
Q: Do I need to have wifi for this or will it give me wifi
A: This will not give you WiFi, it is a switch that distributes your internet signal to various devices via a wired connection. You will need an ISP, or Internet Service Provider, to supply you with an internet connection. From there, if they do not supply a router, (and most will supply it although you may have to pay a rental fee each month), you will need a WiFi router that can then give you WiFi.
Q: Will a linksys switch work with a netgear router? I think it would but I thought I would ask.
A: Yes it will
A: No, this does not supply PoE. You can buy a PoE injecter to install inline so the device you need to power will work.
