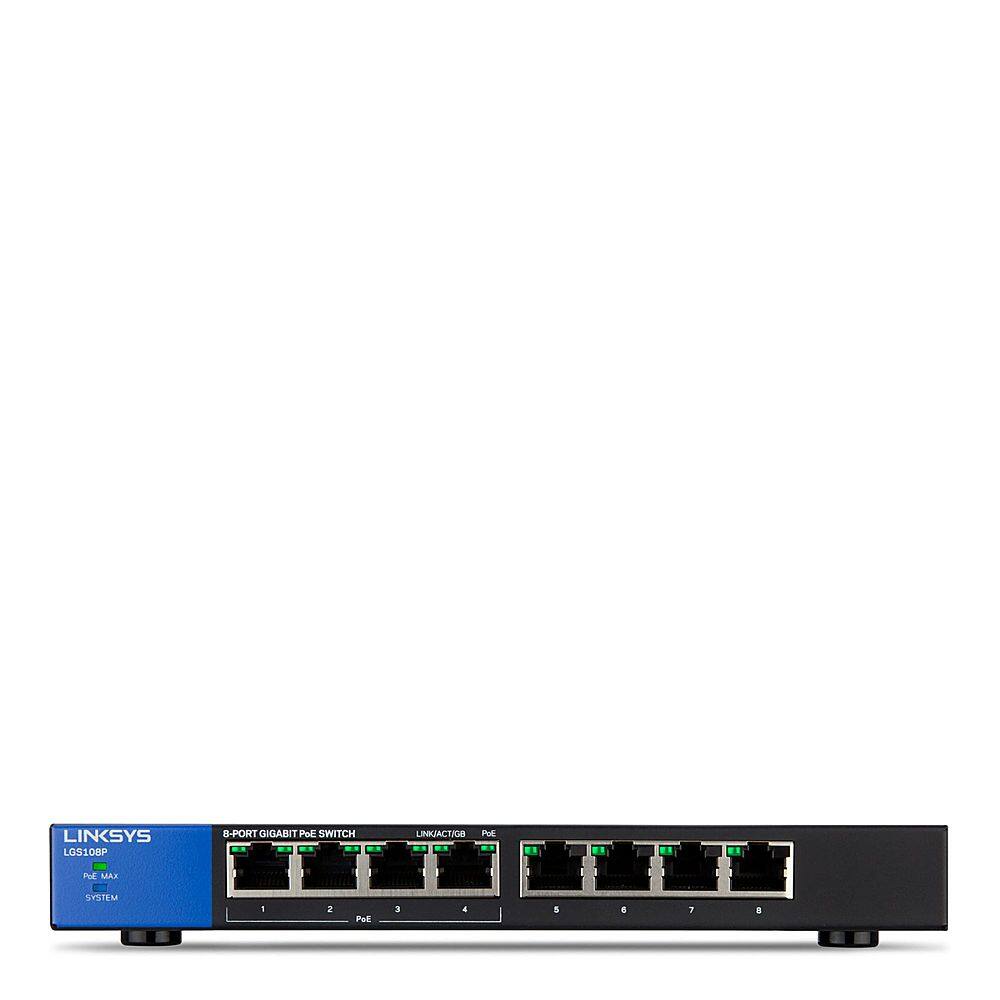

Linksys - 8-Port Gigabit Ethernet POE Switch - Black
- Key Specs
- Form Factor: Desktop
- Maximum Data Speed: 1000 megabits per second
- Number of LAN Ports: 8 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- General
- Brand: Linksys
- Model Number: LGS108P
- Product Name: 8-Port Gigabit Ethernet POE Switch
- Color: Black
- Network
- Quality Of Service (QoS) Traffic Prioritization: true (Allows a user to manage a device's network performance by configuring the types of traffic that receive top priority for transmission. High priority functions and applications receive maximum network performance, while low priority traffic receives minimum performance.)
- Features
- Auto Detecting: true
- Auto Speed Sensing: true
- Speed
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Dimensions
- Product Height: 1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 8.3 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 4.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.23 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 5 YEARS
- Warranty - Labor: 5 YEARS
- Other
- UPC: 722868998335
Expand office network connections with this Linksys desktop switch. Each of the eight ports boast Gigabit Ethernet capability, letting you stream large files without interfering with the network. This Linksys desktop switch comes with Quality of Service prioritization logic to help manage network traffic, and a quick installation lets you use it immediately.
- 8-port Gigabit Ethernet switch upgrades networks to a 1000 Mbps network: For a high-speed networking solution.
- Performs up to 1000 Mbps per port in full-duplex dedicated bandwidth: While delivering messages to the correct connected device.
- Complies with IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az, 802.3af, 802.3at standards: Supports IEEE 802.1p QoS (Quality of Service).
- Auto sensing: Automatically adjusts to the speed of your network to simplify setup of devices.
- 4 PoE+ ports: Power over Ethernet support with dedicated PoE power budget of 50 W.
- Plug-and-play installation: For easy setup.
- 8-port Gigabit Ethernet switch upgrades networks to a 1000 Mbps network: For a high-speed networking solution.
- Performs up to 1000 Mbps per port in full-duplex dedicated bandwidth: While delivering messages to the correct connected device.
- Complies with IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az, 802.3af, 802.3at standards: Supports IEEE 802.1p QoS (Quality of Service).
- Auto sensing: Automatically adjusts to the speed of your network to simplify setup of devices.
- 4 PoE+ ports: Power over Ethernet support with dedicated PoE power budget of 50 W.
- Plug-and-play installation: For easy setup.
Whats Included
- 8-Port Gigabit Ethernet POE Switch
- Owner's manual
- Power Adapter
- 8-Port Gigabit Ethernet POE Switch
- Owner's manual
- Power Adapter
Product Manuals
Q: Is there power to all 8 ports? Will this work as 1 in 7 out?
A: If you enlarge the picture of the front of the switch — ONLY Ports 1 -4 are POE — NOT all 8!!!
A: Hi, Knight701. The Linksys LGS108P has an AC port at the back to connect a power supply that provides power to the PoE ports.
Q: Does this have a firewall? Can it be DNS configured?
A: Hi, brharding. Our Linksys LGS108P is an unmanaged switch that has no DNS feature, and no firewall capabilities, unlike routers.
Q: Does this support 8k jumbo frames?
A: Yes, justrun. The LGS108P supports jumbo frames.
A: Hi. Technically, it should work. But we'd like to know more about your setup so that we can provide the correct answer. Just send us an email at [email protected] along with the link to this post as a reference.
A: Hi, bkerin. If you want to use the PoE ports on the switch, you would need to connect another PoE device at the other end of the Ethernet cable to deliver both data and power.
A: Hi, OldGuy. The Linksys LGS108P can be wall-mounted.
