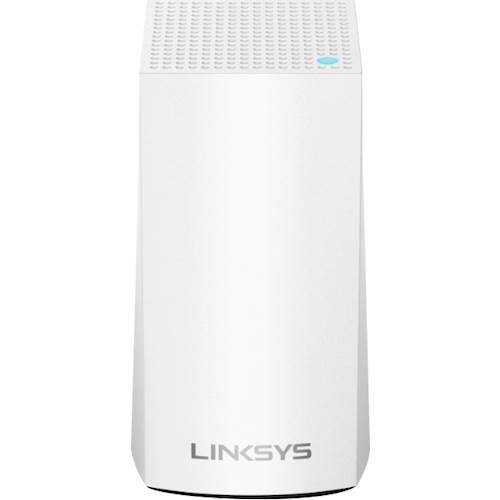

Linksys - Velop AC1300 Dual-Band Mesh Wi-Fi 5 System - White
- Key Specs
- Wi-Fi Range: 1500 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Wi-Fi Mesh System: true (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Number of Wi-Fi Satellites Included: 1 (Quantity of Wi-Fi satellite modules/nodes for a Wi-Fi Mesh System that come with the product.)
- Number Of LAN Ports: 1 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Wi-Fi Speed: 1267 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Works With: Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Linksys
- Model Number: WHW0101
- Product Name: Velop AC1300 Dual-Band Mesh Wi-Fi 5 System
- Color: White
- Security
- Data Encryption: true
- Encryption Type: WPA2-Personal (The security protocols or certification programs that protect the Wi-Fi network.)
- Firewall Type: Other (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- Parental Controls: true (Allows user to block unwanted content, signals, channels, networks, etc. from being received or accessed.)
- Network
- Band Technology: Dual (Refers to the number of frequency bands used to wirelessly transmit an internet signal. For example, dual-band devices may use one 2.4 and one 5 GHz band, while tri-band devices may use one 2.4 and two 5 GHz bands. Multiple bands also provide more flexibility for designating connected devices to specific band use.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Number of Antennas: 3
- Frequency Band: 2.4 GHz, 5.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Wireless Networking Standard: Wi-Fi 5 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AC, N (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Wi-Fi Range: 1500 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Number of 2.4Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. Because the 2.4 GHz band is used to transmit wireless signals to a wide variety of devices, there is often high amounts of traffic on that stream. But with multiple streams, each can be designated to a specific device for optimal performance. For example, if one 2.4 GHz stream is assigned to one device, such as a desktop computer, it leaves the remaining streams open for guest users, devices that use more data, or devices with specific band compatibility.)
- Number of 5.0Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. The 5.0 GHz band provides high speed, short-range data transmission and typically has less traffic than the 2.4 GHz band. With multiple streams, each can be designated to a specific device for optimal performance. For example, if one 5.0 GHz stream is assigned to one device, such as a streaming media player, it leaves the remaining streams open for guest users, devices that need less data, or devices with specific band compatibility.)
- Wi-Fi Mesh System: true (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Number of Wi-Fi Satellites Included: 1 (Quantity of Wi-Fi satellite modules/nodes for a Wi-Fi Mesh System that come with the product.)
- Number of Wi-Fi Satellites Supported: 1 (Maximum quantity of Wi-Fi satellite modules/nodes that are able to be connected to the main router in a Wi-Fi Mesh System.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- App Name: Linksys
- Beamforming: true (A signal processing technique that enables a router to focus a Wi-Fi signal in a specific direction. The router determines where a connected device in the network is located and projects a stronger signal in that specific direction. This can result in faster and higher quality data transfer as well as reduced signal interference.)
- Integrated Modem: false
- Auto Detecting: true
- Wireless: true
- Ports
- Number Of WAN Ports: 1 (Number of devices able to be connected to the Wide Area Network (WAN). This type of port may simply be labeled "Internet," and it allows the device to share its internet connection with all devices connected to it via LAN ports.)
- Port Type(s): RJ-45 (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Number Of LAN Ports: 1 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Speed
- Wired Speed: 1000 megabits per second (The maximum rate at which data is transferred between a network device and router using an Ethernet cable.)
- Wi-Fi Speed: 1267 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Auto Speed Sensing: true
- Compatibility
- System Requirements: Internet connection with modem; mobile device with Android 4.0.3. or iOS 8 and higher, Bluetooth preferred (The software that a product must have for it to be able to integrate with another product.)
- Bluetooth Enabled: true (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Works With: Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- Dimensions
- Product Height: 5.55 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 3.1 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 3.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.71 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 Years
- Warranty - Labor: 3 Years
- Other
- UPC: 745883753765
Velop with Intelligent Mesh™ technology is a modular family mesh Wi-Fi system created to work seamlessly together. Mix and match nodes with different speeds to customize performance or interchange colors to coordinate with your home style. Regardless of shape, size or wherever your Internet comes in, Velop can be customized to your home. It provides seamless Wi-Fi everywhere and continuously optimizes to find the fastest path to the Internet. Unlike traditional routers with range extenders, each node provides a powerful Wi-Fi signal throughout your entire home. And as your home and family expands, you can easily add more nodes. It works with all Internet service provider supplied equipment and speeds, and its simple app-based setup will get you up and running in minutes
- Wireless-AC technology: Backward compatible with 802.11b/g/n networks, so you can easily upgrade.
- Velop’s Intelligent mesh TM Technology: Adapts to your WiFi needs, so you’ll always be on the fastest path to the internet.
- Works with all Internet service providers: Enjoy flawless Wi-Fi with all Internet service provider supplied equipment and speeds.
- Gets better all the time: Velop self-heals and optimizes to consistently deliver fast and flawless Wi-Fi.
- Securing Wi-Fi: Automatic software updates keep your system up-to-date and secure.
- Keeps your family safe: Easily block content for safety and pause the Internet for family time.
- Designed to fit anywhere: A beautiful design fits with any home style and conveniently comes in both white and black.
- Wireless-AC technology: Backward compatible with 802.11b/g/n networks, so you can easily upgrade.
- Velop’s Intelligent mesh TM Technology: Adapts to your WiFi needs, so you’ll always be on the fastest path to the internet.
- Works with all Internet service providers: Enjoy flawless Wi-Fi with all Internet service provider supplied equipment and speeds.
- Gets better all the time: Velop self-heals and optimizes to consistently deliver fast and flawless Wi-Fi.
- Securing Wi-Fi: Automatic software updates keep your system up-to-date and secure.
- Keeps your family safe: Easily block content for safety and pause the Internet for family time.
- Designed to fit anywhere: A beautiful design fits with any home style and conveniently comes in both white and black.
Whats Included
- Ethernet cable
- Linksys Velop AC1300 Dual-Band Mesh Wi-Fi 5 System
- Owner's manual
- Power adapter
- Quick start guide
- Ethernet cable
- Linksys Velop AC1300 Dual-Band Mesh Wi-Fi 5 System
- Owner's manual
- Power adapter
- Quick start guide
Q: What is the difference in performance in the dual band versus tri band?
A: Hi. The Velop dual-band has a lower wireless technology, which is the AC1300 per node. While the tri-band is an AC2200 per node. But their speeds are almost same. Another difference is the coverage. While the Velop tri-band can cover an estimated 5,000 to 6,000 square feet, the Velop dual-band is only up to 4,000 to 4,500 square feet.
A: Our home is a 2400 square foot ranch. We have the main node close to one corner, another node closer to the center and a third node in the lower level. We have full coverage including to the garage camera.
A: The great things about mesh WiFi systems is you can just keep adding nodes. You can have 2,5,8, whatever you need - then next node just needs to be withing range of the previous one. So even if you have a 10,000 sq ft home, you could have 10 nodes strategically placed all over!
A: Yes, I got this working with FIOS. There's some great tips and advice on reddit for setting up MESH WiFi with FiOS. You need to setup FiOS as a MOCA bridge. This guide is a good place to start. https://www.reddit.com/r/Fios/comments/7xb9yz/new_to_fios_can_you_confirm_this_setup_with_moca/
A: At least one of the Linksys nodes will need to be directly connected to your cable modem in order to receive Internet access. All your other nodes from there wirelessly connect and do not require any type of ethernet connection. The Linksys app will help you along this type of set up as well. Also, Linksys has included concierge services to help you get your network up and running, 24/7 and free of charge.
A: This is one node. You activate it via the Linksys app & a smart phone. The numbers AC1200, AC1800 etc refer to square foot coverage ie. signal strength. Single nodes are available through Best Buy or direct.
Q: How is this the system if it only comes with one device?
A: Good question :-) Only one would simply act like a wireless router. But if you added more they would communicate with each other and improve overall connection through your whole house.
A: I would advise running your cable modem to the unit and then to your router. I originally went from my modem to my router and then the unit and kept having issues with connectivity.
