Maestro - Plug-and-Play Wire Harness Adapter for Select JVC and Kenwood Radios - Black

Update your vehicle's sound system with this wiring harness that allows the installation of an aftermarket radio into most 1987 and later Toyota Scion models.

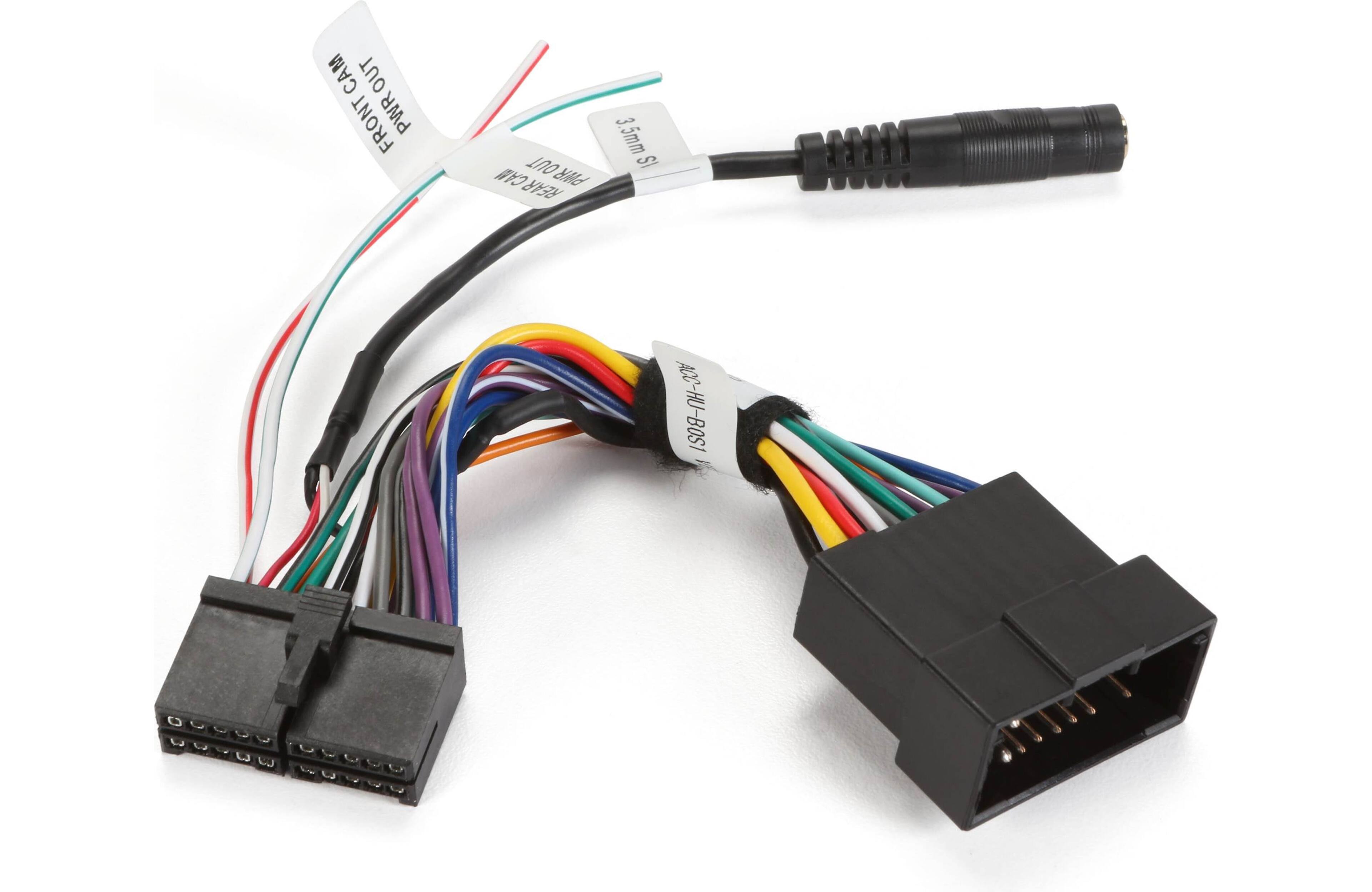

The iDatalink ACC-HU-KEN2 adapter harness allows for direct connection between select Kenwood or JVC aftermarket radios and compatible iDatalink Maestro vehicle specific harnesses used with the iDatalink Maestro ADS-MRR or ADS-MRR2 radio replacement interface module. The ACC-HU-KEN2 adapter harness will replace the wiring harness that comes with your Kenwood or JVC radio. There is a 16-pin Kenwood/JVC connector one end that plugs into the back of your Kenwood or JVC radio and a 20-pin iDatalink Maestro connector on the other end that will plug into a compatible iDatalink Maestro vehicle specific harness. The 16-pin Kenwood/JVC connector features the following wiring pinout.The iDatalink Maestro ACC-HU-KEN2 adapter allows you to connect select Kenwood and JVC radios to compatible iDatalink T-harnesses. This extra harness takes the place of the harness that comes with your new Kenwood or JVC stereo. It connects directly between select Kenwood and JVC radios and the latest Maestro "Head-unit ready" HRN-HRR T-harnesses so you won't have to splice any wires.

The iDatalink ACC-HU-PIO1 adapter allows you to connect select Pioneer radios to compatible iDatalink T-harnesses. This extra harness takes the place of the harness that comes with your new Pioneer stereo. It connects directly between select Pioneer radios and the latest Maestro "Head-unit ready" T-harnesses so you won't have to splice any wires.Note: This harness will not work by itself. You Must Also Have an Idatalink Maestro Interface Module (ADS-MRR or ADS-MRR2) and a Compatible Vehicle-Specific Idatalink Maestro "HRN-HRR" T-Harness. (It MUST be the HRN-HRR version, NOT the HRN-RR one.) Sold separately.
