MB Quart - Q Series 6-1/2" 2-Way Car Speakers with Mica Filled Polypropylene Cones (Pair) - Black
MB Quart - Q Series 6-1/2" 2-Way Car Speakers with Mica Filled Polypropylene Cones (Pair) - Black
Reviews coming soon
Related Item
Specifications
- RMS Power170 wattsPeak Power Handling360 wattsMinimum Frequency Response35 hertzMaximum Frequency Response32 kilohertzSensitivity85.5 decibelsSpeaker Size6-1/2"
- Key Specs
- RMS Power: 170 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 360 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Minimum Frequency Response: 35 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 32 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 85.5 decibels
- Speaker Size: 6-1/2"
- Speaker Type: Component
- Tweeter Composition: Titanium dome
- Woofer Surround Material: Butyl rubber
- General
- Brand: MB Quart
- Model Number: QSE-216
- Product Name: Q Series 6-1/2" 2-Way Car Speakers with Mica Filled Polypropylene Cones (Pair)
- Color: Black
- Number Of Speakers: 4
- Audio
- RMS Power: 170 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 360 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Minimum Frequency Response: 35 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 32 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Sensitivity: 85.5 decibels
- Features

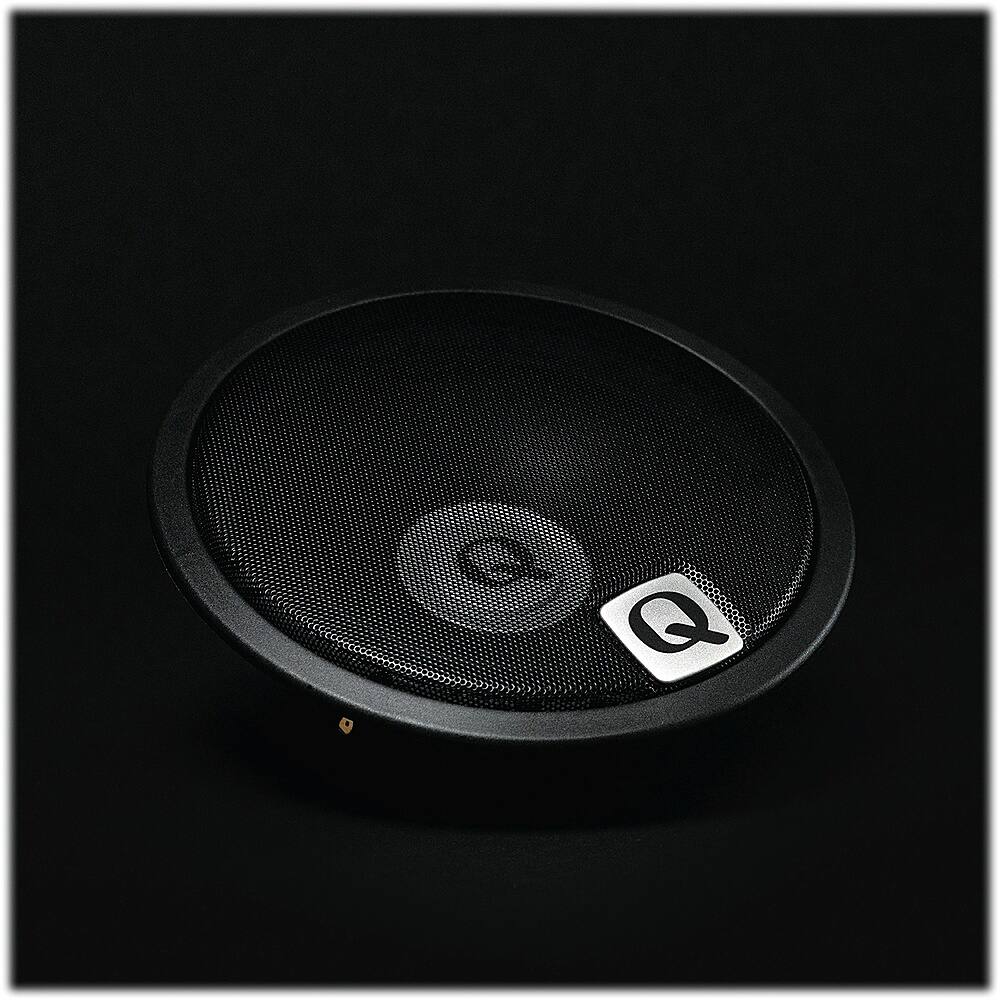

- Grille Included: true
- Design
- Speaker Size: 6-1/2"
- Speaker Type: Component
- Tweeter Composition: Titanium dome
- Woofer Surround Material: Butyl rubber
- Dimensions
- Cutout Diameter: 5.68 inches
- Mount Depth: 2.5 inches
- Product Height: 3.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7.88 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 7.88 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 7.8 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 806576233466

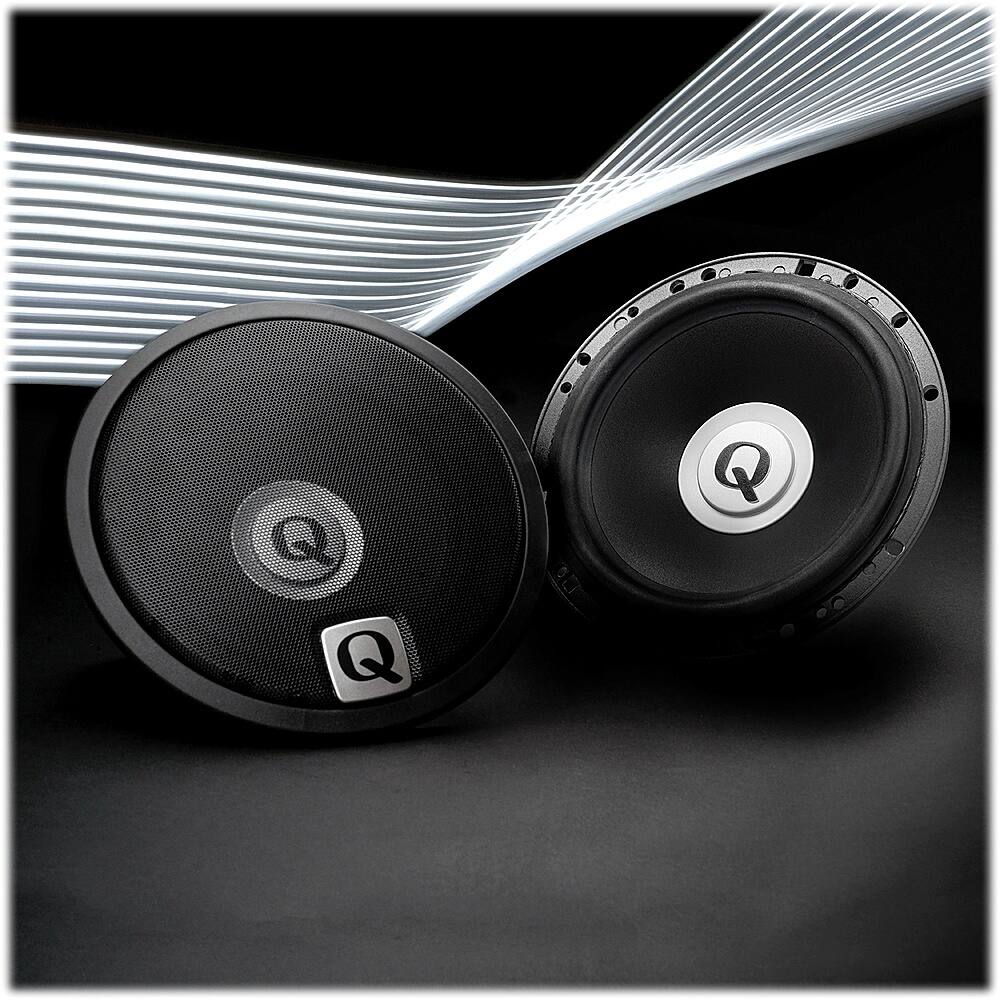

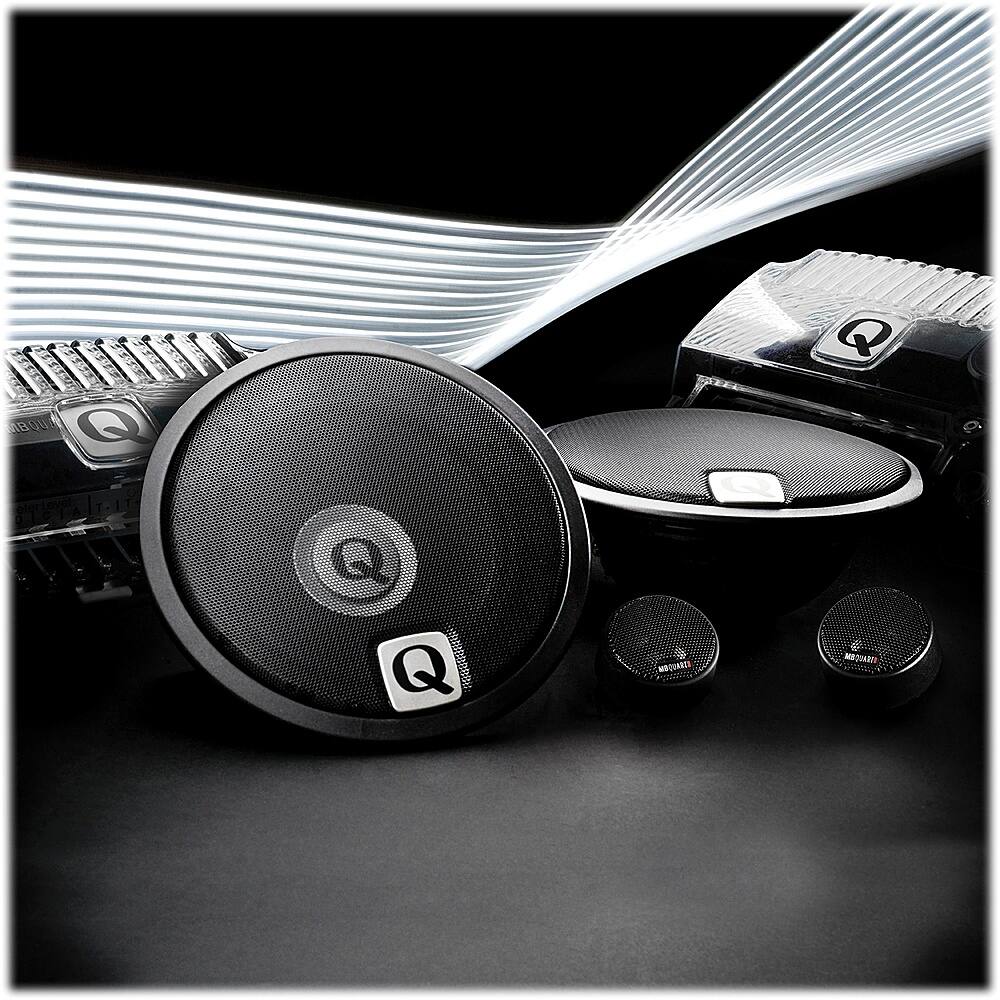

Turn up the music with this black MB Quart 6.5" Q Series two-way component speaker system. The butyl rubber surrounds deliver powerful bass, and the 1" titanium dome tweeters in a cast aluminum housing provide high frequencies for an immersive listening experience. This MB Quart Q Series component car speaker system features an external audiophile Q Control crossover network to guide the frequencies from the amplifier to each driver.

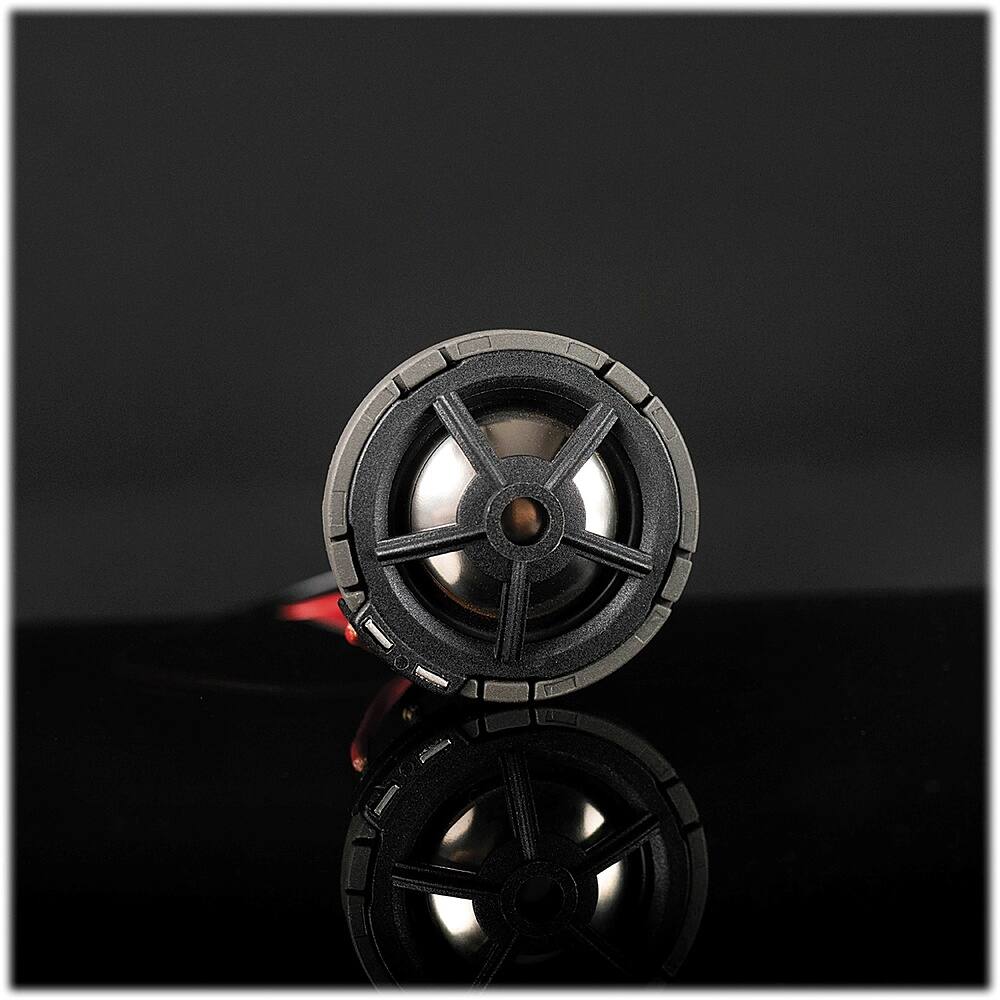

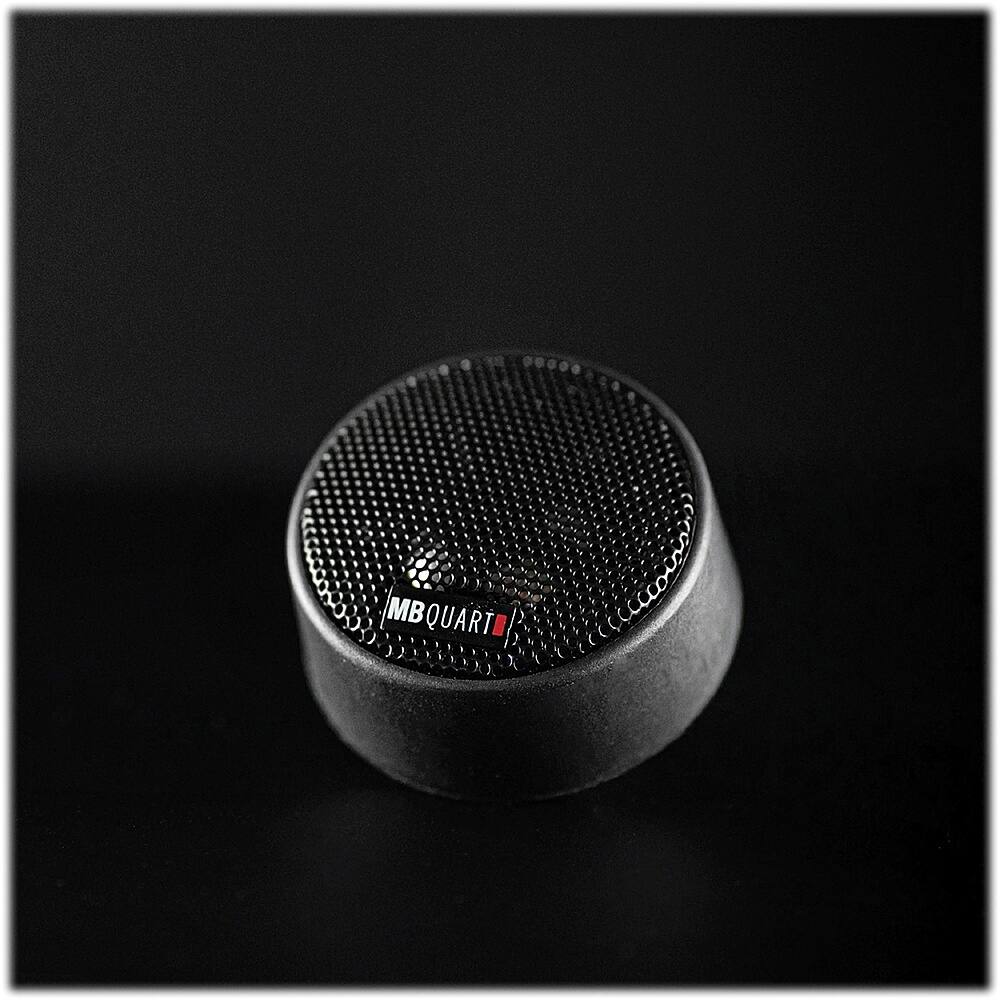

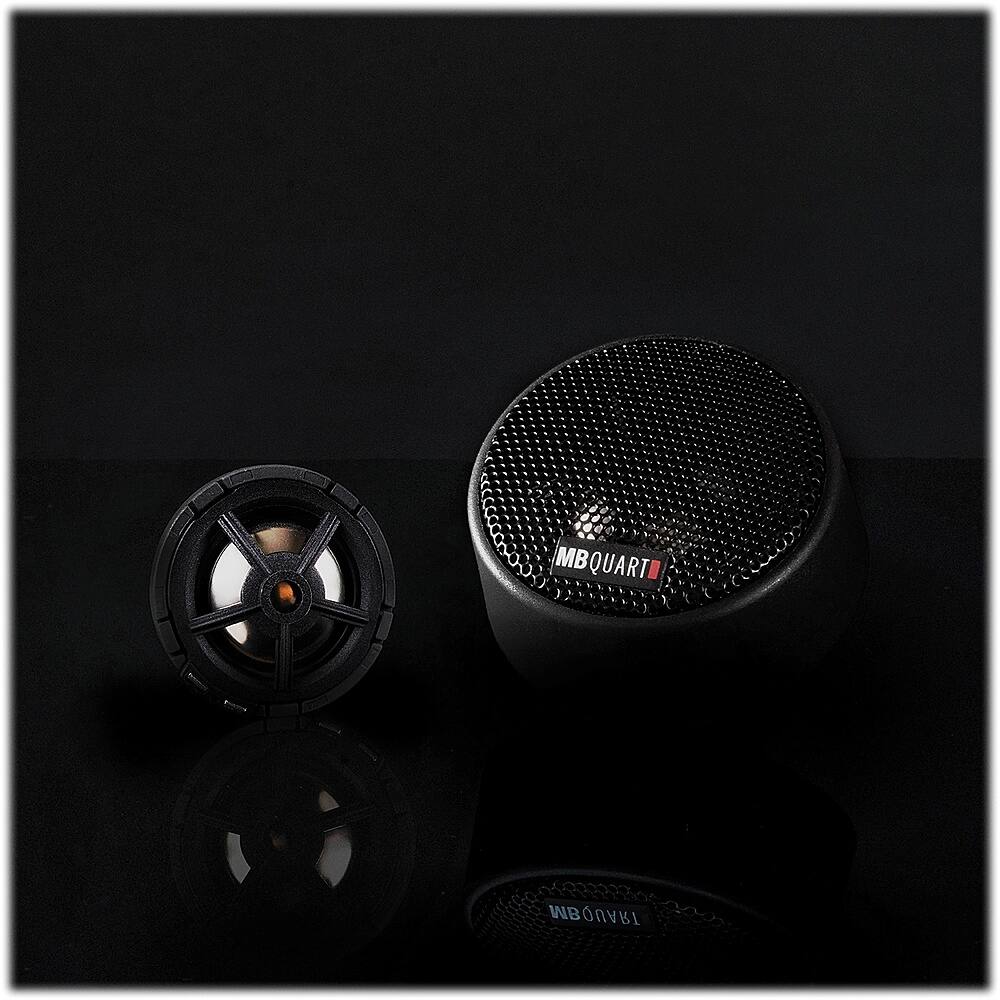

- 1" Military A-Specification titanium dome tweeter with butyl rubber surround in cast aluminum housing: Made to dissipate heat for peak performance. Stamped in a nine-step progressive die for a consistent shape. The phase lens is specifically designed for off-axis performance.
- Lightweight mica-filled polypropylene cones: Mica-filled poly blend ensures strength, outstanding frequency reproduction, and durability. This means that mid-bass frequencies remain very musical without the distortions that can be caused by the cone flexing.
- Curvilinear design: The geometry is specifically engineered to optimize mid-bass response and off-axis performance.
- Natural butyl rubber surround: Enables smooth and durable performance. Flexible piston action UV-protected rubber remains impervious to extreme temperature swings, from very warm to very cold.
- 1.5" high-temperature copper voice on Kapton former: The former is lighter and stronger than aluminum, which allows the component to support slightly higher frequency extension and efficiency.
- Woven fiber cotton poly blend spider: Stabilizes the cone and voice coil in all musical situations.
- Balanced Temperature Technology (BTT) cooling system: The system uses Balanced Temperature Technology throughout every component. The cast aluminum radial sink speaker frame, crossover plate, and tweeter frame remove excess heat for predictable long-term performance.

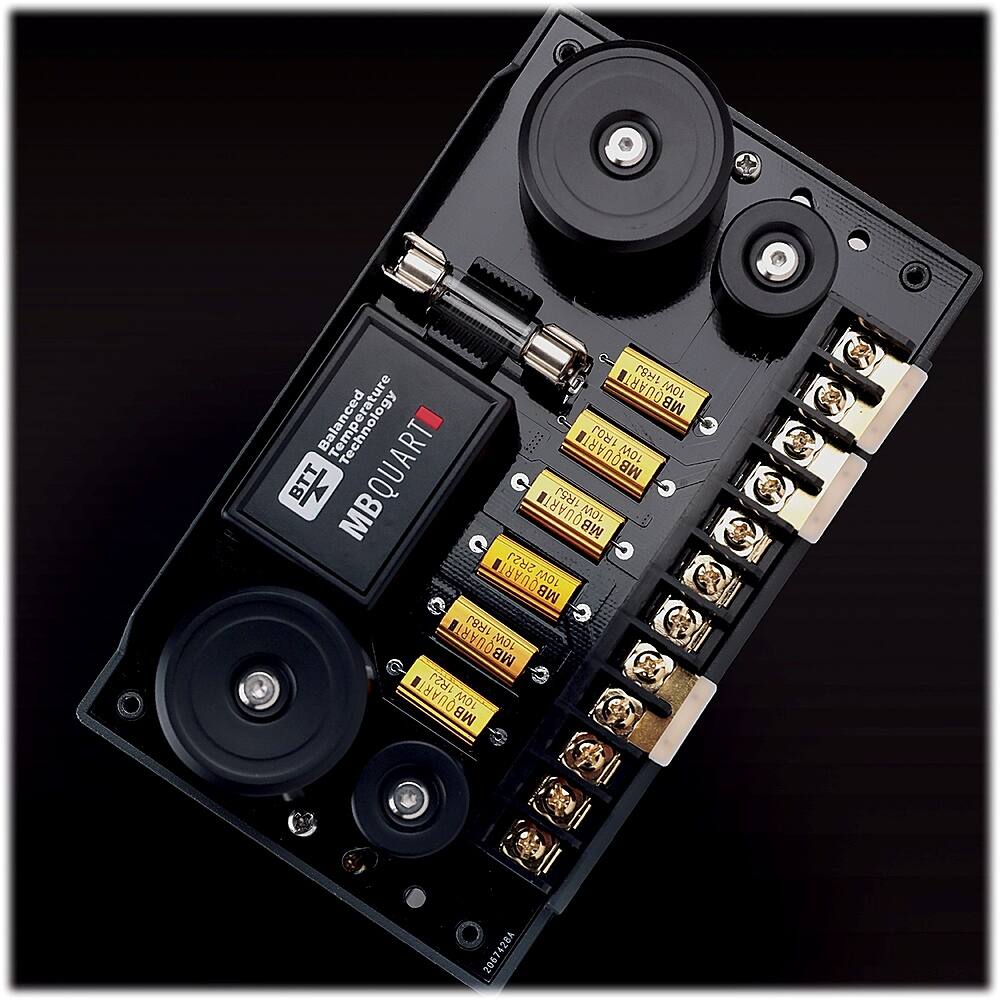

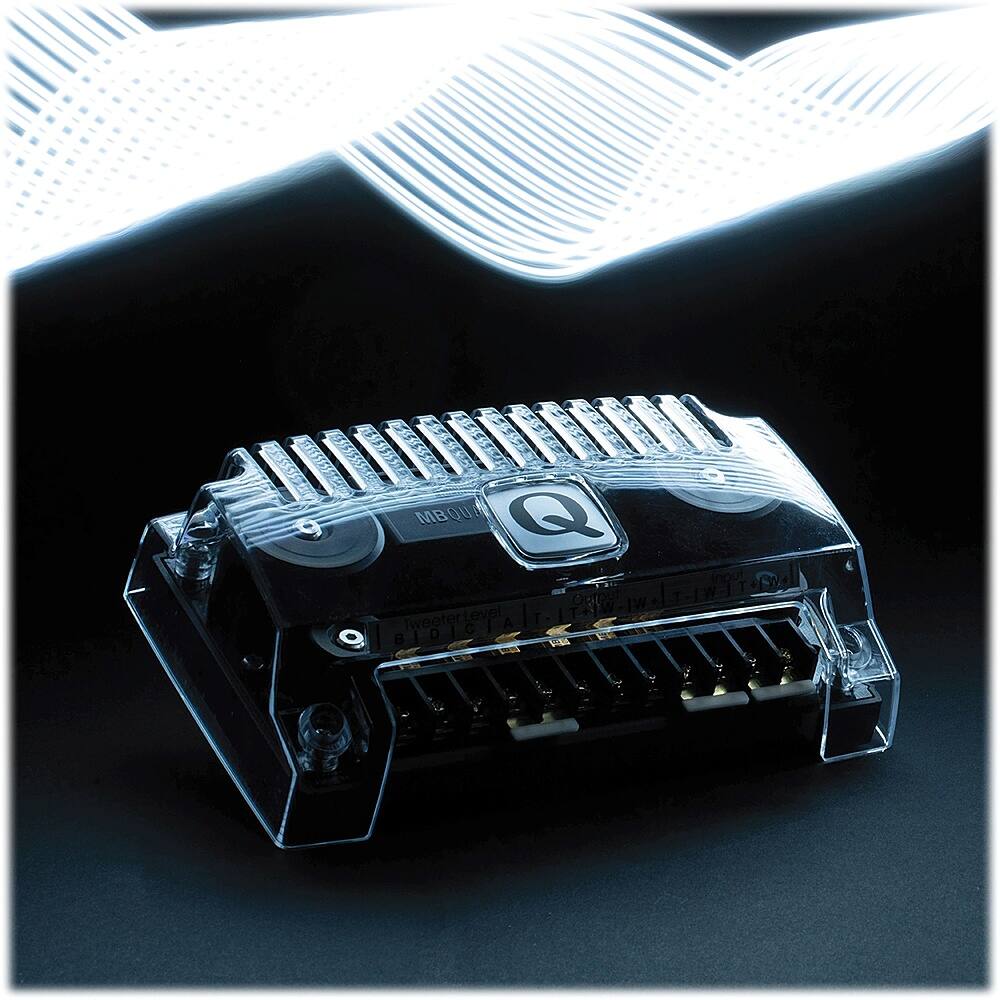

- External audiophile Q Control crossover network: Guides the frequencies from the amplifier to each driver (speaker). This system is designed with tight-tolerance components with low-loss polypropylene film caps and air-wound coils for remarkable sound quality.
- High-tolerance (1%) metal film resistors: Reduce phase shift for better staging and imaging.

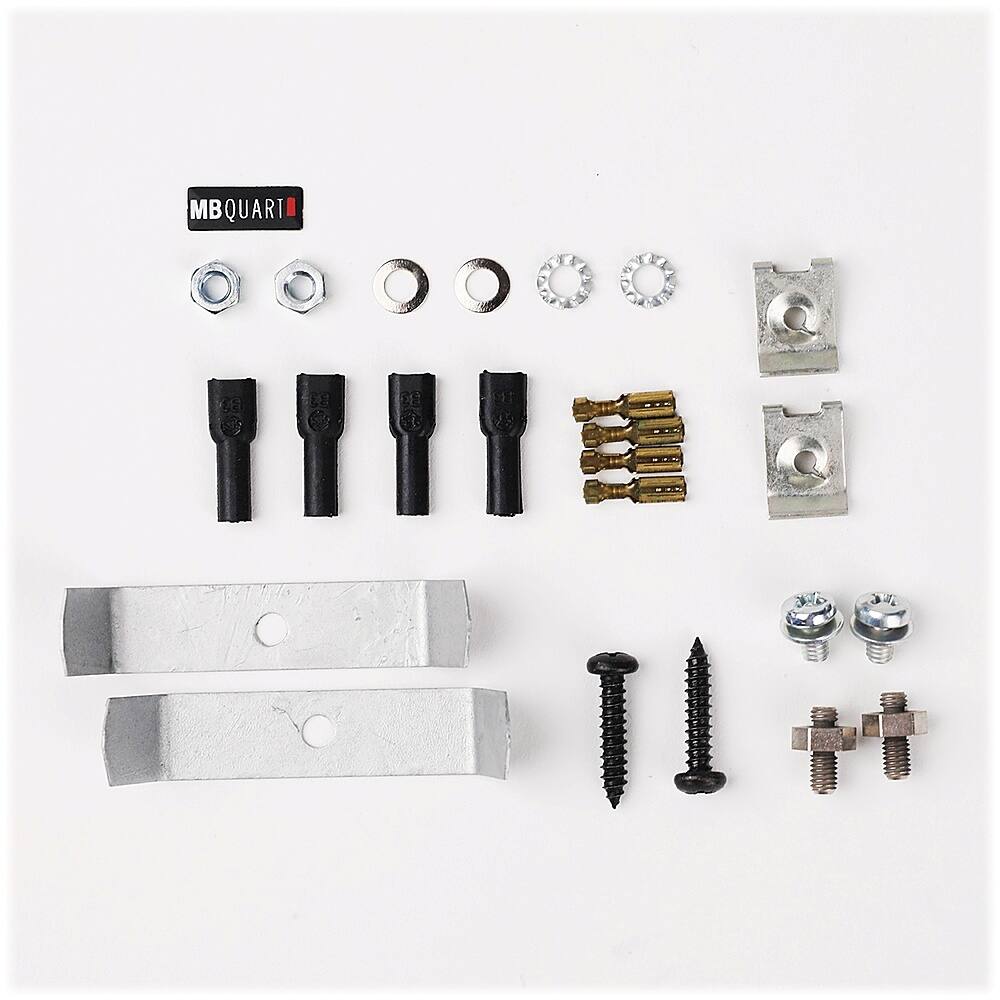

- Tweeter hardware: Hardware for multiple tweeter mounting solutions is included.

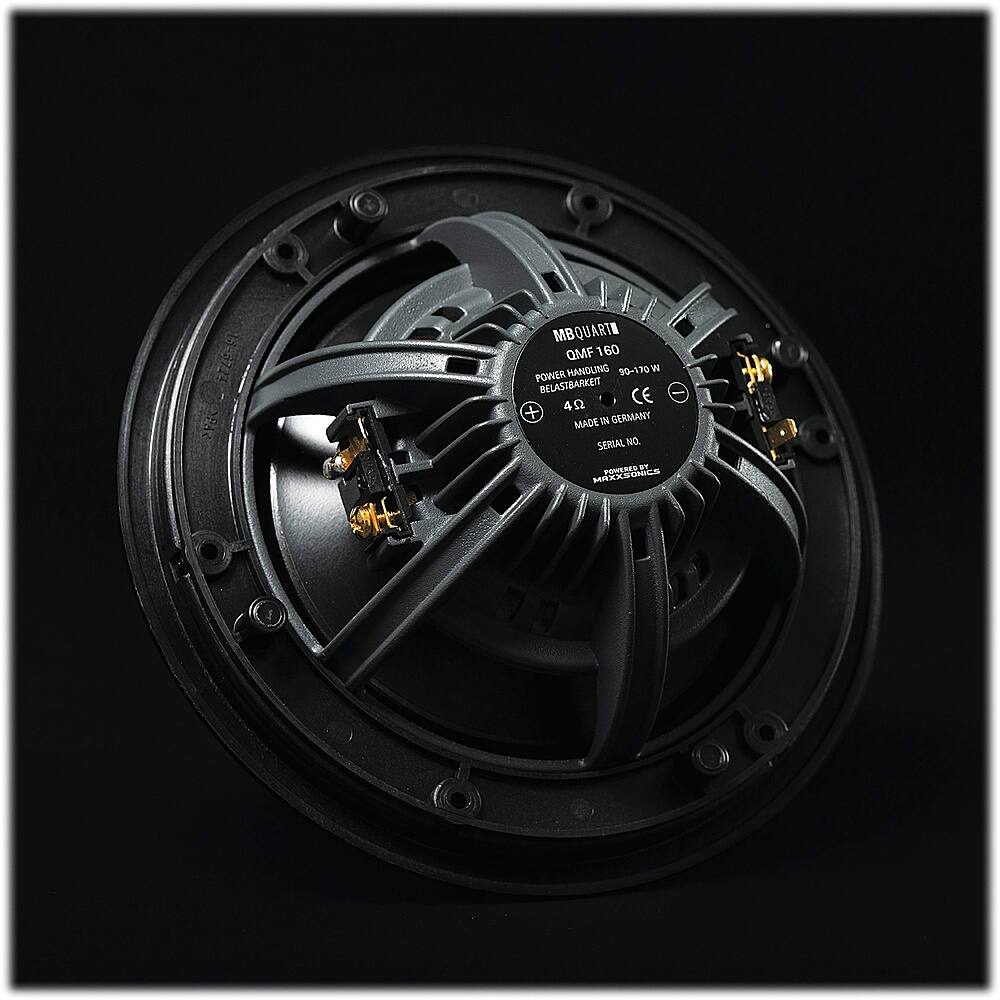

- Die-cast aluminum basket: Designed to be lightweight and extremely rigid. The low-profile form can be easily installed in most factory locations with little or no modification.
- Solid neodymium magnet in low-carbon steel containment cup: Strong magnet focuses all the energy around the voice coil.
- Gold-plated four-way connection terminal: For consistent curvilinear cone performance. Connection types include solder, screw-down, spade, or fork terminal.

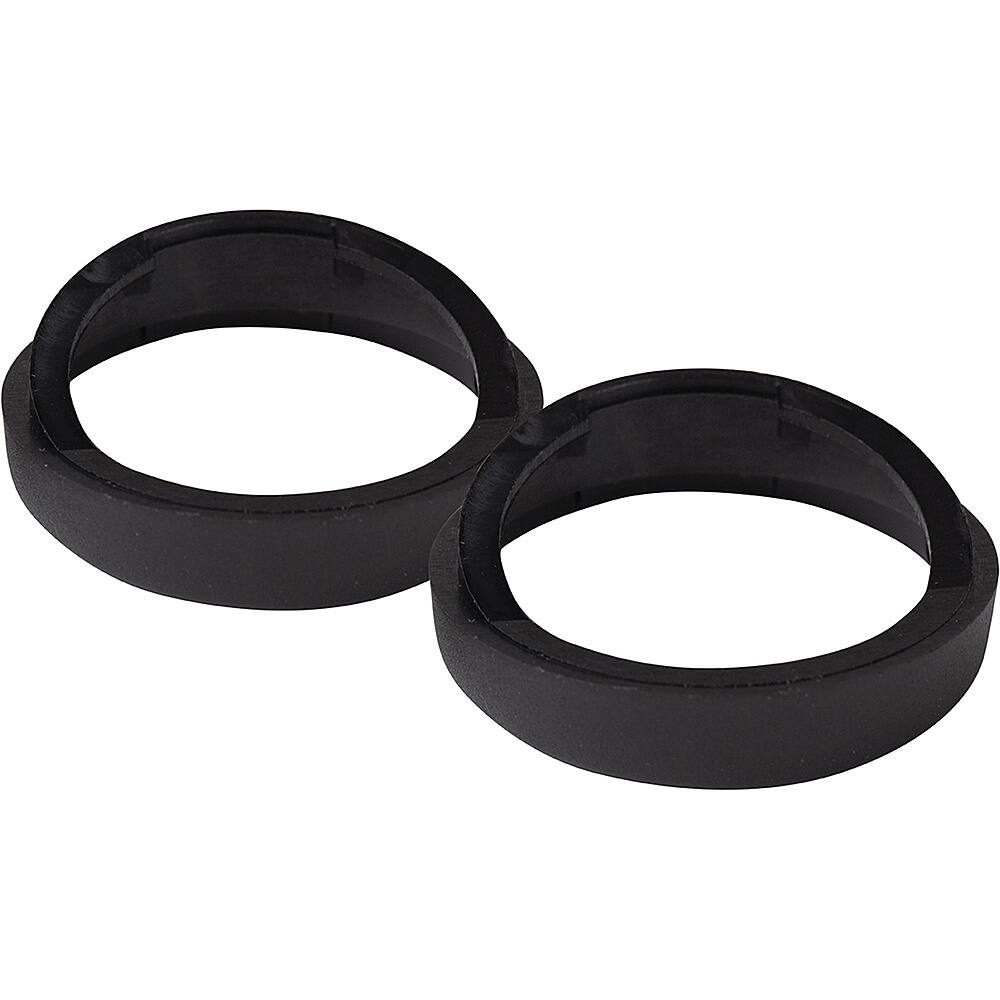

- Hardware: Flush-mount ring bracket and holes accommodate OEM and custom installations for the midrange. Available mounting options for the tweeter are flush, flushed angle, and surface mounting. Four holes in the base of the crossover allow for mounting on any flat surface.

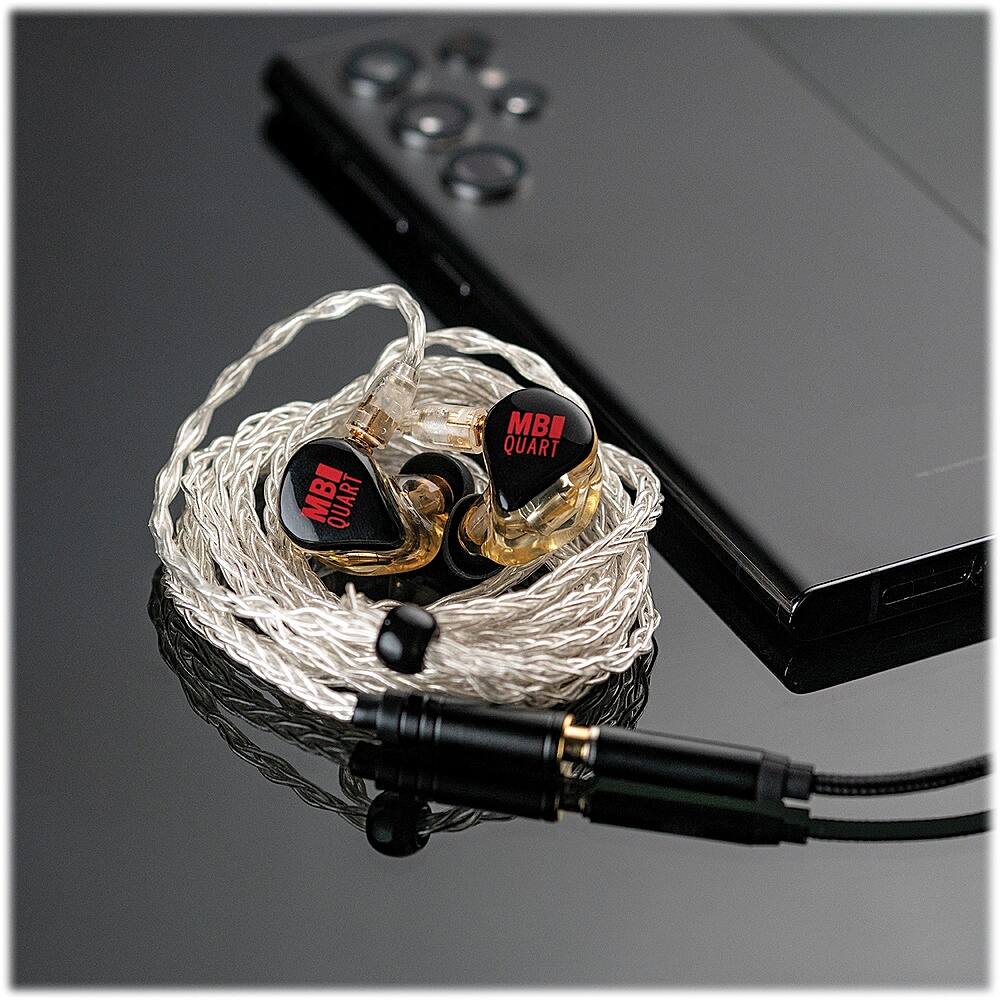

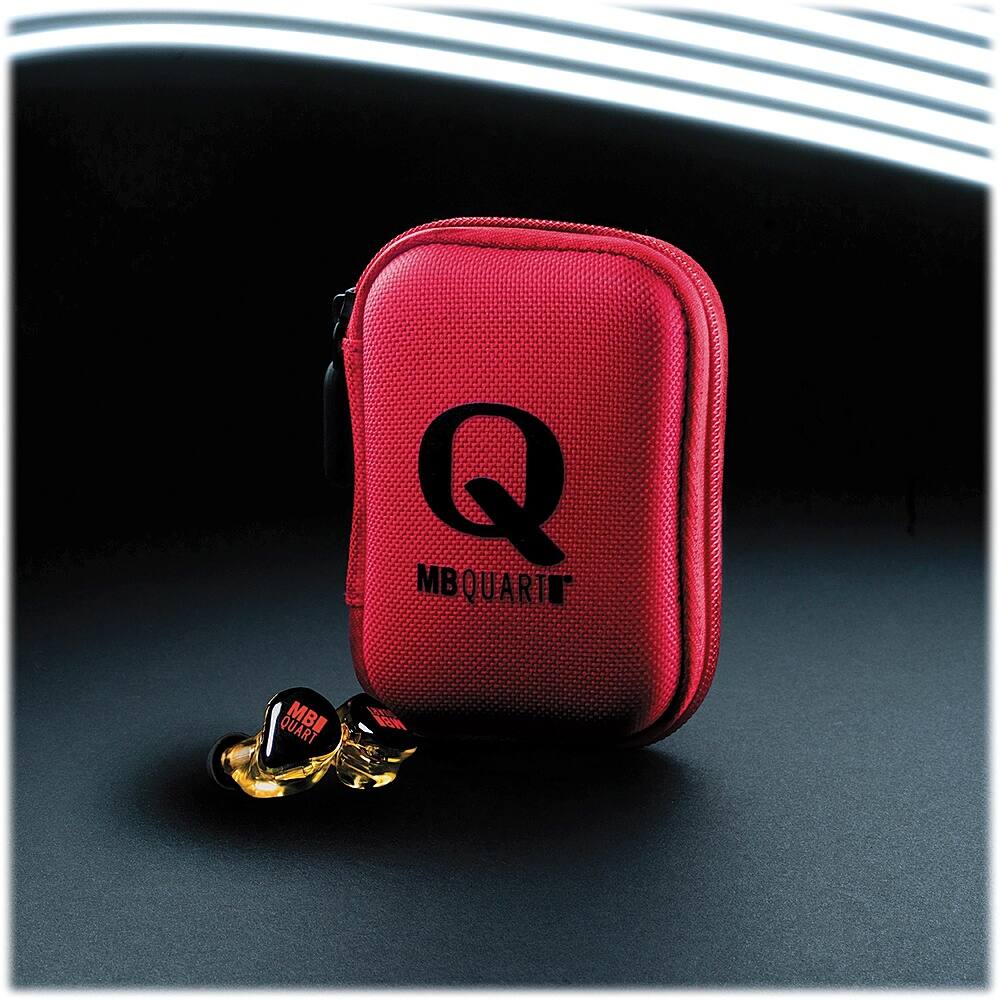

- Q Series audiophile in-ear studio monitors are included to bring the Q listening experience on the go: Offer 3.5mm connectors with adapters for both USB Type-C and Lightning devices.

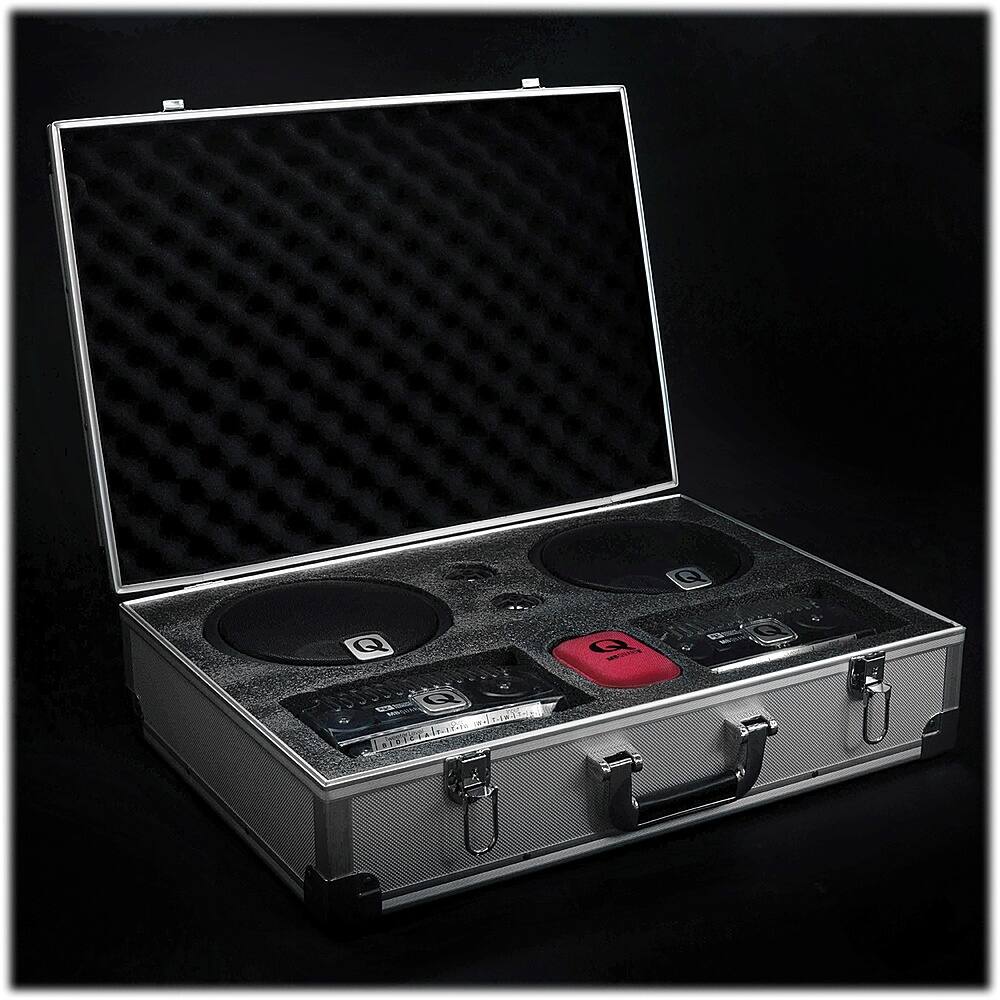

Whats Included
- MB Quart Q Series 6-1/2" 2-Way Car Speakers with Mica Filled Polypropylene Cones (Pair)

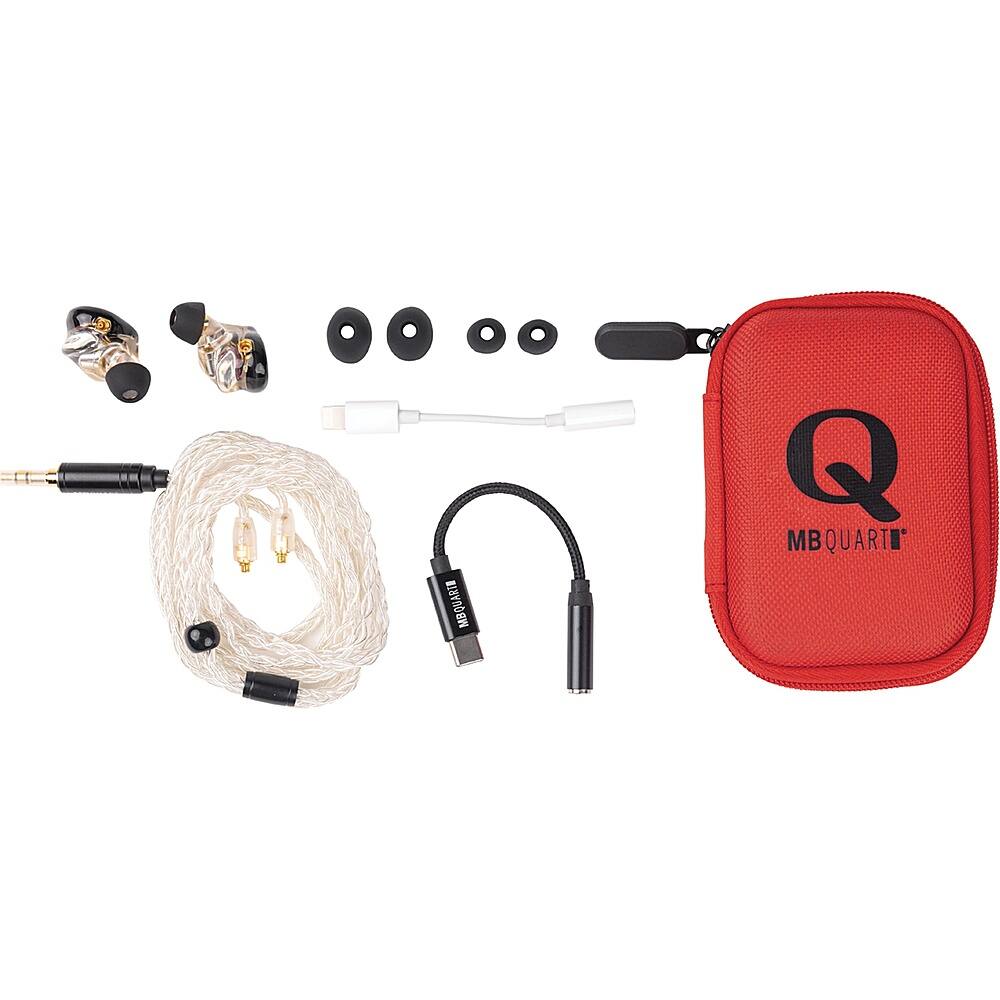

- Q Series audiophile in-ear studio monitors
Product Manuals
Q: What is the frequency response range of the speakers?
A: The minimum frequency response is 35 hertz and the maximum frequency response is 32 kilohertz.
Q: What is the depth of the speaker mount?
A: The mount depth of the speaker is 2.5 inches.
Q: How long is the warranty on the speakers?
A: The manufacturer's warranty for both parts and labor on the speakers is 1 year.
Q: Is the crossover network included with the speakers?
A: This MB Quart Q Series component car speaker system features an external audiophile Q Control crossover network.

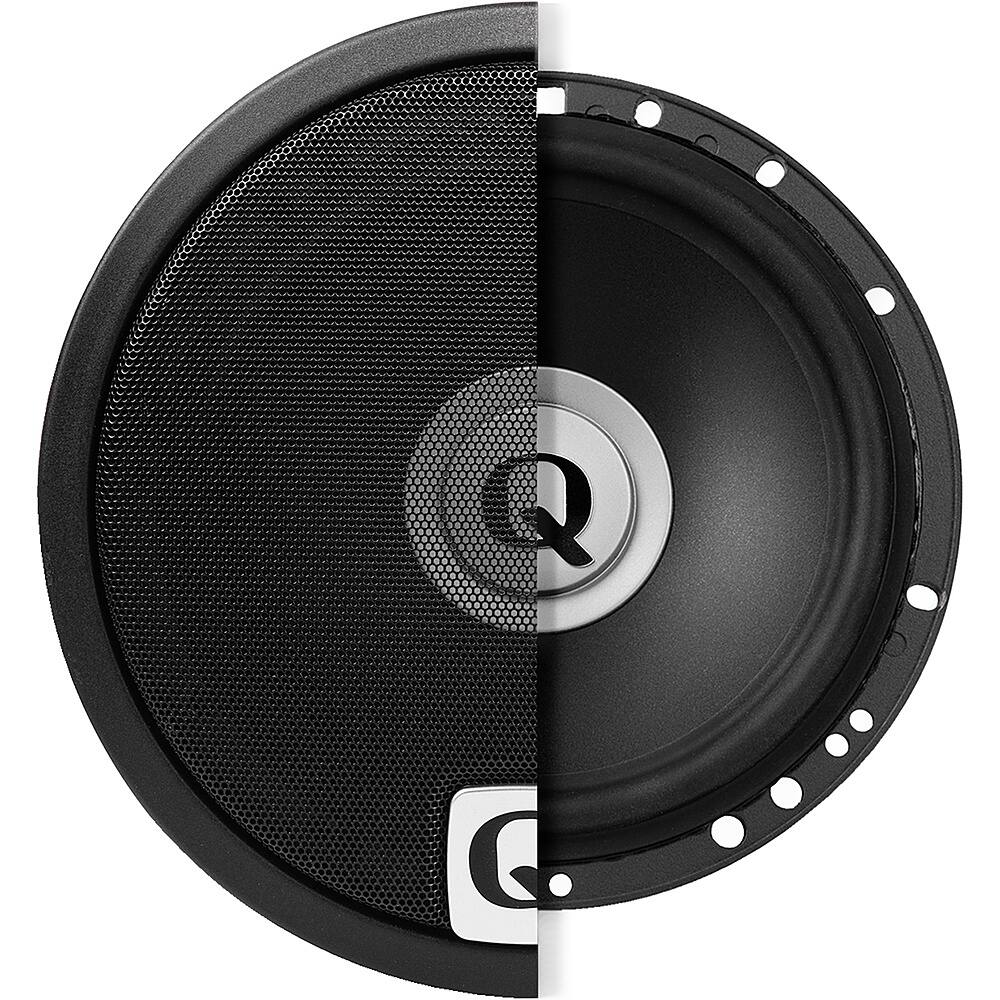

Q: Do the speakers come with a grille?
A: The MB Quart Q Series two-way component speaker system does include grilles.
Q: What is the power handling of the speakers?
A: The peak power handling of these speakers is 360 watts.
