Memphis Car Audio - Memphis PRX824v2 Power Reference 8" 2/4 Ohm Selectable Impedance Subwoofer - Black/Gray
Related Item
Specifications
- RMS Power200 wattsWoofer Size8"
- Key Specs
- RMS Power: 200 watts (The maximum amount of continuous power the device is able to handle.)
- Woofer Size: 8"
- General
- Brand: Memphis Car Audio
- Model Number: PRX824v2
- Product Name: Memphis PRX824v2 Power Reference 8" 2/4 Ohm Selectable Impedance Subwoofer
- Color: Black/Gray
- Audio Power
- RMS Power: 200 watts (The maximum amount of continuous power the device is able to handle.)
- Features
- Marine: false
- Dimensions
- Woofer Size: 8"
- Product Height: 10.300 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 5.600 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 10.300 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 5.9 pounds (The out of box weight of the item.)
- Enclosure
- Enclosed: true
- Warranty
- Warranty - Parts: 1-Year Manufacturer Warranty
- Warranty - Labor: None
- Other
- UPC: 702588002949

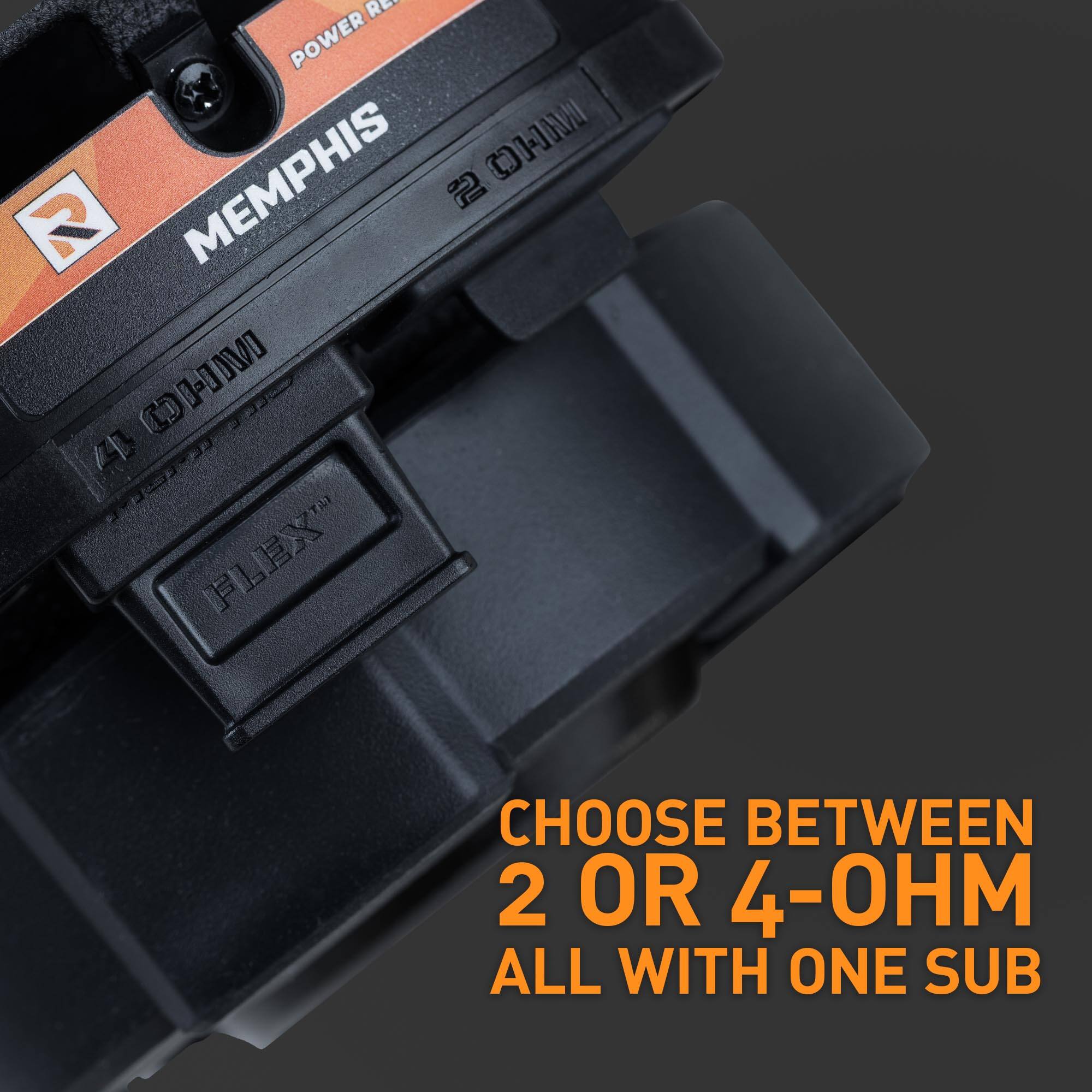

The PRX824V2 8″ Power Reference subwoofer is designed to deliver big bass in a compact package, making it perfect for custom audio builds or factory subwoofer upgrades. Now featuring FLEX technology and the new Memphis jumper plug style terminal, this subwoofer offers unparalleled versatility. With a simple adjustment of the jumper plug, you can seamlessly switch between 2-Ohm and 4-Ohm impedances, giving you the flexibility to add a second woofer in the future or configure your system to match your setup. Built with the same reliability and durability that Power Reference subwoofers are known for, the 8″ model brings legendary Memphis sound to even more locations. Once you hear the PRX824V2 in action, you’ll see why Power Reference subwoofers remain a fan favorite for delivering exceptional performance and value. FEATURES • 8” FLEXTM Dual Selectable Impedance design • FLEX Plug Terminal – Move the plug to select impedance • DVVC Direct Voice Coil Cooling technology • Black on black polypropylene cone • Stitched butyl rubber surround • Reinforced spider • Improved suspension and coil design • Woven tinsel leads • High temperature TIL voice coil former SPECIFICATIONS PRX824V2: Selectable Voice Coil 2-Ohm or 4-Ohm SIZE (IN): 8 RMS/PEAK POWER: 200/400 SENSITIVITY(Db): 84 @ 2-Ohm / 84 @ 4-Ohm MAGNET SIZE (Oz): 33 MOUNTING DEPTH: 3.9 CUT OUT DIAMETER: 6.92 VOICE COIL: 1.5
- Key Feature: Flexible Impedance Selection – The innovative Flex Triple Voice Coil Technology allows you to switch between two ohm, or four ohm impedance, making it easy to optimize your system or expand it later.
- Key Feature: Deep and Powerful Bass – With 200 watts RMS and eight hundred watts peak power, this subwoofer delivers strong, accurate low frequencies for a high-impact audio experience.
- Key Feature: Advanced Cooling for Reliability – Direct Voice Coil Cooling Technology helps dissipate heat efficiently, preventing overheating and ensuring consistent performance even during extended use.
- Key Feature: Durable and High-Quality Build – Features a black-on-black polypropylene cone, stitched butyl rubber surround, and reinforced spider for maximum strength and long-term reliability.
- Key Feature: Compact Yet High-Performance Design – A five point one inch mounting depth, sixty-three ounce magnet, and two inch high-temperature voice coil make this subwoofer a perfect fit for powerful custom installations.
Whats Included
- Memphis PRX824v2 Power Reference 8" 2/4 Ohm Selectable Impedance Subwoofer
