Metra - 3-Position Power/Ground Distribution Block - Black
- General
- Brand: Metra
- Model Number: TC4DB-2
- Product Name: 3-Position Power/Ground Distribution Block
- Color: Black
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- Product Width: 10 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Height: 5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 13 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 0.19 pounds (The out of box weight of the item.)
- UPC: 086429256518

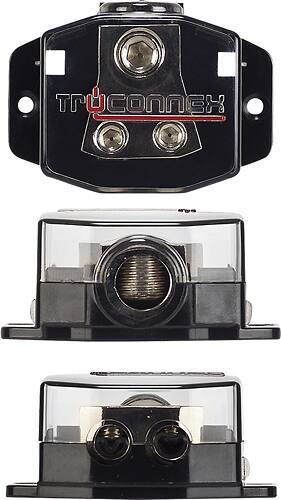

This Metra TC4DB-2 3-position power/ground distribution block sends power from your vehicle's battery to peripherals and features real brass construction for smooth signal transfer. The plastic housing provides durability.
- Real brass construction:
With a satin nickel finish provides smooth signal transfer. - Plastic housing:
Offers durability. - Input for up to 0 AWG wire:
Along with 3 outputs for up to 4 AWG wire allows easy connections.
Whats Included
- Metra 3-Position Power/Ground Distribution Block
Q: Can you input 1 #4 wire and output 2 #4 wires ??
A: Yes this outputs 2 4 gauge wires and can input a 4, 2, or 0 guage wire
Q: Will it support any gauge wire?
A: I used it for connecting 0 gauge power wire to gauge to route to the amps.
Q: Can I use this to run ground only for my two my speakers that need 12 v because they have LED lights
A: yes can be used either for ground or for positive leads.
Q: Can you use 8 gauge wire in/out ? Would that work ?
A: Yes, technically you can HOWEVER you would more than likely draw more current than a 8ga wire could handle and that's why they say 4ga in 8ga out. Think about it, you have 2 8ga on the output each pulling there own current from the same input wire.
Q: Can you run a power in and a power and ground out to amp with this
A: No. Distribution blocks are designed to distribute power (+) OR ground (-). Personally I would only use this distribution block for ground (-). Look into one with a separate fuse for each amp if using it for power (+).
Q: Will it hurt anything to go 4 in and 4 out to one amp and 8 out to the other amp
A: I dont see why this would be an issue. If you run 4 gauge into them you can go smaller coming out depending on the needs of your amps. I went 1 in and 4 out on both of my distribution blocks. These don't regulate power just split into smaller wires. You'll still have 12v going through it.
