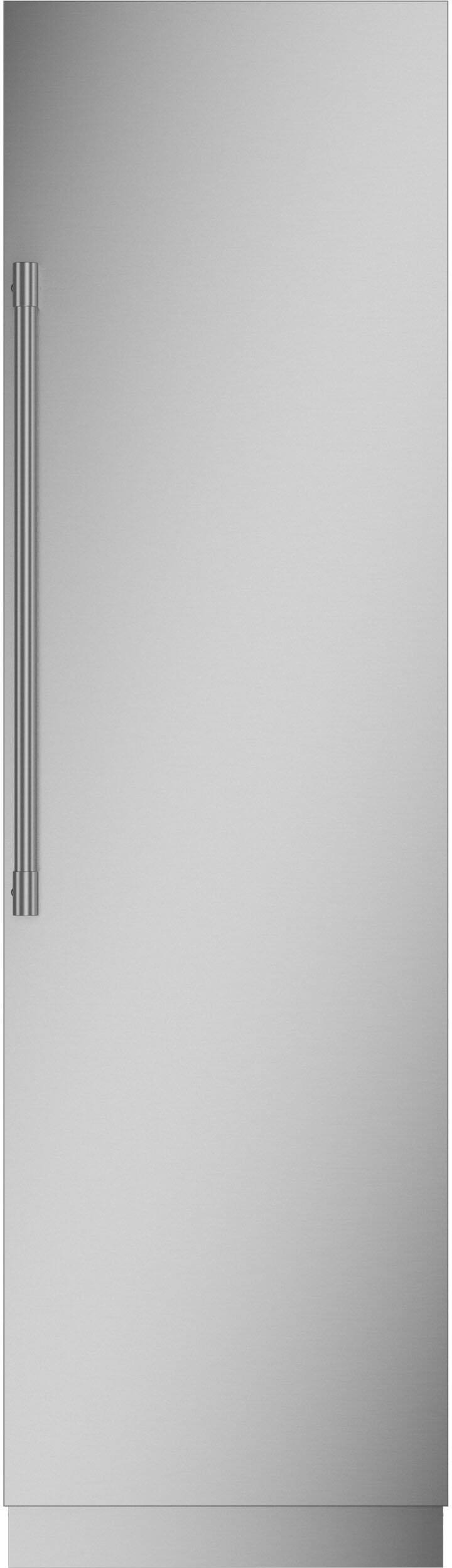

Monogram - 24 in. Wide 13.3 Cu. Ft. Column Built-In Smart Refrigerator with Ramp-Up Interior LED Lighting - Custom Panel Ready
Specifications
- Color FinishCustomProduct Height83 1/4 inchesProduct Width23 1/2 inchesHeight To Top Of Door Hinge83 1/4 inchesTotal Capacity13.3 cubic feetRefrigerator StyleCompact
- Key Specs
- Color Finish: Custom
- Product Height: 83 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 83 1/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Total Capacity: 13.3 cubic feet
- Refrigerator Style: Compact
- Lighting Type: LED
- Ice Maker: No
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Monogram
- Model Number: ZIR241NBRII
- Product Name: 24 in. Wide 13.3 Cu. Ft. Column Built-In Smart Refrigerator with Ramp-Up Interior LED Lighting
- Color: Custom Panel Ready
- Color Finish: Custom
- Side Panel Color: Silver
- Dimensions
- Product Height: 83 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 83 1/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 24 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth With Door 90 Degrees Open: 27 3/8 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 450 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 84 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 23 13/16 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 25 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 13.3 cubic feet
- Refrigerator Capacity: 13.25 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Column (The size, arrangement, and physical configuration of the product.)
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: Compact
- Fingerprint Resistant: false
- Garage Ready: false (Garage Ready appliances have been tested by the manufacturer to operate within a wider range of external temperatures than the average home environment, such as a garage which can fall below freezing or heat above 100 degrees Fahrenheit. Please refer to the manufacturer's documentation for detailed external operating temperature requirements.)
- Door-Open Alarm: true
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Touchpad
- Display Type: LCD
- Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: true
- Hinge Setting: Reversible left/right
- Lighting Type: LED
- Wireless Connectivity: WHDI (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Ice & Water
- Ice Maker: No
- Ice and Water Dispenser: None
- Storage
- Number of External Doors/Drawers: 1
- Number of Refrigerator Shelves: 3
- Refrigerator Shelf Style: Fixed, Adjustable
- Quick Access Door: false (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Humidity-Controlled Crisper: true
- Deli Meat Drawer: true (Designated storage for deli and other meats helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: Edge to Edge Glass
- Freezer Info
- Freezer Compartment: false
- Filter Info
- Water Filtration: false
- Electrical
- Amperage: 20 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 301 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 36 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- Chemical Disclosures: Consumers may visit https://www.geappliances.com/chemical-reports to learn more about chemicals in certain GE Appliances products. Los consumidores pueden visitar https://www.geappliances.com/chemical-reports para obtener más información sobre los productos químicos en ciertos electrodomésticos de GE Appliances. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: Limited 2-year entire appliance, Limited 12-year sealed refrigerating system parts
- Warranty - Labor: Limited 2-year entire appliance, Limited 5-year sealed refrigerating system
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 084691871194
Through passion and precision, Monogram is redefining the world of luxury appliances one detail at a time. We engineer steel to move as if it’s weightless. We create features that feel anything but ordinary. We select materials that perform and add a luxurious presence. And with two new collections, Monogram appliances complement any style preferences. The Statement Collection features edge-to-edge handles, polished stainless steel and brass accents that unify the overall appearance. The Minimalist Collection’s streamlined appearance and precisely machined metals create a contemporary yet functional aesthetic. Every Monogram column refrigerator and freezer is also outfitted with premium features the experts use. Ramp-up LED interior lighting throughout the freezer and refrigerator compartments accentuates the sophisticated interior and allows easy viewing of contents. WiFi Connect Technology lets you control column functions from a smart device. And you can choose from 24”, 30" or 36” models, with stainless steel or custom panel exteriors. Altogether, Monogram appliances look, feel, and perform as if they were designed perfectly for you.

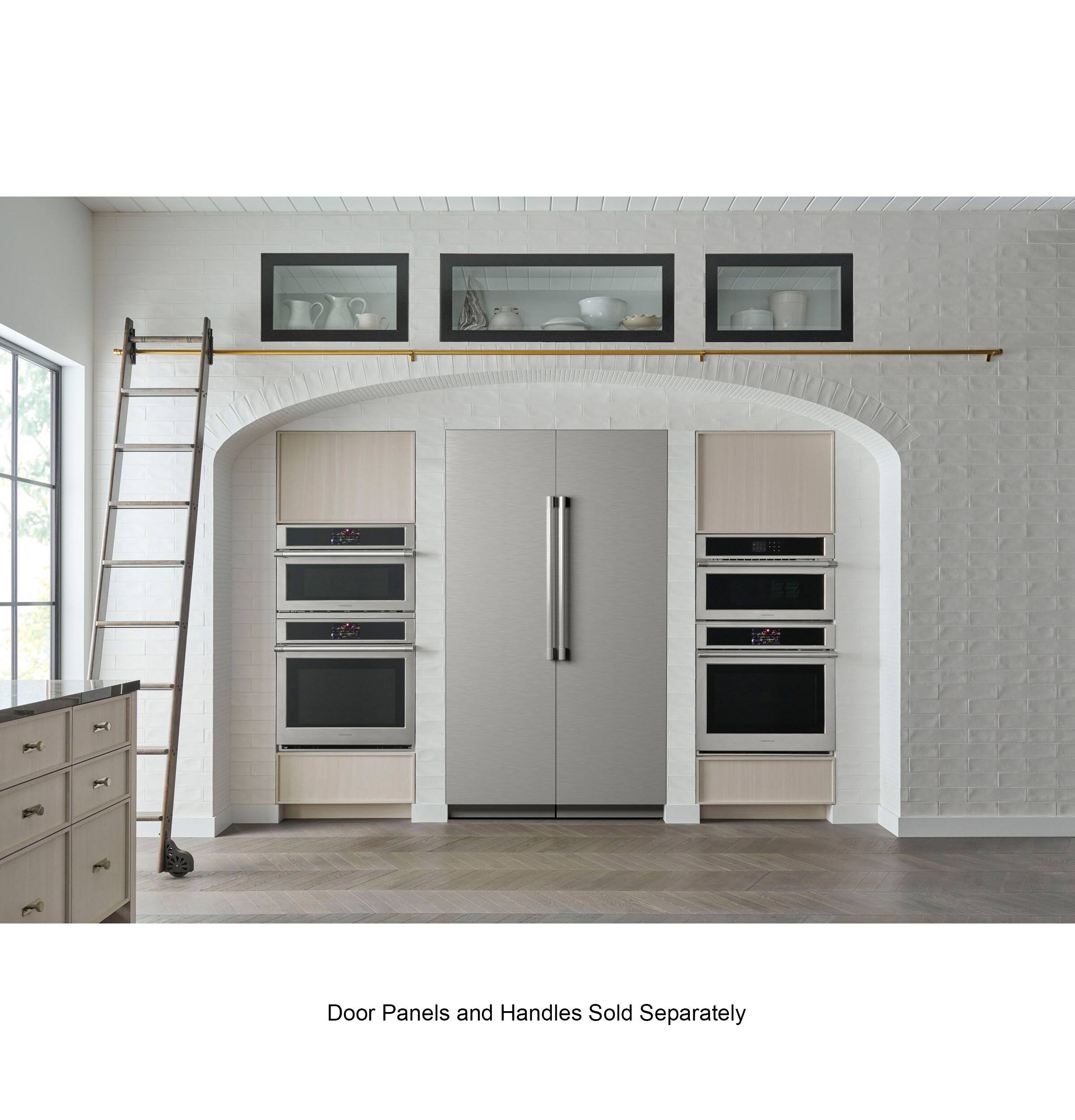

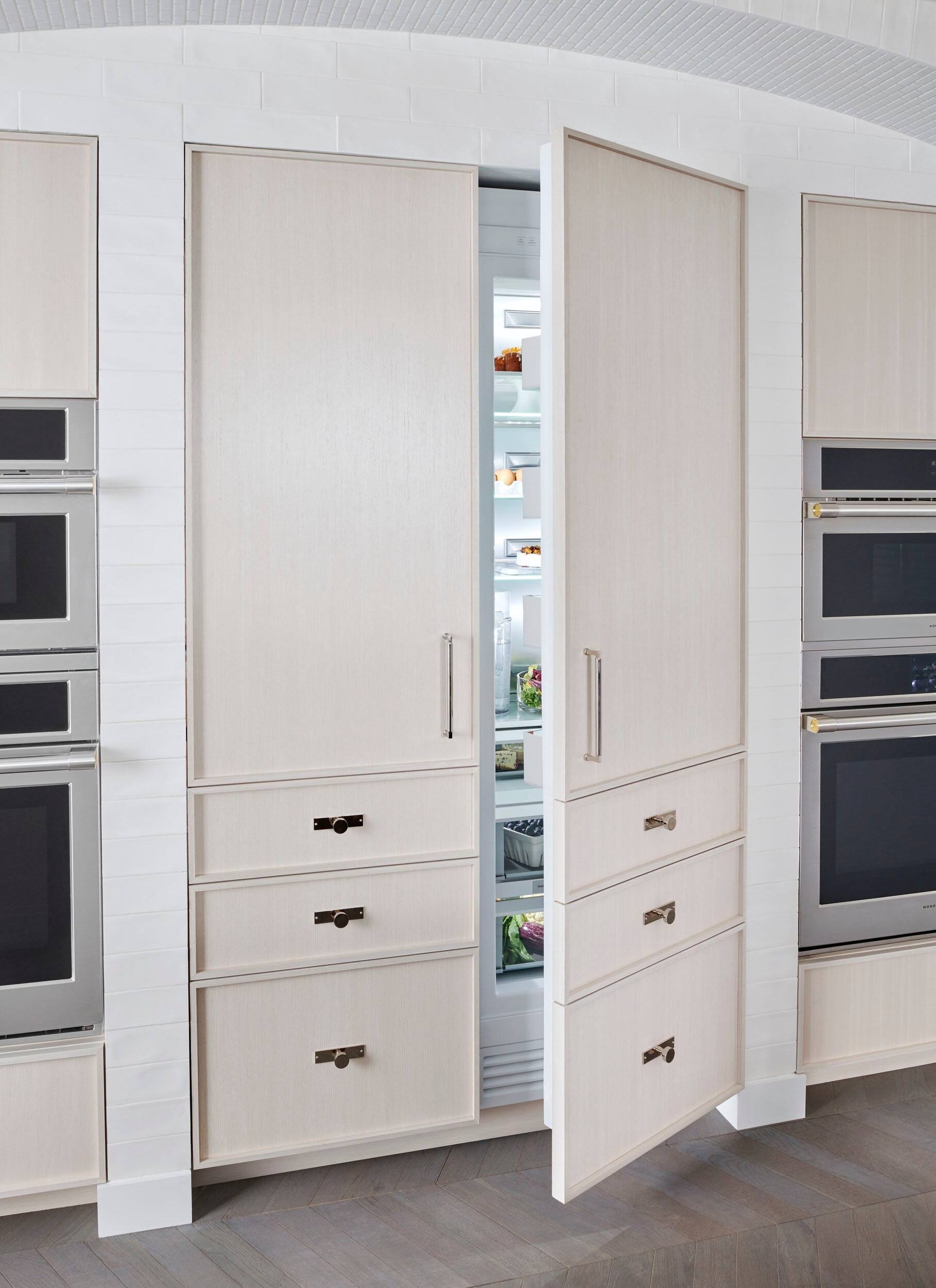

- Fully integrated column design: With concealed hinge offers a look of seamless perfection that installs flush with surrounding cabinetry

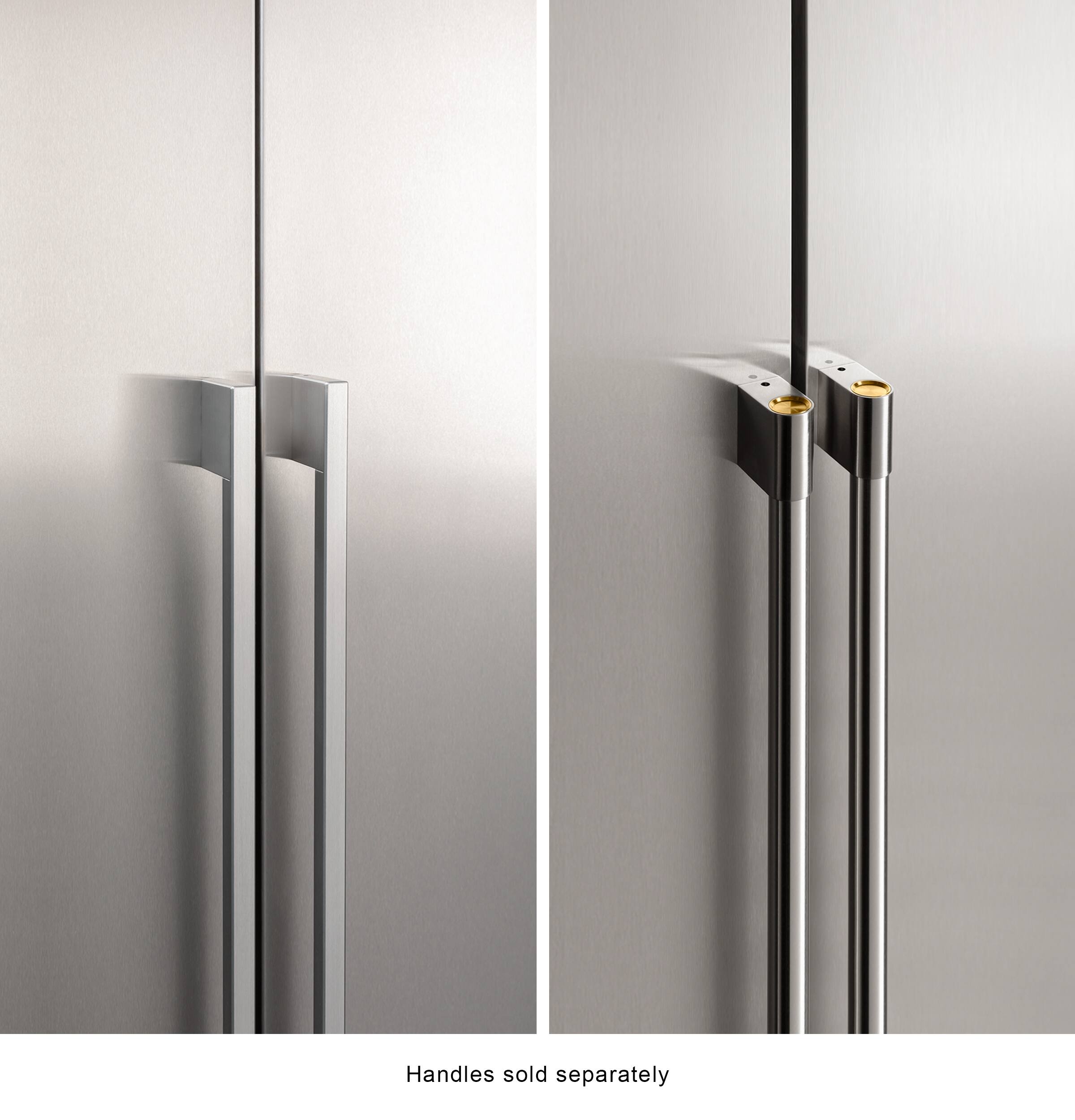

- Statement and Minimalist Collection Refrigerator Handles (sold separately): Designed to enhance choice and customization, Statement and Minimalist Collection refrigerators do not come with handles. Handles must be chosen separately and ordered through a Monogram representative

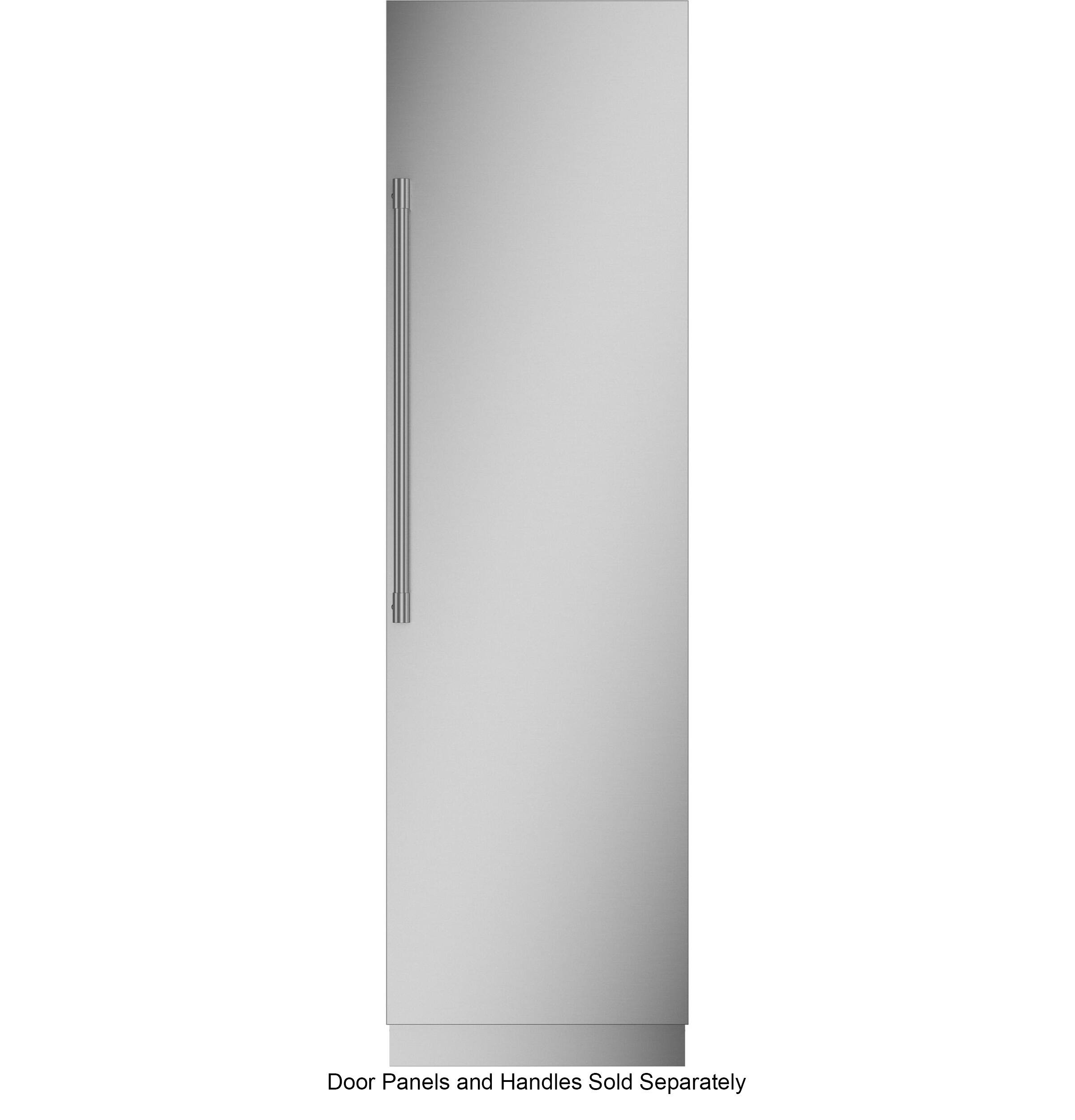

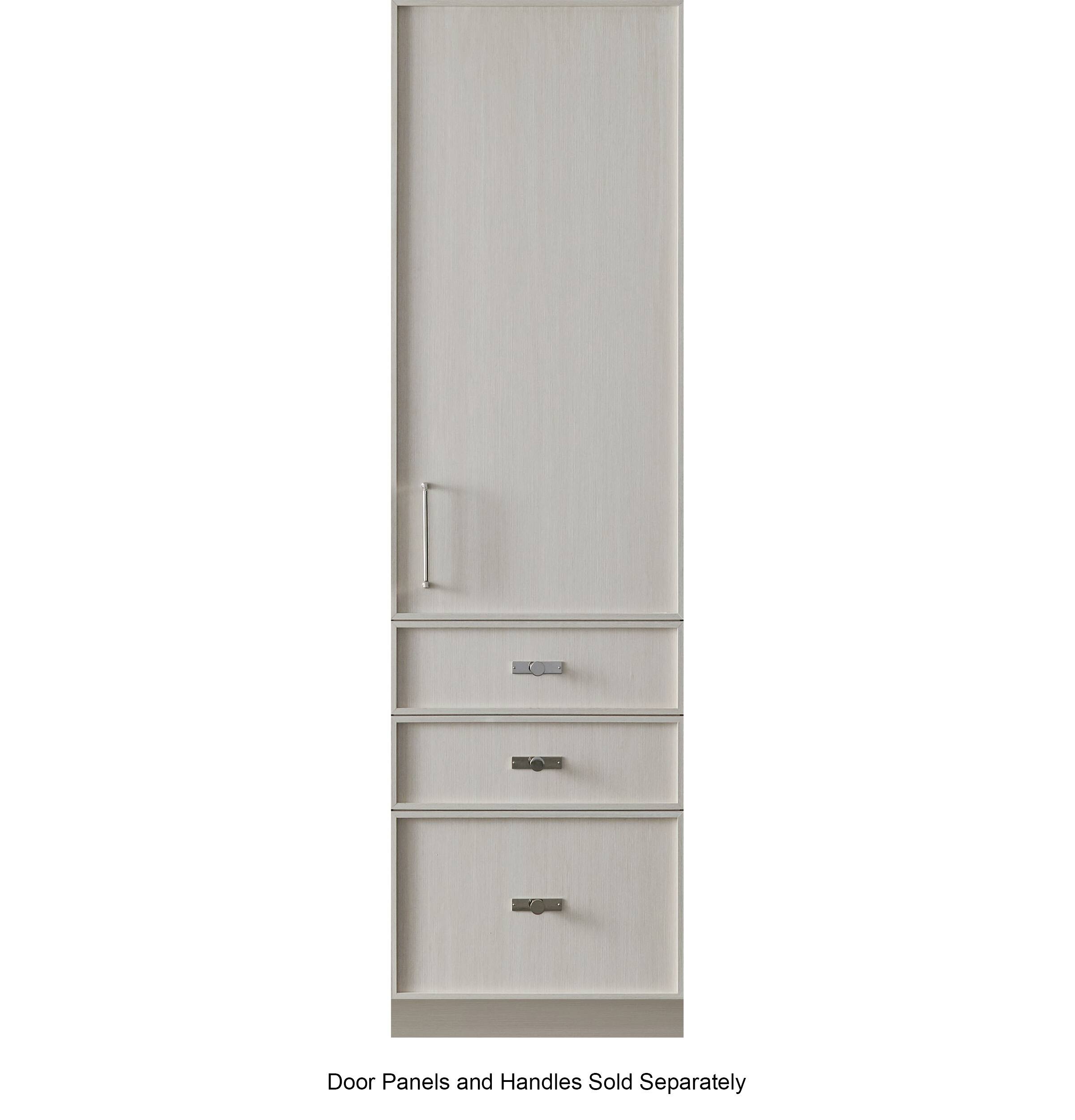

- Panel-ready exterior with six-way adjustability: Accepts Statement or Minimalist Collection stainless steel panels ordered separately from Monogram or custom panel & handle from your cabinet maker
- Retrofit capability: Allows you to replace a 35-1/2” or 36” single installed product with a 36" column product with no cabinet or electrical modifications. Allows you to replace two 36" dual installed products with two 36" column products with no cabinet or electrical modifications
- Ramp-up LED interior lighting: Throughout the freezer compartment accentuates the sophisticated interior and allows easy viewing of contents

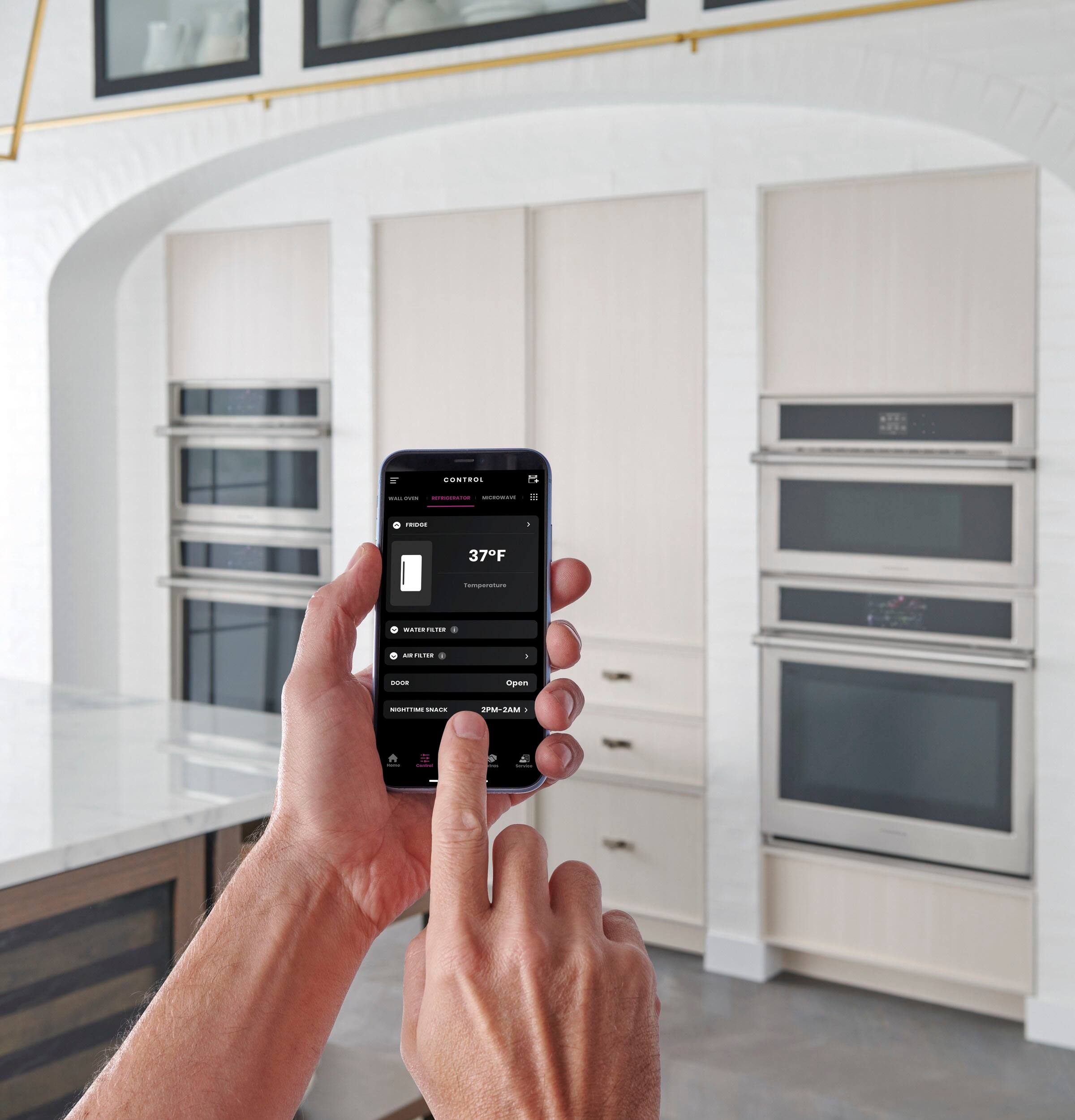

- Remote connectivity via WiFi: Allows you to wirelessly control refrigerator settings from your smartphone, using an available app
- Adjustable, edge-to-edge glass shelves: Provide convenient storage and a clean appearance
- Finely crafted, adjustable door bins with clear fronts: Offer easy access to beverages and quick-grab items

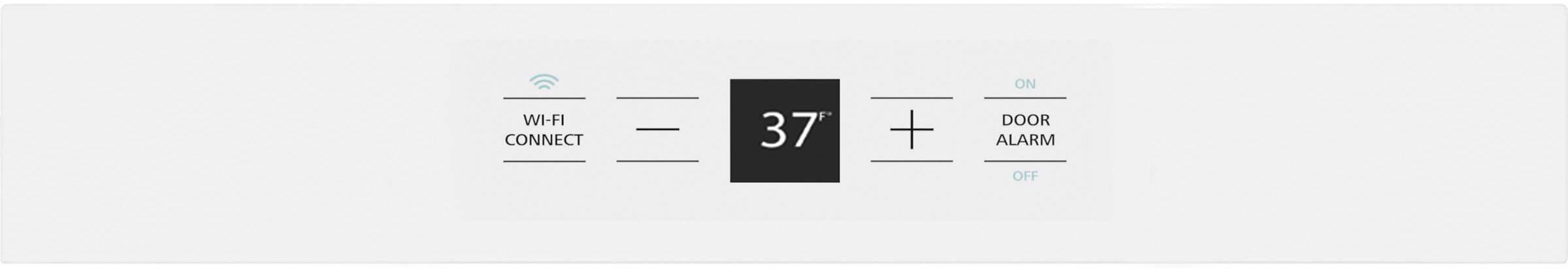

- Upfront, electronic-touch controls: Make it easy to adjust climate settings to create ideal food storage conditions
- Temperature-controlled drawer: Offers added storage flexibility with pre-programmed settings for meat, beverage, and deli
- Soft-close drawers: Use an innovative sliding mechanism to help the drawers close gently and completely
- Humidity-controlled vegetable drawer: Helps preserve the freshness of foods
- Dedicated evaporator sealed system: Helps maintain a precise temperature throughout the freezer compartment
- Enhanced Shabbos Mode: The Shabbos Keeper connects to your refrigerator to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately)

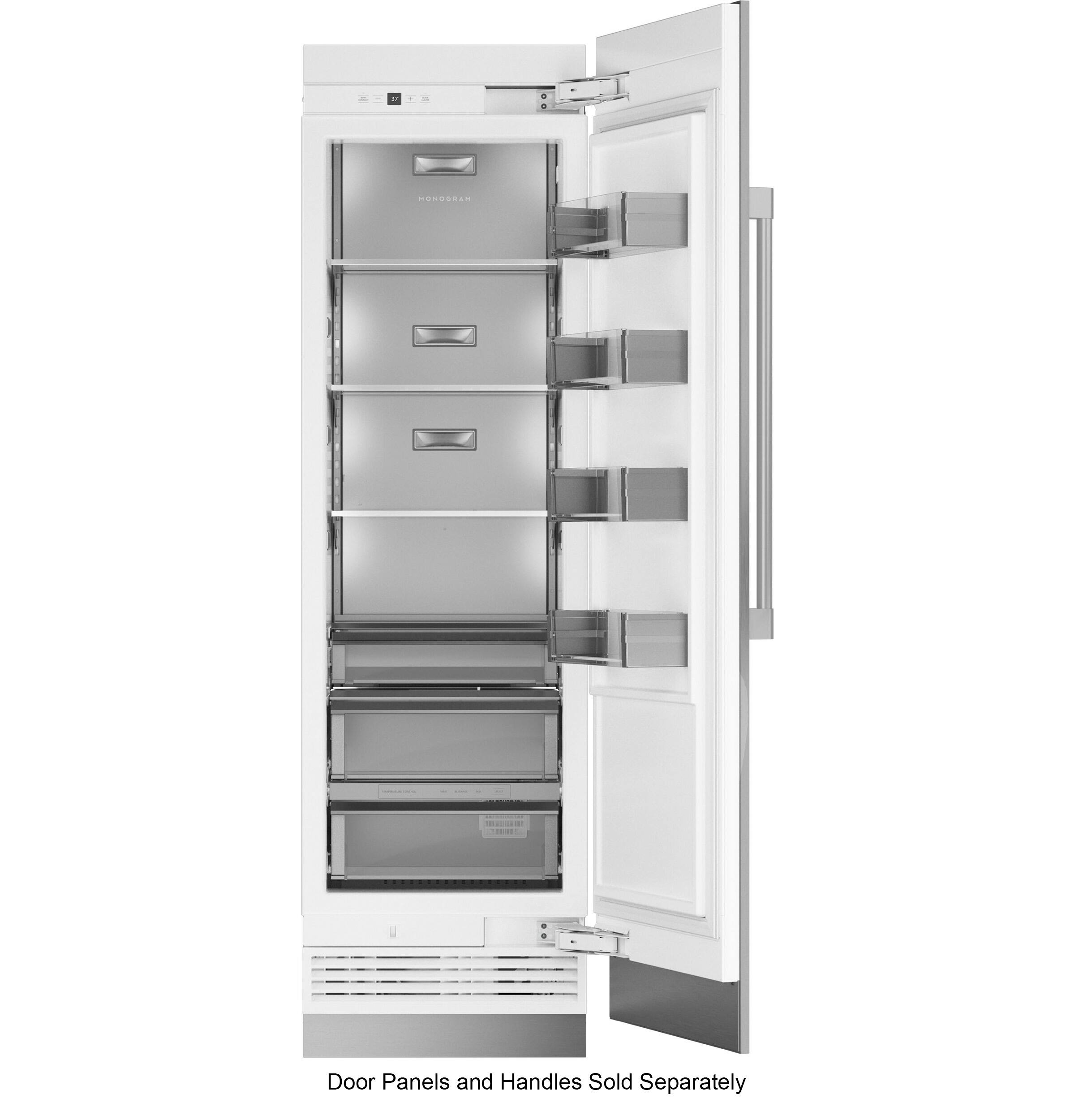

- Requires the installation of custom panels and handle (not included): Statement Handle Kit (ZKSP1H1PNSS) or Minimalist Handle Kit (ZKSP1H1CNSS)
Whats Included
- Monogram 13.3 Cu. Ft. Column Built-In Smart Refrigerator
Product Manuals
Documents
- Energy_Guide_PDF
Disclaimers
- Panel-ready products are designed to be fitted with custom cabinetry panels and handles, allowing them to blend seamlessly into your kitchen's design. If you do not install a panel on a panel-ready product, the unit will still function properly, but it will appear unfinished and aesthetically unappealing. Panels/Handles are sold separately.
Q: What material are the shelves made of?
A: The shelves of the Monogram 13.3 Cu. Ft. Column Built-In Smart Refrigerator are made of edge-to-edge glass. This material provides convenient storage and a clean appearance within the refrigerator.
Q: What is the difference between the Statement and Minimalist Collection refrigerator handles?
A: The Statement Collection features edge-to-edge handles with polished stainless steel and brass accents, while the Minimalist Collection has streamlined handles with precisely machined metals. Both collections are designed to enhance choice and customization and must be ordered separately.
Q: What does the dedicated evaporator sealed system do?
A: The dedicated evaporator sealed system in the Monogram 13.3 Cu. Ft. Column Built-In Smart Refrigerator helps maintain a precise temperature throughout the freezer compartment, ensuring optimal food preservation and preventing freezer burn.
Q: Does this refrigerator have a special mode for the Sabbath?
A: Yes, this Monogram refrigerator has an "Enhanced Shabbos Mode." It requires a separately sold Shabbos Keeper to connect to the refrigerator and automatically enable Shabbos-compatible modes each week and before holidays.
Q: Does this refrigerator have a water and ice dispenser?
A: This refrigerator does not have a water and ice dispenser. The product specifications clearly state "Ice and Water Dispenser: None".
Q: What makes the vegetable drawer humidity-controlled?
A: The humidity-controlled vegetable drawer in the Monogram 13.3 Cu. Ft. Column Built-In Smart Refrigerator helps preserve the freshness of foods by maintaining an optimal humidity level. This is achieved through a dedicated evaporator sealed system that helps maintain a precise temperature throughout the drawer, creating ideal conditions for storing vegetables and fruits.
Q: What kind of lighting is used inside the fridge and freezer?
A: The interior of both the refrigerator and freezer compartments is illuminated with LED lighting. This "ramp-up" lighting gradually increases in brightness when the door is opened, making it easier to see the contents.
Q: What is the total usable capacity of this refrigerator?
A: The total capacity of this refrigerator is 13 cubic feet. The refrigerator compartment has a capacity of 13 cubic feet. The freezer compartment does not have a separate capacity listed.
